Description
xSPECIFICATIONS
Accuracy: ±3.6°F (±2°C) or ±2%
Battery Operation Time: >2.5 hours, typical use
Brand Name: NONE,FLIR
Built-in Visual Camera: 5 MP, fixed focus
Color: black
Customized support: OEM, ODM
Display: 640 x 480 pixels
IR Resolution: 320 x 240 pixels
Material: plastics
Model Number: E76
Origin: Mainland China
Place of Origin: Estonia
Temperature Range: -20 to 650°C
Theory: thermal imaging camera
Thermal Sensitivity: <30 mK at 86°F (30°C)
Type: thermal imaging camera
Warranty: 1 years
Weight: 2.2 lbs (0.99 kg)
Product Description

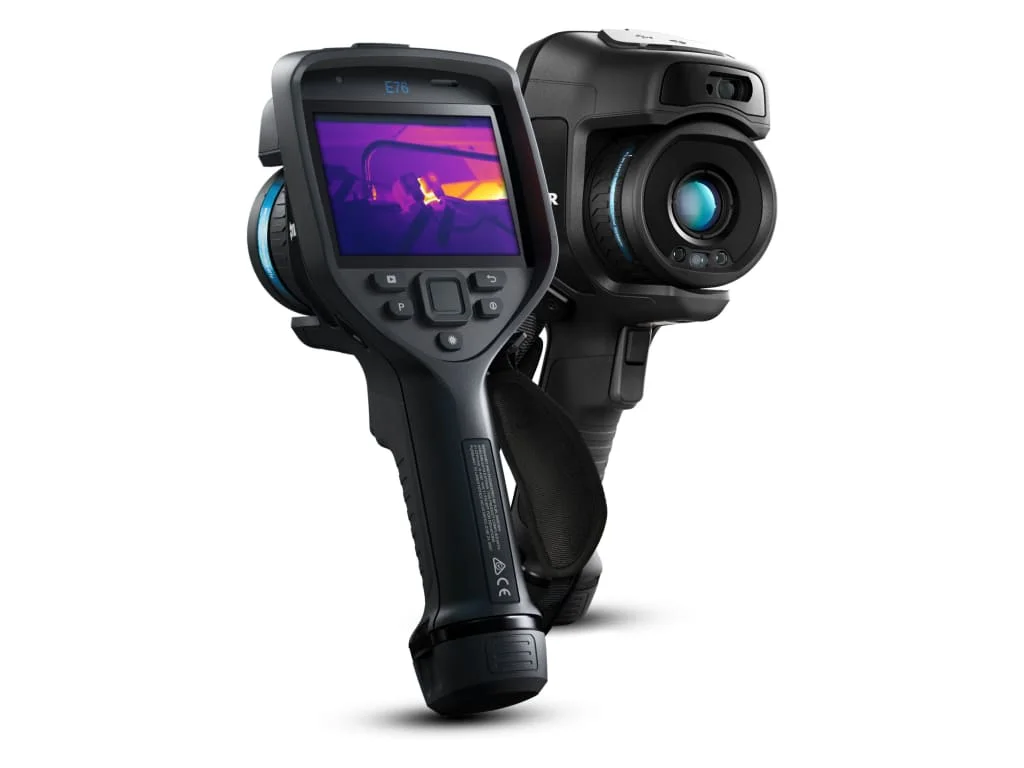

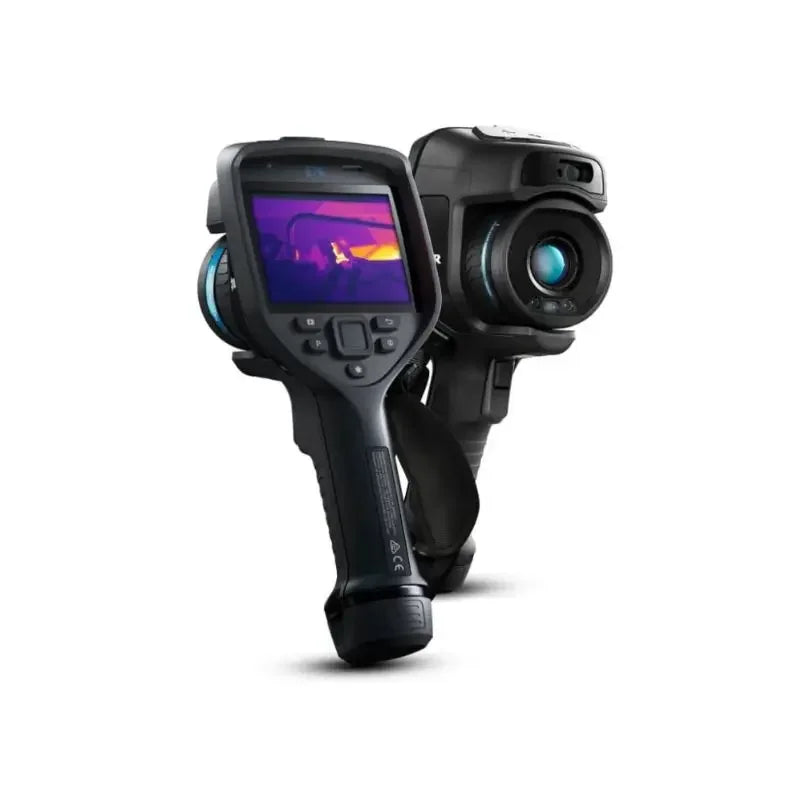

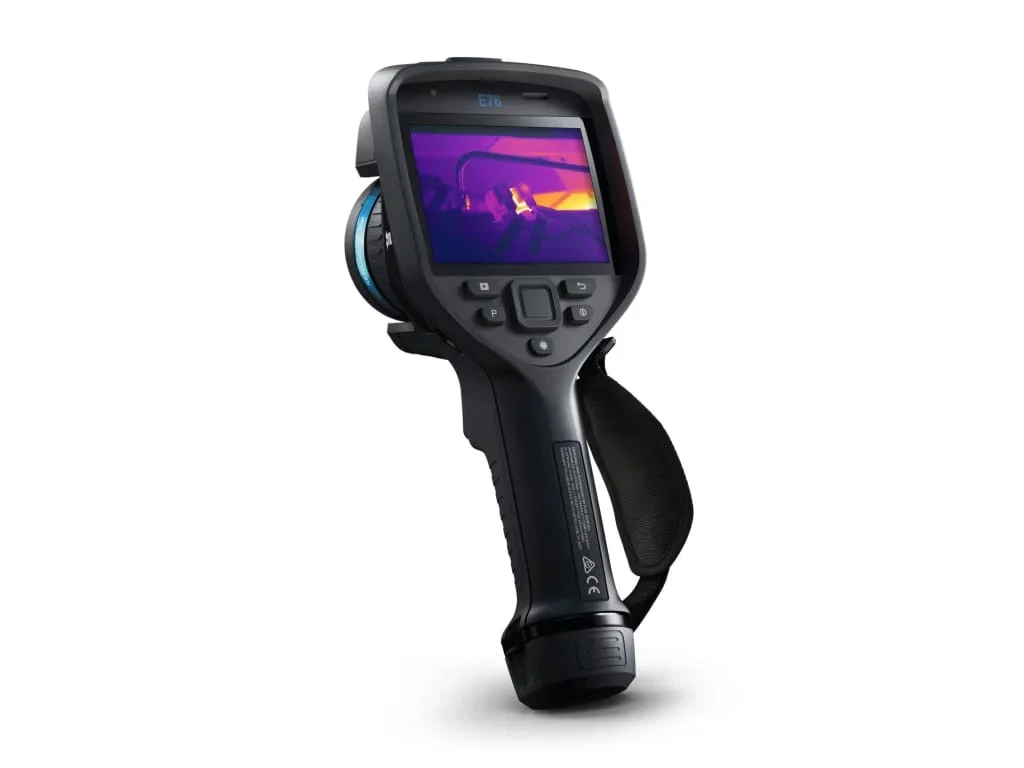

Designed to cover near and distant targets, this 320 x 240-pixel camera features a 24° lens, a 4 to 1202°F (-20 to 650°C)
temperature range, -assisted autofocus, and three area measurement boxes. Additionally, this camera comes with FLIR Ignite cloud connection for easy and secure image storage and sharing.
temperature range, -assisted autofocus, and three area measurement boxes. Additionally, this camera comes with FLIR Ignite cloud connection for easy and secure image storage and sharing.
E76 with 24 degree lens, 320x240
* 320 x 240 resolution
* Includes 24 degree lens
* Part number 78512-1101
* <40mK thermal sensitivity with 24° lens
* Accuracy: ± 3.6°F or ± 2%
* Compatible with interchangeable AutoCal lenses
* Camera can recognize a new lens and auto-calibrate, no need to send in for service
* Available AutoCal lenses are 14, 24 and 42 degree
* Includes Inspection Route option automatically enabled
* Inspection Route guides user along a pre-defined route so they can collect images in a structured manner
* 320 x 240 resolution
* Includes 24 degree lens
* Part number 78512-1101
* <40mK thermal sensitivity with 24° lens
* Accuracy: ± 3.6°F or ± 2%
* Compatible with interchangeable AutoCal lenses
* Camera can recognize a new lens and auto-calibrate, no need to send in for service
* Available AutoCal lenses are 14, 24 and 42 degree
* Includes Inspection Route option automatically enabled
* Inspection Route guides user along a pre-defined route so they can collect images in a structured manner
* Includes 24 degree lens
* Part number 78512-1101
* <40mK thermal sensitivity with 24° lens
* Accuracy: ± 3.6°F or ± 2%

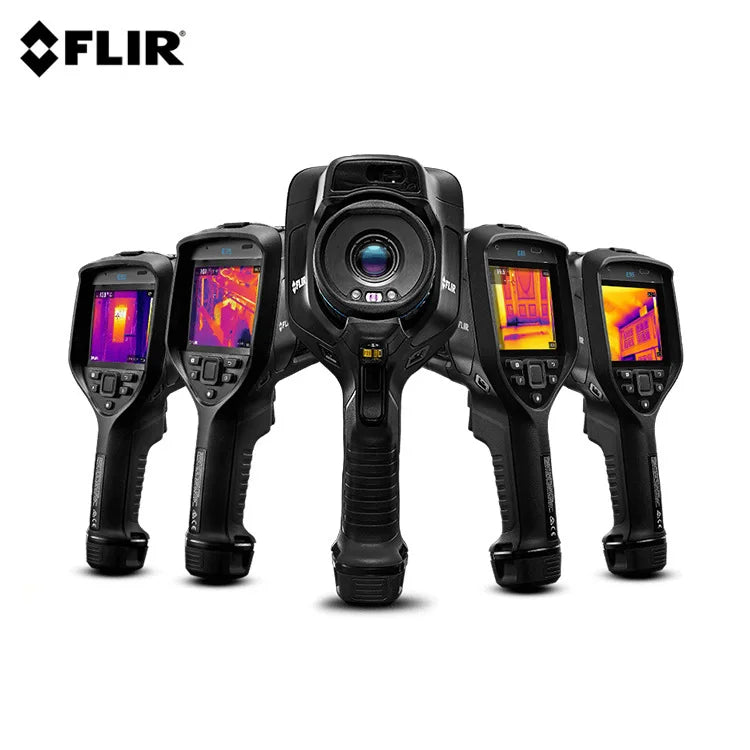

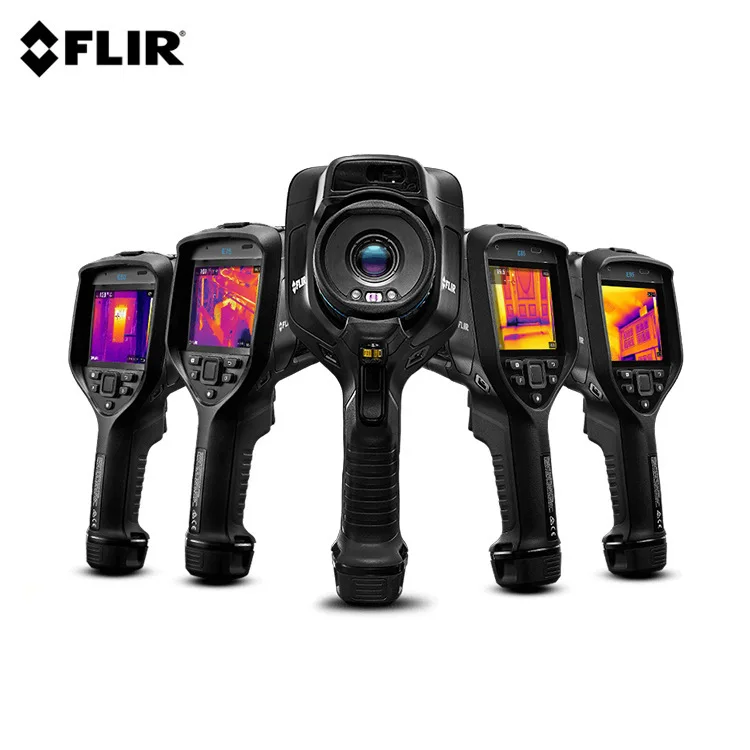

E76, E86, and E96 cameras are compatible with all of FLIR's interchangeable AutoCal lenses. The camera automatically recognizes when a new lens is attached and launches a wizard to begin auto-calibrating the camera with the lens-no need to send the camera in for service. This helps ensure the camera always produces high quality images and precise thermal measurements.
Specification
|
IR Resolution
|
320 x 240 pixels
|
|
Resolution with UltraMax Enhancement
|
307,200 pixels
|
|
MSX Image Enhancement
|
Yes: details from visual camera add depth and perspective
|
|
Built-in Visual Camera
|
5 MP, fixed focus, with built-in LED light
|
|
Thermal Sensitivity
|
<30 mK at 86°F (30°C)
|
|
Temperature Range
|
-4 to 248°F (-20 to 120°C)
32 to 1202°F (0 to 650°C) |
|
Accuracy
|
±3.6°F (±2°C) or ±2% of the reading
|
|
Focus Modes
|
Continuous distance meter (LDM), one-shot LDM, one-shot contrast, manual
|
|
Digital Zoom
|
1 to 4x continuous
|
|
Measurement Tools
|
Tools: 3 spot meters in live mode, 3 area meters in live mode
Presets: None, center spot, hot spot, cold spot, user presets 1 and 2 |
|
Lens
|
24°, macro (2x)
Identification: Automatic (FLIR AutoCal) |
|
1-Touch Level/Span
|
Yes: Automatic contrast enhancement
|
|
Pointer: Yes
Distance meter: Yes |
|
|
On-Camera
|
Routing software: FLIR Inspection Route enabled
Report building: Voice annotation and GPS tagging to images and video; on-screen text; sketch on infrared images from touchscreen |
|
FLIR Software Integration
|
FLIR Thermal Studio Suite, FLIR Research Studio
|
|
Radiometric JPEG
|
Yes
|
|
IR, Radiometric, Visual Video
|
Recording: Yes
Streaming: Yes, over UVC (radiometric, non-radiometric, visual) and Wi-Fi (non-radiometric, visual) |
|
Communication Modes
|
USB 2.0, Bluetooth, Wi-Fi, DisplayPort
|
|
Cloud Services
|
FLIR Ignite™ for direct, secure image uploading, organizing, and sharing via Wi-Fi (firmware update required for models purchased prior to 2022)
|
|
METERLiNK®
|
Yes via Bluetooth
|
|
Display
|
640 x 480 pixels (VGA) Dragontrail® touchscreen
|
|
Drop Testing
|
6.6' (2 m)
|
|
Battery Operation Time
|
>2.5 hours, typical use
|
|
Dimensions
|
11 x 4.6 x 4.4" (279.4 x 116.84 x 111.76 mm)
|
|
Weight
|
2.2 lbs (0.99 kg)
|
