Description
xSPECIFICATIONS
Air Temperature Range: 32 to 122°F (0 to 50°C)
Brand Name: NONE,FLIR
Color: black
Customized support: OEM, ODM
Image Update Speed Frequency: 9 Hz
Internal Memory: 8 GB
Model: MR277
Model Number: MR277
Object Temperature Range: 32 to 212°F (0 to 100°C)
Origin: Mainland China
Place of Origin: China
Product name: FLIR
Sensitivity: <70 mK
Spectral Response: 8 to 14 μm
Thermal Imaging Resolution: 160 x 120 (19,200 pixels)
Warranty: 1 years
Product Description
Clearly and accurately identifies building-related issues, this moisture meter combines the advantages of IGM and MSX with advanced environmental sensors to help you quickly locate, clearly identify, and easily document problems. In addition, the integrated pinless moisture sensor provides fast, non-invasive readings.
Accurate and easy-to-use, this all-in-one tool quickly locates moisture and building envelope issues and combines the advantages of Infrared Guided Measurement (IGM™) with Multi-Spectral Dynamic Imaging (MSX®). Additionally, the built-in hygrometer and the field-replaceable temperature/relative-humidity sensor expedite troubleshooting, and METERLiNK® allows you to connect to mobile devices and upload data to the FLIR Tools® app.
* Simplify documenting issues with the integrated digital camera
* Create a single file documenting thermal, visual, MSX, hygrometer readings, and location
* Download images and data via USB cable or

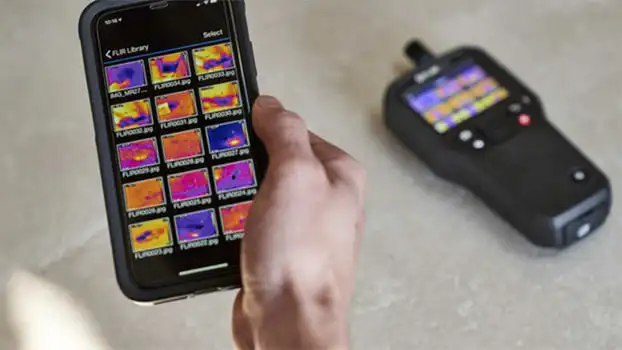

* Upload via Bluetooth® to the FLIR Tools® App
* Pinpoint the exact location of problems with the integrated
* Scan for moisture with the integrated non-invasive pinless sensor
* Create a single file documenting thermal, visual, MSX, hygrometer readings, and location
* Download images and data via USB cable or
* Upload via Bluetooth® to the FLIR Tools® App
* Pinpoint the exact location of problems with the integrated
* Scan for moisture with the integrated non-invasive pinless sensor

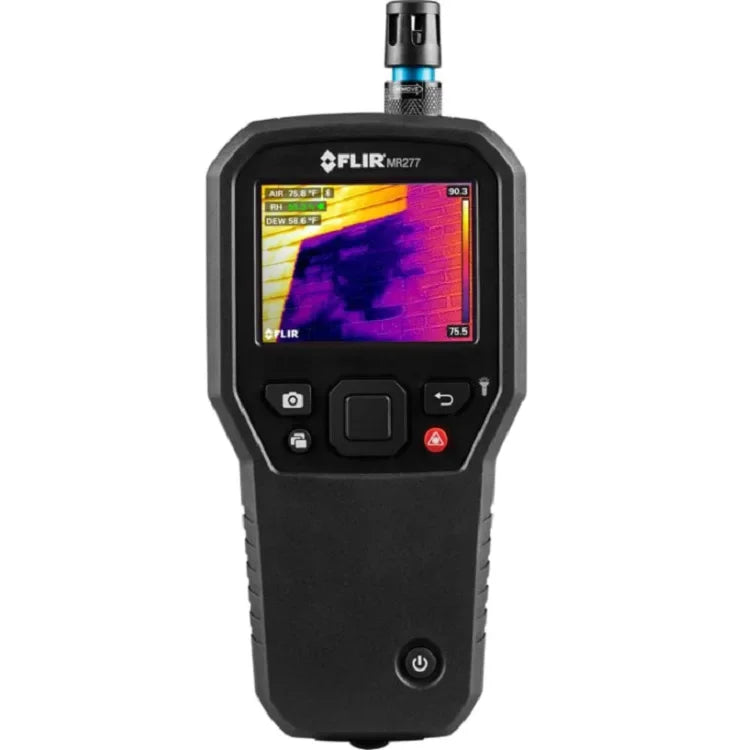

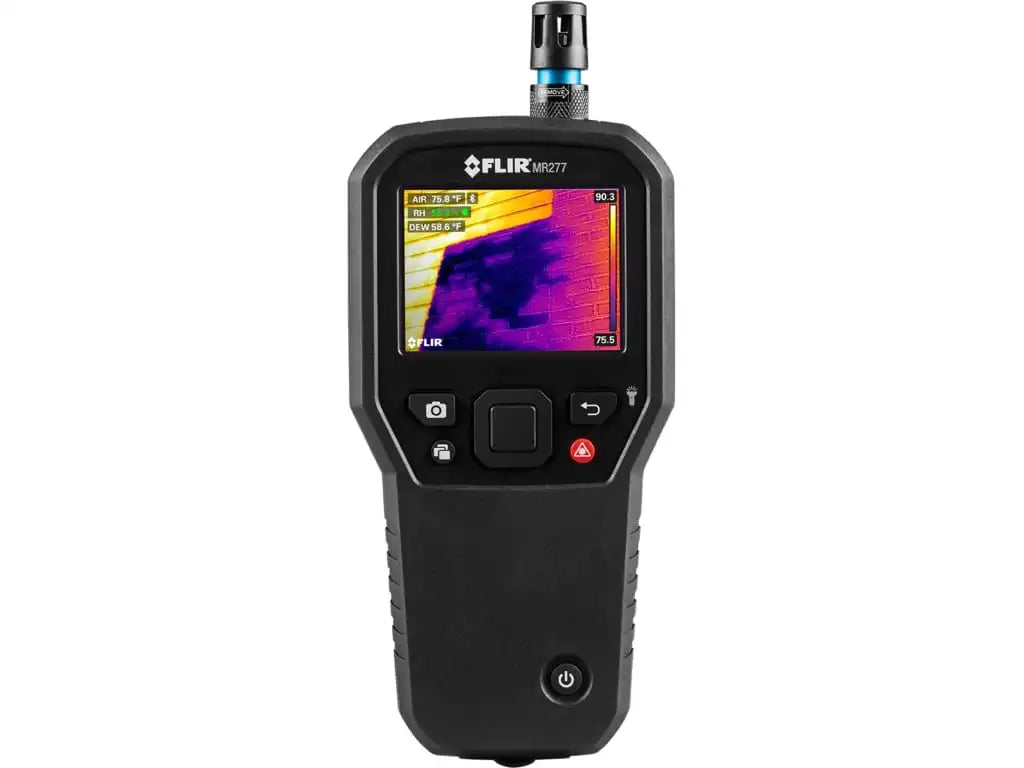

The MR277 is the first FLIR building inspection system to combine the advantages of Infrared Guided Measurement (IGM) and our patented Multi-Spectral Dynamic Imaging (MSX) with advanced environmental sensors to help you quickly locate, clearly identify, and easily document problems. IGM technology and a pointer isolate the area where you can use the integrated pinless moisture sensor for non-invasive readings or external pin probe for invasive measurements. With automatically calculated environmental readings and a field-replaceable humidity/temperature sensor, the MR277 lets you finish the job and minimize downtime. Connect to external devices with METERLiNK® and use FLIR Tools® to enhance troubleshooting and reports.
Locate building problems faster
Easily investigate the source of moisture build-up and building envelope issues
* Clearly see areas of concern with a highperformance 160 × 120 thermal imaging sensor
* Quickly find suspected problems with IGM technology
* Easily identify both the context and the issue with MSX, which embosses visual details on full thermal images
* Target the exact source of problems with the integrated pointer
* Quickly find suspected problems with IGM technology
* Easily identify both the context and the issue with MSX, which embosses visual details on full thermal images
* Target the exact source of problems with the integrated pointer
Diagnose efficiently and accurately
Take comprehensive measurements and analyze moisture readings

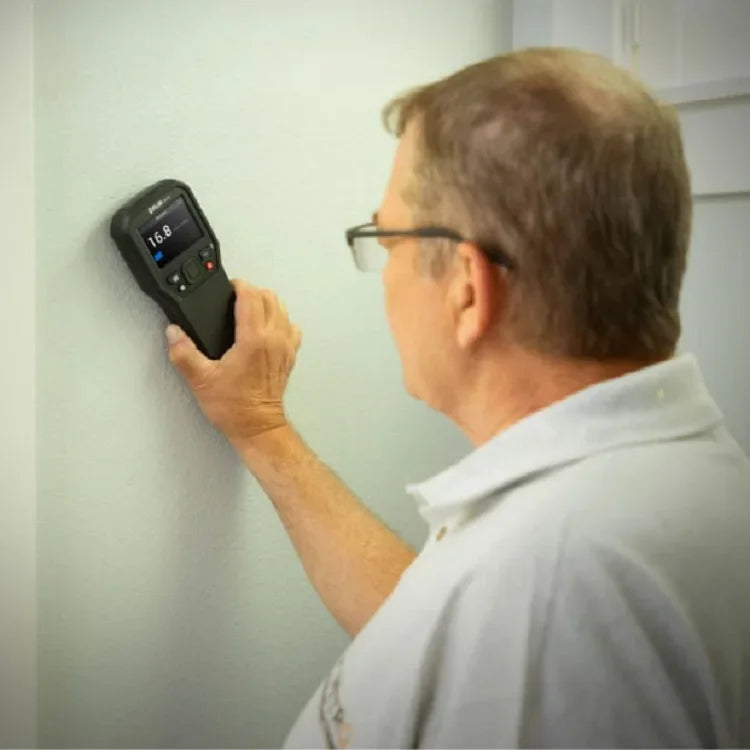

* Quickly scan for moisture with the integrated non-invasive pinless sensor

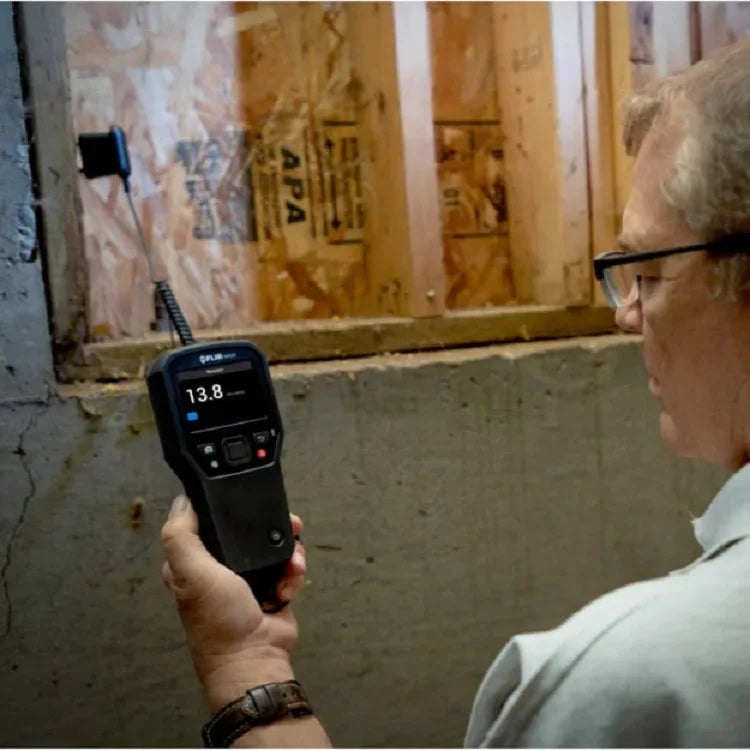

* Capture exact measurements with an external pin probe (included) and wide range of optional moisture probes
* Reduce downtime with field-replaceable temperature/humidity sensor
* Calculated parameters based on multi-sensor input: grains per pound or grams per kilogram, vapor pressure, and dew point
* Capture exact measurements with an external pin probe (included) and wide range of optional moisture probes
* Reduce downtime with field-replaceable temperature/humidity sensor
* Calculated parameters based on multi-sensor input: grains per pound or grams per kilogram, vapor pressure, and dew point
Do more in less time
One tool helps you get the job done
* Create a single file documenting comprehensive thermal and visual imagery with hygrometer readings and location
* Download images and data wirelessly or using the included USB cable
* Analyze images and quickly generate reports with free FLIR Toolssoftware
* Easy to use with intuitive interface
* Download images and data wirelessly or using the included USB cable
* Analyze images and quickly generate reports with free FLIR Toolssoftware
* Easy to use with intuitive interface
Specification
|
Thermal Imaging
|
|
|
|
Resolution
|
160 x 120 (19,200 pixels)
|
|
|
Spectral Response
|
8 to 14 μm
|
|
|
Field of View
|
55 x 43°
|
|
|
Sensitivity
|
<70 mK
|
|
|
Object Temperature Range
|
32 to 212°F (0 to 100°C)
|
|
|
Image Update Speed Frequency
|
9 Hz
|
|
|
Image Modes and Displays
|
|
|
|
Thermal Image Palettes
|
Iron, Rainbow, Arctic, White-hot, Black-hot
|
|
|
MSX®
|
Adds visual details to full resolution thermal image
|
|
|
Image Modes
|
Thermal, visual, MSX®
|
|
|
Internal Memory
|
8 GB
|
|
|
Image Gallery
|
Yes
|
|
|
Display Type
|
QVGA (320 x 240 pixels) 2.8" color TFT graphical display
|
|
|
Moisture Measurements
|
|
|
|
Pin Moisture
|
Range: 7 to 100%
Accuracy: ±1.5%, 7 to 30%; Reference only: 30 to 100% Groups: 11 material groups |
|
|
Pinless Moisture
|
Range and accuracy: 0 to 100; relative
Depth: Maximum of 0.75" (19 mm) |
|
|
Measurement Resolution
|
0.1
|
|
|
Response Time
|
Pinless mode: 100 ms
Pin mode: 750 ms |
|
|
Environmental Measurements
|
|
|
|
Relative Humidity
|
Range: 0 to 100%
Basic accuracy: ±2.5% Detailed accuracy: ±4.7% (0 to 10% ), ±2.5% (10 to 90% ), ±4.7% (90 to 100% ) |
|
|
Air Temperature
|
Range: 32 to 122°F (0 to 50°C)
Accuracy: ±1.1°F (±0.6°C) |
|
|
Dew Point
|
Range: -22 to 122°F (-30 to 50°C)
Basic accuracy: ±1.8°F (±1.0°C) |
|
|
Vapor Pressure
|
Range: 0 to 12.0 kPa
Basic accuracy: ±0.05 kPa |
|
|
Mixing Ratio
|
Range: 0 to 80.0 g/kg (0 to 560 GPP)
Basic accuracy: 0.25 g/kg (±2 GPP) |
|
|
General Specifications
|
|
|
|
Saved Image File Format
|
Radiometric jpeg
|
|
|
Stored Image Capacity
|
15,000 Images
|
|
|
Digital Camera
|
2 MP
Field of view: 83° (70.5 HFOV x 56° VFOV) |
|
|
Language Options
|
22
|
|
|
Type
|
Visible class 2, single pointer to center of thermal image
|
|
|
Continuous Run Time
|
16 hours maximum
|
|
|
Typical Usage
|
4 work weeks
|
|
|
Auto Power Off
|
Programmable: off, 1, 5, or 20 minutes
|
|
|
Battery
|
Rechargeable 4.2 V, 5400 mAh LiPo
|
|
|
Certification Standards
|
EN 61326 (EMC), EN 60825-1 Class 2 (), IEC61010-1
|
|
|
Agency Approvals
|
CE, FCC Class B, RCM
|
|
|
Temperature
|
Operating: -4 to 140°F (-20 to 60°C)
Storage: -4 to 113°F (-20 to 45°C) |
|
|
Humidity
|
Operating: 5 to 95%
Storage: 90% relative humidity (no condensation) |
|
|
Drop Test
|
6.6' (2 m)
|
|
|
Dimensions
|
6.2 x 3.3 x 1.7" (16 x 8.5 x 4.4 cm)
|
|
|
Weight
|
14.3 oz (406 g)
|
|
