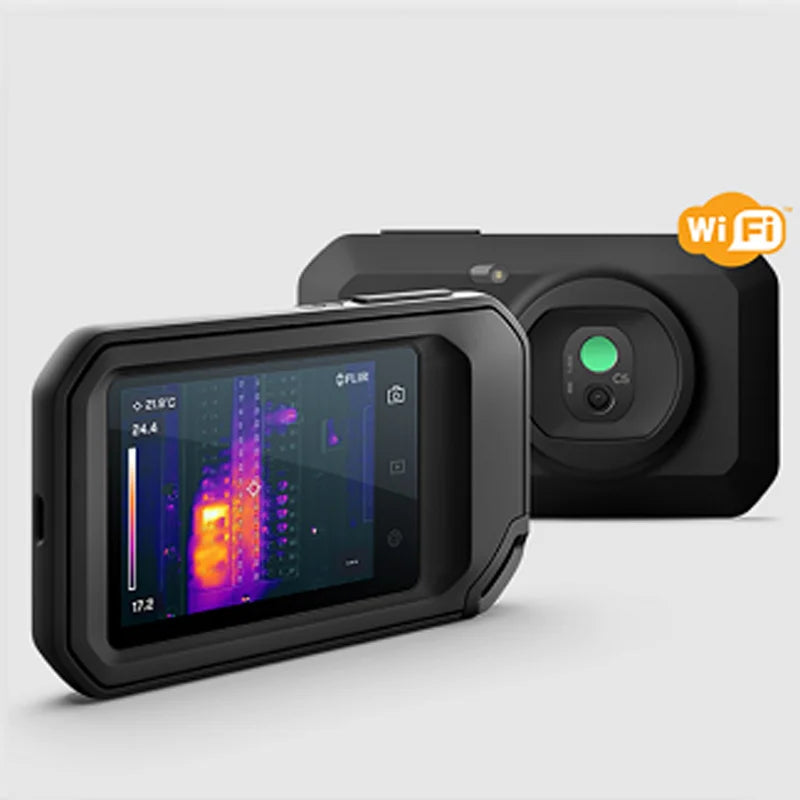

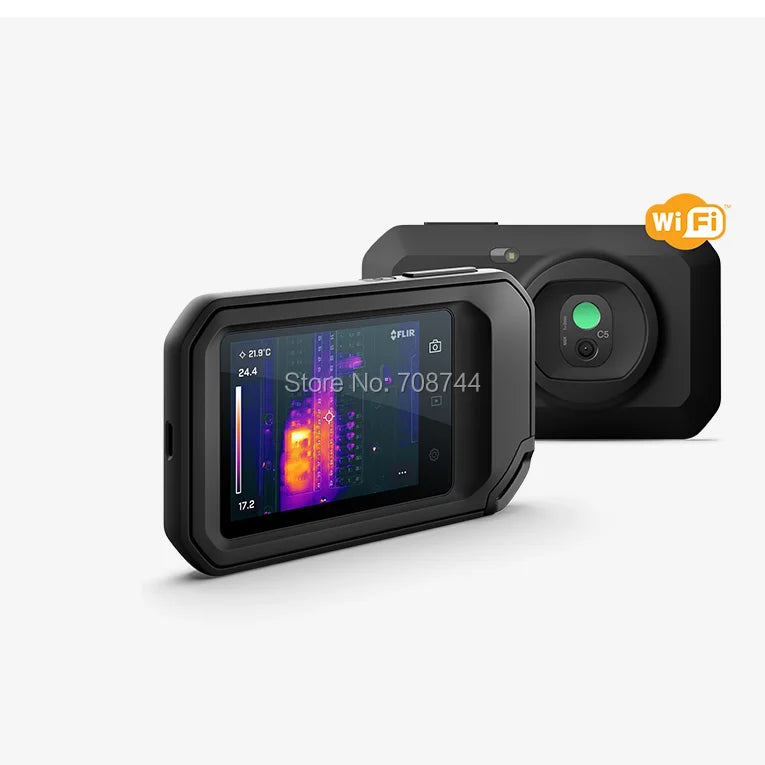

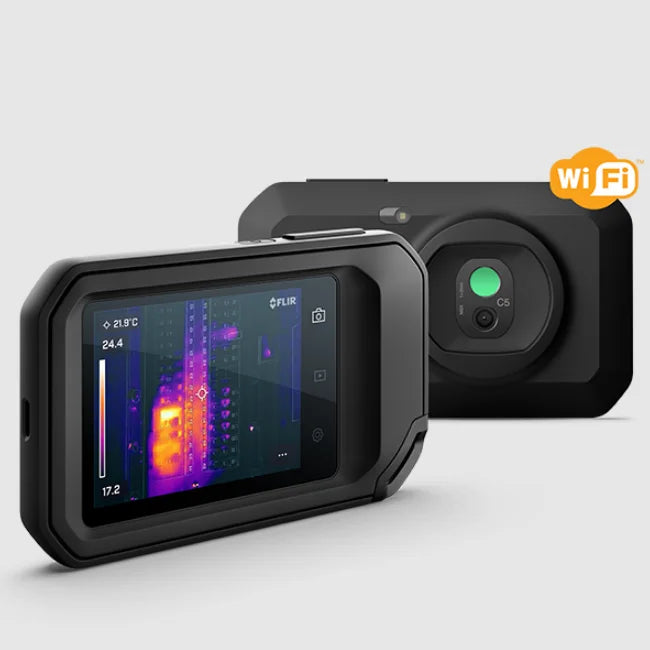

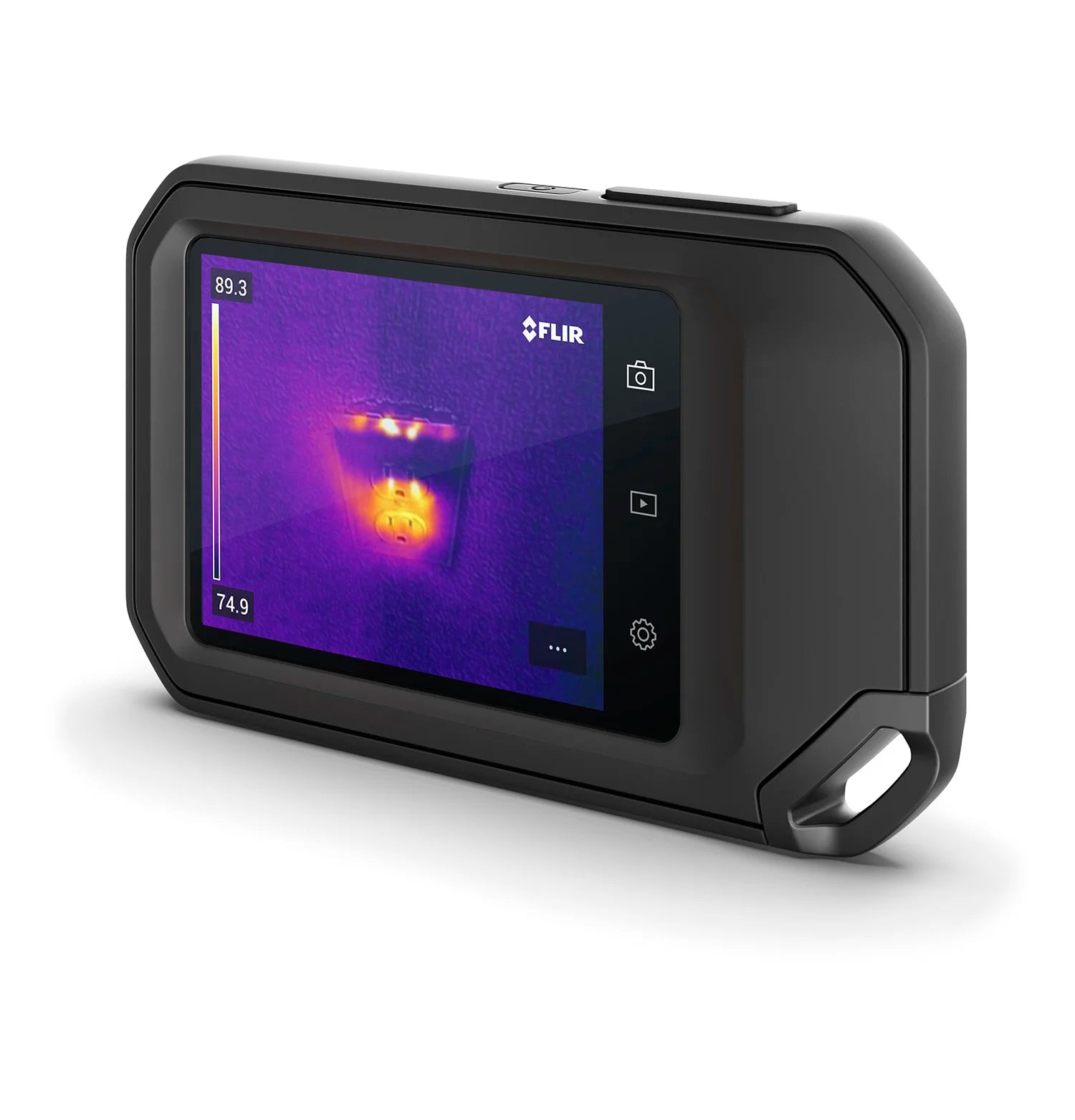

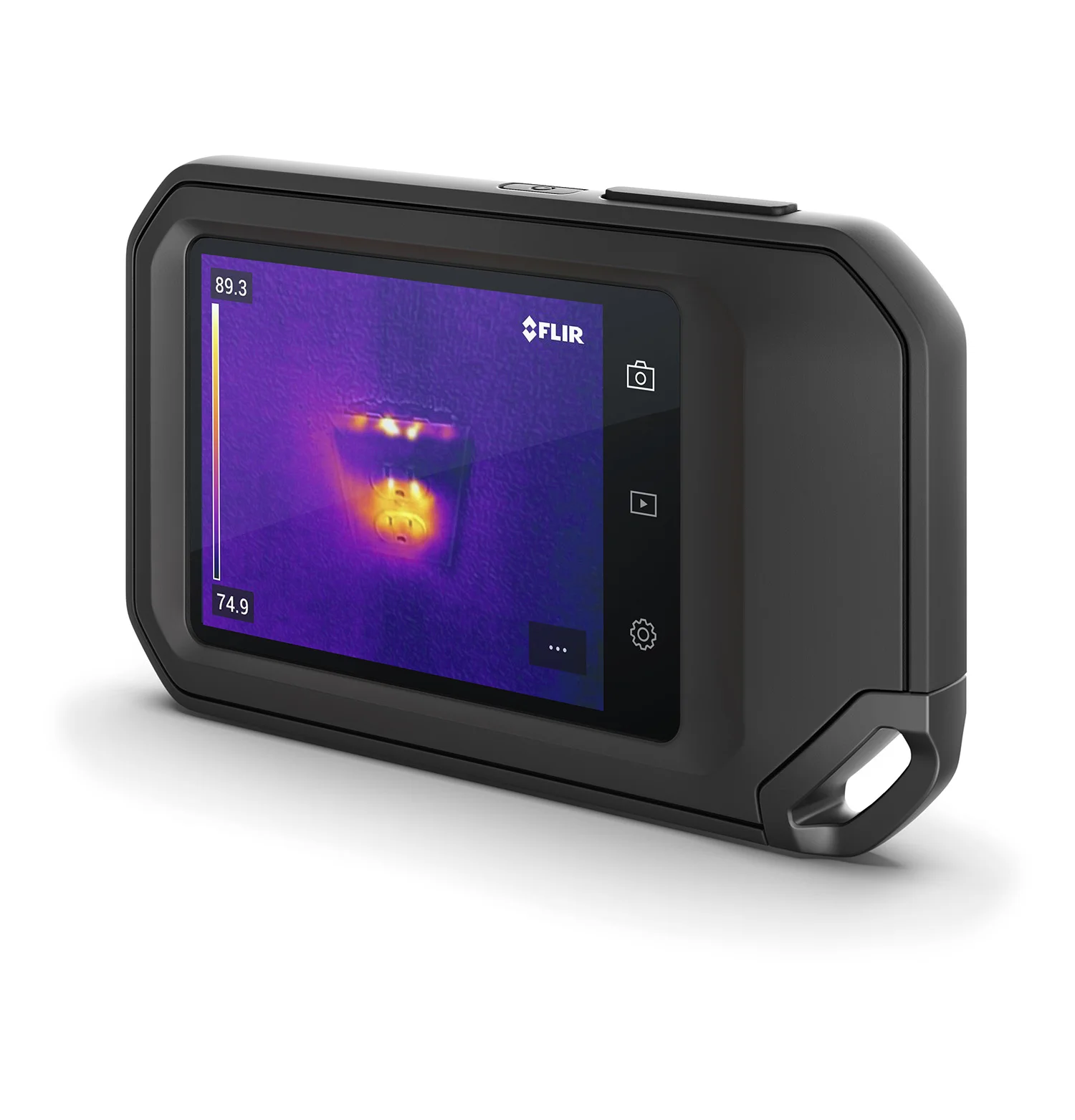

FLIR C5 Specifications

Camera size (L x W x H):138 x 84 x 24 mm (5.4 x 3.3 x 0.94 in)
FLIR Screen-EST Mode: No
IR Sensor:160 x 120 (19,200 pixels)
Screen Rotation: Yes
Touchscreen: Capacitive touch
Bluetooth: PAN
Image Upload: Directly upload images to FLIR Ignite cloud library and services
Storage Media: Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
USB: USB 2.0, Type-C connector
WiFi: 802.11 a/ac/b/g/n (2.4 and 5 GHz)
Drop test: 2 m (6.6 ft)
Encapsulation: Camera housing and lens: IP54 (IEC 60529)
Operating Temperature Range: -10 to 50°C (14 to 122°F)
Storage Temperature Range: -40 to 70°C (-40 to 158°F)
Tripod Mounting: UNC ¼"-20 (built-in)
Color Palettes: Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
Digital Camera: 5 MP
Digital Camera Focus: Fixed
Focus: Focus free
Gallery: Thumbnails and custom folder structure
Image Adjustment: Automatic level and span, Manual level and span, 1-Touch Level/Span
Image Frequency: 8.7 Hz
Image Modes: Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image)
Minimum Focus Distance: Thermal: 0.1 m (3.94 in), MSX: 0.3 m (11.8 in)
Spectral Range: 8 to 14 µm
Accuracy: At ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F), 0 to 100°C (32 to 212°F): ±3°C (±5.5°F), 100 to 400°C (212 to 752°F): ±3%
Measurement Functions: Spot, Box with max./min.
Measurements correction: Emissivity; matt/semi-matt/semi-gloss + custom value, Reflected apparent temperature, Atmospheric compensation
Object Temperature Range: -20 to 400°C (-4 to 752°F)
Thermal Sensitivity: <70 mK
Screen Size: 3.5 in
Weight [including battery]: 0.19 kg (0.42 lb)
Battery operating time: 4 hours
Battery Type: Rechargeable built-in Lithium ion battery
Charging system: USB-C (1 A)
Charging Time: 2 hours
External Power Operation: 5 V, USB-C
File Formats: Standard JPEG, 14-bit measurement data included
Image Storage:>5000 images

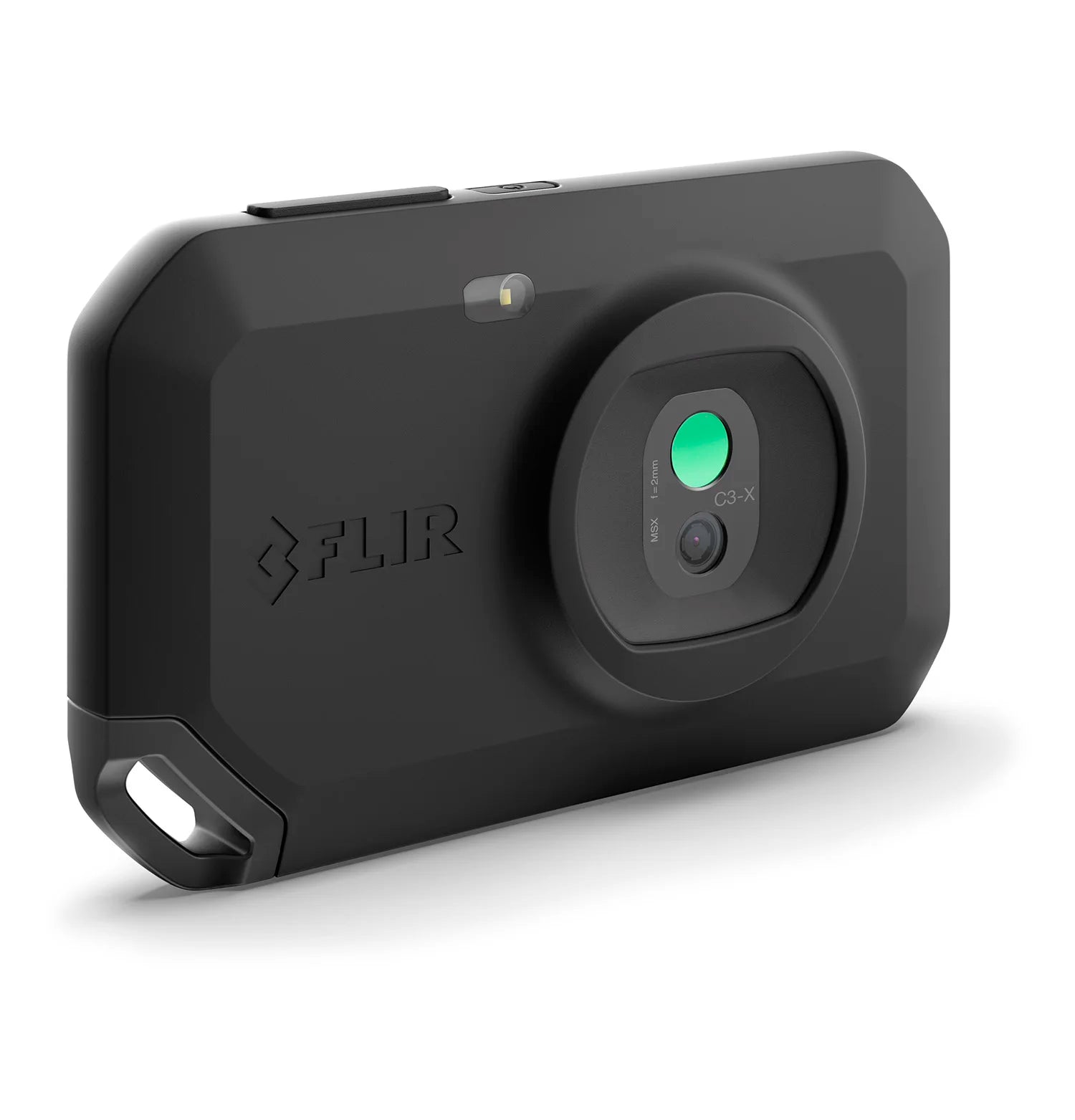

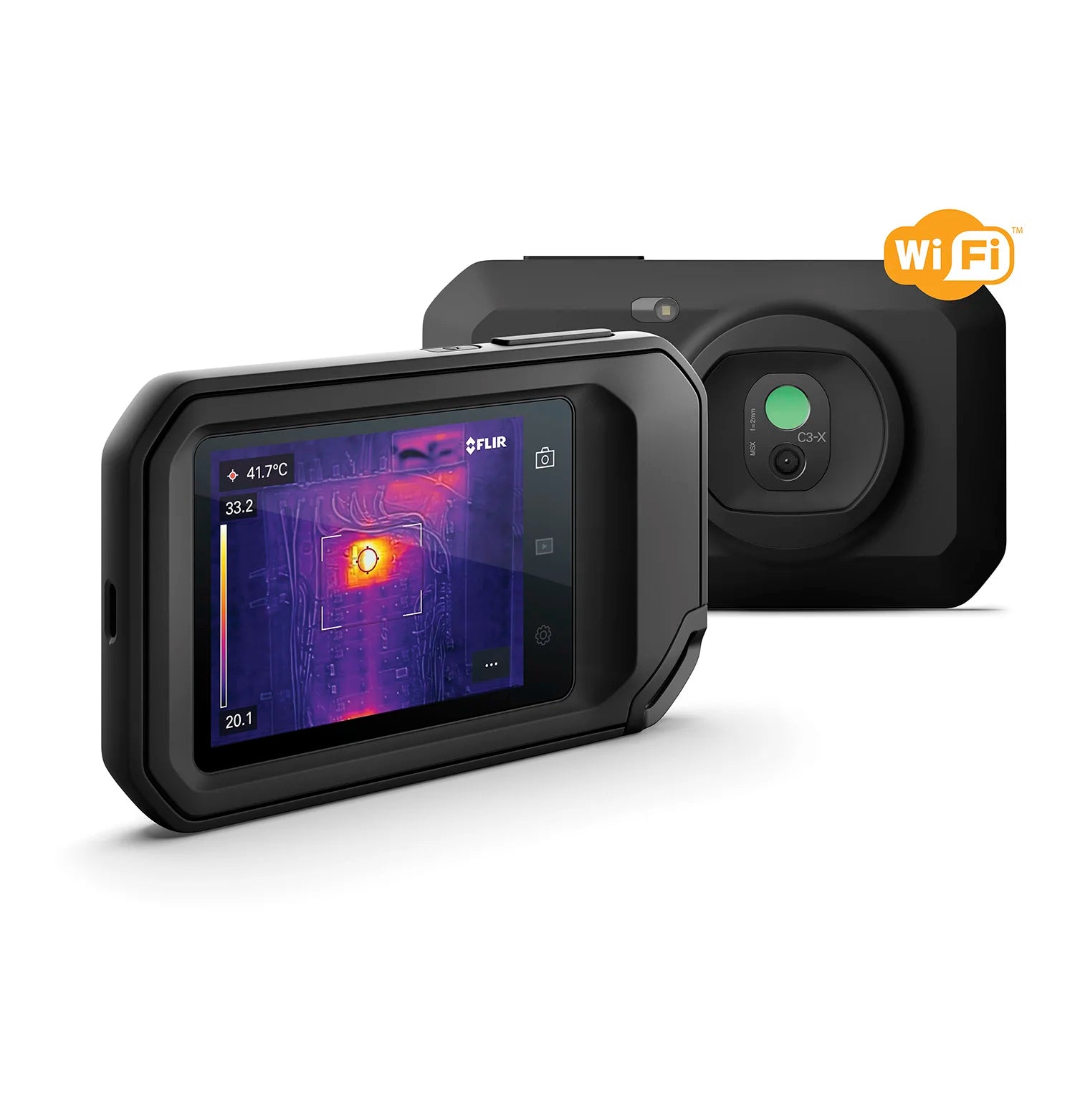

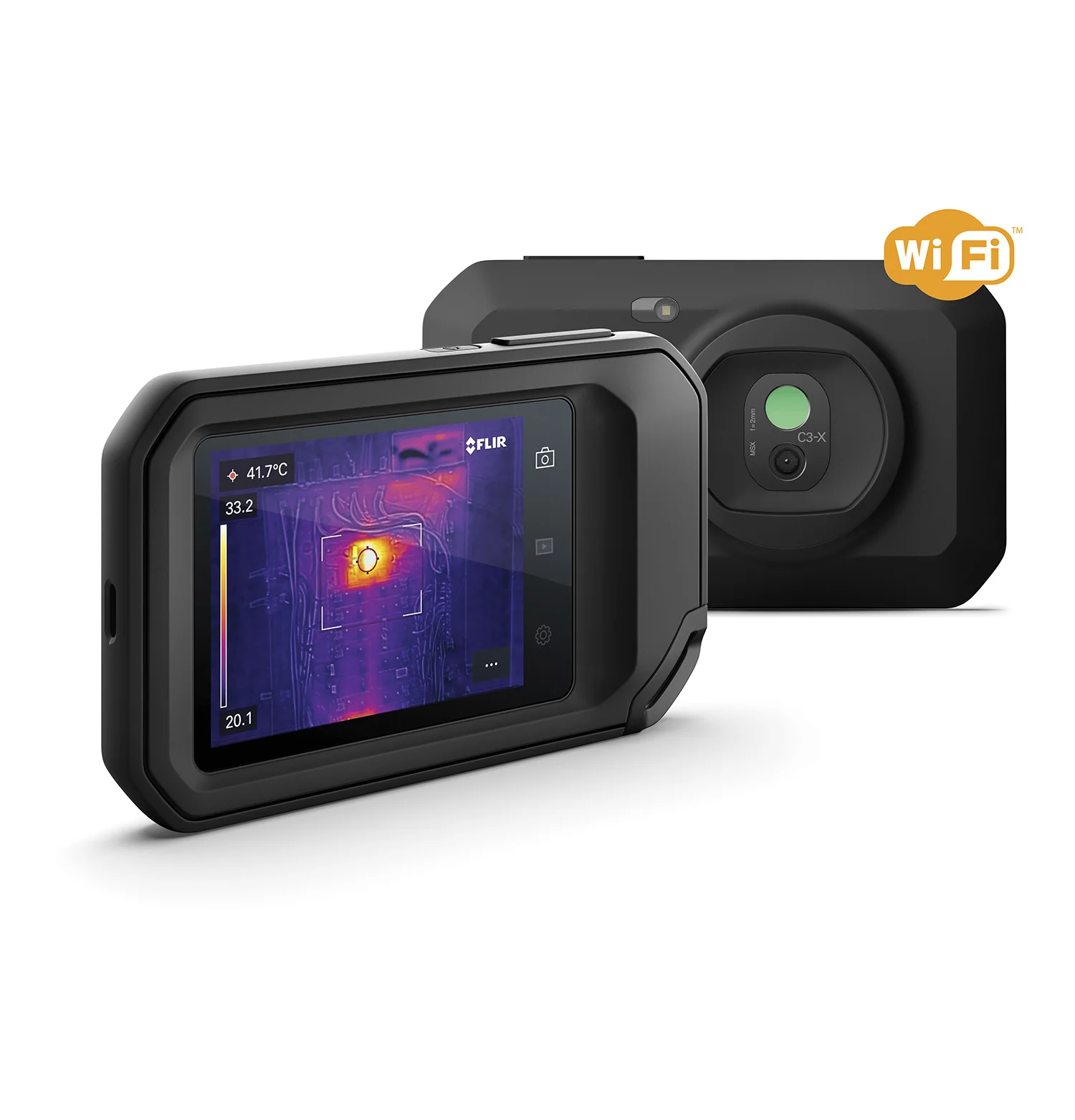

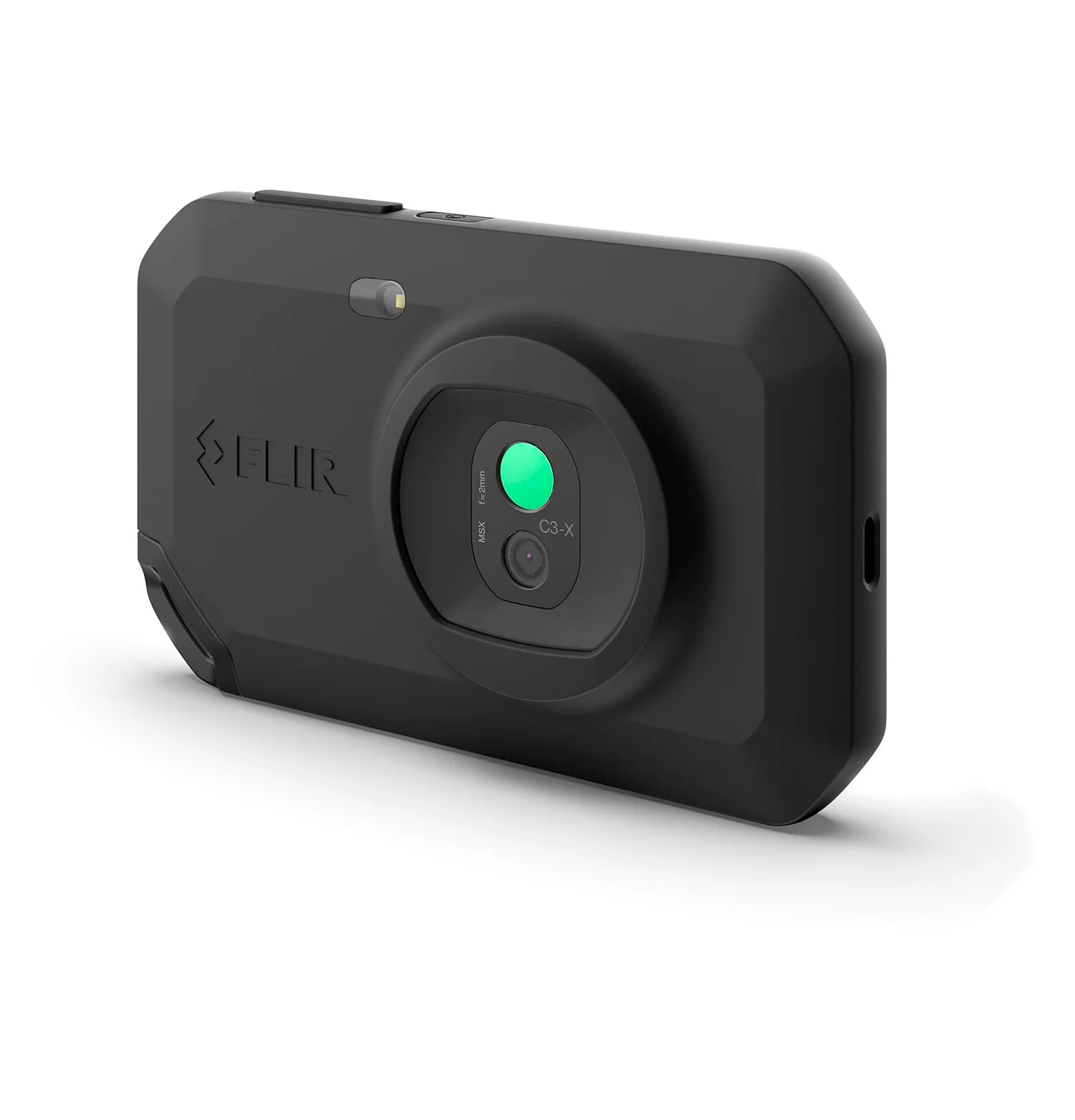

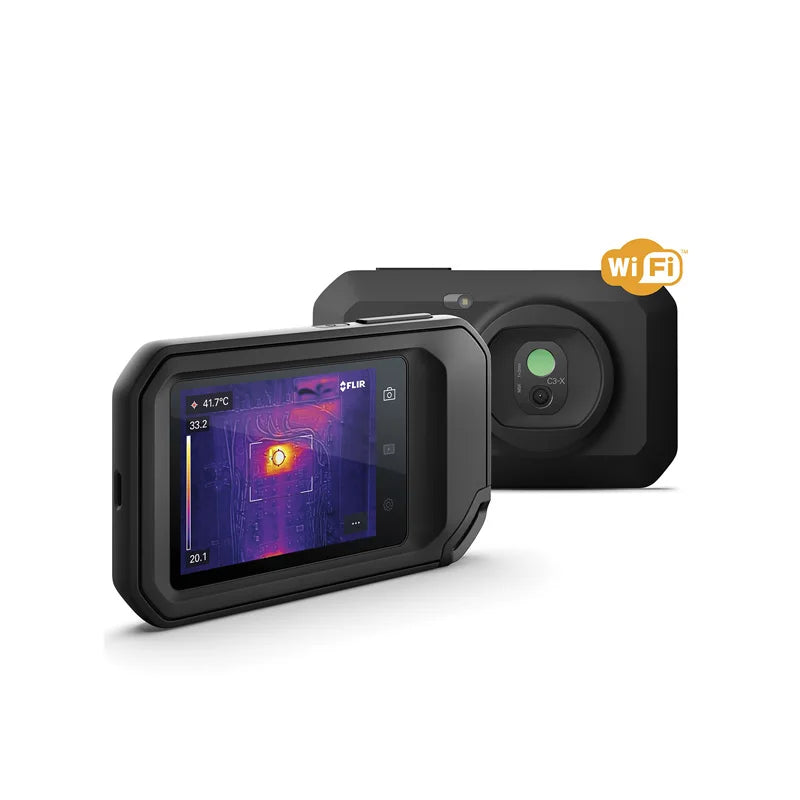

FLIR C3-X Specifications

Camera size (L x W x H):138 × 84 × 24 mm (5.4 × 3.3 × 0.94 in)
Detector Type:Focal plane array, uncooled microbolometer
Display Technology:IPS
Housing material:PC and ABS, partially covered with TPE; aluminum
Packaging Size:160 × 118 × 93 mm (6.3 × 4.6 × 3.7 in)
Screen Rotation:Yes
Size (L x W x H):138 × 84 × 24 mm (5.4 × 3.3 × 0.94 in)
Text:Soft keyboard on touchscreen
Touchscreen:Capacitive touch
Warranty: http://www.flir.com/warranty/
Bluetooth:PAN
Image Upload:Directly upload images to FLIR Ignite cloud library and services
Storage Media:Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
USB:USB 2.0, Type-C connector
WiFi:802.11 a/ac/b/g/n (2.4 and 5 GHz)
Drop test:2 m (6.56 ft)
EMC:EN 301 487-1; EN 301 489-17; FCC 47 CFR Part 15 Class B
Encapsulation:Camera housing and lens: IP54 rated (IEC 60529)
Environmental Safety:REACH Regulation EC 1907/2006; RoHS2 Directive 2011/65/EC; WEEE Directive 2012/19/EC; Proposition 65
Humidity (Operating and Storage):IEC 60068-2-30/24 h 95% relative humidity 25 to 40°C (77 to 104°F) / 2 cycles
Magnetic fields:EN 61000-4-8 level 5
Operating Temperature Range:-10 to 50°C (14 to 122°F)
Radio Spectrum:ETSI EN 300 328; EN 301 489; FCC Title 47 CFR Part 15; RSS-247 Issue 2
Relative Humidity: 95% relative humidity 25 to 40°C (77 to 104°F) non-condensing
Safety:EN 62368-1
Shock:25 g (IEC 60068-2-27)
Storage Temperature Range:-40 to 70°C (-40 to 158°F)
Tripod Mounting:UNC ¼"-20 (built-in)
Vibration:2 g (IEC 60068-2-6)
Aspect ratio:4:3
Auto orientation:Yes
Camera software update:Automatic over Wi-Fi, USB via computer
Color:Black
Color Palettes:Iron, Gray, Rainbow, Rainbow HC
Detector Pitch:12 µm
Digital Camera:5 MP resolution
Digital Camera Focus:Fixed
Digital Camera FOV:71.5° × 56° (84° diagonal)
Digital Zoom:No
Display resolution:640 × 480 pixels
Field of view (FOV):53.6°
f-number:1.1
Focus:Focus free
Gallery:Thumbnails and custom folder structure
Image Adjustment:Automatic level and span, Manual level and span
Image Frequency:8.7 Hz
Image Modes:Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image)
IR Resolution: 128 × 96 pixels
Minimum Focus Distance: Thermal: 0.1 m (0.32 ft), MSX: 0.3 m (0.98 ft)
Spatial resolution (IFOV): 7.9 mrad/pixel
Spectral Range: 8 to 14 µm
Thermal Sensitivity/NETD: <70 mK
Video Lamp: Yes
Accuracy: 0 to 100°C (32 to 212°F): ±3°C (±5.5°F); 100 to 300°C (212 to 572°F): ±3[ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F)]
Languages: Arabic, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Spanish, Swedish, traditional Chinese, Turkish
Measurement Functions: Spot, Box with max./min.
Measurements correction: Emissivity; matt/semi-matt/semi-gloss + custom value, Reflected apparent temperature, Atmospheric compensation
Object Temperature Range: -20 to 300°C (-4 to 572°F)
Set-up Commands: Local adaptation of units, language, date and time formats, Screen brightness (high, medium, low)
Battery regulationsUL :1642; EN 62133 ed 2
Screen Size: 3.5 in
Weight [including battery]:0.19 kg (0.42 lb)
Battery capacity:1800 mAh
Battery charge life>500 cycles
Battery Charging:BC Title 20; 10 CFR Section 430.23 (aa)
Battery operating time:4 hours
Battery Type:Rechargeable built-in Lithium ion battery
Battery voltage:3.7 V
Battery weight:40 g (1.4 oz)
Charging system:USB-C (1 A)
Charging Temperature: 35°C (95°F)
Charging Time:2 hours
External Power Operation: 5 V, USB-C
Power Management: Adjustable stand-by and automatic shut-down
Packaging Weight: 0.52 kg (1.14 lb)
Image File FormatStandard: JPEG, 14-bit measurement data included
Image Storage>5000 images
