* Certified for use in many explosive environments, eliminating the need to acquire hot work permits while making T-Class surveys
quick and easy
* For use in most industries with explosive atmospheres including chemical, oil and gas, and wastewater treatment facilities
* 160 × 120 (19,200 pixels) thermal camera resolution
* 8.7 Hz image frequency
* Eliminate the need for hot work permit in certain hazardous locations due to explosive gas or dust
Description
xSPECIFICATIONS
Brand Name: NONE,FLIR
Customized support: OEM, ODM
Focus: Focus free
High-concerned chemical: None
IP Rating: IP54
IR Sensor: 160 x 120 (19,200 pixels)
Image Frequency: 8.7 Hz
Interfaces I/O: Bluetooth, Wifi, USB-C
Material: plastics
Model Number: Cx5
Object Temperature Range: -4 to 752°F (-20 to 400°C)
Origin: Mainland China
Place of Origin: Sweden
Power Supply Voltage: Battery Powered
Temperature Control Accuracy: ±3%
Temperature range: -4 to 752°F (-20 to 400°C)
Theory: Optical imaging
Thermal Sensitivity/NETD: <70 mK
Type: Thermal Camera
Warranty: 1 years
Product Description
Certified for use in explosive environments, this camera eliminates the need to acquire hot work permits due to gas, vapor, and dust and makes T-Class surveys quick and easy. In addition, the 3.5" (88.9 mm) touchscreen interface is simple to use, and the 160 x 120 thermal resolution gives accurate temperature measurements.
Affordable, pocket-sized IR camera for safe inspection in certain explosive environments
* Certified for use in many explosive environments, eliminating the need to acquire hot work permits while making T-Class surveys quick and easy
* For use in most industries with explosive atmospheres including chemical, oil and gas, and wastewater treatment facilities
* 160 × 120 (19,200 pixels) thermal camera resolution
* 8.7 Hz image frequency
* Eliminate the need for hot work permit in certain hazardous locations due to explosive gas or dust
* FLIR MSX adds visible light details to thermal images and embosses them onto the full thermal image
* 1-Touch level/span saves time on manual thermal adjustments by modifying the level and span with a single touch
* Certified for use in many explosive environments, eliminating the need to acquire hot work permits while making T-Class surveys quick and easy
* For use in most industries with explosive atmospheres including chemical, oil and gas, and wastewater treatment facilities
* 160 × 120 (19,200 pixels) thermal camera resolution
* 8.7 Hz image frequency
* Eliminate the need for hot work permit in certain hazardous locations due to explosive gas or dust
* FLIR MSX adds visible light details to thermal images and embosses them onto the full thermal image
* 1-Touch level/span saves time on manual thermal adjustments by modifying the level and span with a single touch

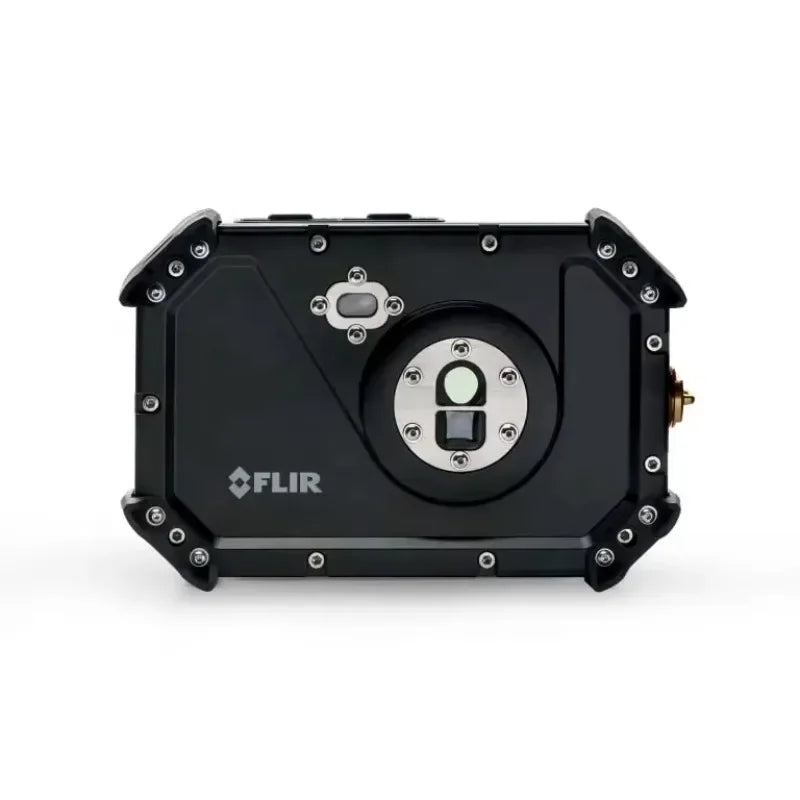

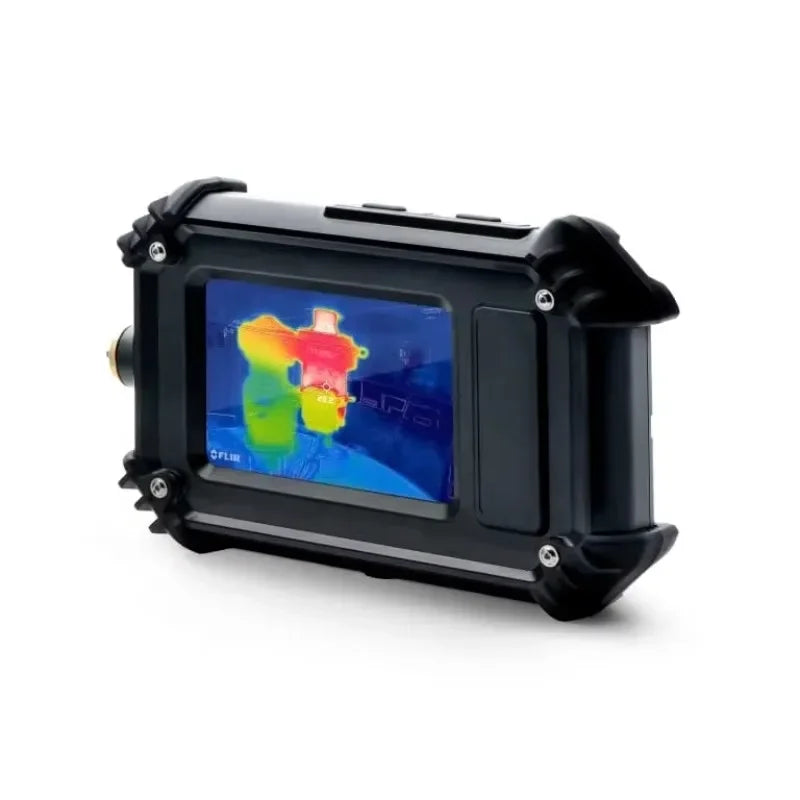

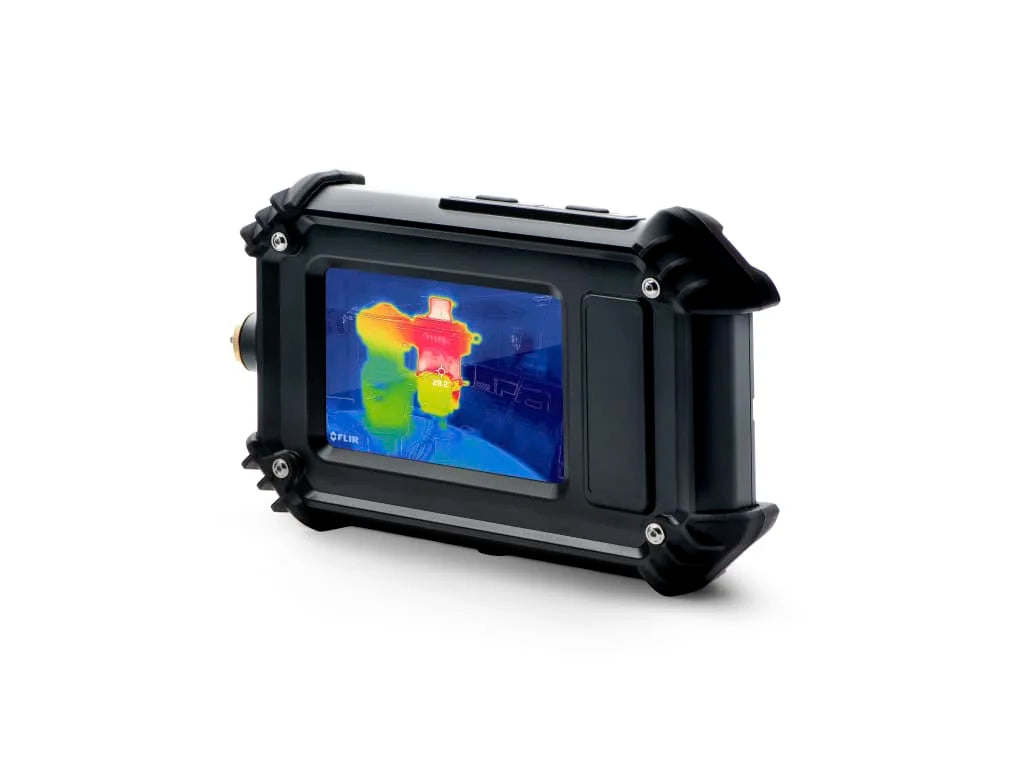

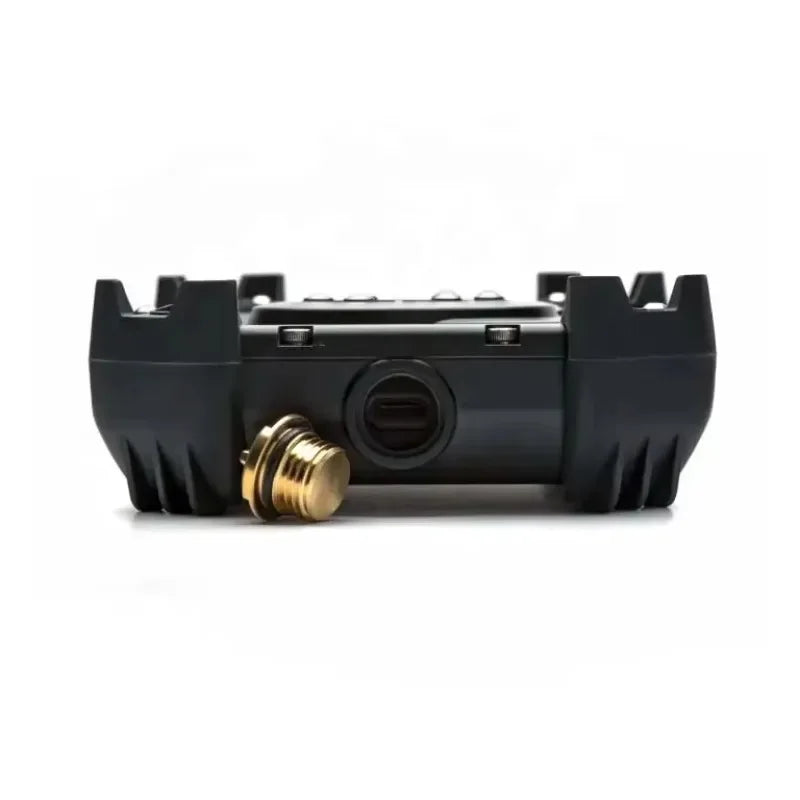

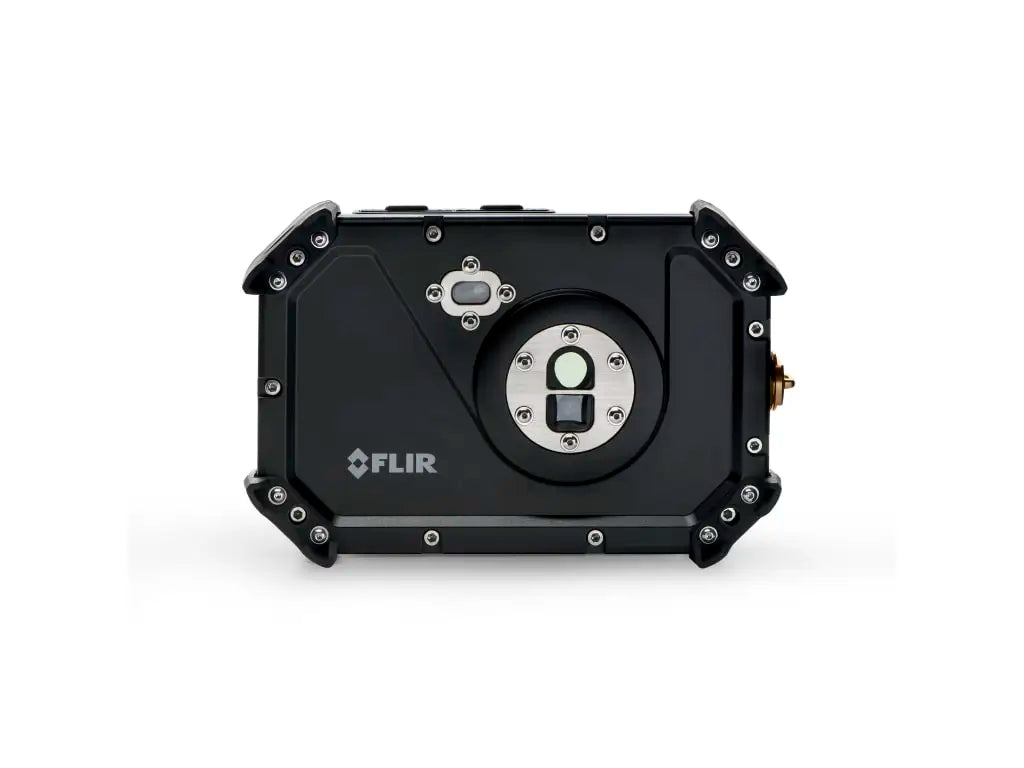

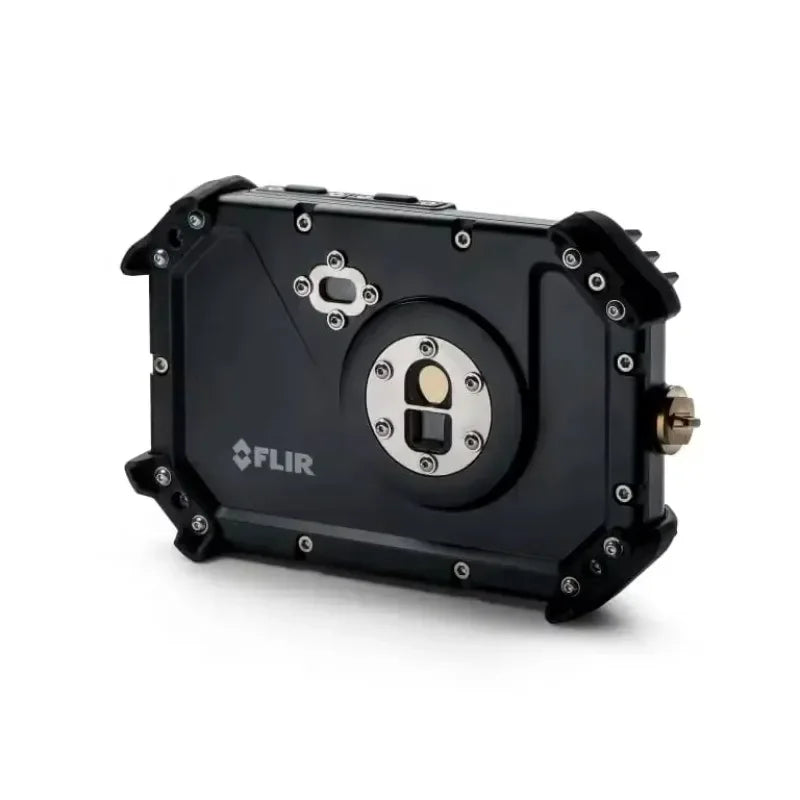

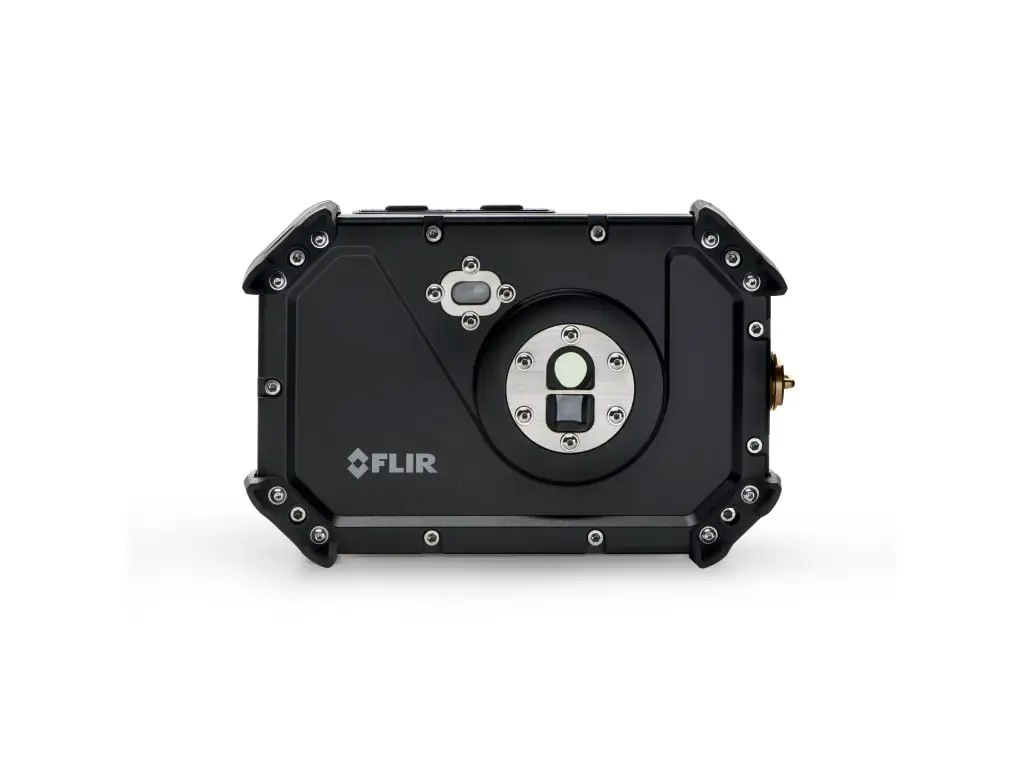

FLIR Cx5 - Hazardous Location-Rated Thermal Camera
Hazardous Location-Rated Thermal Camera

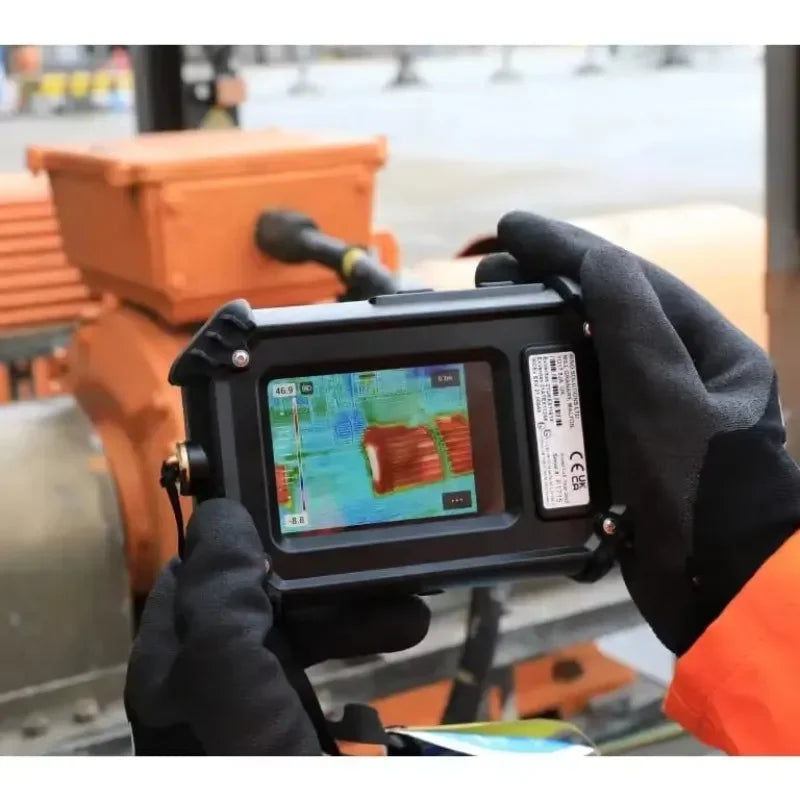

The FLIR Cx5 is certified for use in many explosive environments, eliminating the need to acquire hot work permits due to gas, vapor, and dust, while making T-Class surveys quick and easy. With FLIR MSX® (Multi-Spectral Dynamic Imaging) and 1-Touch Level/Span, the Cx5 can help you identify potential problems quickly to improve plant performance. The 3.5-inch touchscreen interface is simple to use, and 160 × 120 thermal resolution gives you accurate temperature measurement of nearby targets. Built-in FLIR Ignite™ cloud service provides direct data transfer, storage, and backup, so images are always available and securely stored on all your devices. With the FLIR Cx5 in your toolbox, you’ll always be ready to investigate mechanical and electrical equipment around your production site.
Specification
|
IR Sensor
|
160 x 120 (19,200 pixels)
|
|
Thermal Sensitivity/NETD
|
<70 mK
|
|
Field of View (FOV)
|
54 x 42°
|
|
Minimum Focus Distance
|
Thermal: 3.94" (0.1 m)
MSX®: 11.8" (0.3 m) |
|
Image Frequency
|
8.7 Hz
|
|
Focus
|
Focus free
|
|
Spectral Range
|
8 to 14 μm
|
|
Display
|

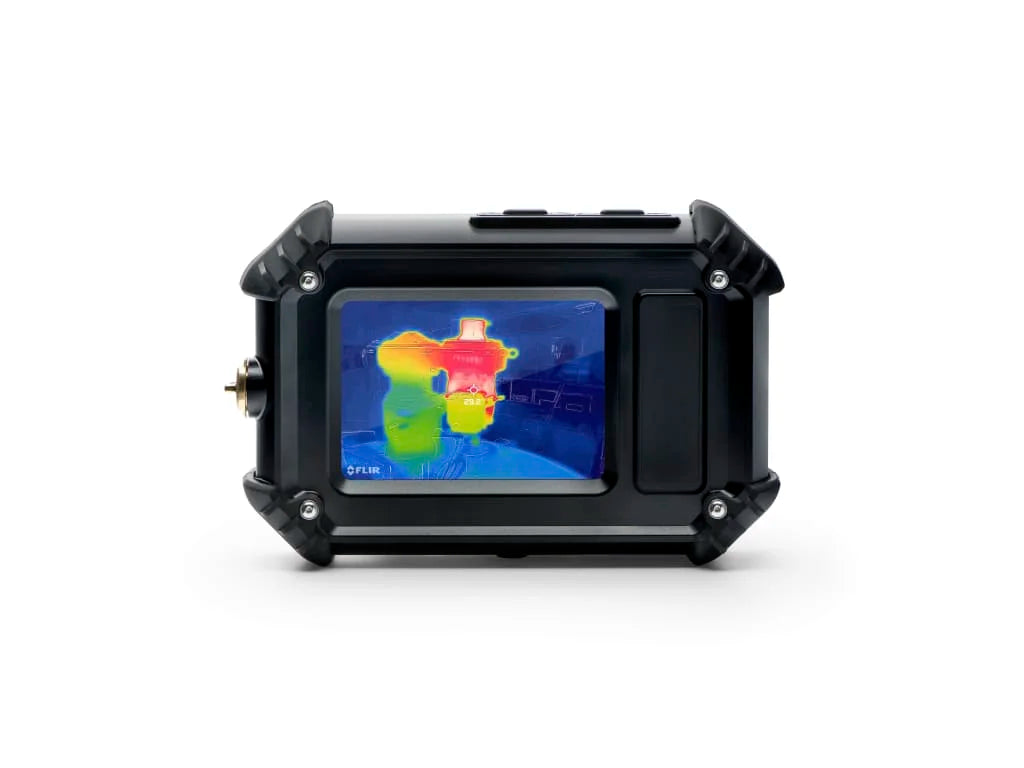

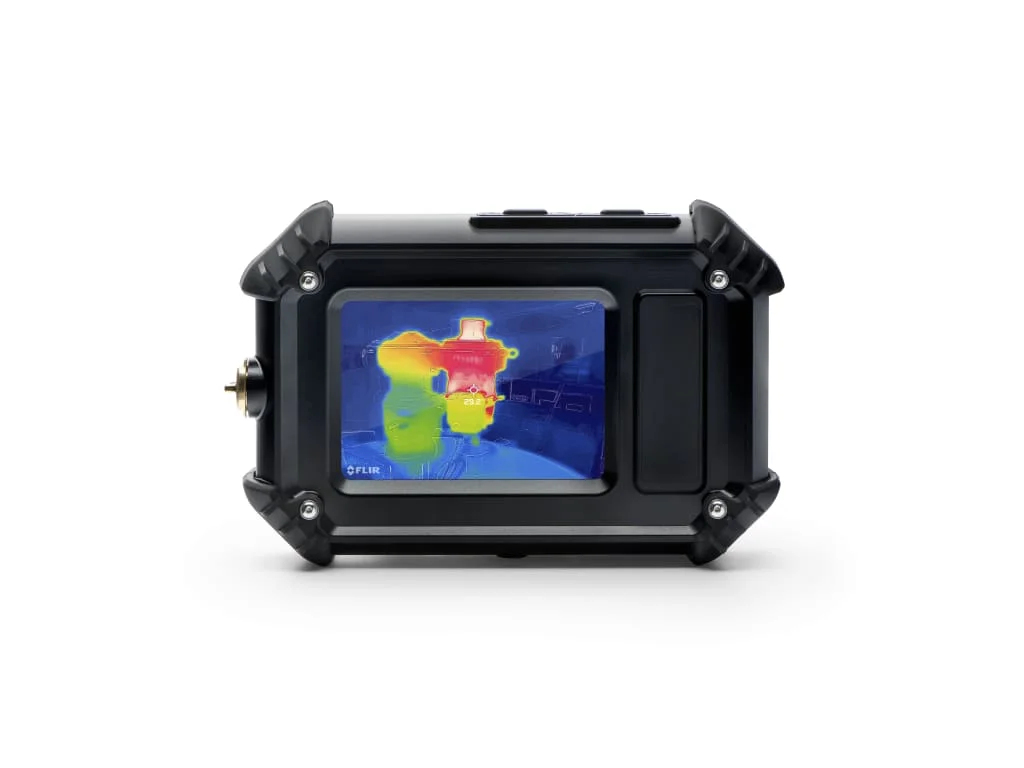

3.5" (88.9 mm), capacitive touch (touchscreen)
Screen rotation: Yes |
|
Visual Camera
|
5 MP
|
|
Digital Camera Focus
|
Fixed
|
|
|
Adjustment:
Automatic level and span Manual level and span 1-Touch level and span Modes: Infrared image Visual image MSX (embossed visual details on thermal image) Picture-in-picture (IR area on visual image) |
|
Color Palettes
|
Iron, gray, rainbow, arctic, lava, rainbow HC
|
|
Object Temperature Range
|
-4 to 752°F (-20 to 400°C)
|
|
Accuracy
|
At ambient temperature 59 to 95°F (15 to 35°C) and object temperature above 32°F (0°C)
32 to 212°F (0 to 100°C): ±9°F (±5°C) 212 to 752°F (100 to 400°C): c5% |
|
Measurement
|
Functions
Spot Box with maximum/minimum Correction Emissivity; matt/semi-matt/semi-gloss + custom value Reflected apparent temperature Atmospheric compensation |
|
Image Storage and Streaming
|
Storage media: Internal memory and onboard Ignite cloud connectivity (with Wi-Fi)
Image storage capacity: >5000 images Image file format: Standard JPEG, 14-bit measurement data included |
|
Communication and Connectivity
|
Wi-Fi: 802.11 a/ac/b/g/n (2.4 and 5 GHz)
USB: USB 2.0, Type-C connector Bluetooth: PAN Image upload: Directly upload images to Ignite cloud library and services |
|
Temperature Range
|
Operating: 14 to 122°F (-10 to 50°C)
Storage: -40 to 158°F (-40 to 70°C) |
|
Encapsulation
|
Camera housing and lens: IP54 (IEC 60529)
|
|
Drop Test
|
Designed for 6.6' (2 m)
|
|
Certifications
|
EN EIC 60079-0: 2018
EN EIC 60079-31: 2014 EN EIC 60079-15: 2019 IEC 60079-15: 2017 IEC 60079-0: 2017 IEC 60079-31: 2013 |
|
Power Supply
|
Battery type: Rechargeable built-in Lithium ion battery
Battery operating time: 4 hours Charging system: USB-C (1 A) Charging time: 2 hours External power operation: 5 V, USB-C |
|
Tripod Mounting (Built-in)
|
UNC ¼"-20
|
|
Dimensions
|
6.6 x 4.4 x 1.7" (168 x 112 x 42 mm)
|
|
Weight
|
1.52 lbs (0.69 kg)
|
