Description
xSPECIFICATIONS
Battery Included: Yes
Brand Name: NoEnName_Null
Certification: CE
Display Size: 2.0 - 3.9 Inches
Emissivity correction: 0.1 to 1.0
High-concerned chemical: None
Infrared resolution: 320x240 (76800 pixels)
Is Smart Device: No
Maximum temperature: Other
Minimum temperature: Other
Origin: US(Origin)
Power Source: Charger
Power Type: Charger
Style: Standing Station
Thermal imager size (L x W x H): 22x15x30 cm
Thermal pixels: 320*240
Wavelength range: 7.5 - 13.0 μ m

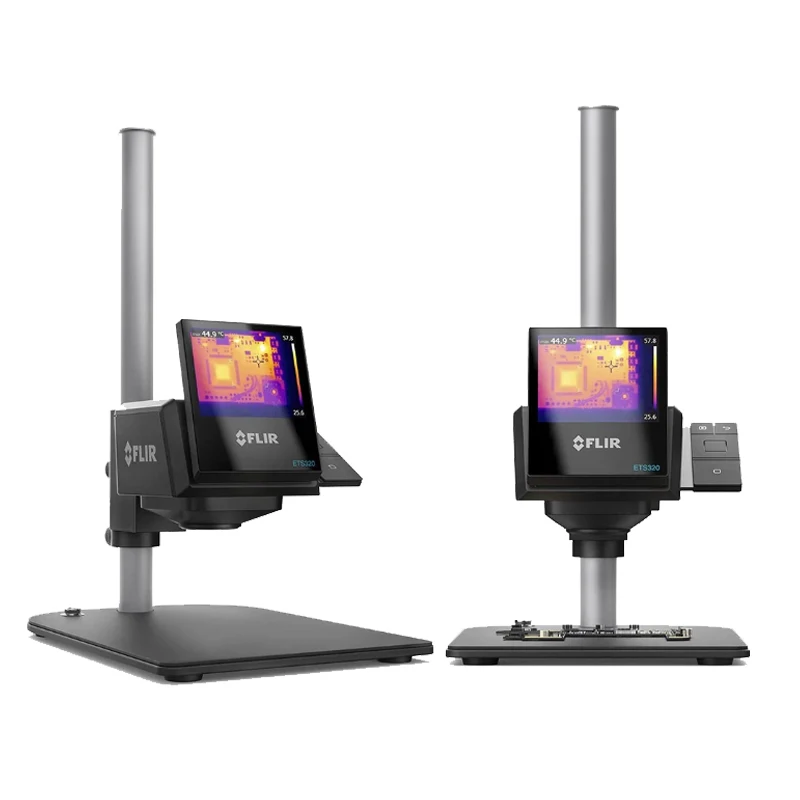

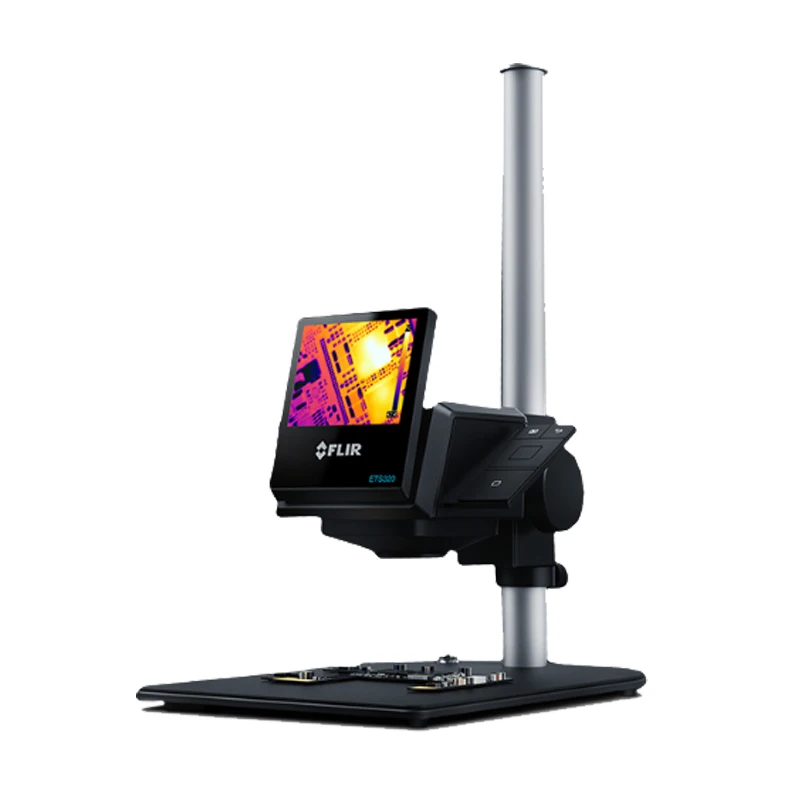

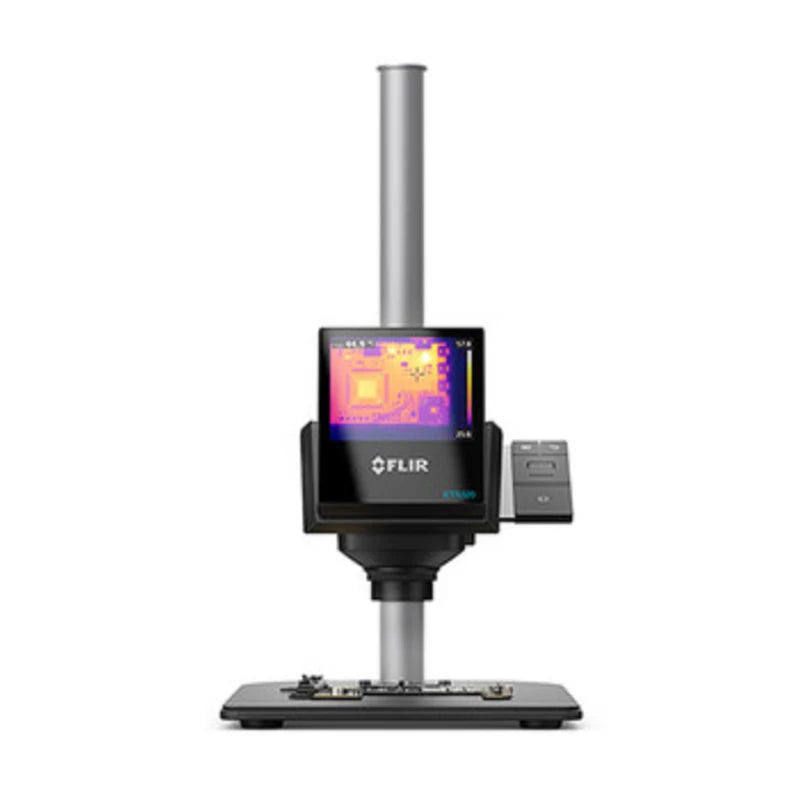

FLIR ETS320 Infrared Thermal Imager 320*240 High-precision Imaging Camera Electronic Circuit Test Thermal Imager -20°C~+250°C

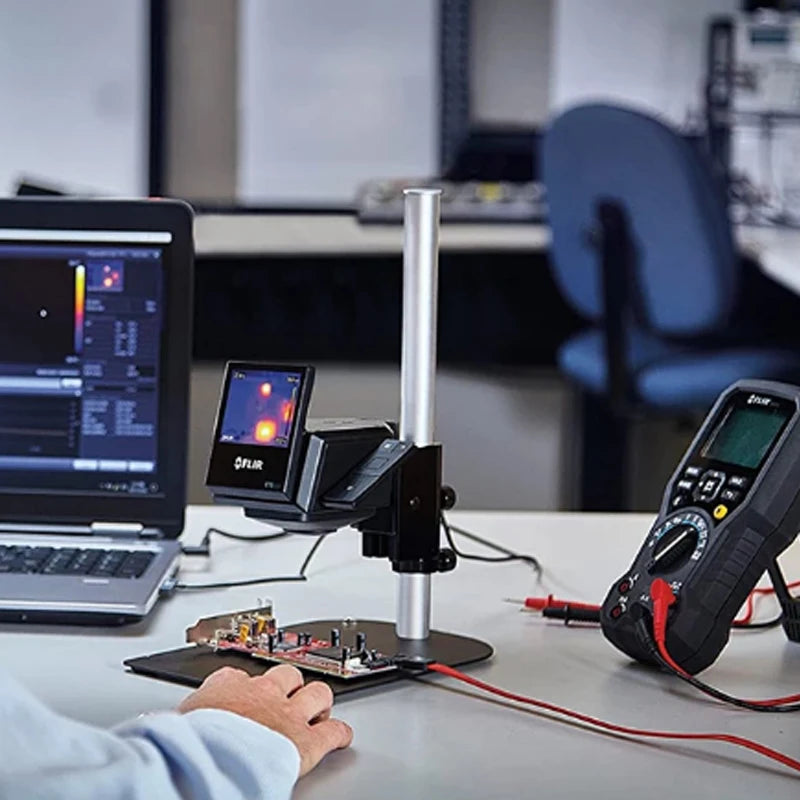

Whether the goal is scientific research or product testing, heat is an important indicator of how the system operates. FLIR ETS320 is a non-contact thermal measurement system, equipped with a high sensitivity infrared thermal imager with a built-in bracket, which can realize handheld measurement of printed circuit boards and other small electronic components.
Reduce the number of tests
This highly sensitive thermal imager can detect subtle temperature changes (0.06 ° C) and quantify heat generation up to 250 ° C.
Improve product design
FLIR ETS320 provides 76800 non-contact temperature measurement points with a measurement accuracy of ± 3 ℃, so researchers can lock hot spots without worrying about the radiator hidden in the dark.
Designed for laboratory work

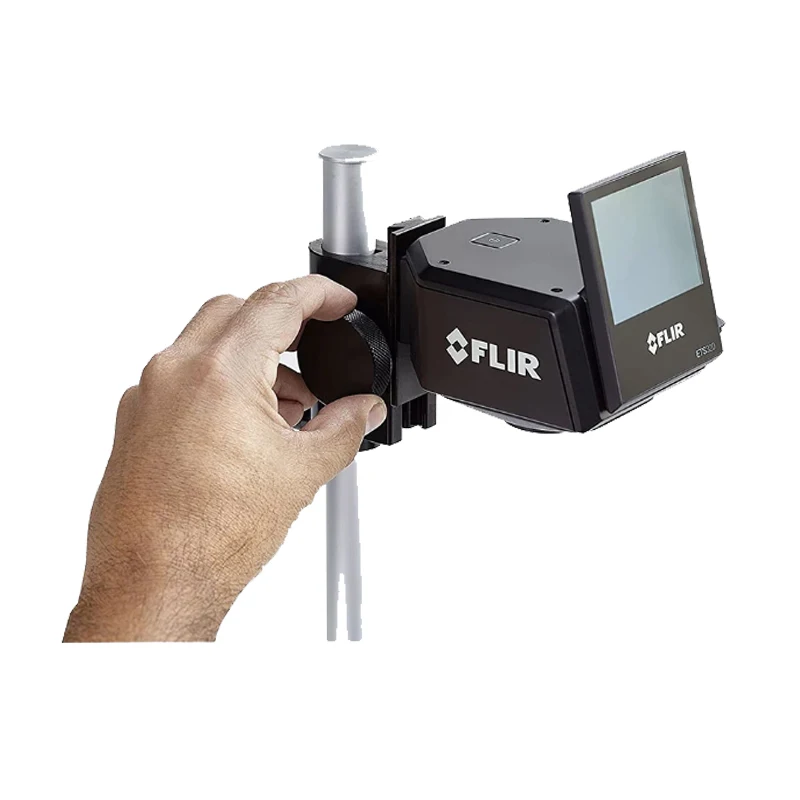

The FLIR ETS320 is equipped with a rapidly deployable microscope stand, featuring a simple design that enables researchers to focus on their work
|
technical parameter |
|
|
Infrared resolution |
320x240 (76800 pixels) |
|
Wavelength range |
7.5- 13.0um |
|
Detector type |
Uncooled microbolometer |
|
Aperture number of thermal imager |
f/1.5 |
|
Aperture number |
one point five |
|
Thermal sensitivity (NETD) |
<60 mK |
|
Thermal sensitivity/NETD |
< 0.06°C |
|
Imaging and optics |
|
|
Wavelength range |
7.5 - 13.0 μ m |
|
Non radiative infrared video stream |
Use USB to transfer uncompressed color video |
|
Radiant infrared video stream |
Full dynamic transfer to PC using USB (FLIR Tools/Tools+) |
|
Fixed focal length |
70 mm+10 mm |
|
Aperture number |
one point five |
|
Infrared resolution |
320x240 (76800 pixels) |
|
Near focus lens/microscope |
NA |
|
Optional lens |
NA |
|
Thermal sensitivity (NETD) |
<60mK |
|
Thermal sensitivity/NETD |
< 0.06°C |
|
Aperture number of thermal imager |
f/1.5 |
|
FOV |
45°x34° |
|
Detector type |
Uncooled microbolometer |
|
Image frequency |
9 Hz |
|
Spot size at minimum focal length |
170um |
|
Measurement and analysis |
|
|
Point thermometer |
Center point |
|
Emissivity correction |
0.1 to 1.0 |
|
Reflected apparent temperature correction |
Automatic, based on reflected temperature input |
|
accuracy |
+3 ° C or+3% of reading at 10 ° C to 35 ° C ambient temperature |
|
Regional temperature measurement |
Input box containing the maximum or minimum value |
|
Thermal imager size (L x W x H) |
22x15x30 cm |
|
Weight of thermal imager (including battery) |
0.575 kg |
|
Communication and data storage |
|
|
Interface |
Transfer data to PC and Mac devices via USB Micro interface |
|
Image format |
Standard full radiation JPEG image, including 14 bit temperature measurement data |
|
Routine |
|
|
Package size |
2.9 kg |
|

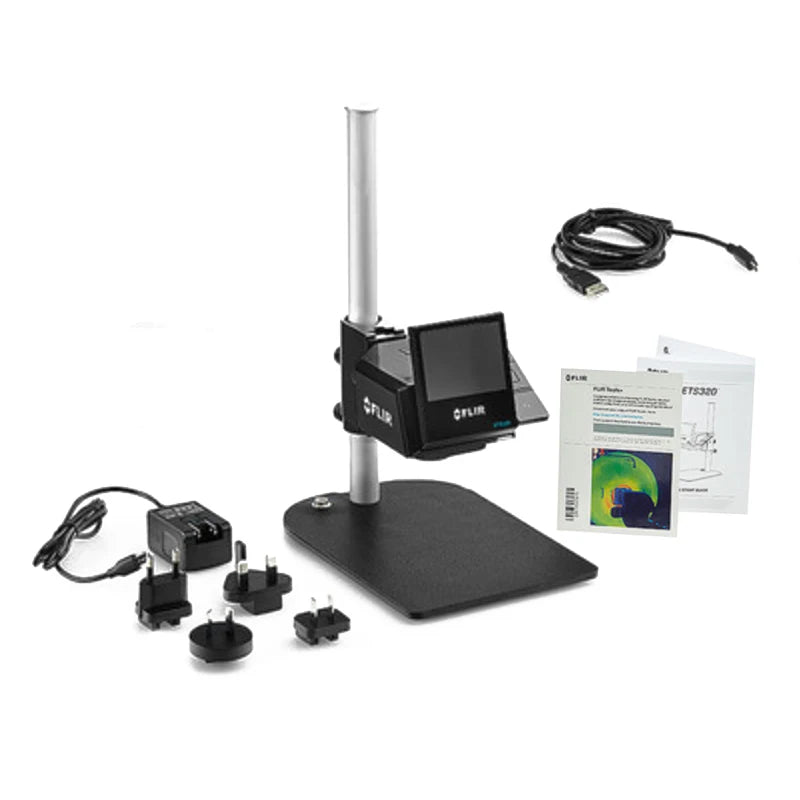

Content list |
Thermal imager, base, bracket, power supply, USB cable, FLIR Thermal studio standard version (valid for - years) |
|
User interface |
|
|
display |
3-inch 320x240 pixel color LCD |
.
