Description
xSPECIFICATIONS
Accuracy: ±4%
Brand Name: NONE,FLIR
Customized support: OEM, ODM
IR resolution: 240 x 180 pixels
Image modes: IR Image: TI Basic firefighting mode
Model: K33
Model Number: K33
Object temperature range: 0°C to 650°C (32°F to 1,202°F)
Origin: Mainland China
Place of Origin: Estonia
Product name: FLIR Thermal Camera
Spotmeter: 1 spotmeter
Thermal sensitivity: < 40 mK @ 30°C (86°F)
Warranty: 1 year
Product Description
Visibility is a chief concern for maintaining firefighter safety, whether you're in the thick of fighting a fire or coordinating
resources as the incident commander. Thanks to FLIR's lineup of cost-effective handhelds, feature-rich advanced cameras, and mounted and UAS aerial options, fire departments can now afford to outfit more firefighters with TICs and monitor all angles of the scene. This is about more than seeing through a smoke-filled room: by viewing the entire scene from multiple viewpoints, incident commanders can make better decisions when directing resources. And, since FLIR TICs clearly visualize heat sources, they're an important tool for hazmat and search and rescue operations.
resources as the incident commander. Thanks to FLIR's lineup of cost-effective handhelds, feature-rich advanced cameras, and mounted and UAS aerial options, fire departments can now afford to outfit more firefighters with TICs and monitor all angles of the scene. This is about more than seeing through a smoke-filled room: by viewing the entire scene from multiple viewpoints, incident commanders can make better decisions when directing resources. And, since FLIR TICs clearly visualize heat sources, they're an important tool for hazmat and search and rescue operations.
K33 240x180 1-Button TIC Firefighter Thermal Camera, 60 Hz
* K33 240x180 Thermal Camera Kit
* Clear and Crisp Thermal Images * The maintenance-free uncooled microbolometer sensor produces detail-rich images at 320 x 240 pixels (K55 & K65) and 240 x 180 pixels (K45) Thermal images are displayed on a large bright 4" LCD, helping you navigate easier and make more efficient, accurate decisions
* NEW! Expanded Warranty * All new K-Series cameras are protected by our exclusive FLIR 2-5-10 Warranty that includes 2 years of coverage on batteries, five years on the camera, and ten years on the detector
* Extremely Affordable: A Thermal Imaging Camera in Every Fire Truck * FLIR develops and manufactures more thermal imaging cameras than any other company. Thanks to economies of scale, FLIR is able to offer K-Series at an extremely affordable price
* Rugged & Reliable * The K-Series is designed to meet tough operating conditions. It withstands a drop from 2 meters onto a
* Extremely Affordable: A Thermal Imaging Camera in Every Fire Truck * FLIR develops and manufactures more thermal imaging cameras than any other company. Thanks to economies of scale, FLIR is able to offer K-Series at an extremely affordable price
* Rugged & Reliable * The K-Series is designed to meet tough operating conditions. It withstands a drop from 2 meters onto a

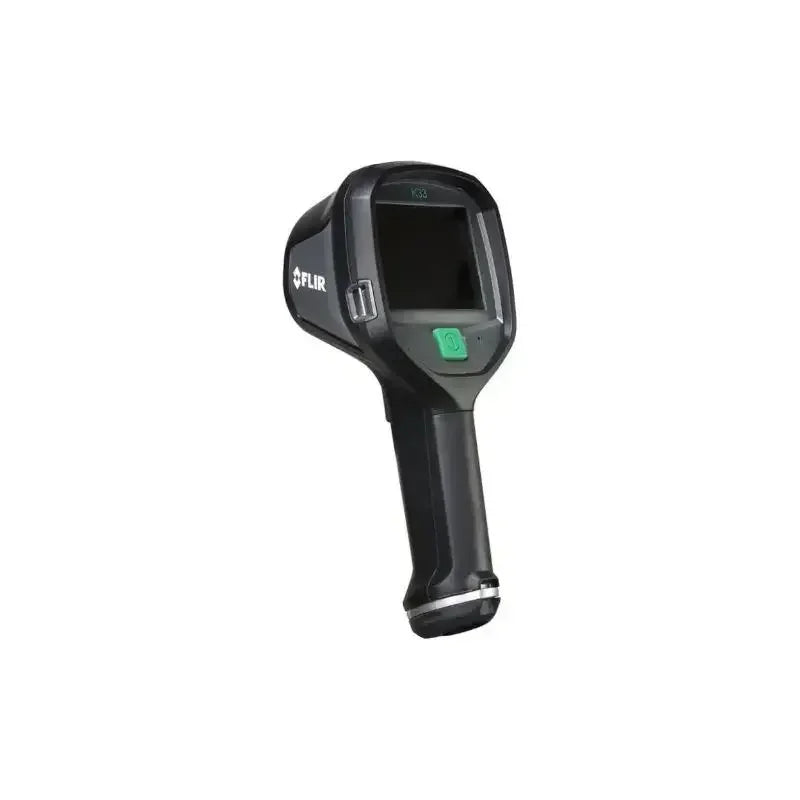

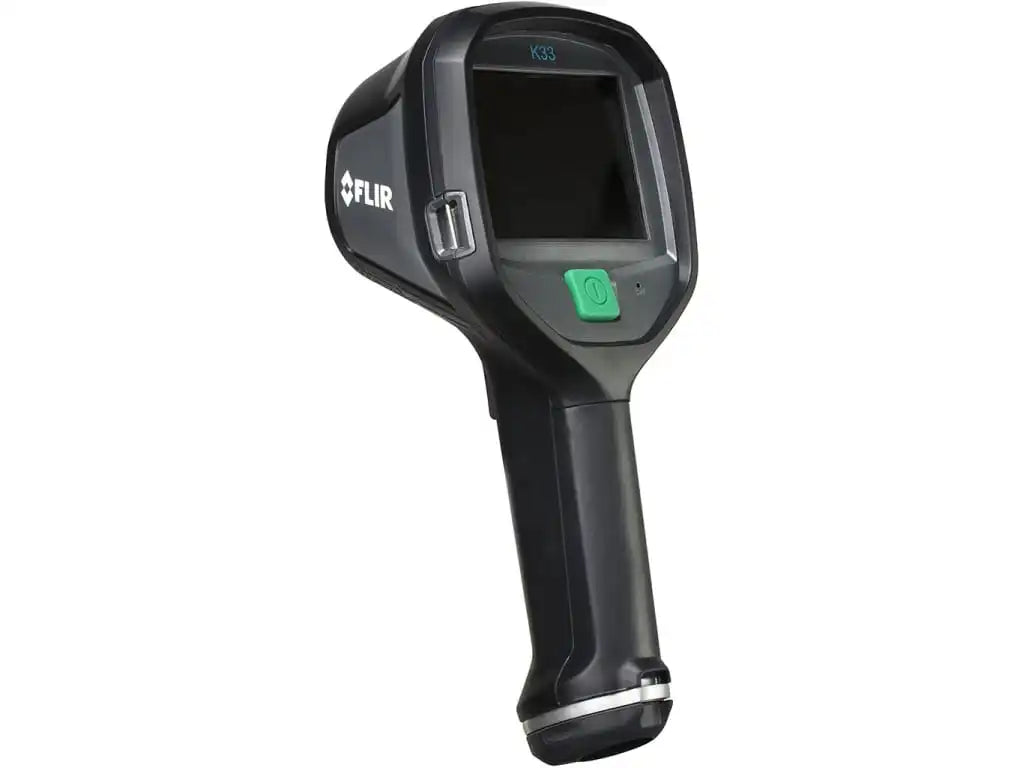

FLIR K33 - 240x180 Thermal Camera Kit, 60 Hz
* K33 240x180 Thermal Camera Kit
* Clear and Crisp Thermal Images
* All new K-Series cameras are protected by our exclusive FLIR 2-5-10 Warranty
FLIR develops and manufactures more thermal imaging cameras than any other company.
* An intuitive and simple user interface allows you to focus on the job at hand.
* Clear and Crisp Thermal Images
* All new K-Series cameras are protected by our exclusive FLIR 2-5-10 Warranty
FLIR develops and manufactures more thermal imaging cameras than any other company.
* An intuitive and simple user interface allows you to focus on the job at hand.
FLIR's expanded lineup of TICs gives you the most comprehensive view of the scene – from inside, outside, and above the fire.
FSX™ - FLEXIBLE SCENE ENHANCEMENT
Details in the thermal image are enhanced through digital image processing inside the camera. The result is an ultra-sharp thermal
image that shows more detail. FSX makes it easier for firefighters to find their way in smoke filled rooms. Even in scenes with
extreme temperature dynamics that are typical for a firefighting environment.
image that shows more detail. FSX makes it easier for firefighters to find their way in smoke filled rooms. Even in scenes with
extreme temperature dynamics that are typical for a firefighting environment.
Rugged, Reliable Tools
Fire scenes aren't pretty, they aren't safe, and they aren't easy on equipment. FLIR designed its line of TICs to withstand the
toughest firefighting conditions, whether it's a two-meter drop, heavy water spray, or blazing-hot temperatures.
Fire scenes aren't pretty, they aren't safe, and they aren't easy on equipment. FLIR designed its line of TICs to withstand the
toughest firefighting conditions, whether it's a two-meter drop, heavy water spray, or blazing-hot temperatures.

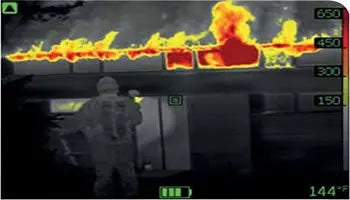

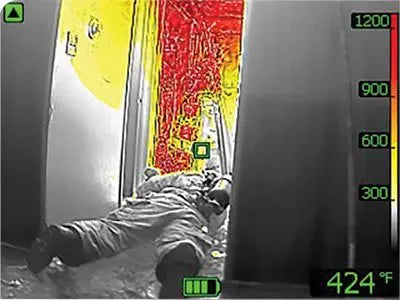

For initial fire attack and life rescuing operations.
Same as the TI Basic mode but a grey scale image.

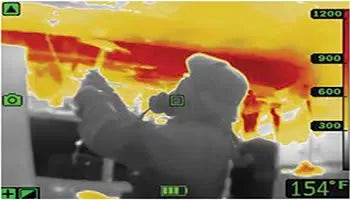

For use in context with higher background temperatures where a lot of open flames are present, particularly in structural fires.
Enhanced for Crisper Detail
FLIR K-Series TICs display enhanced thermal images on a bright LCD, helping you navigate better and expedite critical decisions.
Whether you're working with an advanced 320 x 240 pixel model or an affordable 240 x 180 pixel TIC, the uncooled IR sensor
provides crisp, detail-rich imagery at a 60 Hz frame rate that keeps up with the action.
Whether you're working with an advanced 320 x 240 pixel model or an affordable 240 x 180 pixel TIC, the uncooled IR sensor
provides crisp, detail-rich imagery at a 60 Hz frame rate that keeps up with the action.
Uncompromisingly Tough
FLIR designed its K-Series TICs to withstand the toughest firefighting conditions – from two-meter drops onto concrete to blasts
from the hose. They remain fully operational in 500°F heat for up to 5 minutes. What's more, the K65 complies fully with the NFPA®
1801-2013 standard for firefighting thermal imaging cameras.
from the hose. They remain fully operational in 500°F heat for up to 5 minutes. What's more, the K65 complies fully with the NFPA®
1801-2013 standard for firefighting thermal imaging cameras.
Easy to Handle
The large buttons on K-Series TICs provide quick access to the simplified user interface, so you can stay focused on the
challenging and fast-changing job at hand.
challenging and fast-changing job at hand.
Specification
|
FLIR K-Series Handheld TICs Specifications
|
|
|
|
|
|
|
||||||
|
Model
|
K2
|
K33
|
K45
|
K53
|
K55
|
K65
|
||||||
|
Imaging and optical data
|
|
|
|
|
|
|
||||||
|
IR resolution
|
160 x 120 pixels
|
240 x 180 pixels
|
240 x 180 pixels
|
320 × 240 pixels
|
|
|
||||||
|
Thermal sensitivity
|
< 100 mK @ 30°C (86°F)
|
< 40 mK @ 30°C (86°F)
|
< 40 mK @ 30°C (86°F)
|
< 30 mK @ 30°C (86°F)
|
|
|
||||||
|
Image or contrast optimization
|
Digital image enhancement with MSX®
|
Digital image enhancement with FSX™
|
|
|
|
|
||||||
|
Field of view (FOV)
|
47° × 35°
|
51° × 38°
|
|
|
|
|
||||||
|
Image storage
|
No
|
No
|
Up to 200 JPEG images on internal flash memory (co-dependent on the number of saved video clips)
|
|
|
|
||||||
|
Video storage
|
No
|
No
|
No
|
200 files in total, with a maximum duration of 5 min per video clip
|
|
|
||||||
|
In-camera video recording format
|
No
|
No
|
No
|
MPEG-4 to internal flash memory
|
|
|
||||||
|
Image presentation
|
|
|
|
|
|
|
||||||
|
Display
|
Backlit 3 in, 320 x 240 pixel LCD
|
Backlit 4 in, 320 x 240 pixel LCD
|
|
|
|
|
||||||
|
Image modes
|
IR Image: Basic firefighting mode, Cold detection mode, Building analysis mode, Black-and-white firefighting mode, Fire mode,
Search and rescue mode, Heat detection mode |
IR Image: TI Basic firefighting mode
|
IR Image: TI Basic firefighting mode, Black-and-white firefighting mode, Fire mode, Search and rescue mode, Heat detection mode
Thumbnail gallery |
IR Image: TI Basic firefighting mode
|
IR Image: TI Basic firefighting mode, Black-and-white firefighting mode, Fire mode, Search and rescue mode, Heat detection mode
Thumbnail gallery |
IR Image: TI Basic NFPA firefighting mode, Black-and-white firefighting mode, Fire mode, Search and rescue mode, Heat detection
mode Thumbnail gallery |
||||||
|
Auto range
|
Yes, selectable on/off using FLIR Tools
|
|
|
|
|
|
||||||
|
Measurement
|
|
|
|
|
|
|
||||||
|
Object temperature range
|
–20°C to 150°C
(–4°F to 302°F) 0°C to 500°C (32°F to 932°F) |
–20°C to 150°C (-4°F to 302°F)
0°C to 650°C (32°F to 1,202°F) |
|
|
|
|
||||||
|
Accuracy
|
±4°C (±7.2°F)or ±4% of reading for ambient temperature, 10°C to 35°C (50°F to 95°F)
|
|
|
|
|
|
||||||
|
Spotmeter
|
1 spotmeter
|
|
|
|
|
|
||||||
|
Certifications
|
|
|
|
|
|
|
||||||
|
NFPA 1801-2013 Certification
|
|
|
|
|
|
Yes
|
||||||
|
Power system
|
|
|
|
|
|
|
||||||
|
Battery type
|
Li Ion, > 4 hours operating time
|
|
|
|
|
|
||||||
|
Charging time
|
2.5 h to 90% capacity
|
2 hours to 85% capacity, status indicated by LEDs
|
|
|
|
|
||||||
|
Environmental data
|
|
|
|
|
|
|
||||||
|
Operating temperature range
|
–10°C to 55°C
(14°F to 131°F) 85°C (185°F): 15 min 150°C (302°F): 10 min 260°C (500°F): 3 min |
–20°C to 85°C (–4°F to 185°F)
150°C (302°F): 15 min 260°C (500°F): 5 min |
|
|
|
|
||||||
|
Storage temperature range
|
–40°C to 70°C
(–40°F to 158°F) |
–40°C to 85°C (-40°F to 185°F)
|
|
|
|
|
||||||
|
Humidity (operating and storage/ relative)
|
IEC 60068-2-30/24 h 95% relative humidity 25°C to 40°C (77°F to 104°F) / 2 cycles 95% relative humidity 25°C to 40°C (77°F to
104°F) non-condensing |
|
|
|
|
|
||||||
|
Encapsulation, shock, vibration, and drop
|
IP 67 (IEC 60529), 25 g (IEC 60068-2-27), 2 g (IEC 60068-2-6), 2.0 m / 6.6 ft, on concrete floor (IEC 60068-2-31)
|
|
|
|
|
|
||||||
|
Physical data
|
|
|
|
|
|
|
||||||
|
Camera weight, incl. battery
|
0.7 kg (1.54 lb)
|
1.1 ±0.05 kg (2.4 ±0.1lb)
|
|
|
|
|
||||||
|
Camera size (L × W × H)
|
250 x 105 x 90 mm
(9.8 x 4.1 x 3.5 in) |
120 × 125 × 280 mm (4.7 x 4.9 x 11 in)
|
|
|
|
|
||||||
