Description
xSPECIFICATIONS
Battery Included: Yes
Brand Name: NoEnName_Null
Certification: CE
Display Size: 1.9 Inches & Under
High-concerned chemical: None
Maximum temperature: 400 ℃
Minimum temperature: -20 ℃
Model Number: FLIR ONE EDGE Pro
Origin: Mainland China
Style: Embedded
Thermal pixels: 160*120

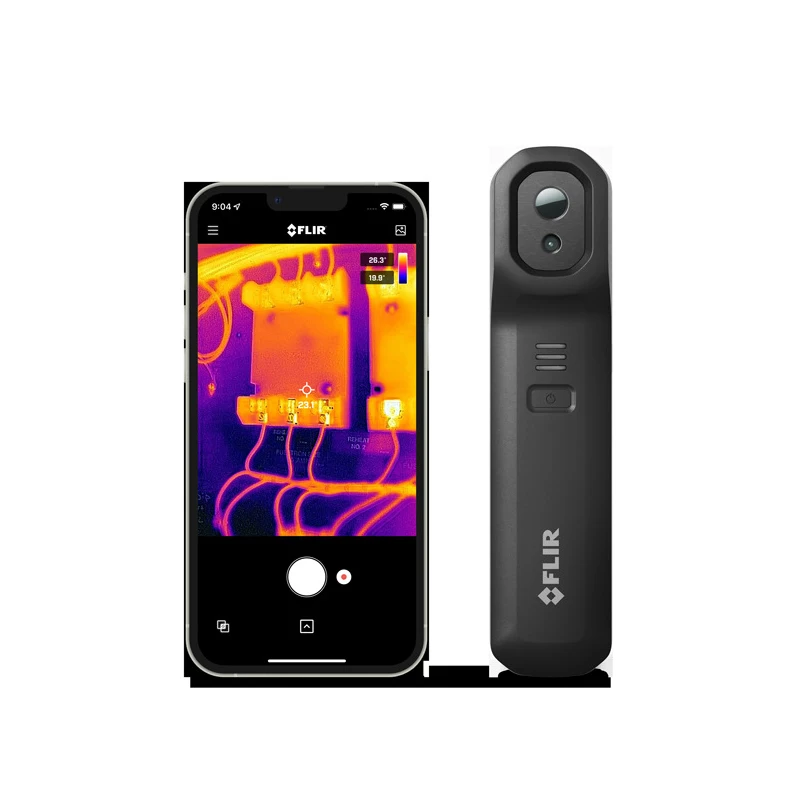

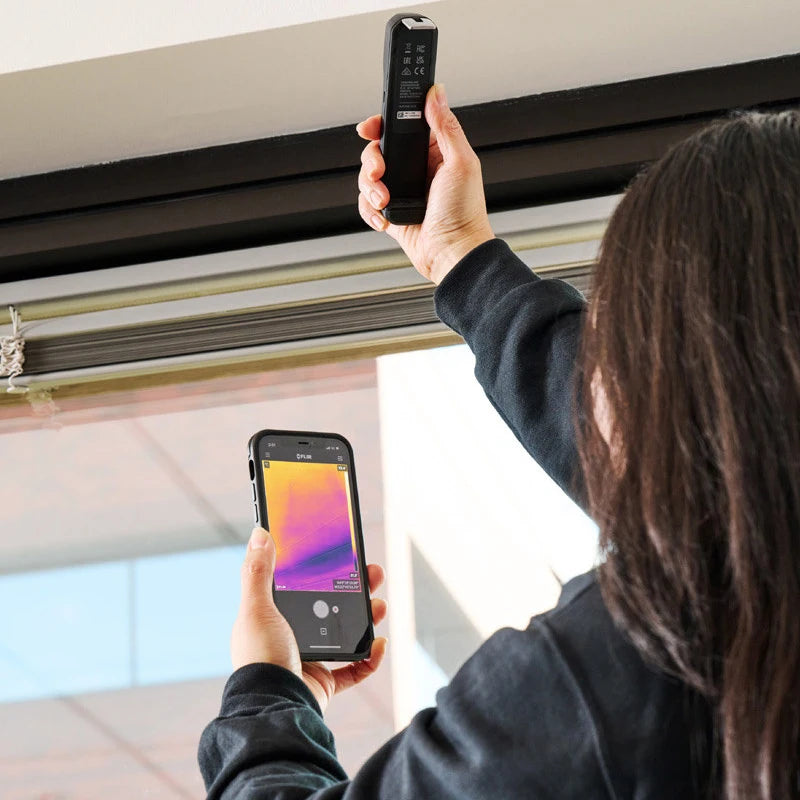

FLIR ONE EDGE Pro Connect Thermal Imaging Cameras Wirelessly to iOS and Android Smart Devices

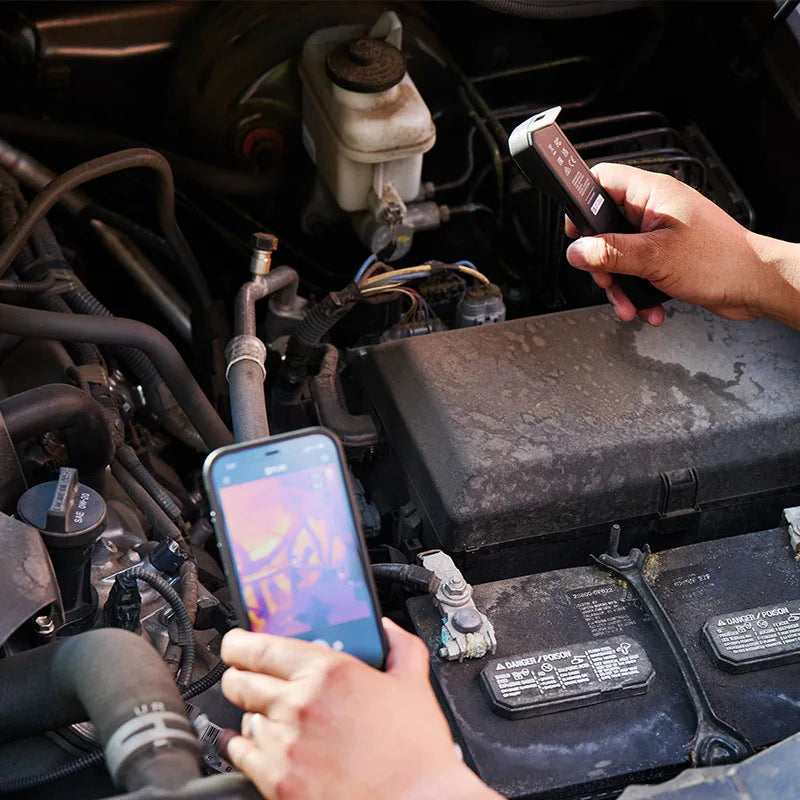

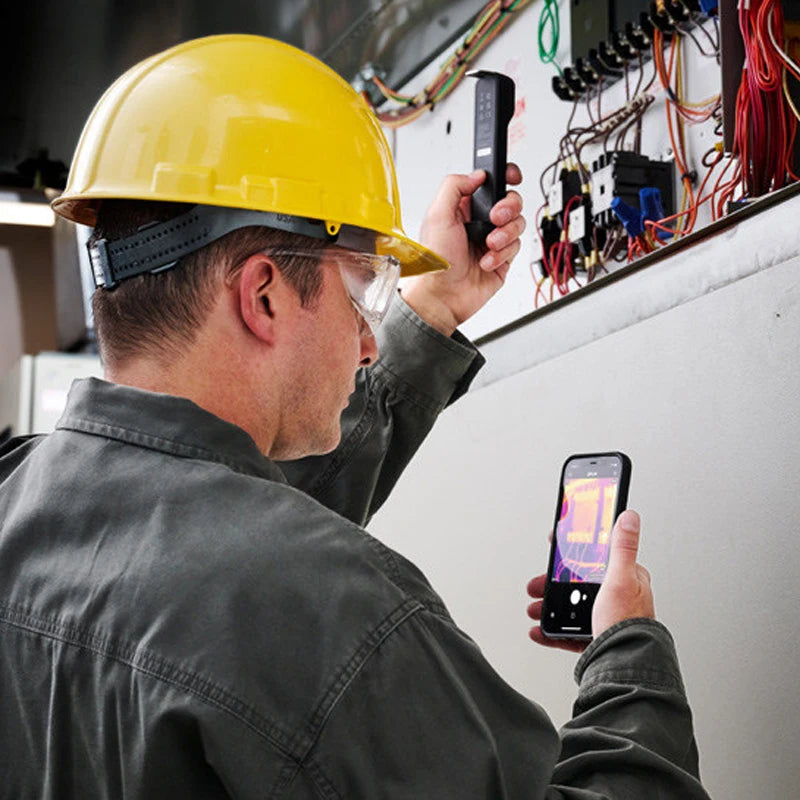

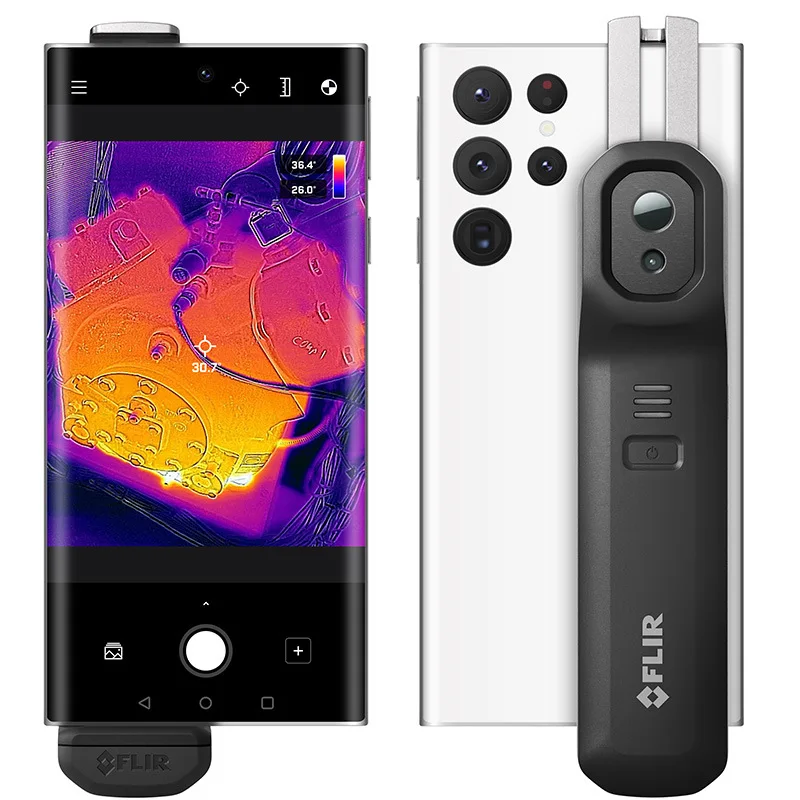

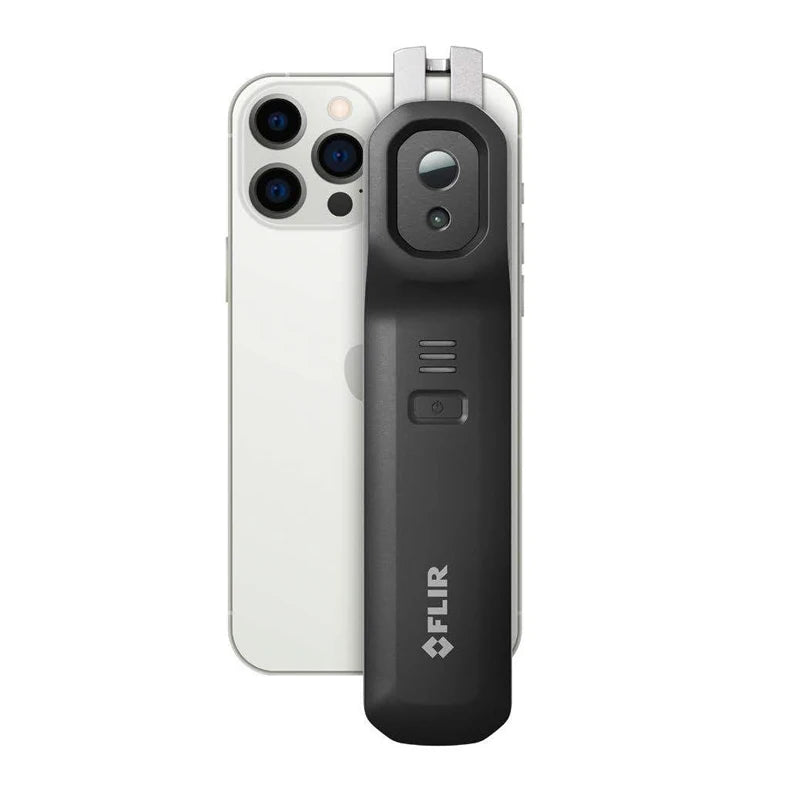

FLIR ONE Edge is a sturdy and innovative thermal imager that allows you to easily inspect difficult to reach areas from any position or angle. The thermal imager can be wirelessly connected to your smart device, allowing you to detect targets outside of your field of view or clip it onto your phone or tablet for one handed operation. With the help of FLIR MSX ®， You can take detailed thermal images to help you clearly identify the problem. The FLIR ONE application provides guidance to help you perform fault diagnosis and verify repair results in many DIY and professional applications, including home, automotive, commercial electrical, and mechanical inspections. Through wireless connection, the same thermal imager can be used on both Android and iOS devices, making it convenient for you to share your thermal imager with team members. All hot images and videos are saved directly to your mobile device for easy access and future use. After connecting to FLIR Ignite, you can immediately upload files to the cloud for creating reports and organizing, storing, and sharing data in the cloud, achieving more efficient workflows.
Specification：
|
Model |
FLIR ONE Edge Pro |
|
Thermal resolution |
160 × 120 (19,200 pixels) |
|
Battery life |
approx. 1 hour 30 minutes |
|
Temperature measurement range |
-20°C - 120°C and 0°C - 400°C |
|
Accuracy |
±3°C or ±5% (Applies 60 seconds after start-up when device temperature is in the range of 15°C to 35°C and scene temperature is in the range of 5°C to 120°C |
|
Operating temperature |
-10°C to 50°C |
|
battery charge |
0°C to 45°C |
|
Point thermometer |
Hottest, coldest and 3-point measurements |
|
VividIR |
YES |
|
Visible light resolution |
640 × 480 |
|
Adjustable MSX distance |
30 cm - infinite distance |
|
Shutter |
Auto/Manual |
|
Thermal sensor Pixel size |
12 µm, 8 - 14 µm wavelength range |
|
Thermal resolution |
160 × 120 (19,200 pixels) |
|
Thermal sensitivity/NETD |
70 mK |
|
Horizontal field of view / vertical field of view |
54° ±1° / 42° ±1° |
|
Focusing Fixed |
30 cm - infinite distance |
|
Color palette |
Grayscale (white hot), very hot, very cold, iron red, contrast, aurora, lava, and color ring |
|
Image modes |
IR, Visible, MSX |
|
Display frame rate |
8.7 Hz |
|
Charging method |
USB-C port (5V/1A) |
|
Battery charging time |
60-90 minutes to full charge(Empty battery can be used for at least 40 minutes after 15 minutes of charging |
|
Battery life |
approx. 1 hour 30 minutes |
|
Measurement calibration |
Emissivity, apparent temperature of reflection (22°C) |
|
Temperature measurement range |
-20°C - 120°C and 0°C - 400°C |
|
Point thermometer |
Hottest, coldest and 3-point measurements |
|
Accuracy |
±3°C or ±5% (Applies 60 seconds after start-up when equipment temperature is in the 15°C to 35°C range and scene temperature is in the 5°C to 120°C range |
|
Clip Span |
130 mm (min.) / 195 mm (max.) |
|
Remote Operation |
Connects smart devices via Wi-Fi from up to 30 m away |
|
Dimensions (H x W x D) |
37.5 mm × 35 mm × 149 mm |
|
Battery charge monitor |
0 - 100% |
|
Device compatibility |
iOS or Android smartphones and tablets |
|
Weight |
153 g |
|
Emissivity settings |
Matte: 95%, Semi-matte: 80%, Semi-high gloss: 60%, High gloss: 30% |
|
Non-working temperature |
-40°C to 70°C |
|
Operating temperature |
-10°C to 50°C |
|
battery charging |
0°C to 45°C |
|
Drop test |
Drop from 2 m |
|
Certifications |
RoHS, CE/FCC, CEC-BC, EN62133, UL1642, WEEE 2012/19/EU |
|
WiFi |
802.11 a/ac/b/g/n (2.4 and 5 GHz) |
|
Capture modes |
Video, still image |
|
Charging |
USB-C port (5V/1A) |
|
Bluetooth |
Yes |
|
File formats |
Radiation measurement JPG images, MPEG-4 (file formats MOV (iOS） |
