xSPECIFICATIONS
Battery Included: Yes
Brand Name: FLIR
Certification: CE
Display Size: 2.0 - 3.9 Inches
Electronic: Yes
High-concerned chemical: None
Max Measuring Temperature: 120°C & Above
Model Number: FLIR TG165-X/TG267/TG297/TG275
Origin: US(Origin)
Power Type: Li ion Battery
Style: Handheld
Theory: Infrared Thermometer
Use: Industrial
FLIR TG165-X TG267 TG275 TG297 Infrared Thermal Imager Handheld MSX Enhanced Technology Industrial Thermal Imaging Camera

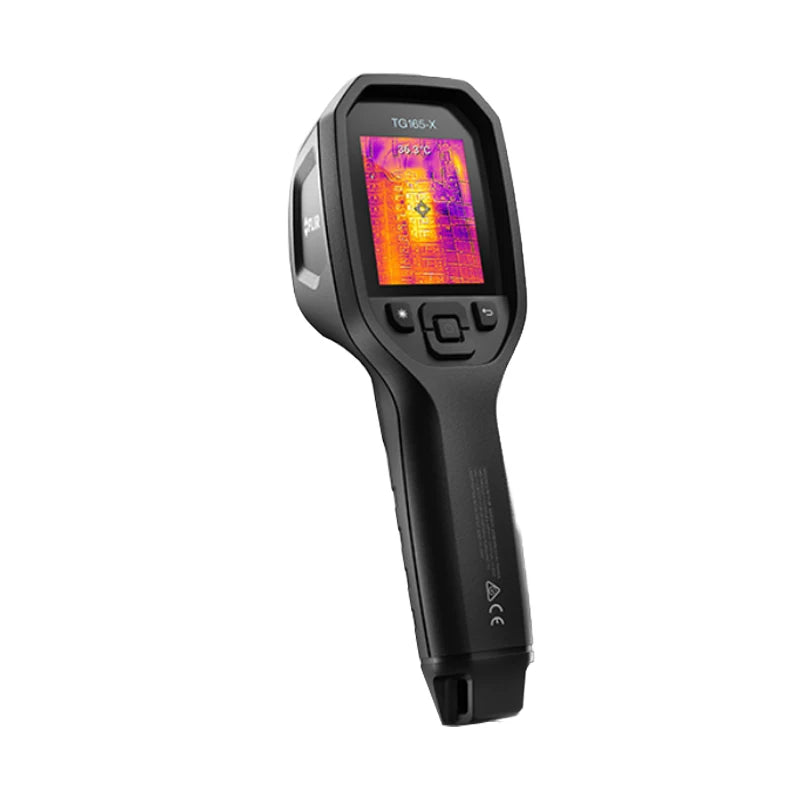

The FLIR TG165-X helps you visualize the hot and cold spots that can indicate electrical faults, mechanical break-downs, or air and water leaks. This all-in-one, non-contact measurement and imaging tool displays temperature anomalies on screen, allowing you to inspect efficiently and pinpoint the source of problems faster than with a single-spot IR thermometer. See components clearly and even read labels thanks to FLIR patented MSX image enhancement, which adds visual details to full thermal images. The bullseye laser ensures you’re always targeting the right component for measurement while easy-to-use buttons and settings help you complete the job quickly and stress-free. With internal storage for up to 50,000 images and a rechargeable Li-ion battery, the FLIR TG165-X is ready to go right out of the box.
TG165 TG165-X TG267 TG275

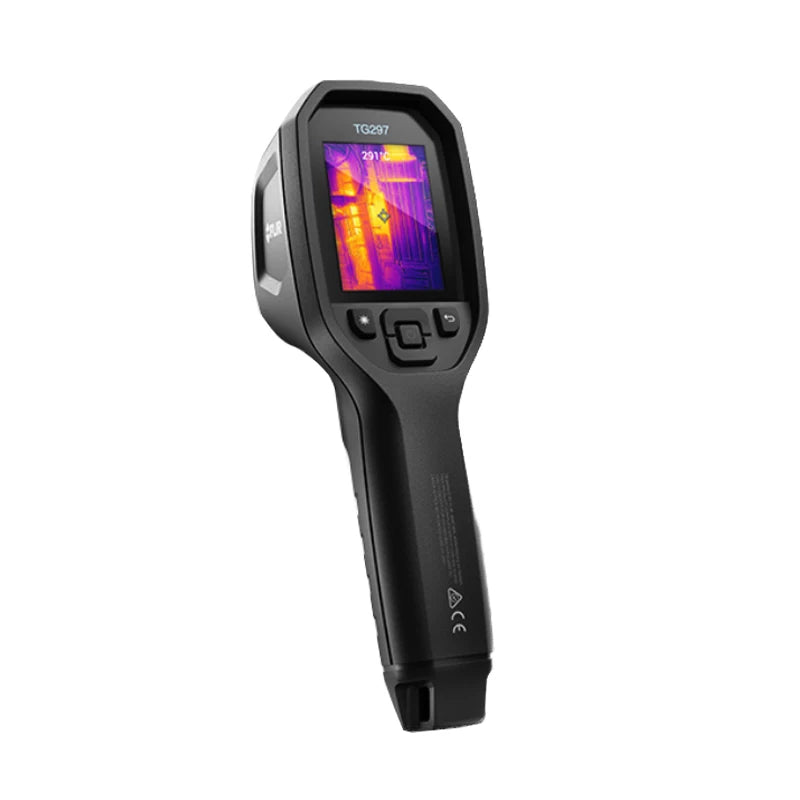

FLIR TG297 Specifiactions:
lmaging and optical data
|
lR resolution |
160×120 pixels |
|
Digital image enhancement |
Yes |
|
Thermal sensitivity/NETD |
<70 mK |
|
Field of view(FOV) |
57°×44° |
|
Minimum focus distance |
0.3 m (0.98 ft) |
|
Distance to spot ratio |
30:1 |
|
lmage frequency |
8.7Hz |
|
Focus |
Fixed |
|
Focal plane array/spectral range |
Uncooled microbolometer/7.5-14 um |
|
Detector pitch |
12um |
Image presentation
|
Display resolution |
320×240 pixels |
|
Screen size |
2.4 in.portrait |
|
Color palettes |
lron , Rainbow,White hot,Black hot,Arctic,Lava |
|
lmage adjustment |
Automatic |
|
lmage modes |
MSxR(Multi Spectral Dynamic Imaging) |
|
Gallery |
Yes |
Measurement and analysis
|
Object temperature range |
-25°C to 1030°C(-13°F to 1886°F) |
|
Measurement accuracy |
-25C to 50°C(-13°F to 122°F): up to 土3C(士7°F) |
|
ltemperature resolution |
0.1°C(0.2°F) |
|
Repeatability of reading |
士1% of reading or±1°C(2°F), whichever is greater |
|
Response time |
150 ms |
|
IR thermometer measurement |
Continuous scanning |
|
Minimum measurement distance |
0.26 m (0.85 ft) |
|
Spotmeter |
Center spot on/off |
Set-up and service functions:
|
Set-up commands |
Local adaptation of units, language, date, and time formats |
|
Emissivity correction |
Yes: 4 pre-set levels with custom adjustment of 0.1-0.99 |
Light and laser
|
Flashlight |
100 lumens LED,on/off option |
|
Class 1 laser |
Projects center spot and outlines circular measurement area to indicate size |
Data communcation interfaces
|
Bluetooth" |
BLE |
|
USB |
Type-C:data transfer,power |
Additional data
|
Battery type |
Rechargeable 3.7 V Li-ion battery |
|
Battery operating time |
5 hrs scanning |
|
Battery charging time |
4 hrs to 90% |
|
Power management |
Adjustable:off, 5 min, 15 min, 30 min |
|
Shock/vibration |
25g (IEC 60068-2-27);2g (IEC 60068-2-6) |
|
Drop |
Designed for 2 m(6.56 ft) |
|
Weight |
0.394 kg (13.9 oz) |
|
Size(L×WxH) |
210×64×81 mm(8.3×2.5×3.2 in) |
