Description
xSPECIFICATIONS
AC Current: Refer to SPEC
AC Voltage: Refer to SPEC
Battery Included: No
Brand Name: FLUKE
Certification: CE
DC Current: Refer to SPEC
DC Voltage: Refer to SPEC
DIY Supplies: Electrical
Dimensions: 50*100*203mm
Display Type: Digital Display
FLUKE Model: 789
High-concerned chemical: None
Is Smart Device: No
Measuring Capacitance Range: Refer to SPEC
Measuring Inductance Range: Refer to SPEC
Measuring Resistance Range: Refer to SPEC
Model Number: Fluke 789
Operating Mode: Auto Range
Operating Temperature: 0 - 50 ℃
Origin: Mainland China

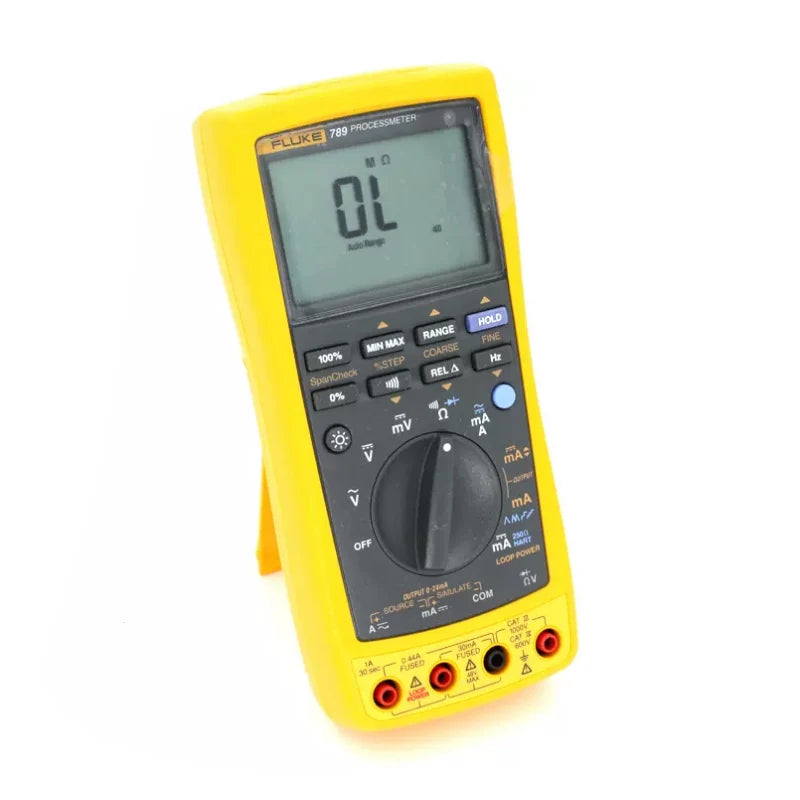

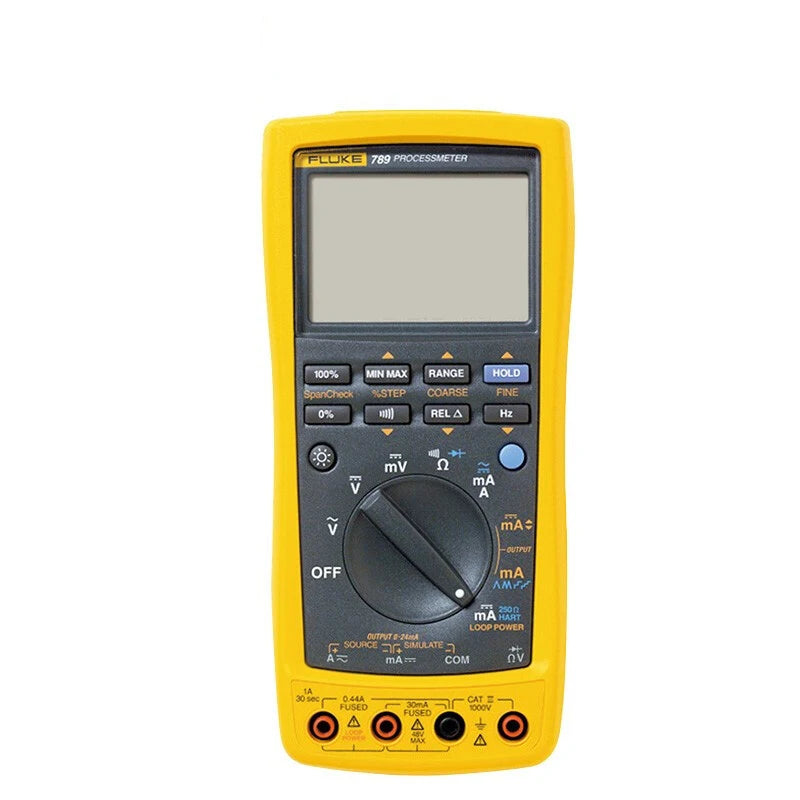

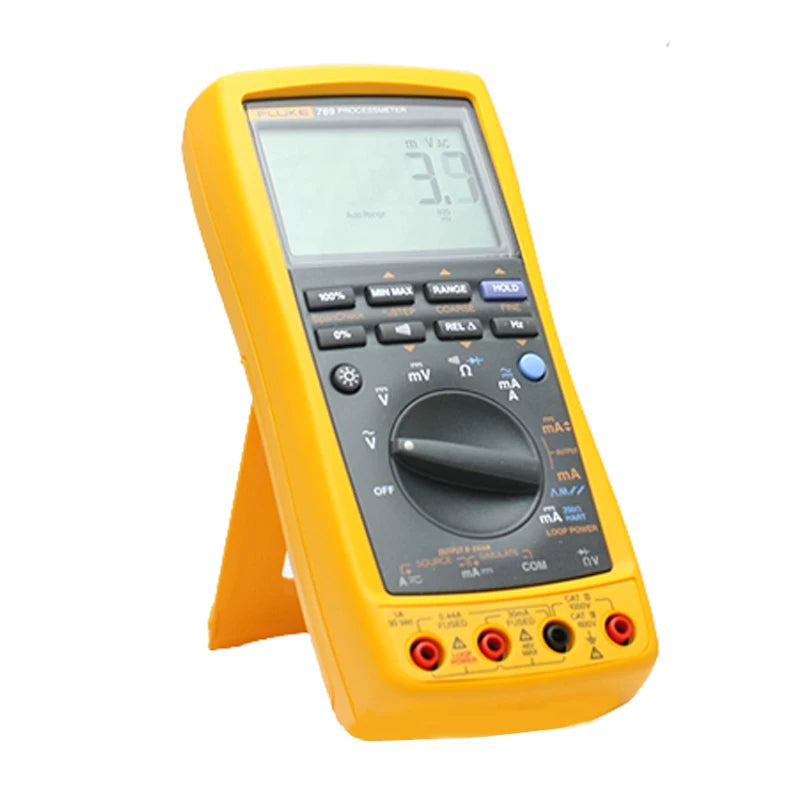

Fluke 789 ProcessMeter the Ultimate Loop Calibration Multimeter+ Fast Shipping
The F789 Fluke Process Multimeter is the first process multimeter to combine a digital multimeter and a loop calibrator, doubling the capabilities of process technicians. Fluke has now introduced a new and better model, the Fluke 789 Loop Calibration Multimeter. The Fluke 789 has a 24V loop power supply and does not require separate carrying of loop power for offline transmitter testing; the built-in optional 250 Ω HART loop resistor eliminates the need to carry the load resistor alone. Fluke 789 lets you carry less and finish more.
Features：
24 V loop power supply
Double display large screen
Enhanced backlight, 2-level brightness adjustable
1200 Ohm drive capability with mA output
HART mode with loop power supply, built-in 250 ohm resistor
The 0% and 100% buttons toggle between the 4 and 20 mA outputs for quick full-scale inspection
Battery compartment door for easy battery replacement
Fluke 789 contains all features that the Fluke 787 has
Precision 1000 V, 440 mA True RMS Digital Multimeter
0.1% DC Voltage Accuracy
0.05% DC Current Accuracy
Up to 20 kHz frequency measurement
Min/Max/Avg/Contact Hold/Relative Mode
Diode test function and on-off buzzer
Simultaneous reading of mA readings and percentage readings
20 mA DC Current Output / Loop Calibrator / Simulator
Manual stepping (25%, coarse adjustment, fine adjustment), automatic stepping and automatic ramping
Battery compartment door for easy battery replacement
Specifications：
|
Current measurement |
Range: 0-1 A AC or DC
Resolution: 1 mA
Accuracy: 0.2% + 2 LSD (DC)
The
Range: 0-30 mA
Resolution: 0.001 mA
Accuracy: 0.05% + 2 least significant digits
|
|||
|
Output current |
Range: 0-20 mA or 4-20 mA
Resolution: 0.05% full scale
Drive capability: 24 V or 1200 Ω @ 20 mA
|
|||
|
Frequency |
To 19.999 kHz, 0.005% + 1 least significant bit |
|||
|
Continuity |
Beep at impedance <100 Ω
|
|
||
|
Voltage measurement |
Range: 0-1000 V AC (true rms) or DC
Resolution: 0.1 mV to 1.0 V
Accuracy: 0.1% reading + 1 least significant bit (VDC)
|
|
||
|
Resistance measurement |
Up to 40 MΩ, 0.2% + 1 least significant bit
|
|||
|
Diode test |
2.0 V display diode voltage drop
|
|||
|
Shows the percentage of current and full scale |
Yes |
|||
|
Automatic stepping, automatic slope |
Yes |
|
Environmental parameters: |
|||
|
Operating temperature |
|
||
|
Storage temperature |
-40 C to 60 C
|
||
|
Humidity (non-condensing) |
95% to 30 C
75% to 40 C
45% to 50 C
35% to 55 C
|
||
|
Temperature Coefficient |
0.05 x (Nominal Accuracy) /oC (When Temperature < 18 C or > 28 C)
|
||
|
Safety technical parameters |
|||
|
Electrical Safety |
|
||
|
Overvoltage category |
IEC 1010-1 CAT III 1000 V
IEC 1010-1 CAT IV 600 V
|
||
|
Maximum voltage |
1000 V RMS
|
||
|
Mechanical and general parameters |
|||
|
Dimensions |
50 x 100 x 203 mm |
||
|
Weight |
600 g |
||
|
Batteries |
4 AA alkaline batteries
|
||
|
warranty period |
3 years |
||
|
Battery Life |
140 hours, typical value (measurement); 10 hours, typical value (output 20 mA)
Vibration and vibration
|
||
|
Vibration and vibration |
Random, 2 g, 5-500 Hz
1 meter drop test
|
||
|

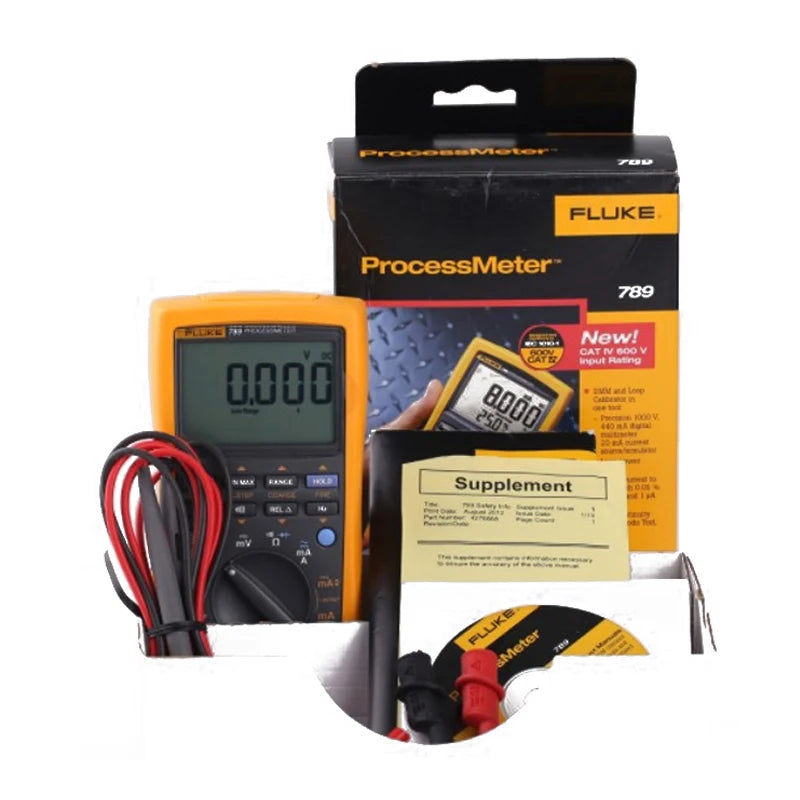

Model Name |
Description |
|
Fluke 789 |
Process Multimeter

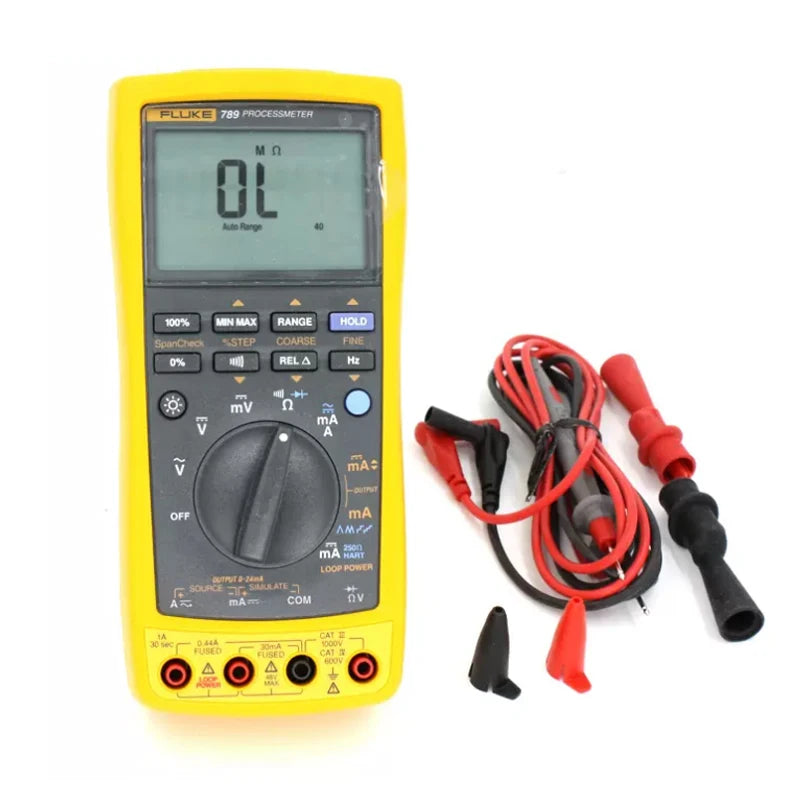

AC72 alligator clip
Four AA Models 1.5 V Alkaline Batteries (Installed) Not included package
TL71 Safety Design Test Lead Set
User Manual and Quick Reference Guide
|
Notice：
The standard package don't include batteries.Because,the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.Thanks for your support!
