Description
xSPECIFICATIONS
Battery Included: No
Brand Name: FLUKE
Certification: CE
High-concerned chemical: None
Measure Type: Frequency
Model Number: Fluke 820-2
Origin: Mainland China
Semi-finishedproduct: No
Type: Other

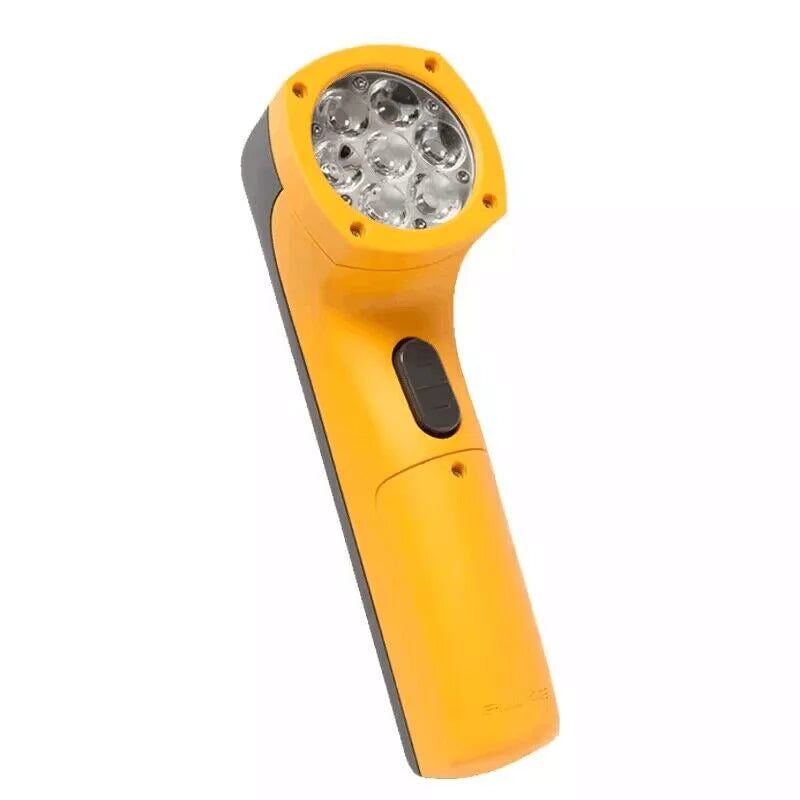

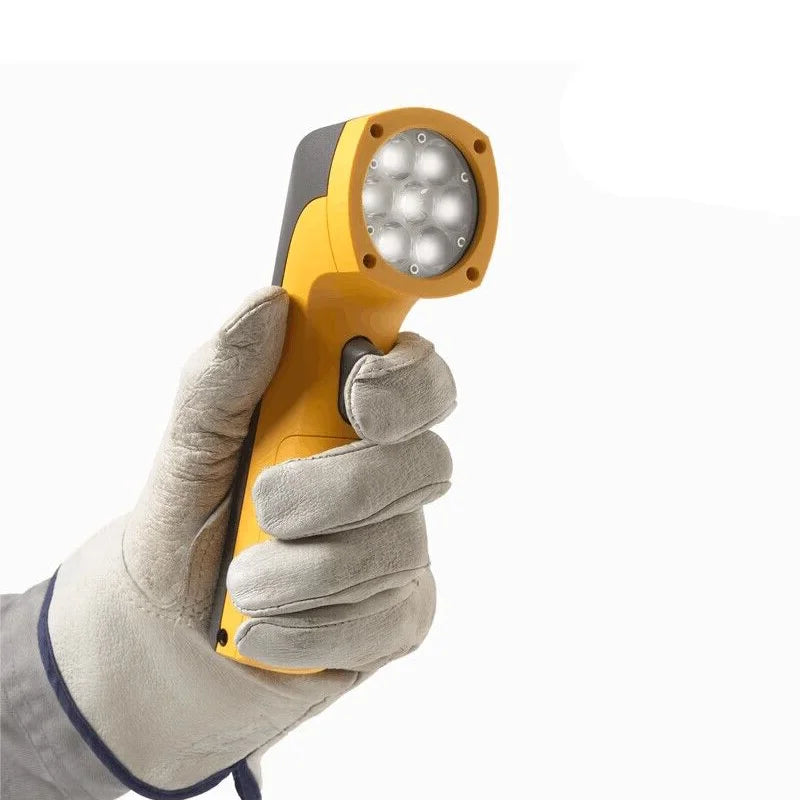

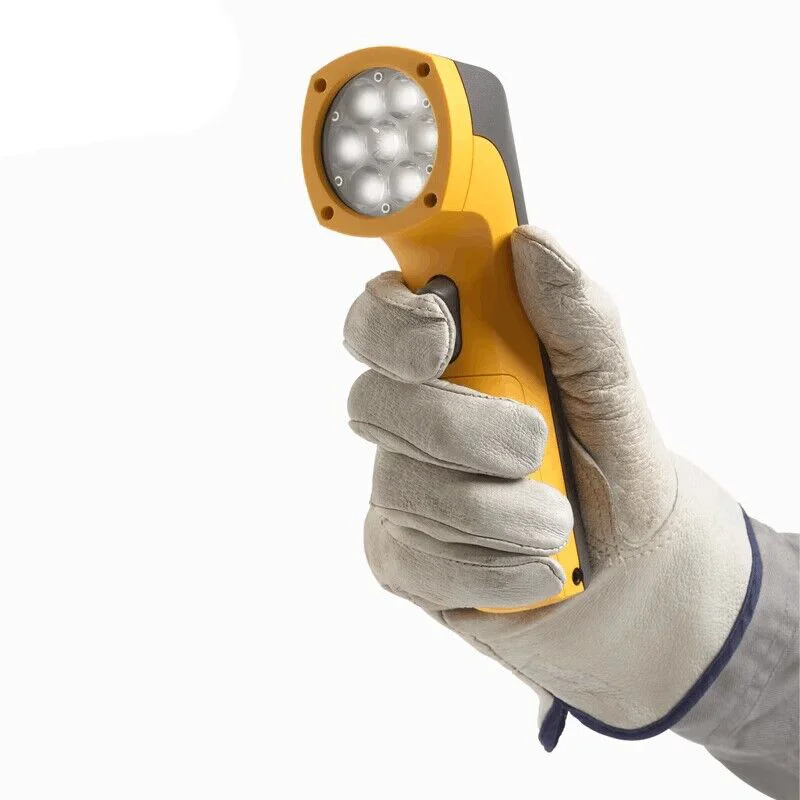

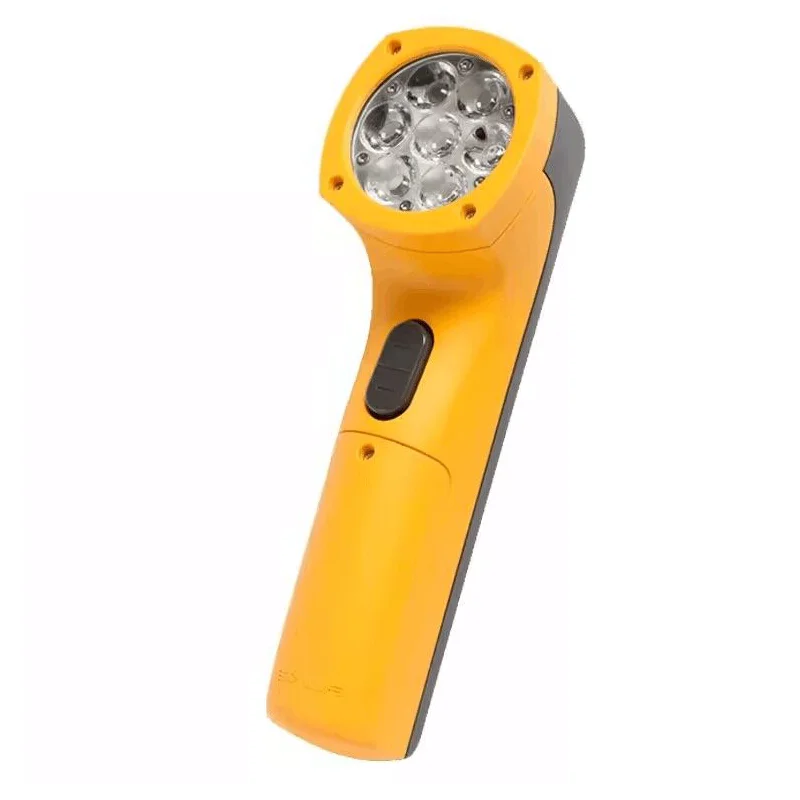

FLUKE 820-2 Digital LED Stroboscope Strobe Flashing Frequency Measure
Features

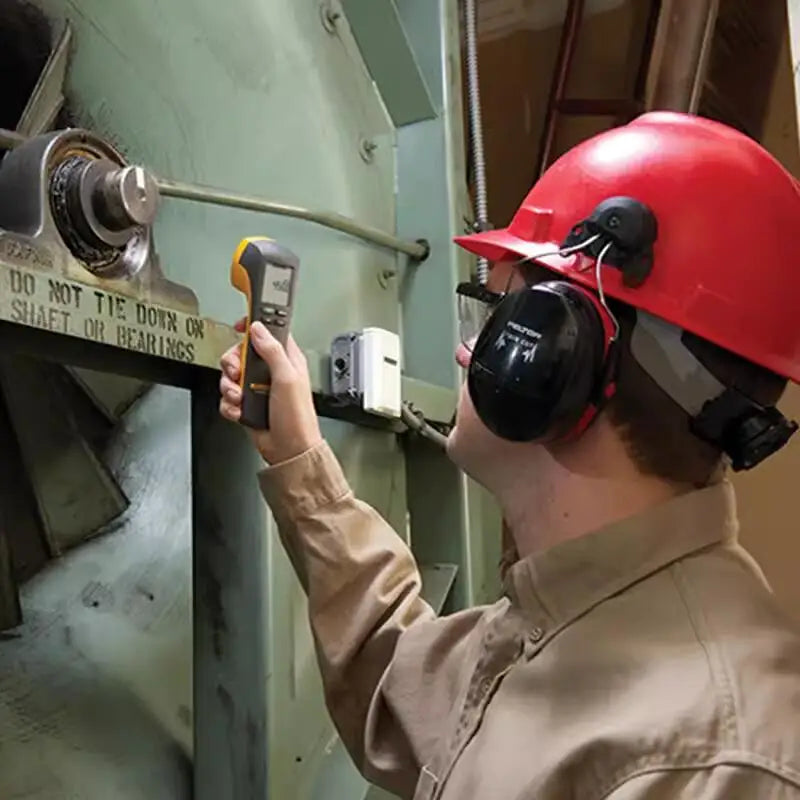

Rugged, compact, easy to use stroboscope for checking the rotating speed of machinery without physical contact or the need for reflective tape
Features high-intensity 7-LED array—4,800 Lux @ 6,000 FPM/30cm
Provides a high-efficiency LED solid-state light source with uniform flash characteristics that allow for higher flash rates—30-300,000 FPM (flashes per minute)
Specifications
Mechanical Specifications | |
Size (HxWxL) |
5.71 cm x 6.09 cm x 19.05 cm |
2.25 in x 2.4 in x 7.5 in | |
Weight |
0.24 kg |
Environmental Specifications | |
Operating temperature |
0 °C to +45 °C |
Storage temperature |
-10 °C to +50 °C |
Operating humidity (without ondensation) |
Non-condensing (<10 °C) |
90 % RH (10 °C to 30 °C) | |
75 % RH (30 °C to 40 °C) | |
45 % RH (40 °C to 50 °C) | |
Absorption/corrosion |
30 °C, 95 % RH, 5 day |
Product functions normally | |
Operating altitude |
2,000 m |
Storage altitude |
12,000 m |
Vibration |
MIL-PRF-28800F Class 2 |
Impact resistance |
1 m drop |
EMI, RFI, EMC |
EN61326-1:2006 |
Safety Compliance | |
Agency approvals |
CE |
Class III (SELV) Pollution Degree 2 | |
Miscellaneous Specifications | |
Flash Frequency | |
Range |
30 to 300,000 FPM |
0.5 to 5000 Hz | |
Accuracy |
0.02 % |
Resolution |
30 to 999 FPM = 0.1 |
1000 to 300,000 = 1 | |
0.5 Hz to 999 Hz = 0.1 | |
1000 Hz to 5000 Hz = 1 | |
Frequency setting |
FPM or Hz |
Flash Pulse | |
Duration |
Adjustable in μs or degrees |
Delay |
Adjustable in μs or degrees |
Light | |
Color |
Approximately 6500 K |
Emission output |
4,800 lx @ 6000 FPM at 30 cm |
External Trigger | |
Method |
Connector to externally control trigger |
High level |
3 V to 32 V |
Low level |
<1 V |
Minimum pulse width |
50 μs connection |
