Description
xSPECIFICATIONS
Battery Included: No
Brand Name: FLUKE
Certification: CE
Display Size: 2.0 - 3.9 Inches
FLUKE Model: VT06 VT08
High-concerned chemical: None
Is Smart Device: No
Maximum temperature: 400 ℃
Minimum temperature: -20 ℃
Origin: Mainland China
Power Source: Charger
Power Type: Charger
Style: Handheld
Supported Languages: Simplified Chinese, Korean, Japanese
Temperature Accuracy: 2%
Temperature Range: -20C~400C
Thermal pixels: 320*240

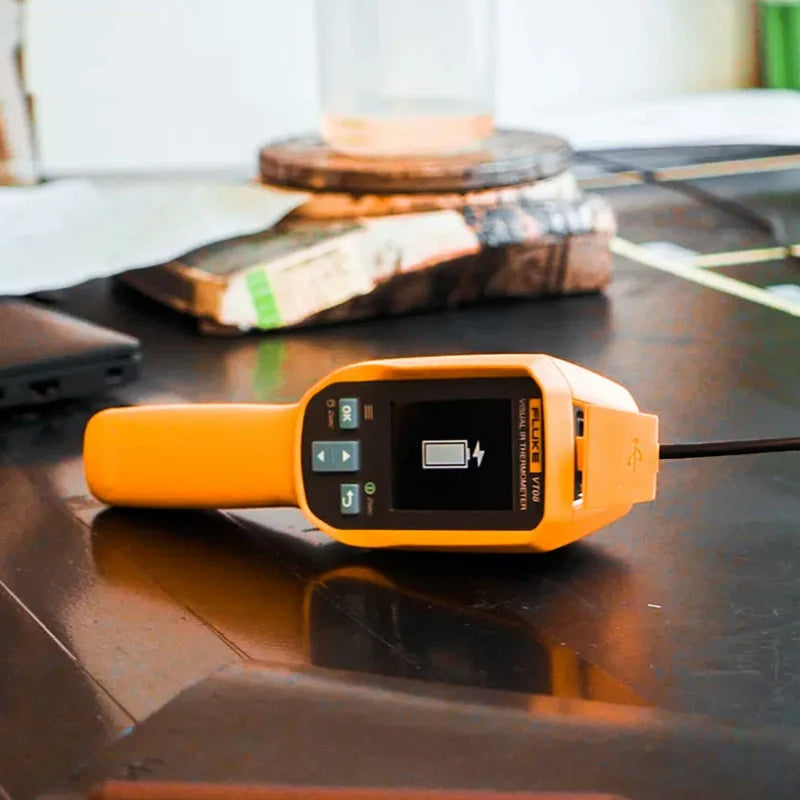

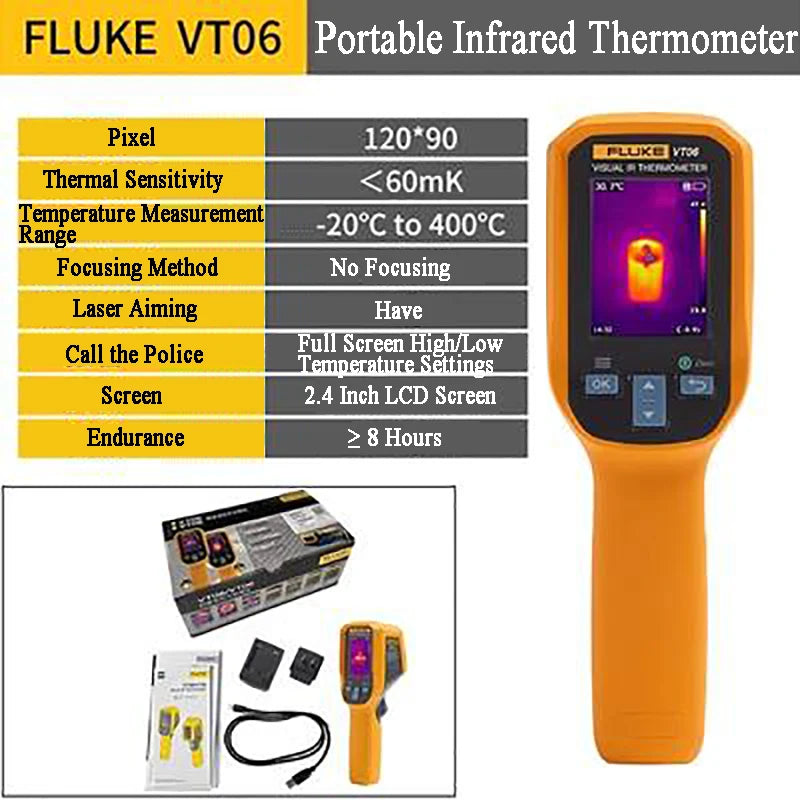

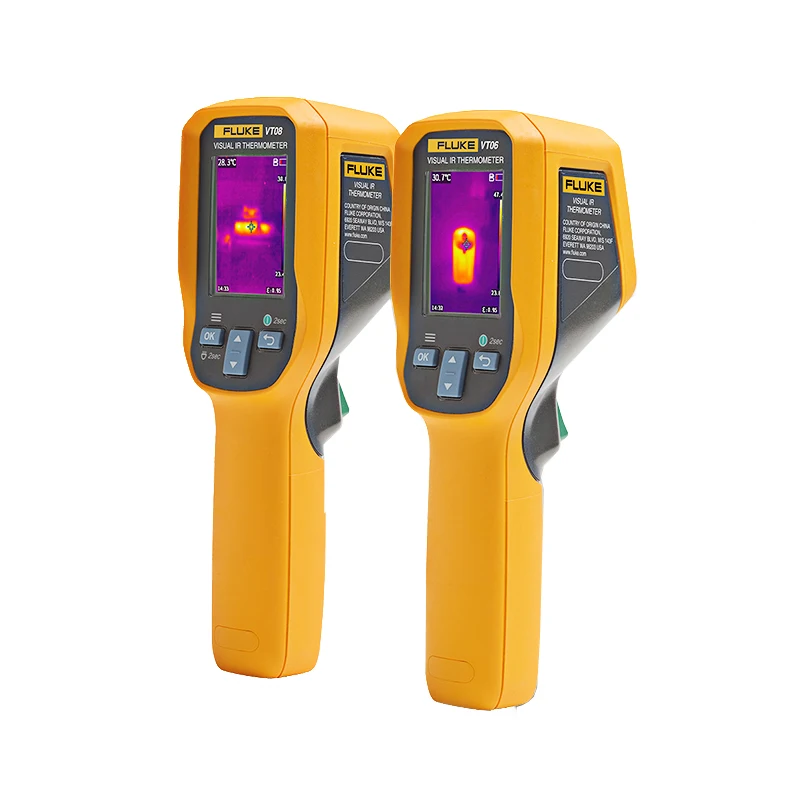

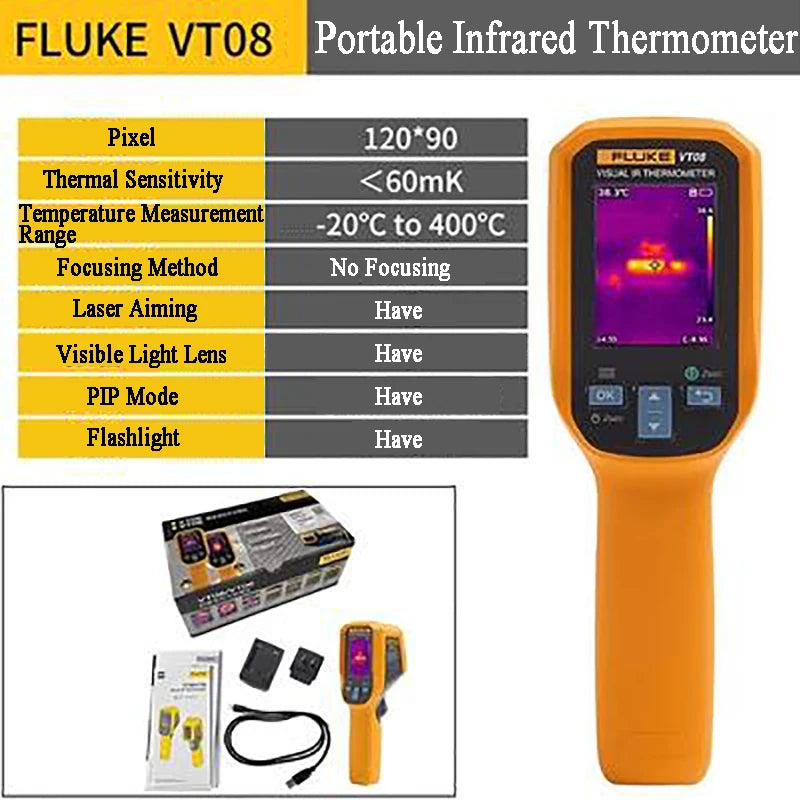

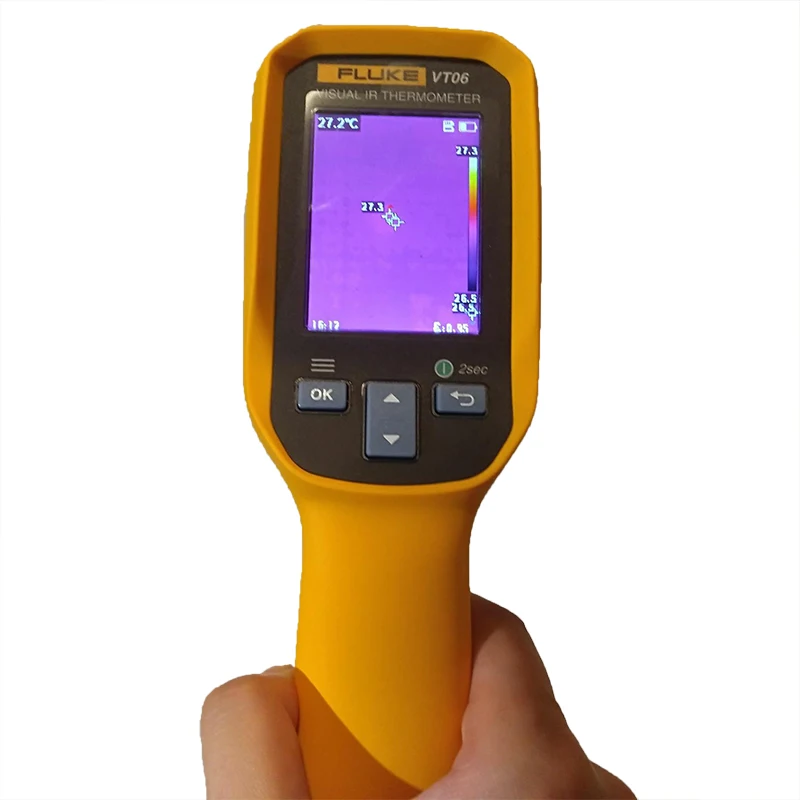

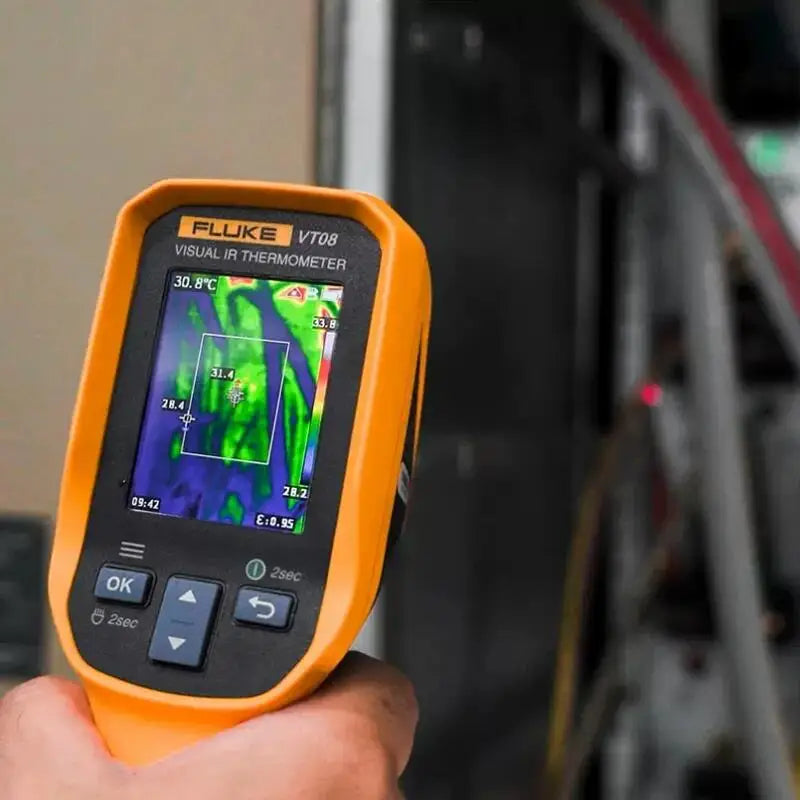

FLUKE VT06 VT08 Visual IR Thermometer Portable Infrared Thermal Imager
-20C-400C Industrial Temperature Measurement
Fluke VT series products adhere to the consistent durability and quality. With its compact design and upgrade function, the temperature measurement is visualized, so that you can obtain clear and accurate infrared thermal images.
Main Characteristic：
*120 x 90 resolution for more details
*Wide range of temperature measurement at 20 ℃ - 400 ℃
*IP65 dustproof and waterproof, 2m fall proof, no fear of harsh industrial environment
*Equipped with laser aiming point to quickly locate the measured target
*2-hour fast charging, 8-hour endurance

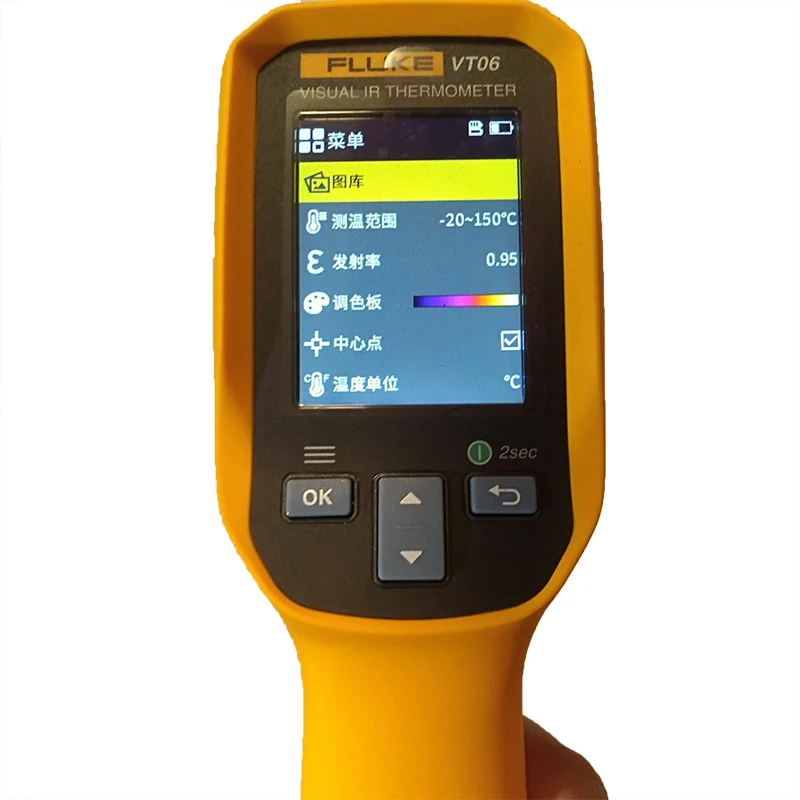

*Single layer menu interface, open and test

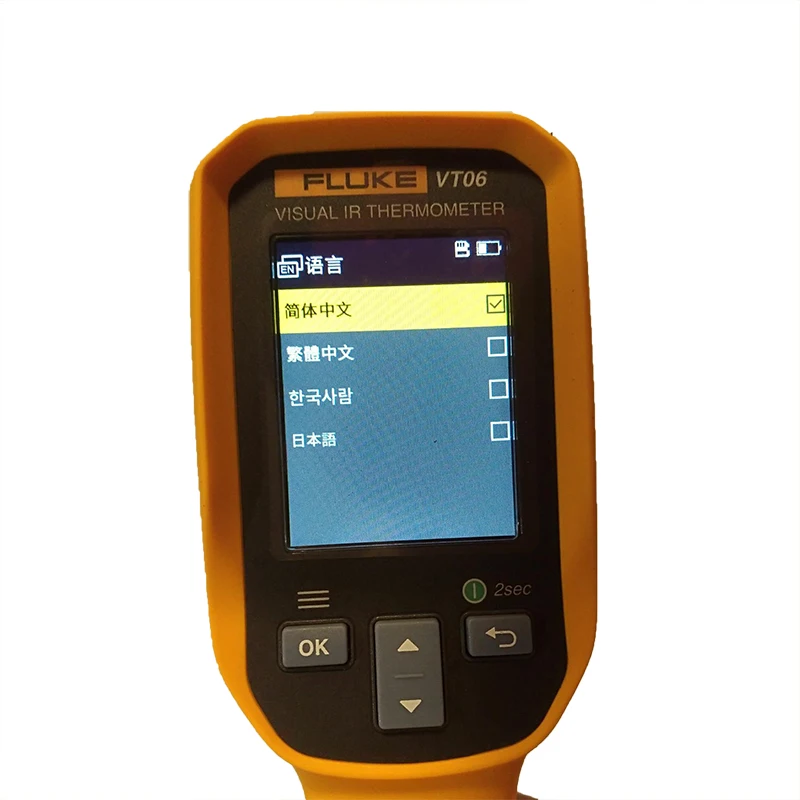

*Only supported languages: Simplified Chinese, Korean, Japanese
Specifications：
|
Infrared Image and Optics |
VT08 |
VT06 |
|
Infrared Resolution |
120×90 |
|
|
Infrared Band |
7.5~14 μ M (Long Wave) |
|
|
Frame Rate |
22 Hz (Chinese Version) 9 Hz (Japanese and Korean Version) |
|
|
Thermal Sensitivity/NETD |
< 60 mk |
|
|
Field Angle (H x V) |
50° x 37.5° |
|
|
Spatial Resolution |
7.6 mrad |
|
|
Focus Mode |
Focus Free |
|
|
Minimum Focus Distance |
0.5 m (19.7 in) |
|
|
Visible Light |
||
|
Visible Light Resolution |
320×240 |
NA |
|
Visual Field Angle (H x V) |
53° x 41° |
NA |
|
Image Display and Storage |
||
|
Image Mode |
Infrared Iage Visible Image Picture in Picture |
Infrared Image |
|
Palette |
Iron red, Rainbow, High Contrast, Amber, Molten Metal, Gray |
|
|
Internal Storage |
>28GB (>100000 images) * The memory of VT06/VT08 Products Manufactured Before August 6, 2022 is 14G |
|
|
Picture Format |
JPEG Compression Format (. jpg) |
|
|

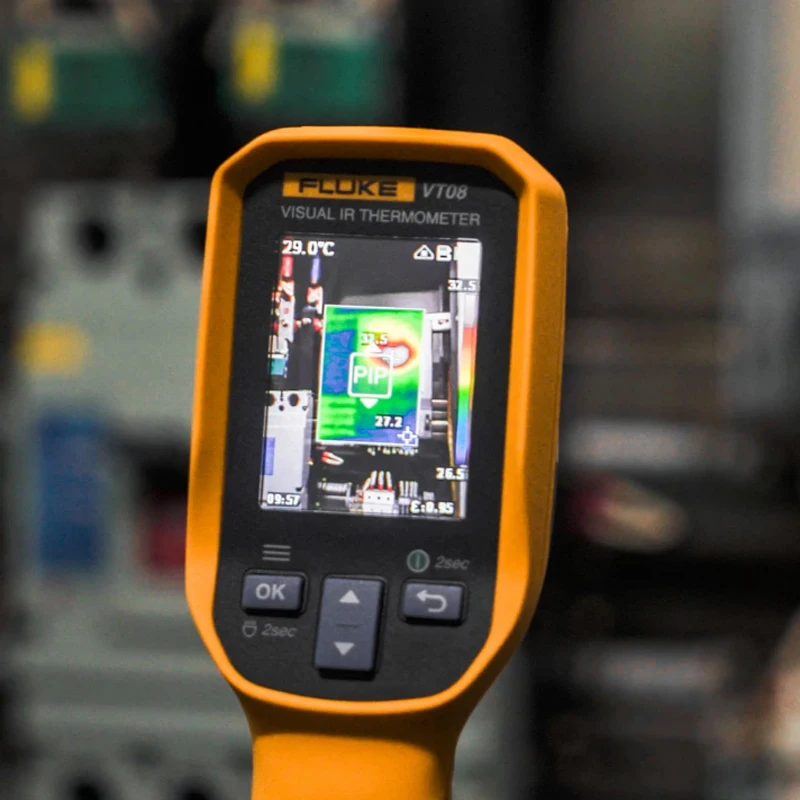

PIP Mode |
Have |
Nothing |
|
Temperature Measurement |
||
|
Temperature Range |
-20 ° C to 400 ° C [- 4 ° F to 752 ° F] (Unmeasured Below - 10 ° C) |
|
|
Temperature Accuracy |
± 2 ° C or 2% (Whichever is Greater) at 23 ° C ± 5 ° C |
|
|
Emissivity |
Adjustable |
|
|
Background Temperature Compensation |
Have |
|
|
High/low Temperature Automatic Capture |
Have |
|
|
Center Point Temperature |
Have |
|
|
Call the Police |
Full Screen Maximum Temperature/Low Temperature Alarm |
|
|
Product Interface and Lens |
||
|
Visible Light Lens |
Have |
Nothing |
|
Flashlight |
Have |
Nothing |
|
Infrared Lens |
Have |
|
|
Laser Aiming |
Have |
|
|
Type-C Interface |
Have |
|
|
TF Card Slot |
None |
|
|
Tripod Interface |
Have |
|
|
Mobile Terminal APP |
None |
|
|
PC Infrared Analysis Software |
Have |
|
|
Power supply system |
||
|
Battery type |
Rechargeable lithium-ion battery, non removable |
|
|
Battery working time |
≥ 5 hours (VT08) ≥ 8 hours (VT06) The actual endurance depends on the environment and settings |
|
|
Charging time |
<2.5 hours full |
|
|
Battery charging temperature |
0 ℃ - 45 ℃ |
|
|
Battery charging system |
Charging in the machine (the battery cannot be disassembled) |
|
|
AC power adapter |
Including power supply, universal adapter output: 5 VDC, 2 A |
|
|
Power saving mode |
have |
|
|
Environmental parameters |
||
|
working temperature |
-10 ℃ - 50 ℃ |
|
|
Storage temperature |
-40 ℃ - 70 ℃ |
|
|
Operating altitude |
2000 m (1.24 mi) |
|
|
Storage altitude |
12 000 m (7.5 mi) |
|
|
Other |
||
|
Warranty |
1 year |
|
|

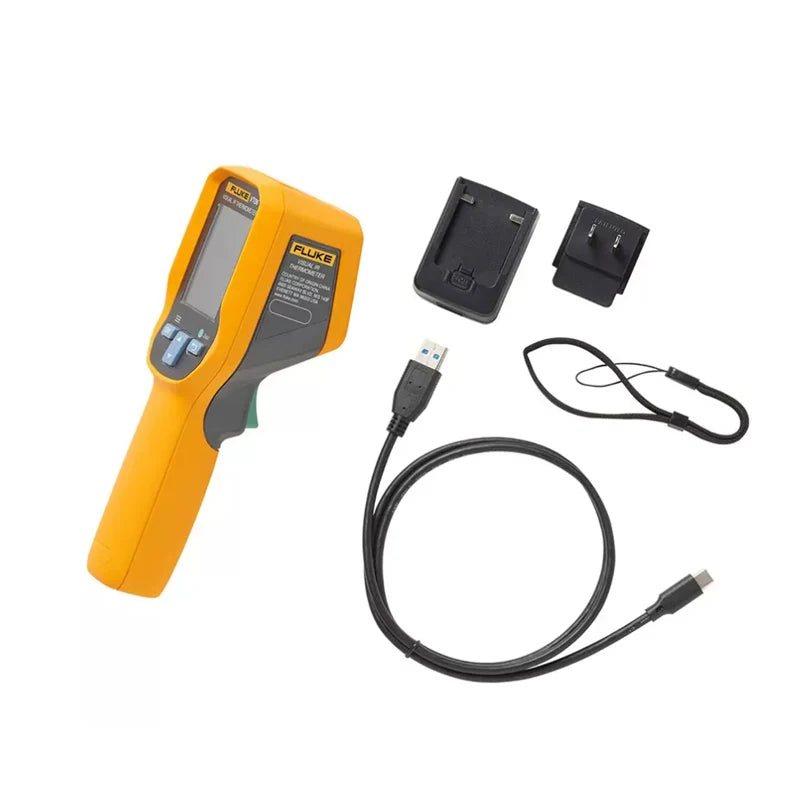

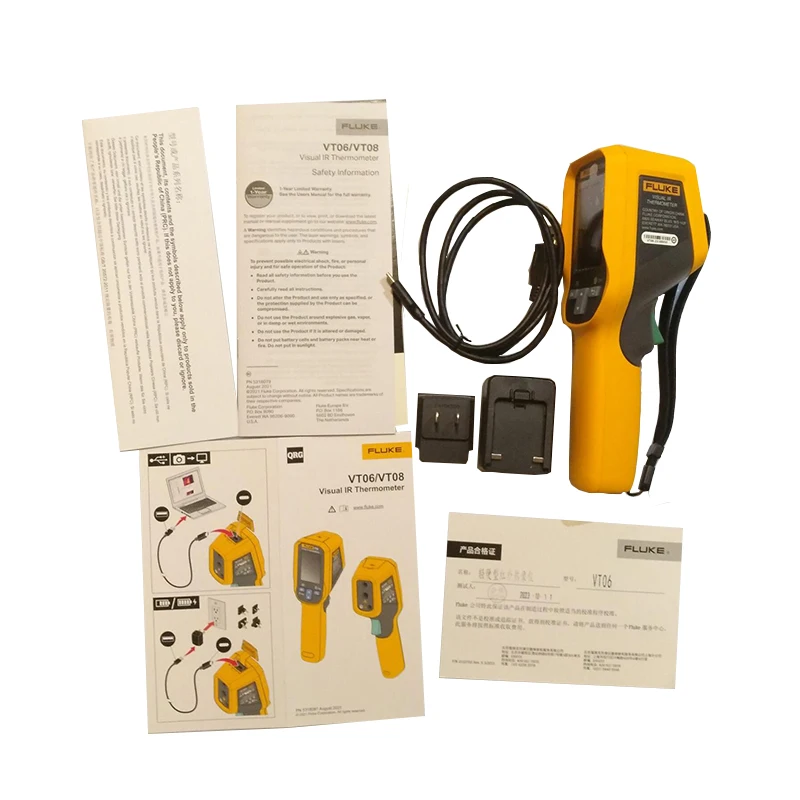

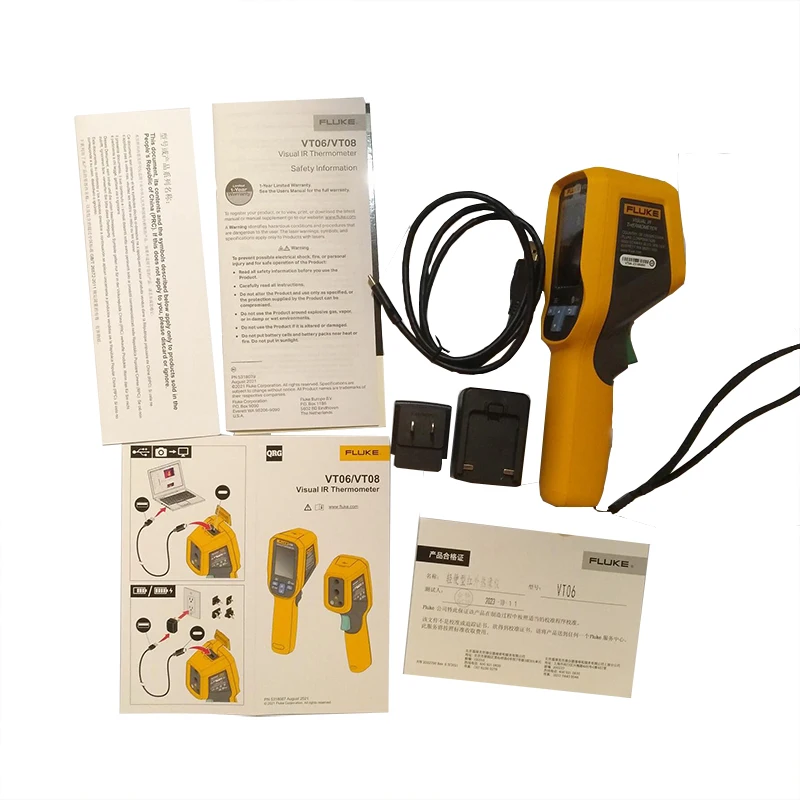

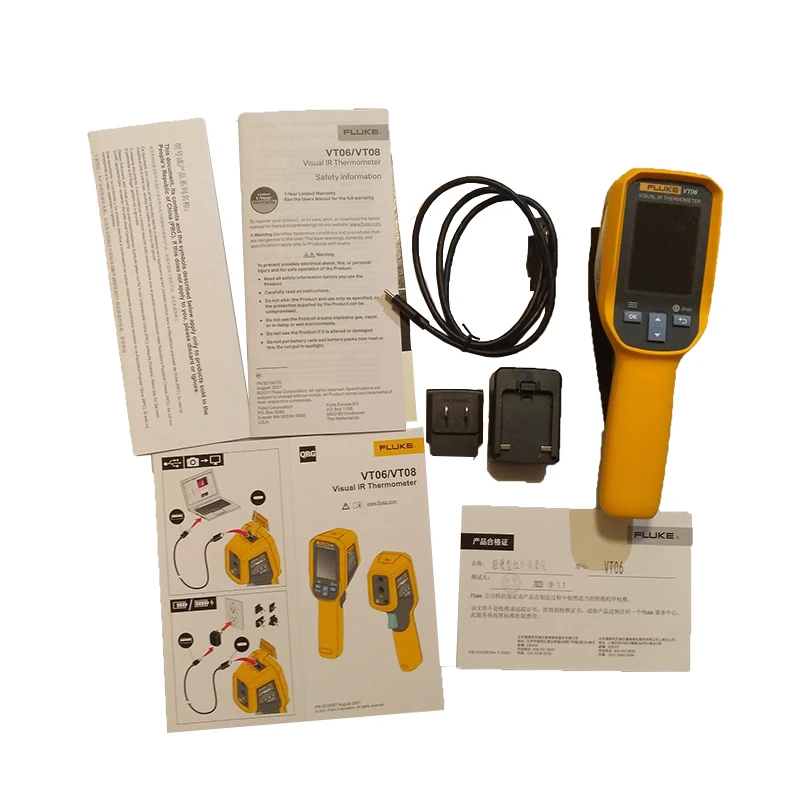

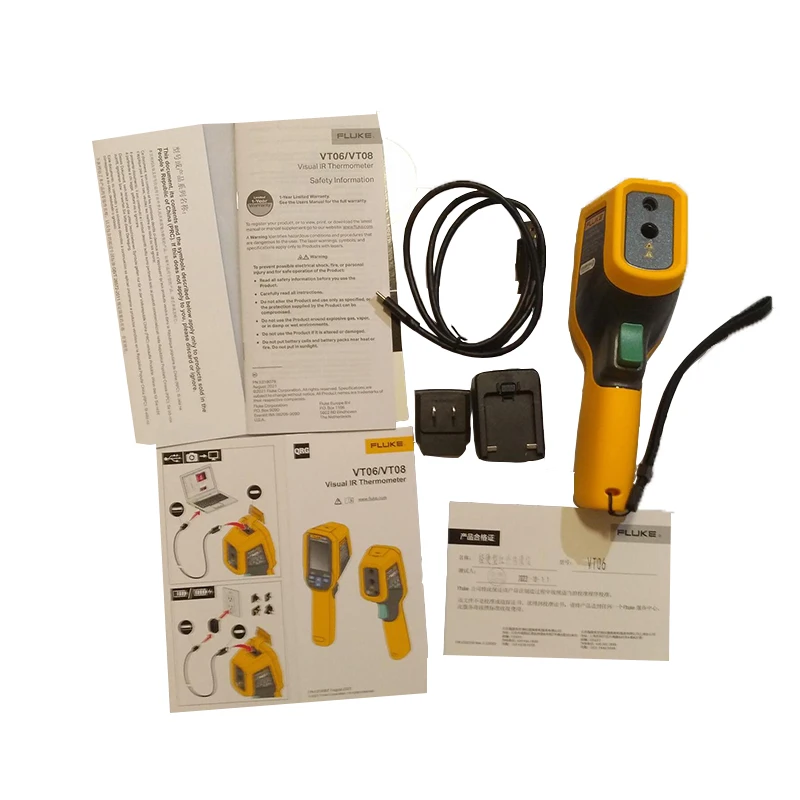

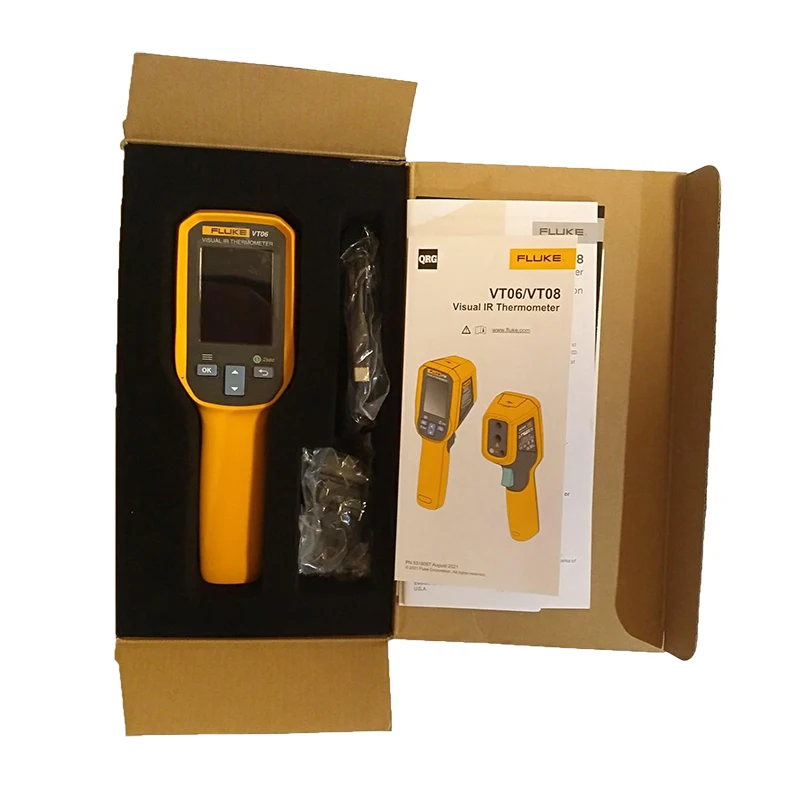

Standard accessories |
Wrist strap, quick operation guide, charging head+adapter, TYPE-C data cable, data download card, quality assurance card (China), China RoHS form (China) |
|
|
Display |
6.096cm (2.4 inch) LCD |
|
|

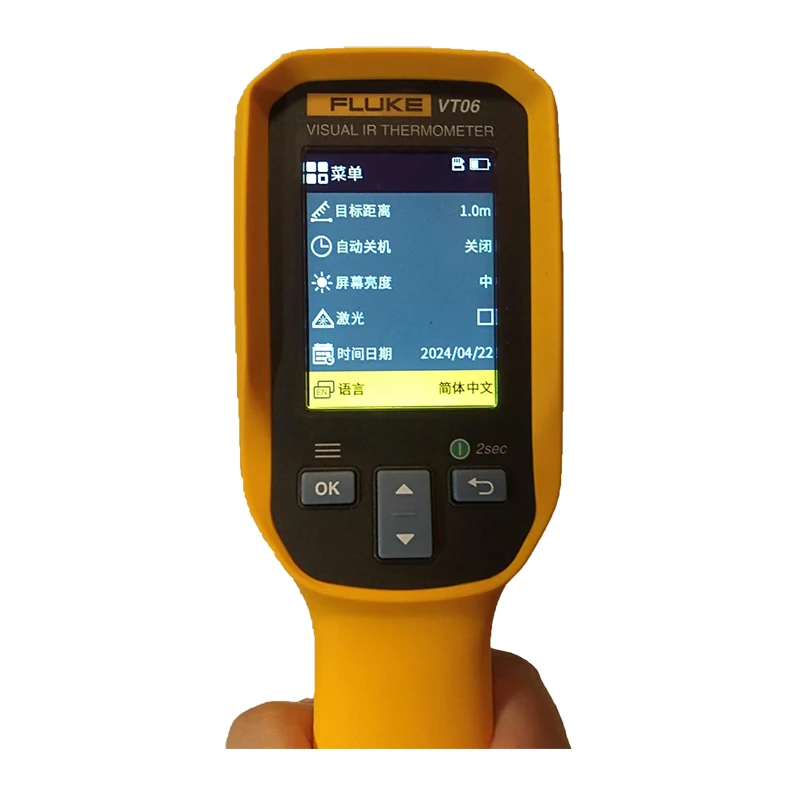

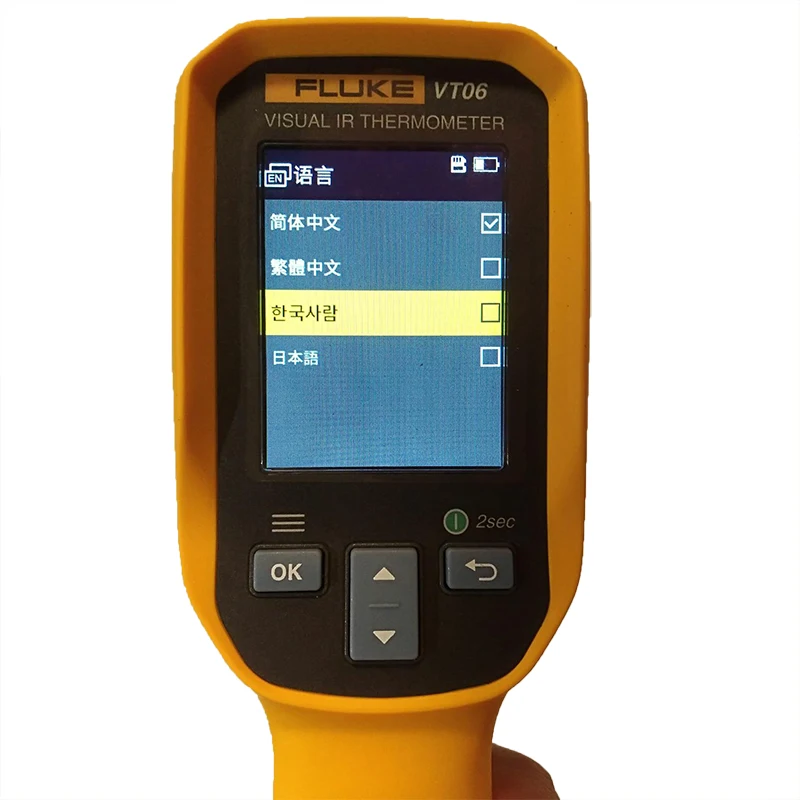

Language |
Simplified Chinese, Traditional Chinese, Japanese, Korean |
|
|
Size |
20.4 cm x 6.6 cm x 7.6 cm |
|
|
Weight |
0.36 kg |
0.35 kg |
|
Relative humidity |
≤ 90%, no condensation |
|
|
Security features |
||
|
Safety standards |
IEC 61010-1: Pollution class 2 |
|
|
Laser |
IEC 60825-1: Class 2 650 nm,<1 mW |
|
|
Battery |
IEC 62133-2, UN 38.3 |
|
|
Degree of protection |
IEC 60529: IP65 (when Type-C interface is closed) |
|
|
Anti drop |
2 m |
|
|
Electromagnetic compatibility (EMC) |
||
|
International |
IEC 61326-1: Industrial electromagnetic environment CISPR 11: Group 1, Class A |
|
|
Korea (KCC) |
Class A Equipment |
|
|
USA (FCC) |
47 CFR 15 subpart B. |
|
|
USA (FCC) |
47 CFR 15 subpart B. |
|
