Description
xSPECIFICATIONS
Absolute Maximum Input Voltag: 60 V DC maximum (no AC input)
Brand Name: NONE,Hioki
Communication Interface: USB
High-concerned chemical: None
Installation Method: Assembly
Measurement Time: 100 ms
Model: BT3554-52
Model Number: BT3554-52
Origin: Mainland China
Place of Origin: Japan
Power Supply: 8 x LR6 (AA) alkaline dry battery
Product name: Hioki Battery Tester
Resistance Measurement Range: 3 mΩ (max. display 3.100 mΩ, resolution 1 μΩ) to 3 Ω
Response Time: Approximately 1.6 seconds
Temperature measurement: -10 to 60°C (14 to 140°)
Voltage Measurement Range: ±6 V to ±60 V
Hello, my name is Allie. Welcome to my store. If I haven't replied to you in a timely manner, you can contact me on WhatsApp +8619313162195.
Product Description
Streamline UPS and lead-acid battery diagnostics with this battery tester pro kit which is designed to measure and record

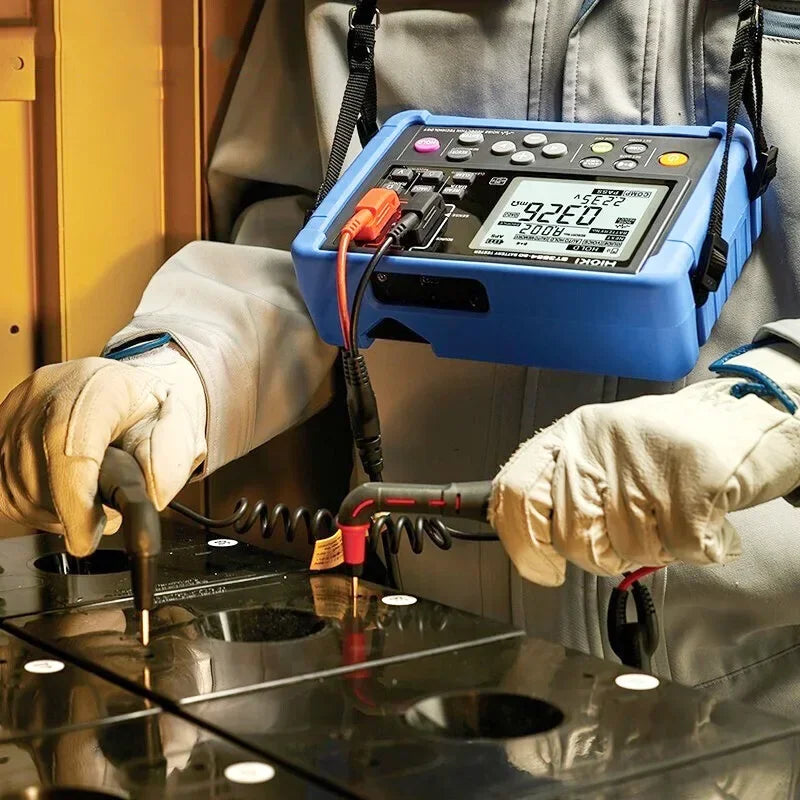

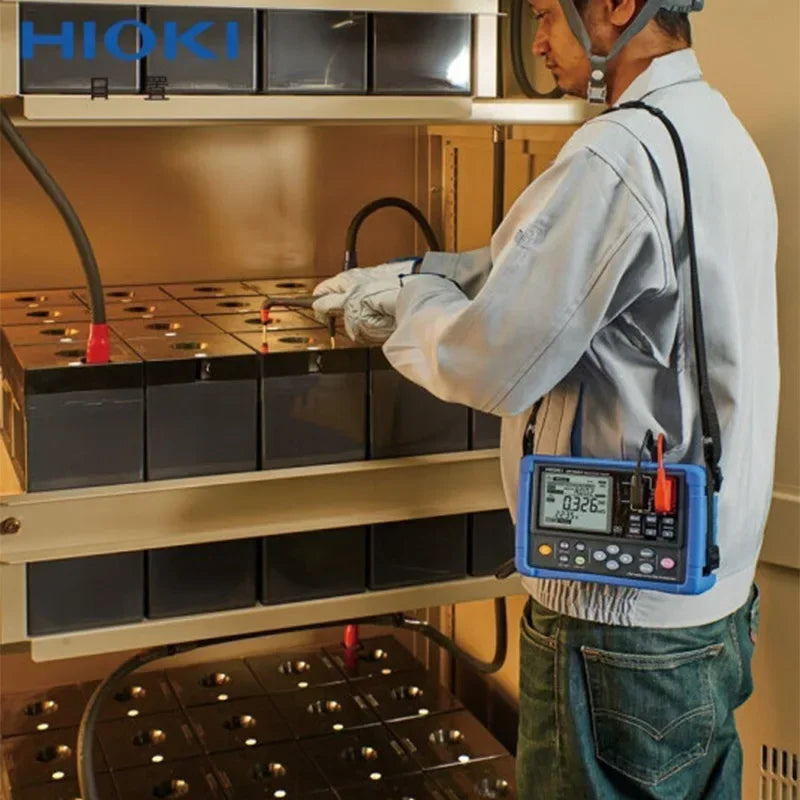

guidance. In addition, this kit includes an L-shaped pin-type lead, which lets you reach deep into the battery racks and probe the entire terminals.
guidance. In addition, this kit includes an L-shaped pin-type lead, which lets you reach deep into the battery racks and probe the entire terminals.

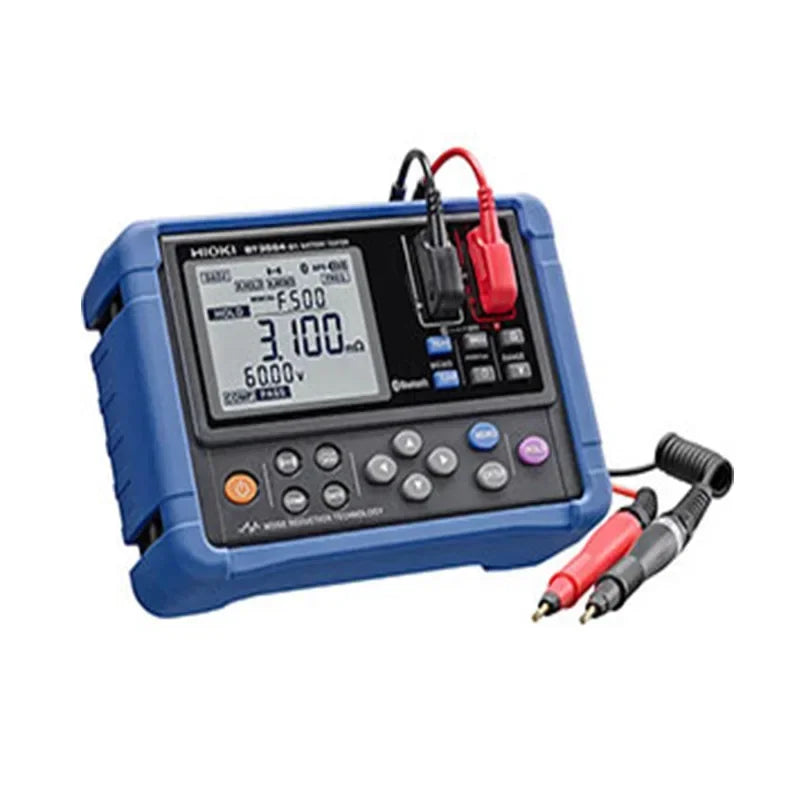

Battery Tester (BT3554-52 w/ Z5020, Z3210)

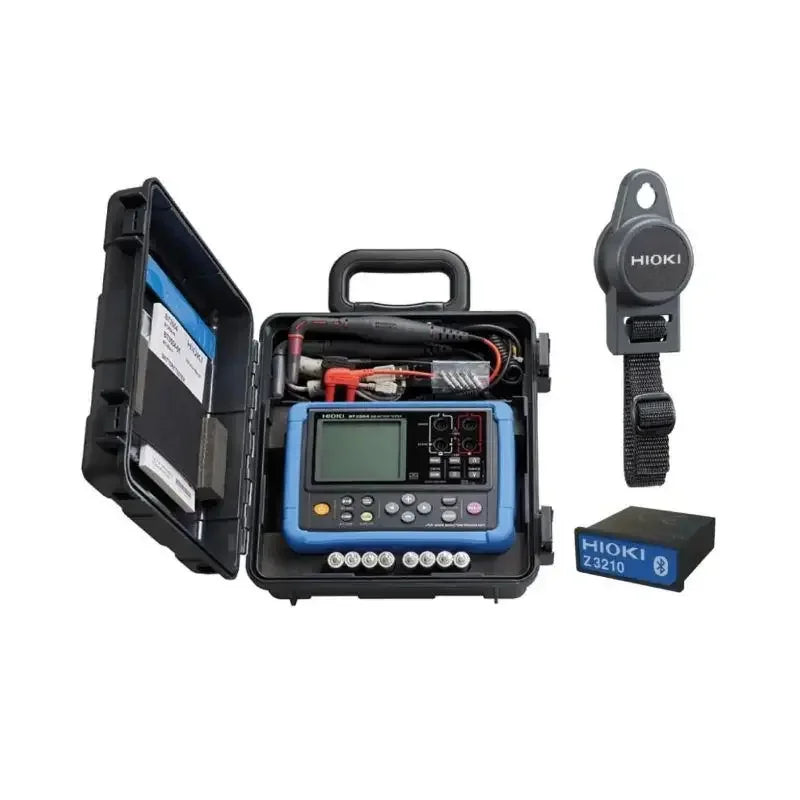

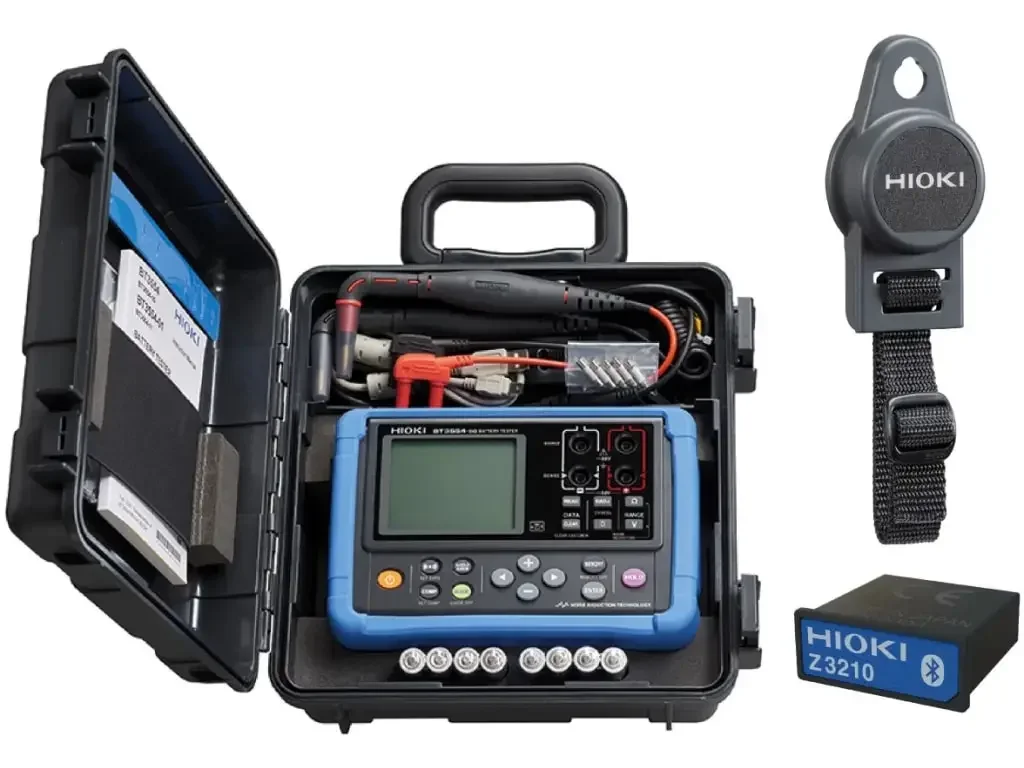

* Includes L2020 pin type lead, Z5020 magnetic strap and Z3210 wireless adapter
* Battery measurement can be performed while the battery is connected to its host device, without taking it offline
* Measure and save data in as fast as 2 seconds (60% improvement from legacy 3554)
* Instantaneously diagnose battery degradation (PASS, WARNING, FAIL) by measuring internal resistance and voltage

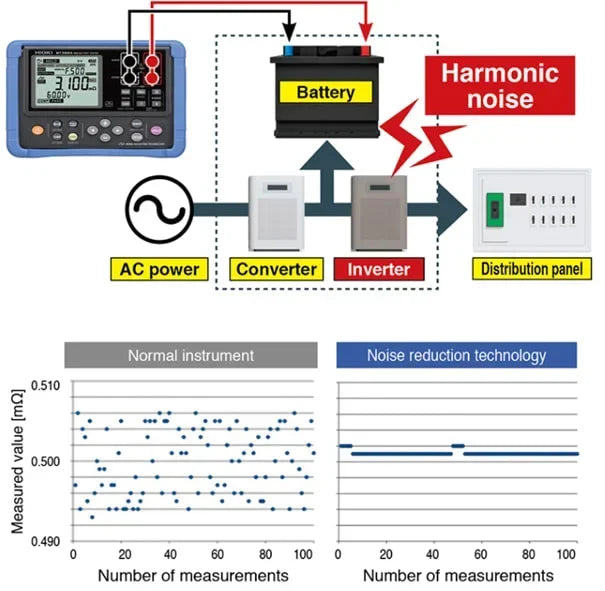

* Noise reduction technology improves noise resistance
* Screen and audio guidance simplifies measurement

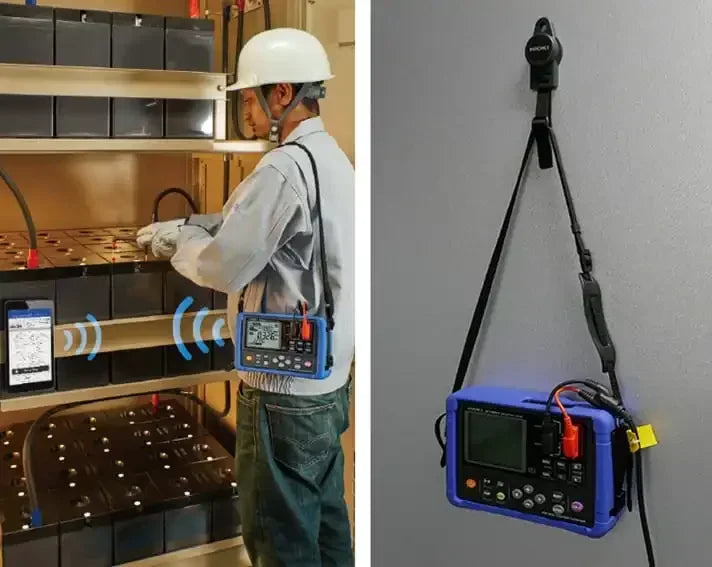

* Measurement data is linked to site information and saved, reducing management man-hours
* Data can be downloaded to tablets and smartphones
* Includes L2020 pin type lead, Z5020 magnetic strap and Z3210 wireless adapter
* Battery measurement can be performed while the battery is connected to its host device, without taking it offline
* Measure and save data in as fast as 2 seconds (60% improvement from legacy 3554)
* Instantaneously diagnose battery degradation (PASS, WARNING, FAIL) by measuring internal resistance and voltage
* Noise reduction technology improves noise resistance
* Screen and audio guidance simplifies measurement
* Measurement data is linked to site information and saved, reducing management man-hours
* Data can be downloaded to tablets and smartphones
* Includes L2020 pin type lead, Z5020 magnetic strap and Z3210 wireless adapter
* Battery measurement can be performed while the battery is connected to its host device, without taking it offline
* Measure and save data in as fast as 2 seconds (60% improvement from legacy 3554)
* Instantaneously diagnose battery degradation (PASS, WARNING, FAIL) by measuring internal resistance and voltage
* Noise reduction technology improves noise resistance
* Battery measurement can be performed while the battery is connected to its host device, without taking it offline
* Measure and save data in as fast as 2 seconds (60% improvement from legacy 3554)
* Instantaneously diagnose battery degradation (PASS, WARNING, FAIL) by measuring internal resistance and voltage
* Noise reduction technology improves noise resistance
Hioki portable battery testers support the maintenance of UPS and storage batteries critical to the life support of all
businesses. The BT3554-50 battery internal resistance tester sets the standard for assessing the deterioration and remaining life of UPS and other lead-acid batteries by giving a complete diagnosis via battery resistance testing. The specially designed L2020 Pin Type Lead further improves testing efficiency with an L-shaped tip that lets you reach deep into the battery racks to completely probe the terminals.
businesses. The BT3554-50 battery internal resistance tester sets the standard for assessing the deterioration and remaining life of UPS and other lead-acid batteries by giving a complete diagnosis via battery resistance testing. The specially designed L2020 Pin Type Lead further improves testing efficiency with an L-shaped tip that lets you reach deep into the battery racks to completely probe the terminals.
Key Features
* Battery measurement can be performed while the battery is connected to its host device, without taking it offline
* Measure and save data in as fast as 2 seconds
* Instantaneously diagnose battery degradation (PASS, WARNING, FAIL) by measuring internal resistance and voltage
* Noise reduction technology improves noise resistance
* Screen and audio guidance simplifies measurement
* Measurement data is linked to site information and saved, reducing management man-hours
* A variety of measurement data can be centrally managed using Hioki's GENNECT Cross app
* Protector delivers better ergonomic hold and durability in the field
* Battery measurement can be performed while the battery is connected to its host device, without taking it offline
* Measure and save data in as fast as 2 seconds
* Instantaneously diagnose battery degradation (PASS, WARNING, FAIL) by measuring internal resistance and voltage
* Noise reduction technology improves noise resistance
* Screen and audio guidance simplifies measurement
* Measurement data is linked to site information and saved, reducing management man-hours
* A variety of measurement data can be centrally managed using Hioki's GENNECT Cross app
* Protector delivers better ergonomic hold and durability in the field
Specification
|
|
3 mΩ (max. display 3.100 mΩ, resolution 1 μΩ) to 3 Ω (max. display 3.100 Ω, resolution 1 mΩ), 4 ranges
Accuracy: ±0.8 % rdg ±6 dgt (3 mΩ range: ±1.0 % rdg ±8 dgt) Testing source frequency: 1 kHz ±30 Hz With function for avoiding noise frequency enabled: 1 kHz ±80 Hz Testing current: 160 mA (3m/30 mΩ range), 16 mA (300 mΩ range), 1.6 mA (3 Ω range) Open terminal Voltage: 5 V peak |
|
|
±6 V (maximum display ±6.000 V, resolution: 1 mV) to ±60 V (maximum display ±60.00 V, resolution: 10 mV), 2 ranges, Accuracy:
±0.08% rdg ±6 dgt |
|
|
Measurement range: 14 to 140°F (-10 to 60°C)
Maximum display: 140.0°F (60.0°C) Resolution 0.1°F (0.1°C) Measurement accuracy: ±1.8°F (±1.0°C) * When using the Clip Type Lead with Temperature Sensor 9460. * When using the Temperature Probe 9451, add ±0.9°F (±0.5°C) (cable length: 59.1" [1.5 m]). * When using the Temperature Probe 9451S, add ±0.9°F (±0.5°C) (cable length: 3.94" [0.1 m]). BT3554-50 standalone accuracy with simulated input: ±0.9°F (±0.5°C) |
|
Absolute Maximum Input Voltage
|
60 V DC maximum (no AC input)
|
|
Measurement Time
|
100 ms
|
|
Response Time
|
Approximately 1.6 seconds
|
|
|
Compares measured values with set threshold values to make judgments and reports them to the user.
Judgment notification method: Results are displayed as shown below (segment) and beeping tones sound When the Voltage value (high): Resistance value (low)= PASS, Resistance value (medium)= WARNING, Resistance value (high)= FAIL When the Voltage value (low): Resistance value (low)= WARNING, Resistance value (medium)= WARNING, Resistance value (high)= FAIL If the judgment result is WARNING or FAIL, the audio tone is accompanied by a red backlight. User-selectable voltage judgment method: ABS (absolute value judgment), POL (polarity judgment ) Savable settings: 200 tables |
|
|
Operation: Save, load, and delete measurement data, Save and delete profile information, Number of data sets: 6000, Memory
architecture: 500 data sets per unit (12 units) Saved data: Saved measurement data is linked to profile information. 1. Measurement data: Data can be saved, loaded, and deleted by operating the instrument. -1. Date and time -2. Resistance value, voltage value, and temperature -3. Comparator threshold value and judgment result 2. Profile information: Profile information can be saved, loaded, and deleted using a supported application (GENNECT Cross or GENNECT One). -1. Profile numbers: 1 to 100 (Data (2), (3), and (4) below are saved for each profile number) -2. Location: User-defined comment such as location of UPS -3. Device information: User-defined comment such as UPS management number -4. Battery number: 1 to 500 (start number, end number) |
|
|
Operation: Announces the next battery number to be measured via a screen display and audio guidance
Preparations: Profile information that's been registered with a supported application (GENNECT Cross or GENNECT One) must be transferred to the instrument |
|
Communication Interface
|
USB
|
|
Other Functions
|
Temperature measurement -10 to 60°C (14 to 140°), zero-adjustment, hold, auto-hold, auto-memory, auto-power-save, clock
|
|
Power Supply
|
8 x LR6 (AA) alkaline dry battery
Continuous operating time: About 8.3 hours |
|
Dimensions
|
7.83 x 5.20 x 2.39" (199 x 132 x 60.6 mm) (with protector)
|
|
Weight
|
33.9 oz (960 g) (including batteries and protector)
|
