Description
xSPECIFICATIONS
AC Current: 400.00 A10.00A
AC Voltage: 400.0mV-1000V
Battery Included: No
Brand Name: HIOKI
Certification: CE
DC Current: 400.00 A10.00A
DC Voltage: 400.0mV-1000V
DIY Supplies: Electrical
Dimensions: 72*149*38mm
Display Type: Digital Display
High-concerned chemical: None
Is Smart Device: No
Measuring Capacitance Range: Refer to SPEC
Measuring Inductance Range: Refer to SPEC
Measuring Resistance Range: 600.0 Ω~60.00 M Ω, 6 range
Model Number: DT4256 DT4253 DT4255
Operating Mode: Manual Range
Operating Temperature: 0 - 40 ℃
Origin: Mainland China

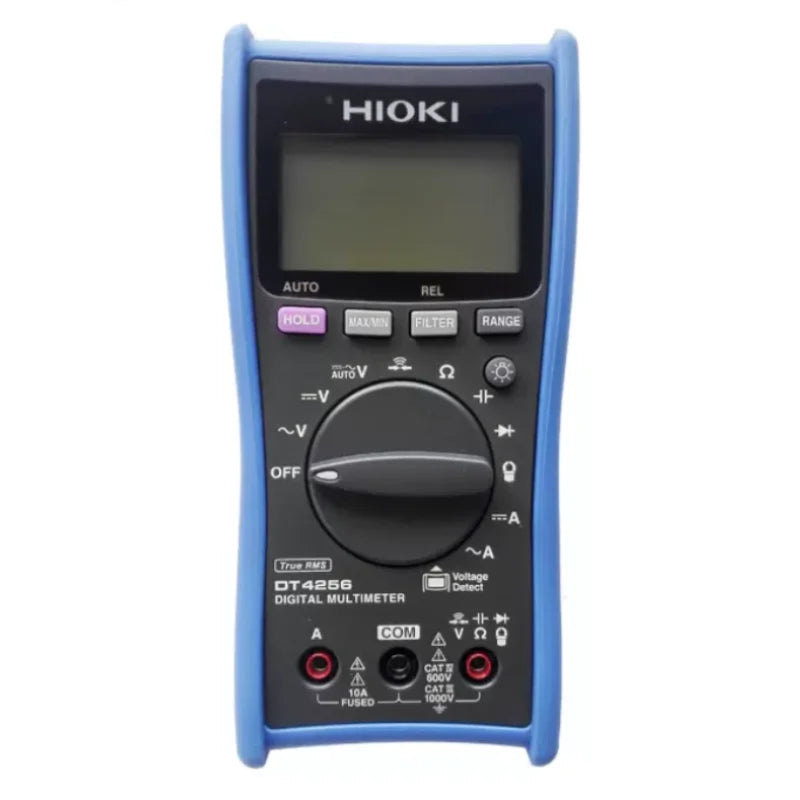

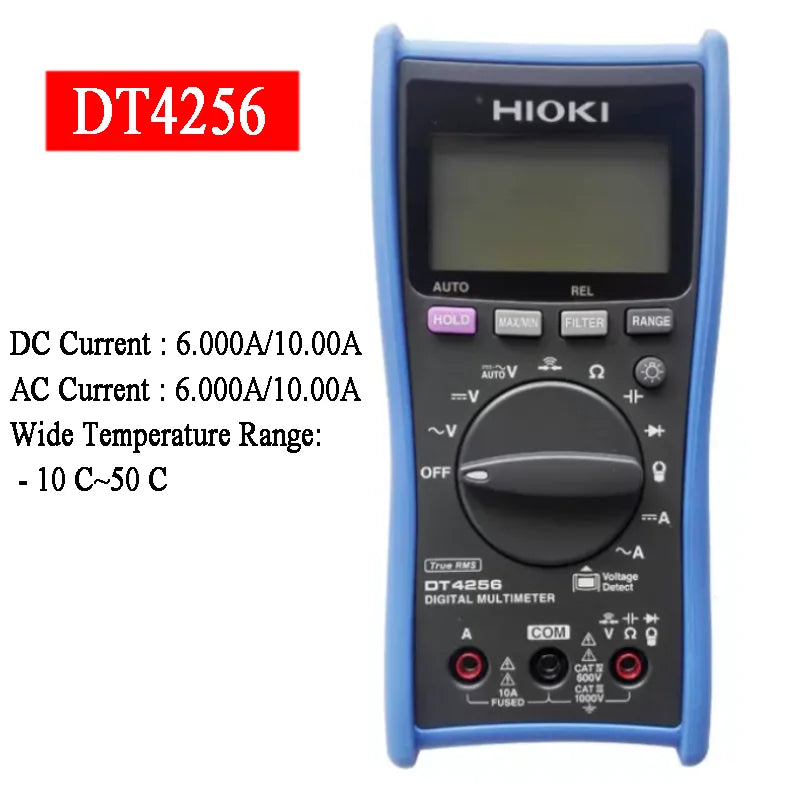

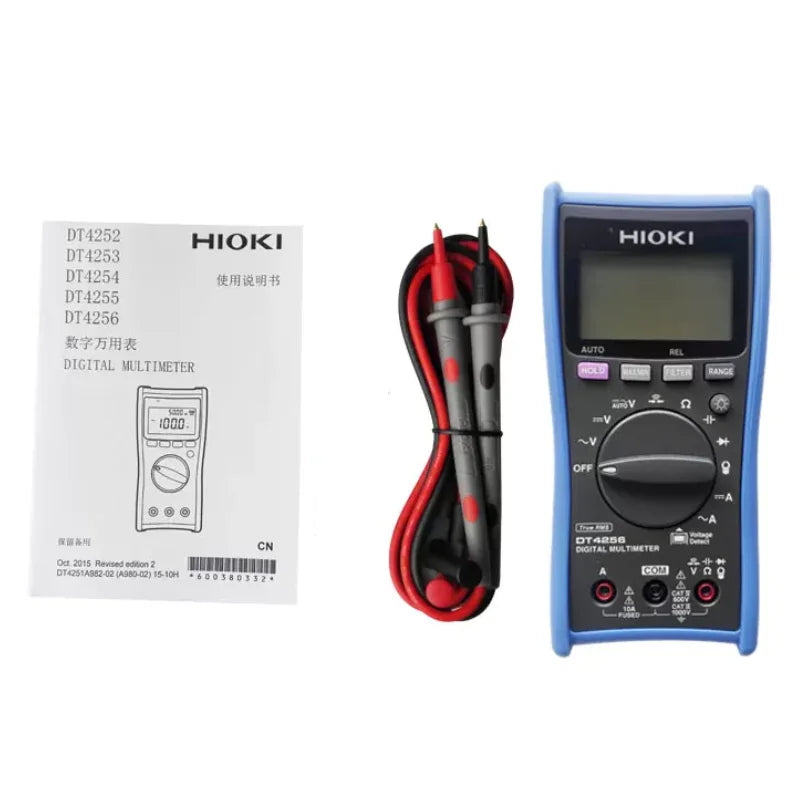

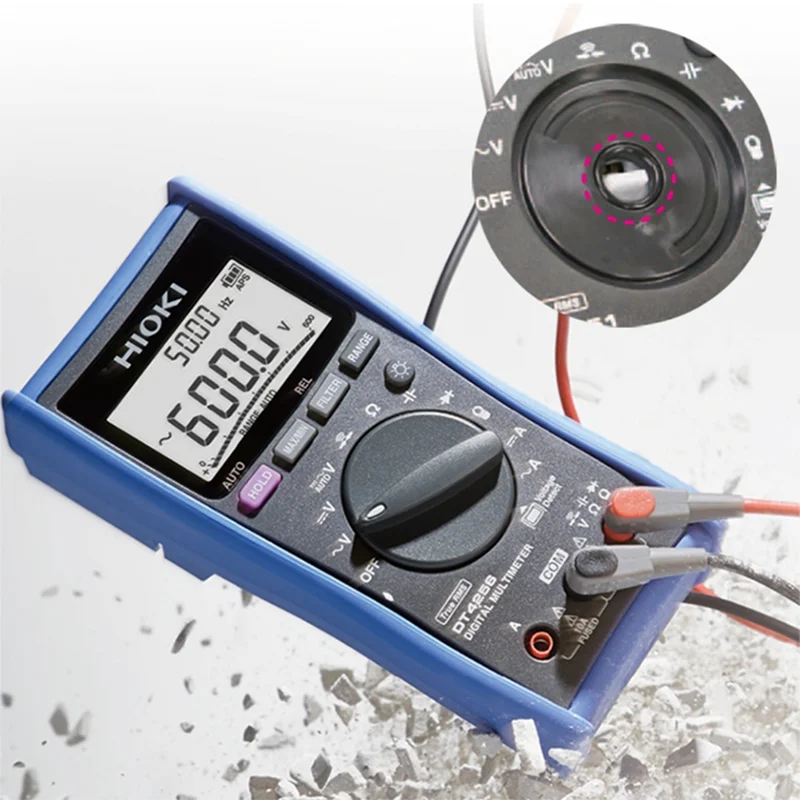

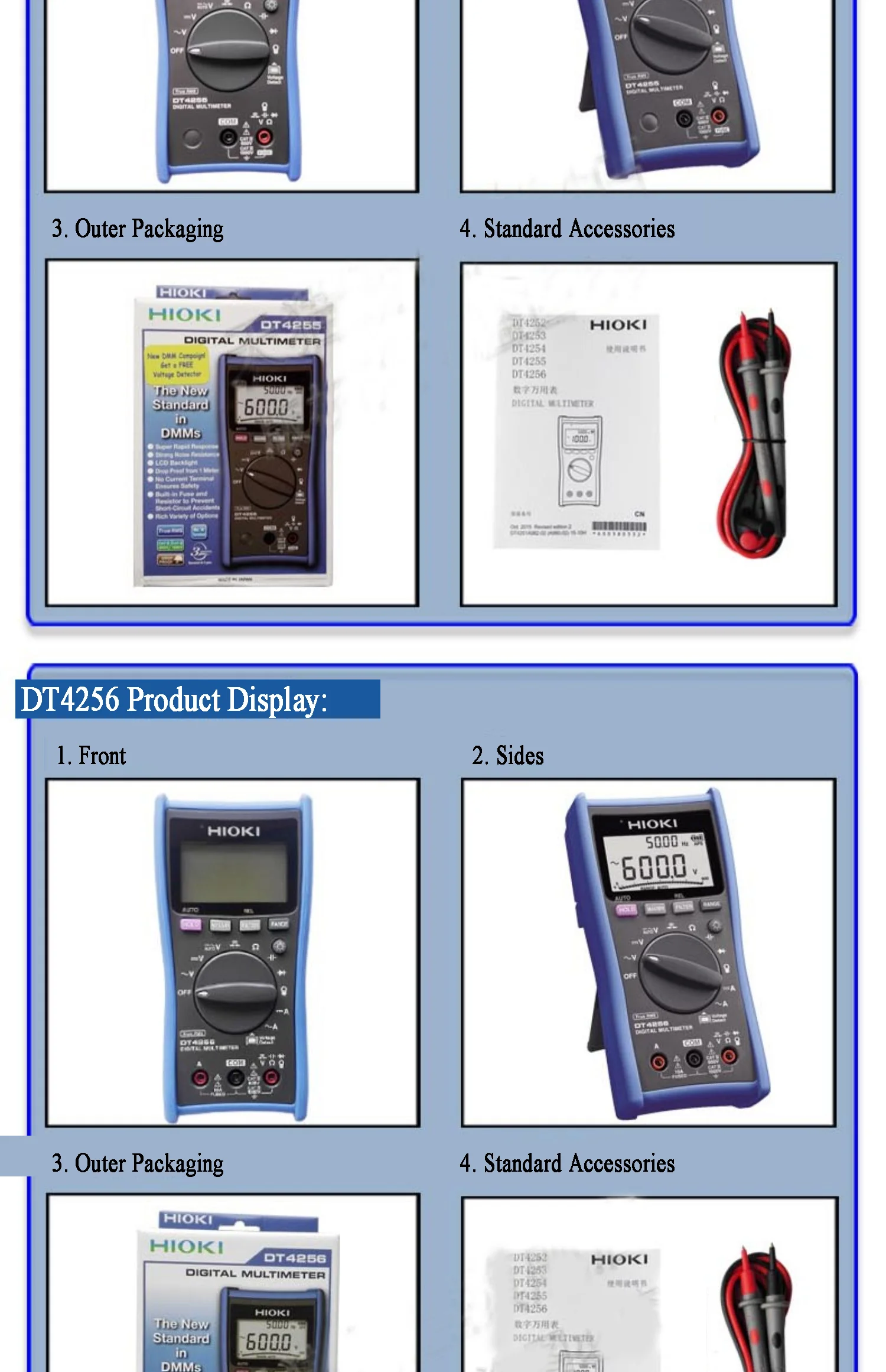

HIOKI DT4256 DT4253 DT4255 Digital Multimeter Measures Voltage Current

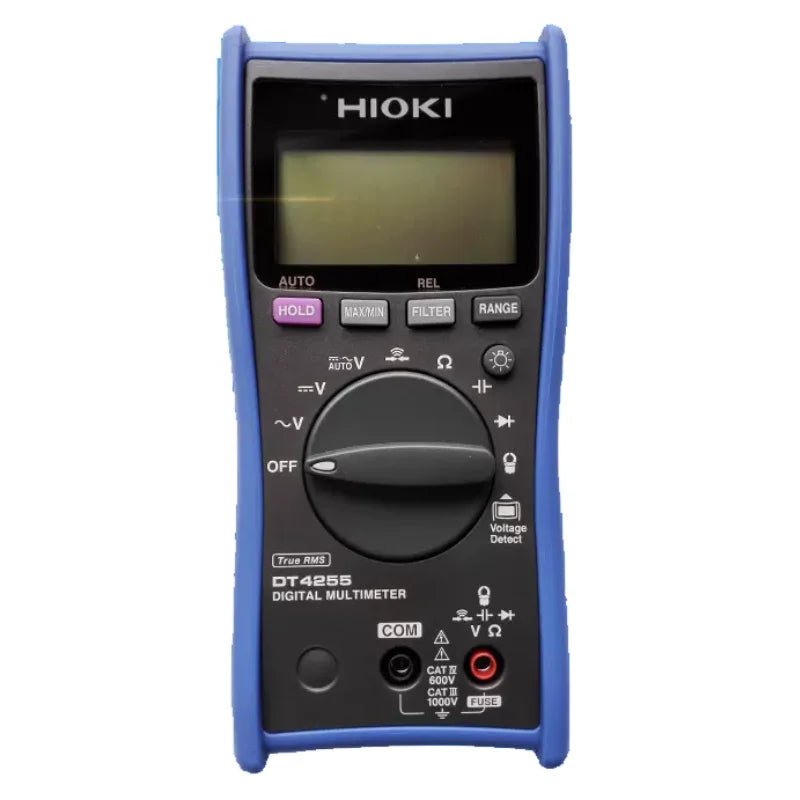

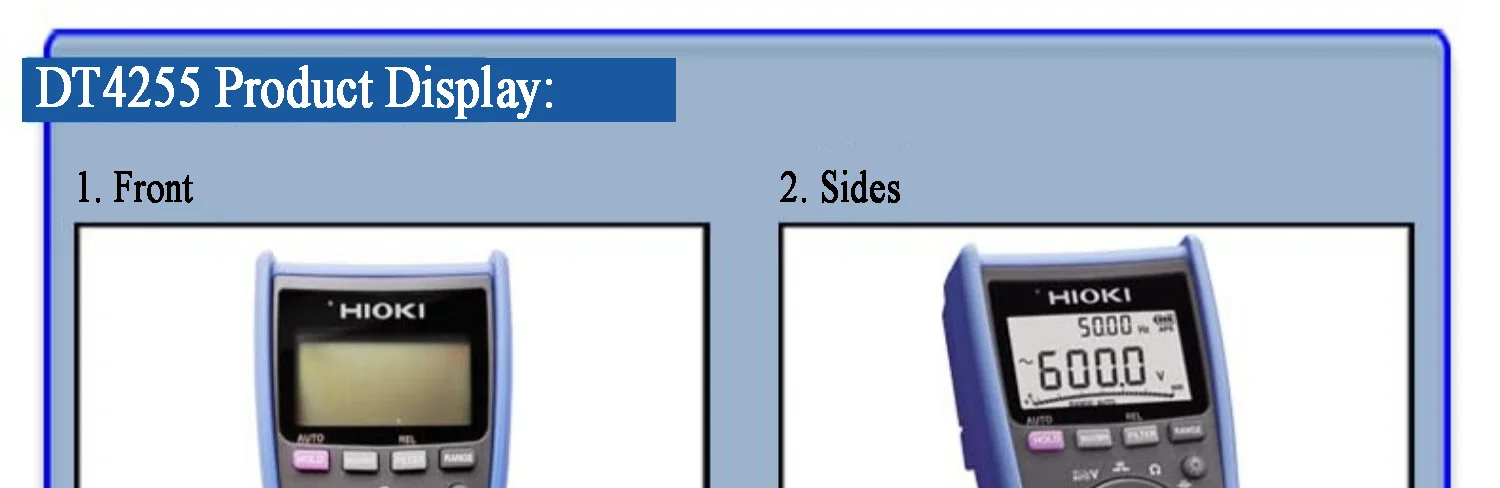

Capacitance and Diodes HIOKI DT4255/DT4256
Features：
●Equipped with rich measurement functions, DT4256-20 is suitable for various occasions and can also measure 4-20mA signals.
●Basic accuracy of DC V ± 0.3%, frequency characteristics of AC V from 40Hz to 1kHz
● Use low-pass filtering to remove harmonics (measurement of fundamental component of frequency converter)
● USB communication function corresponding to PC measurement (option required)
●Wide temperature range: -10 ℃~50 ℃
Specifications:
|
DC Voltage Range |
600.0 mV to 1000 V, 5 ranges |
|
AC Voltage Range |
6.000 V to 1000 V, 4 ranges, Frequency characteristics: 40 Hz to 1 kHz |
|
AUTO AC/DCV |
Yes |
|
Resistance Range |
600.0 Ω to 60.00 MΩ, 6 ranges, Basic accuracy: +/-0.7 % rdg. +/-3 dgt. |
|
DC Current Range |
60.00 mA to 10.00 A, 4 ranges, |
|
AC Current Range |
600.0 mA to 10.00 A, 3 ranges, |
|
AC Current Range (use with Clamp on probes) |
10.00 A to 1000 A, 7 ranges, Add the Clamp on probe accuracy to basic accuracy 40 - 1 kHz : +/-0.9 % rdg. +/-3 dgt. (True RMS, crest factor 3) |
|
Voltage Detection (50/60 Hz) |
Hi: AC40 V to 600 V, Lo: AC80 V to 600 V |
|
Capacitance Range |
1.000 μF to 10.00 mF, 5 ranges, Basic accuracy: +/-1.9 % rdg. +/-5 dgt. |
|
Frequency Range |
99.99 Hz (5 Hz or more) to 99.99 kHz, 4 ranges (limited by the minimum detectable voltage and current), |
|
Continuity Check |
Continuity threshold [ON]: 25 Ω or less (Indicate buzzer sound, red LED), |
|
Diode Test |
Open terminal voltage: 5.0 V or less, Testing current 0.5 mA or less, |
|
Other Functions |
Filter function, Display value hold, Auto hold, Max/Min/Average value display, Relative display, Auto-power save, USB communication (option) |
|
Display |
Main and Sub displays: 4-digits LCD, max. 6000 digits, bar graph |
|
Display Refresh Rates |
5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 time/s, Temperature: 1 time/s ) |
|
Power Supply |
LR03 alkaline batteries ×4, Continuous use: 130 hours (backlight OFF) |
|
Dimensions and Mass |
84 mm (3.31 in)W × 174 mm (6.85 in)H× 52 mm (2.05 in)D, |
Notice：
The standard package don't include batteries.Because,the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.Thanks for your support!

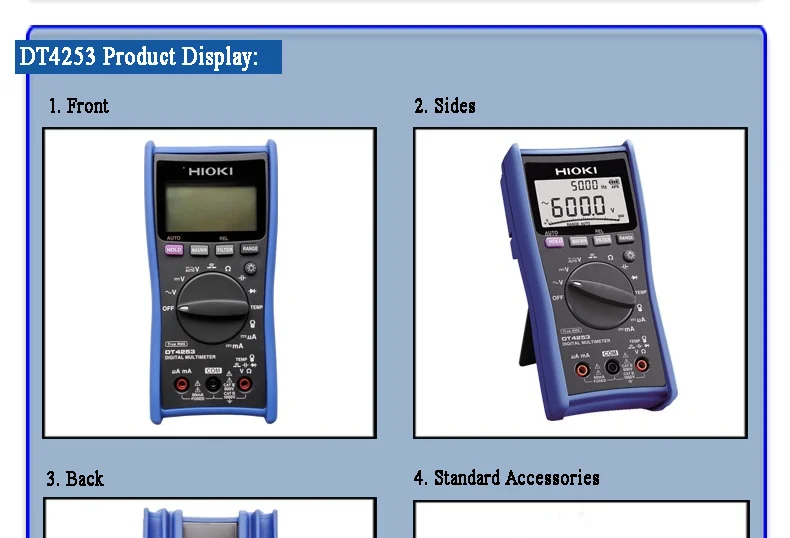

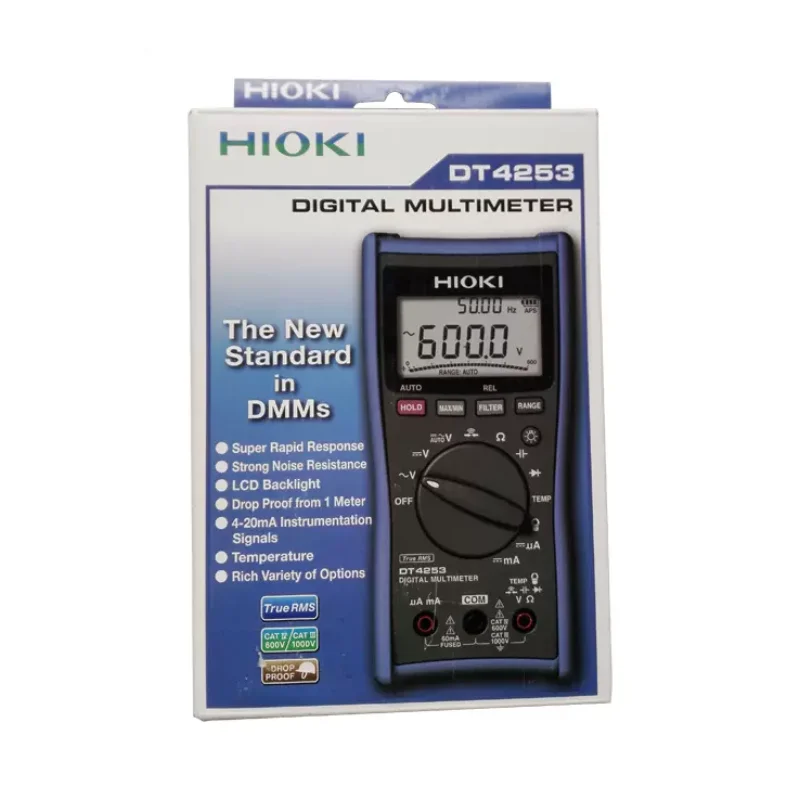

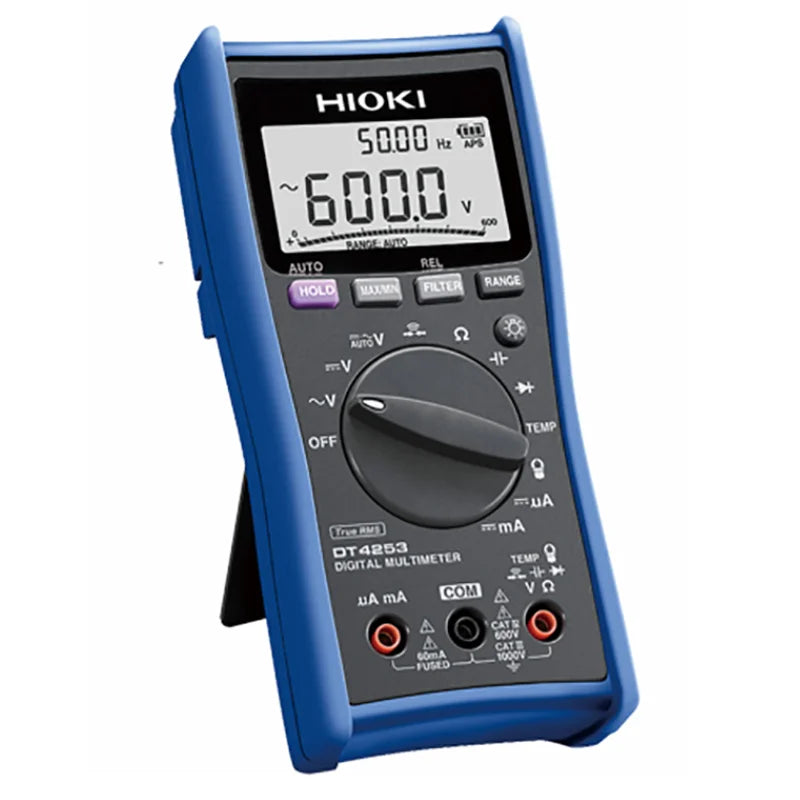

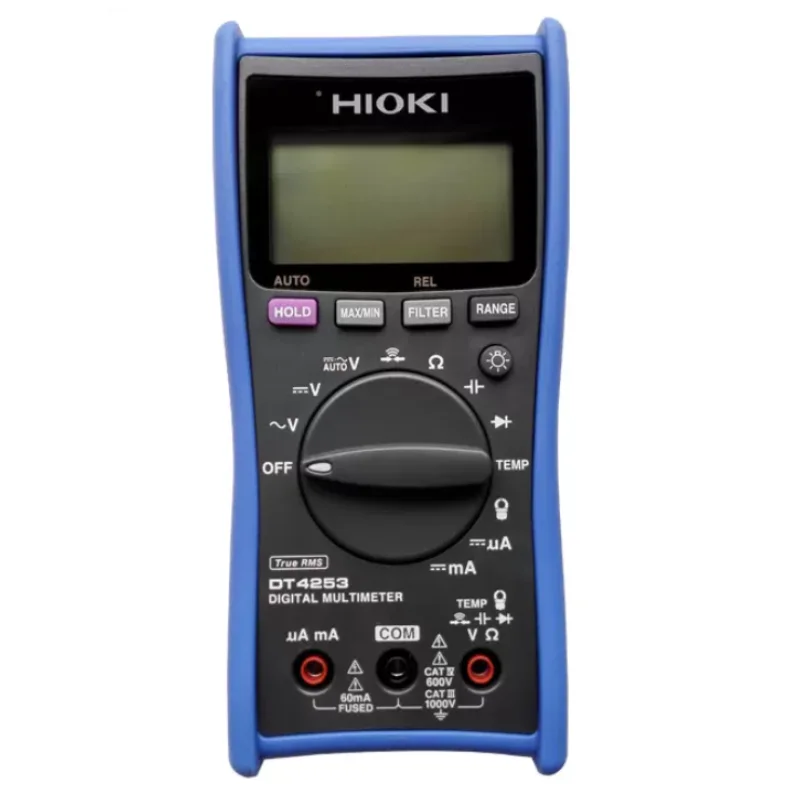

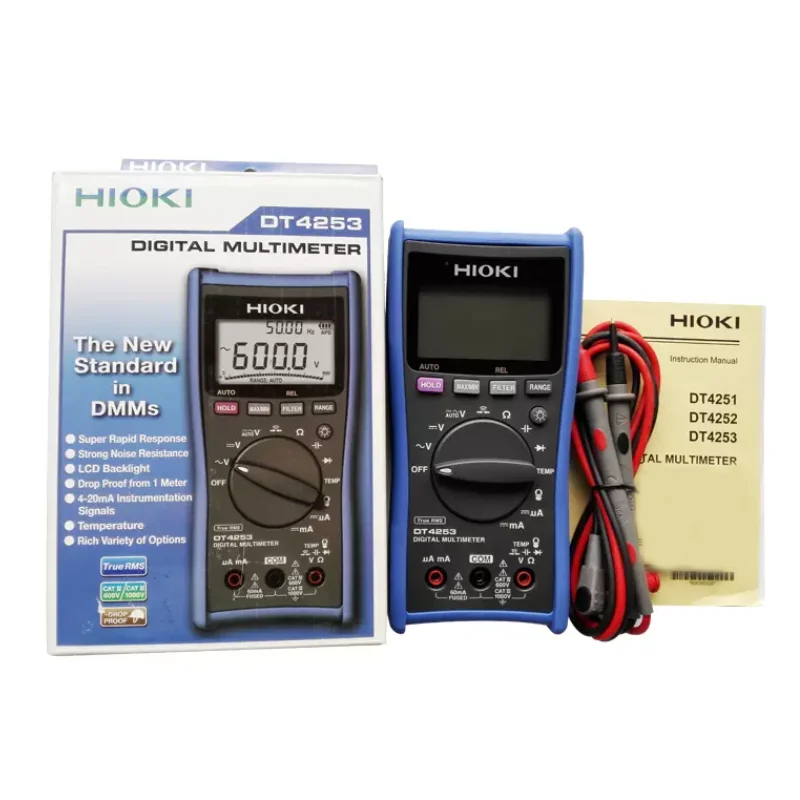

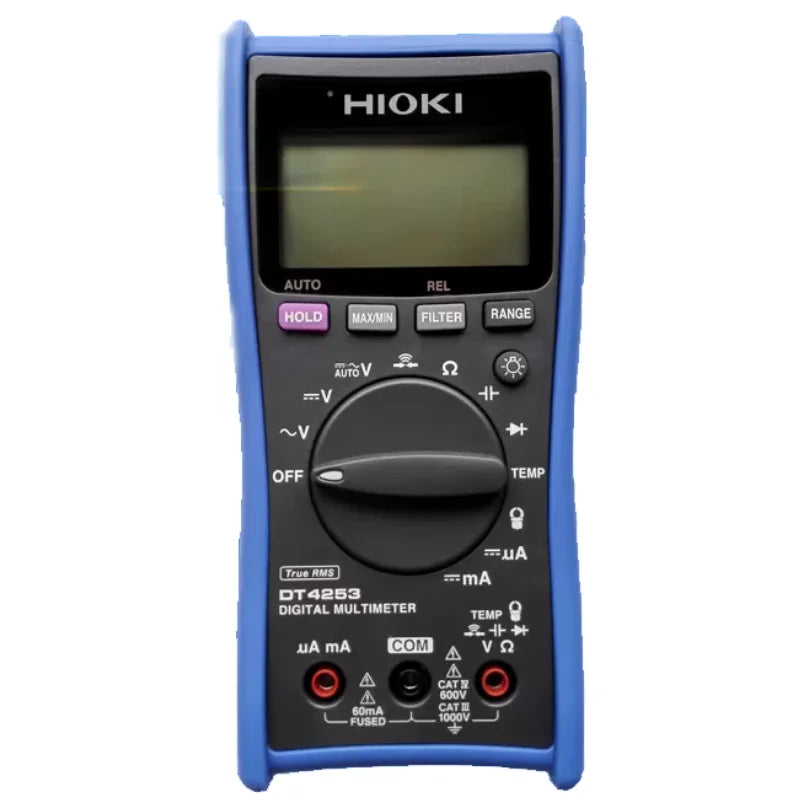

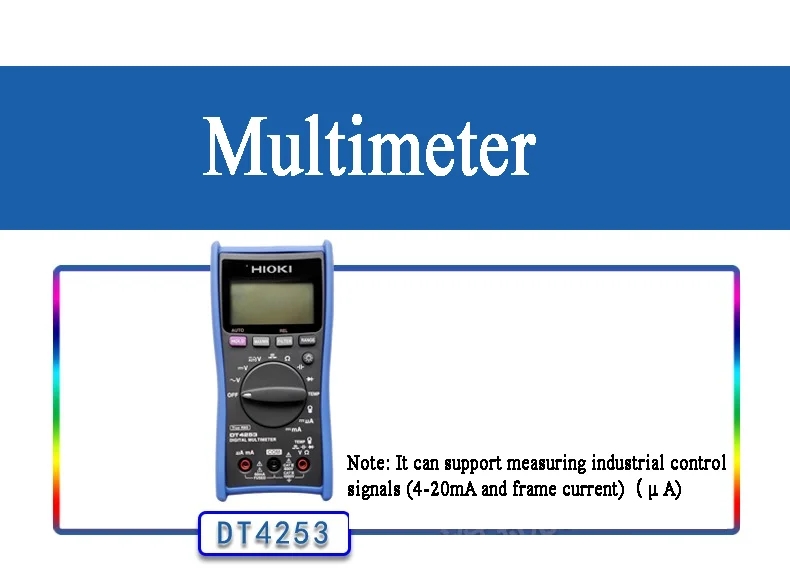

HIOKI DT4253
Features：
* DC V basic accuracy ± 0.3%, AC V frequency characteristic 40~1kHz standard type
* Remove harmonics during low-pass filtering at 100Hz/500Hz (measurement of fundamental component of frequency converter)
* Equipped with multiple functions such as temperature measurement (only limited to DT4253-20), C measurement, frequency measurement, etc
* The use of clamp sensors can measure large currents (DT4251/4253 only)
* Equipped with USB communication function for PC measurement (optional)
* Wide temperature range: -10 C~50 C
Specifications：
|
DC Voltage |
600.0 mV～1000 V，5-speed range, Basic Accuracy:+/-0.3 % rdg. +/-5 dgt. |
|
AC Voltage 40-500Hz |
6.000 V to 1000 V, 4-speed range, Frequency Characteristic: 40 Hz to 1 kHz Basic Accuracy: +/-0.9% rdg +/-3 dgt. (True RMS, peak factor below 3) |
|
Resistance |
600.0 Ω～60.00 MΩ，6-speed range, Basic Accuracy:+/-0.7 % rdg. +/-5 dgt. |
|
DC Current |
60.00 μA～60.00 mA，4-speed range, Basic Accuracy+/-0.8 % rdg. +/-5 dgt. |
|
AC Current (Measured by AC clamp sensor) 40-1kHz |
10.00 A～1000 A，7-speed range, Basic Accuracy:+/-0.9 % rdg. +/-3 dgt. |
|
Temperature Measurement |
K-type: -40.0~400.0 C (using DT4910), Accuracy: +/-0.5% rdg +/-2 C+temperature sensor accuracy |
|
Electrostatic Capacitance |
1μ F~9.999 mF, 4-speed range, Basic Accuracy: +/- 1.9% rdg +/-5 dgt. |
|
Frequency |
When measuring AC V/AC A: a 3-range range of 99.99 Hz (above 5 Hz) to 9.999 kHz, only AC V: 99.99 kHz Basic Accuracy: +/-0.1% rdg +/.-1 dgt. |
|
Conduction Check |
Conduction ON threshold: Below 20 Ω (beep, red LED light on), conduction OFF threshold: Above 250 Ω, response time: above 0.5 ms |
|
Diode Check |
Open Circuit Voltage: below 4.8 V, test current: 0.5 mA, positive sequence threshold: 0.15V~1.5V |
