Description
xSPECIFICATIONS
Band Width: 100-349MHz
Battery Included: No
Brand Name: NONE
Certification: CE
DIY Supplies: Electrical
Digital Channels: 4
Display Resolution: 1024*600 Pixels
High-concerned chemical: None
Max Waveform Capture Rate: 1,000,000wfm/s
Model Number: DHO914/DHO914S/DHO924/DHO924S
Origin: Mainland China
Real Time Sampling Rate: 1GSa/S
Record Length: 50Mpts

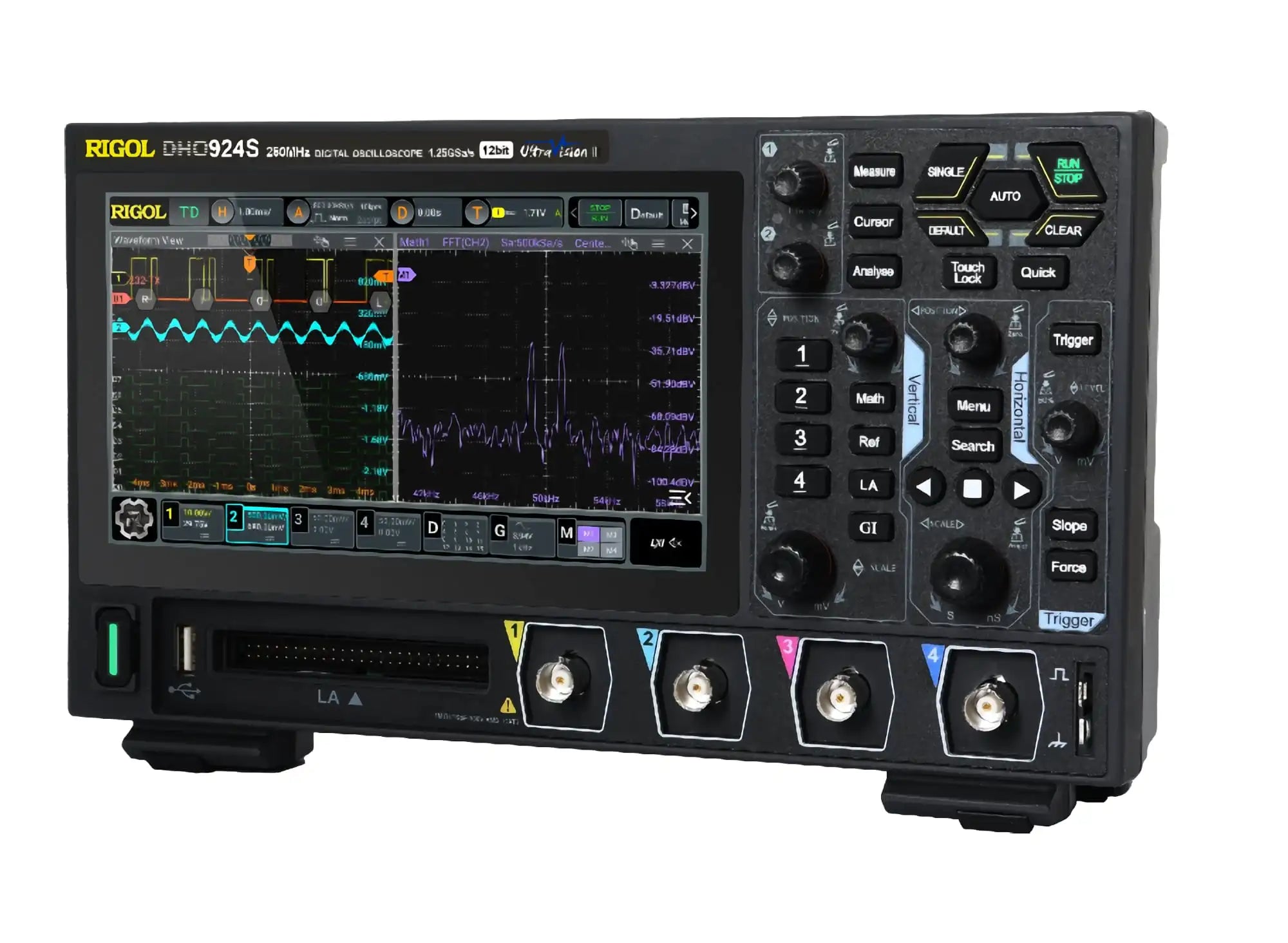

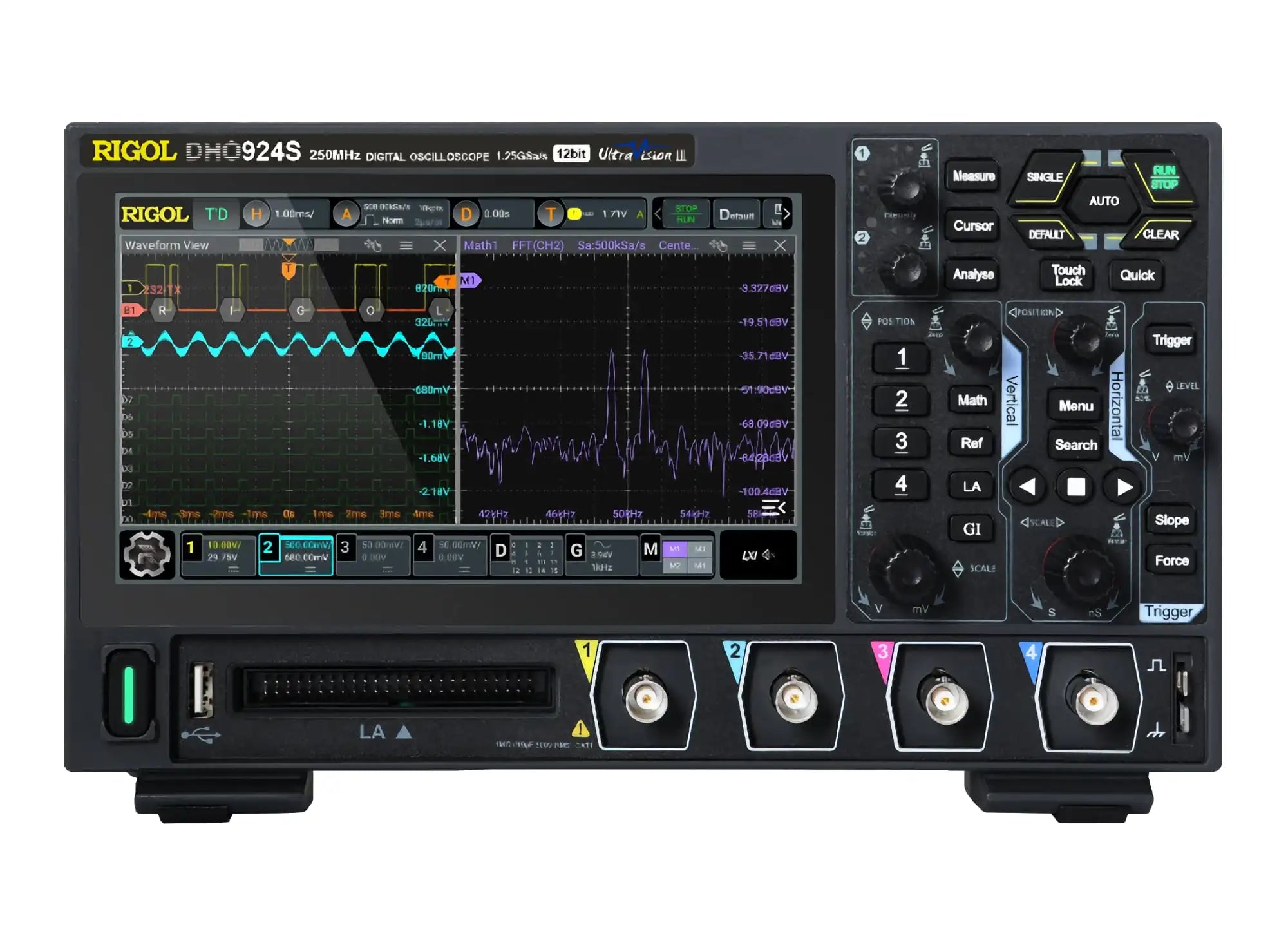

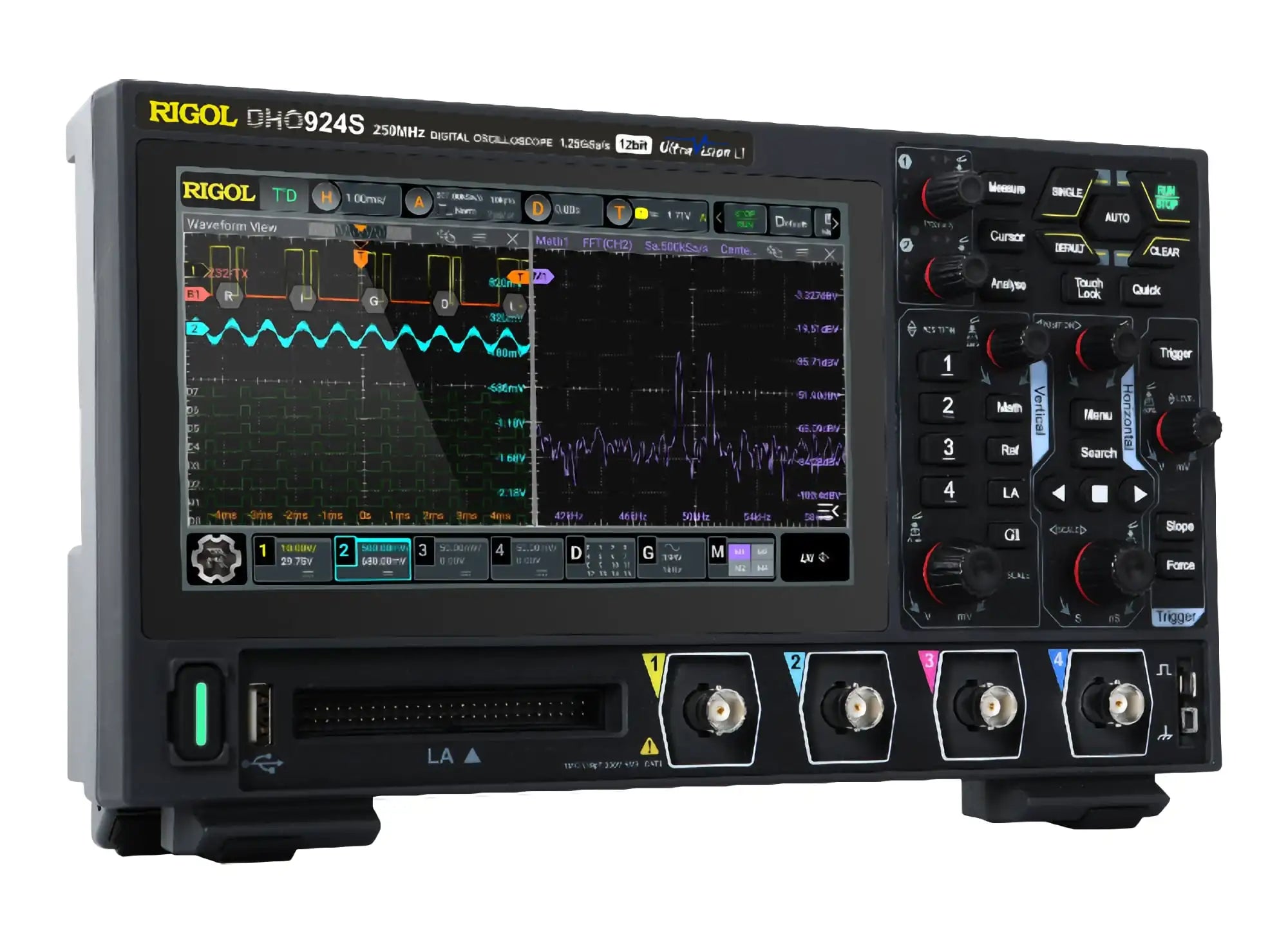

DHO900 Series | HIGH RESOLUTION DIGITAL OSCILLOSCOPES
The DHO900 series is RIGOL's new launched high-performance economical digitaloscilloscope. Though compact in design, it has superior performance. It features acapture rate up to 1,000,000 wfms/s (in UltraAcquire Mode), 50 Mpts memorydepth, 12 bits resolution, and low noise.The DHO900 series supports 16 digital channels. One instrument can make ananalysis on both the analog and digital signals to meet the embedded design andtest scenarios. With an affordable price equivalent to purchasing an entry-levelinstrument, you can access the auto serial and parallel bus analysis, bode plotanalysis, and other functions to meet the test demands in the R&D, education, andscientific research fields.
Product Features
• Ultra-low noise floor, purer signal, never miss the small signals
• Up to 12 bits resolution for all the models of this series
• Max. analog bandwidth of 250 MHz, 4 analog channels
• 16 digital channels (std.), logic probe required to be purchased if needed
• Max. real-time sample rate of 1.25 GSa/s
• Max. memory depth of 50 Mpts
• Vertical sensitivity range: 200 μV/div to 10V/div
• Max. capture rate of 1,000,000 wfms/s (in UltraAcquire mode)
• Digital phosphor display with real-time 256-level intensity grading
• Integrates the AFG function, bode plot analysis, histogram, digital signalanalysis, and etc
• Waveform search and navigation function allows you to debug the signalanomalies faster
• 7" (1024x600) capacitive multi-touch screen
• Brand new Flex Knob brings user-friendly experience

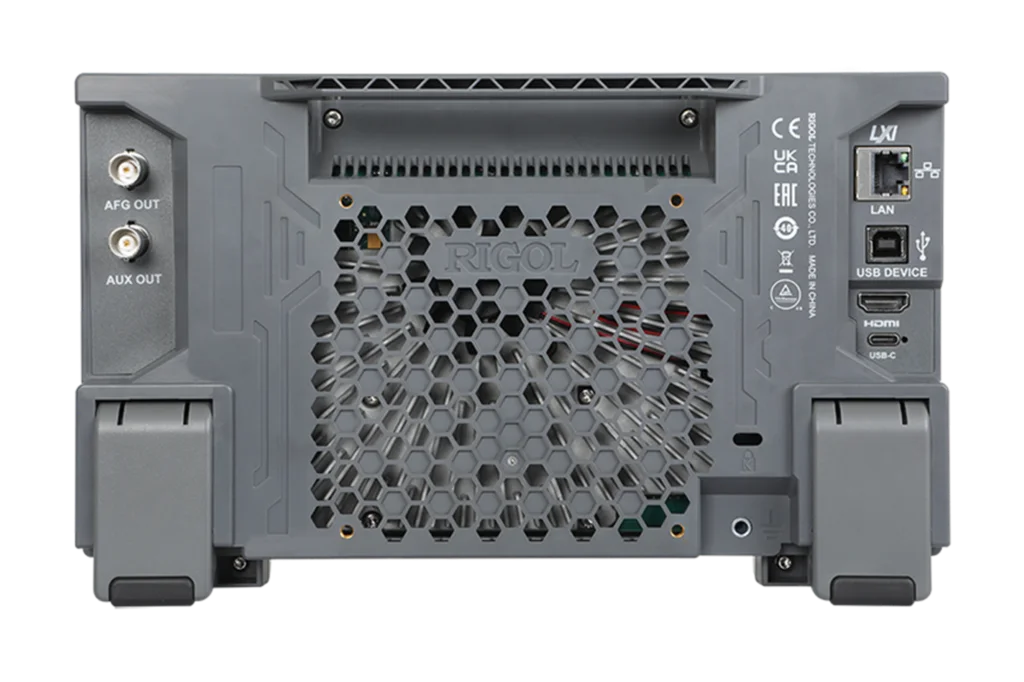

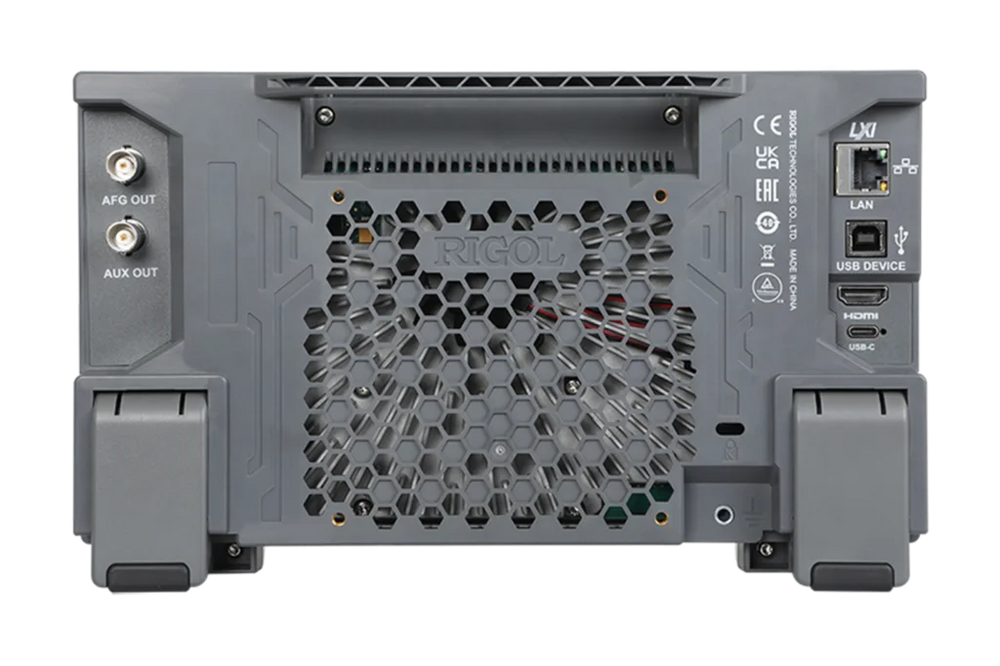

• USB Device & Host, LAN, and HDMI interfaces (std.) for all the models of thisseries
• Novel and delicate industrial design, easy to operate
• Unique online upgrade

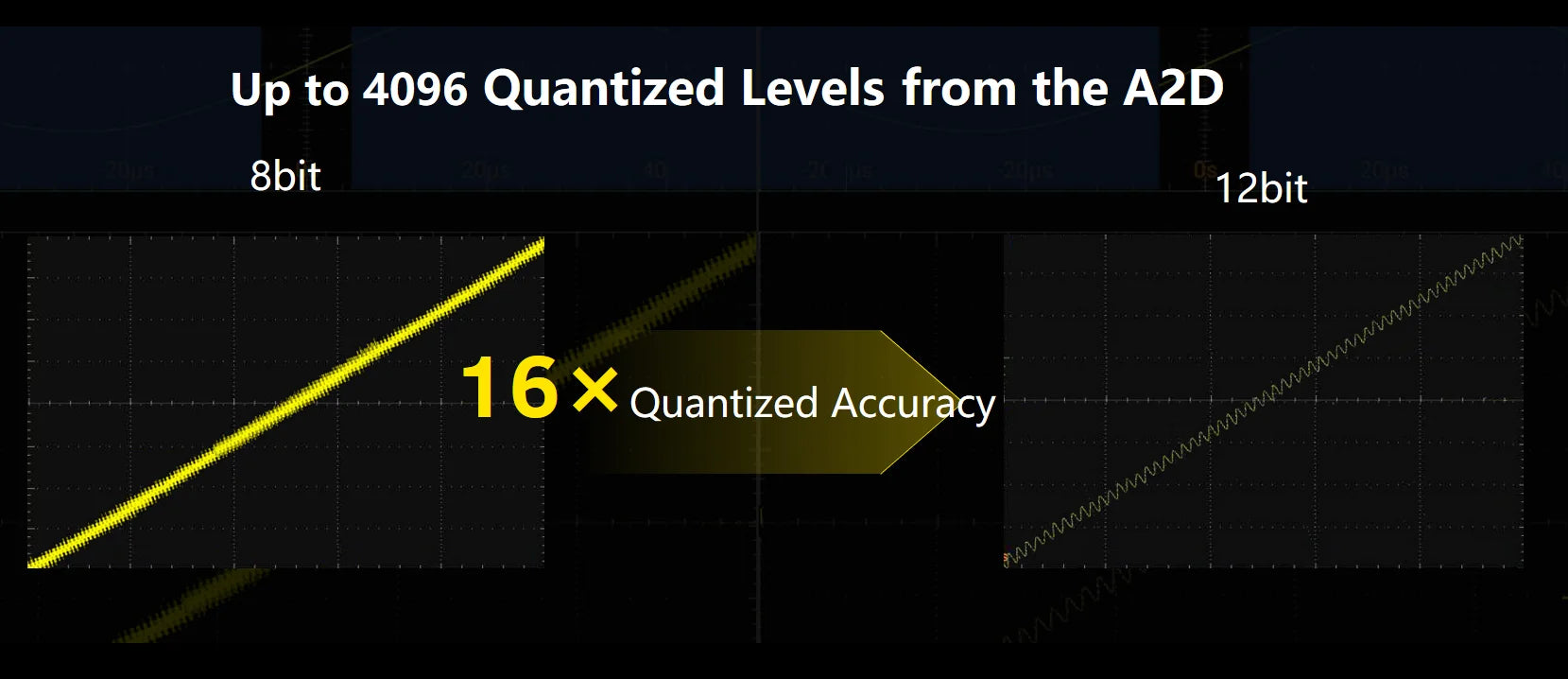

12-bit vertical resolution
12-bit vertical resolution with 4096 levels of quantization, 16 times the quantization levels of 8-bit, adept at handling small signal testing.

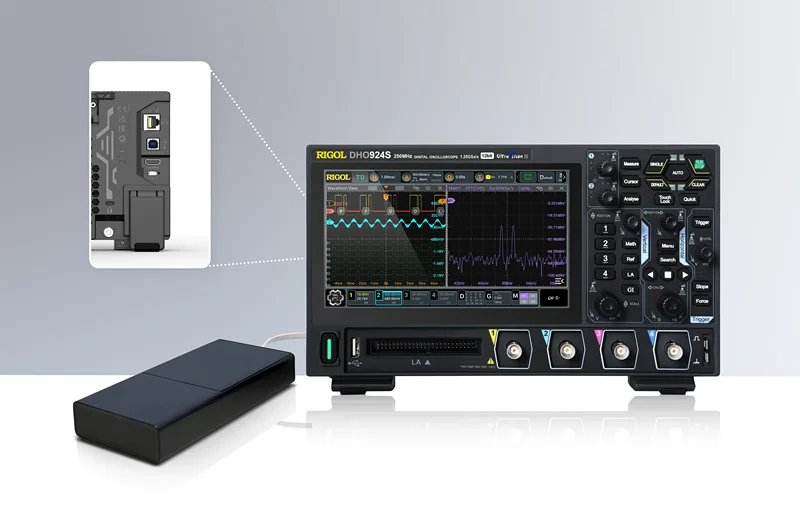

Support Type-C Power
Designed with a Type-C power interface, the DHO900 can be powered by just a portable power source, enabling on-site testing.

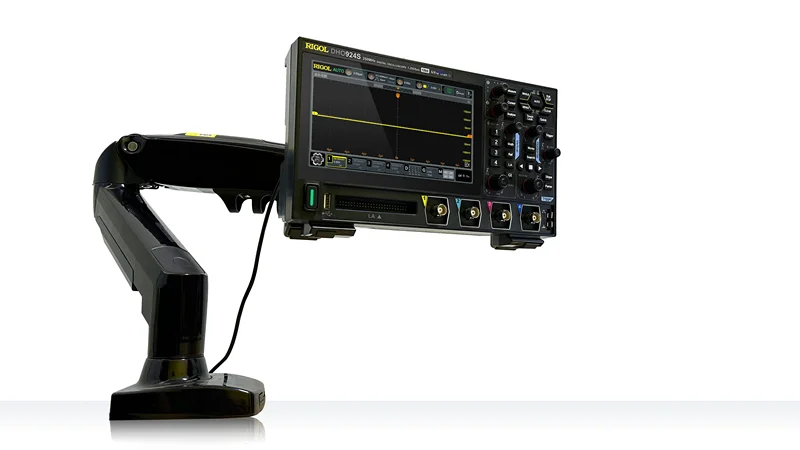

Sleek Design
The DHO900 series features a compact form factor and also supports standard monitor stand usage, effectively reducing desktop footprint and providing you with more ample workspace.

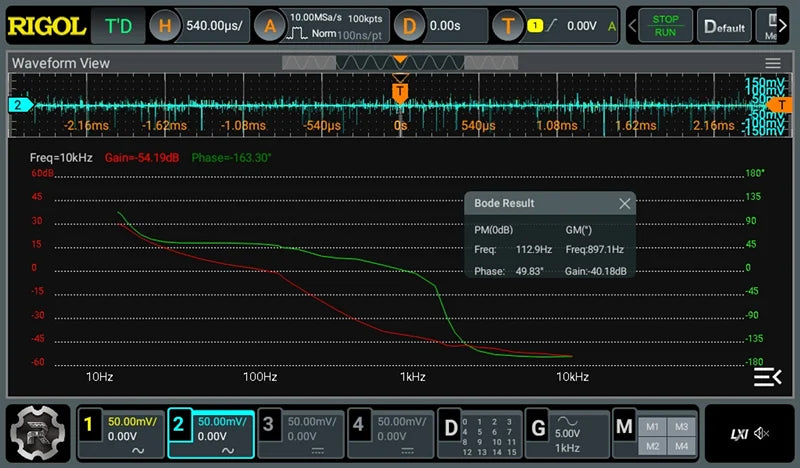

Supports Bode Plot Analysis
The DHO900S series comes standard with Bode plot loop analysis function, effectively addressing switching power loop response analysis.

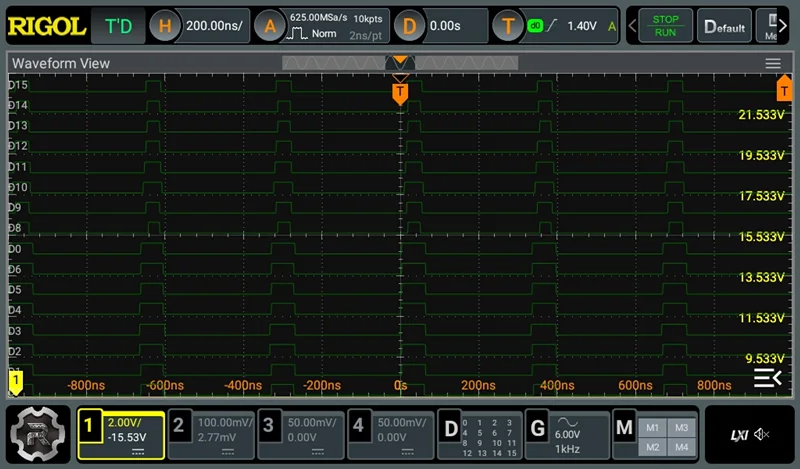

Standard Digital Channels
The entire DHO900 series comes equipped with digital channels as standard, allowing digital signal analysis when paired with the PLA2216 logic analysis probe.
