Description
xSPECIFICATIONS
AC Voltage: 100-240VAC
Battery Included: No
Brand Name: RIGOL
Certification: CE
DC Voltage: 12V
DIY Supplies: Electrical
High-concerned chemical: None
Operating Mode: Auto Range
Origin: Mainland China

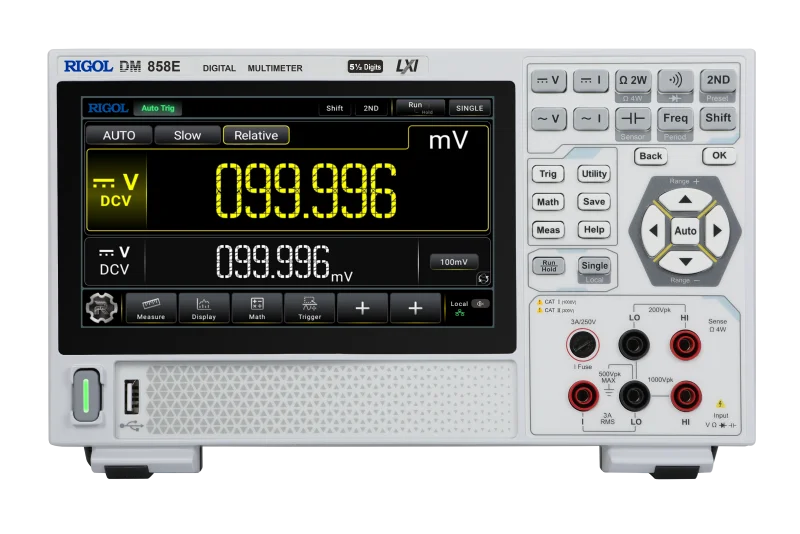

DM858 series
DM858 series benchtop digital multimeter provides a highly cost-effective test tool for engineers. Itfeatures 5.5-digit resolution, max. 125 readings/s, data logging memory of 500,000 points, and0.03% DCV accuracy (1 year). It provides 11 measurement functions for input signals, 5 Mathoperations, and 3 graphical display types, satisfying what most experiments and tests require of amultimeter. The 7'' touch screen allows a clear view on measurement results. Its provides USB andLAN interfaces (standard) as well as the Web Control function for you to control the instrumentdirectly, bringing smoother interaction. It is equipped with a Type-C interface for power charge. Inaddition, it has a compact size and supports the attachment to a bracket, saving valuable benchspace for engineers
Product Features
• Max. reading rate: 125 readings/s
• Up to 500,000 points logging memory to record and analyze more data
• 5½-digit reading resolution (120,000 counts)
• True-RMS AC Voltage and AC Current measuring
• Built-in 10 groups of data storage and 10 groups of setup storage
• Strong Math functions, supporting various application protocols
• 7'' color touch screen, displaying dual-measurement results concurrently
• Type-C interface for power charge; compact in size, freeing up your bench space
• Standard USB and LAN interfaces, supporting Web Control

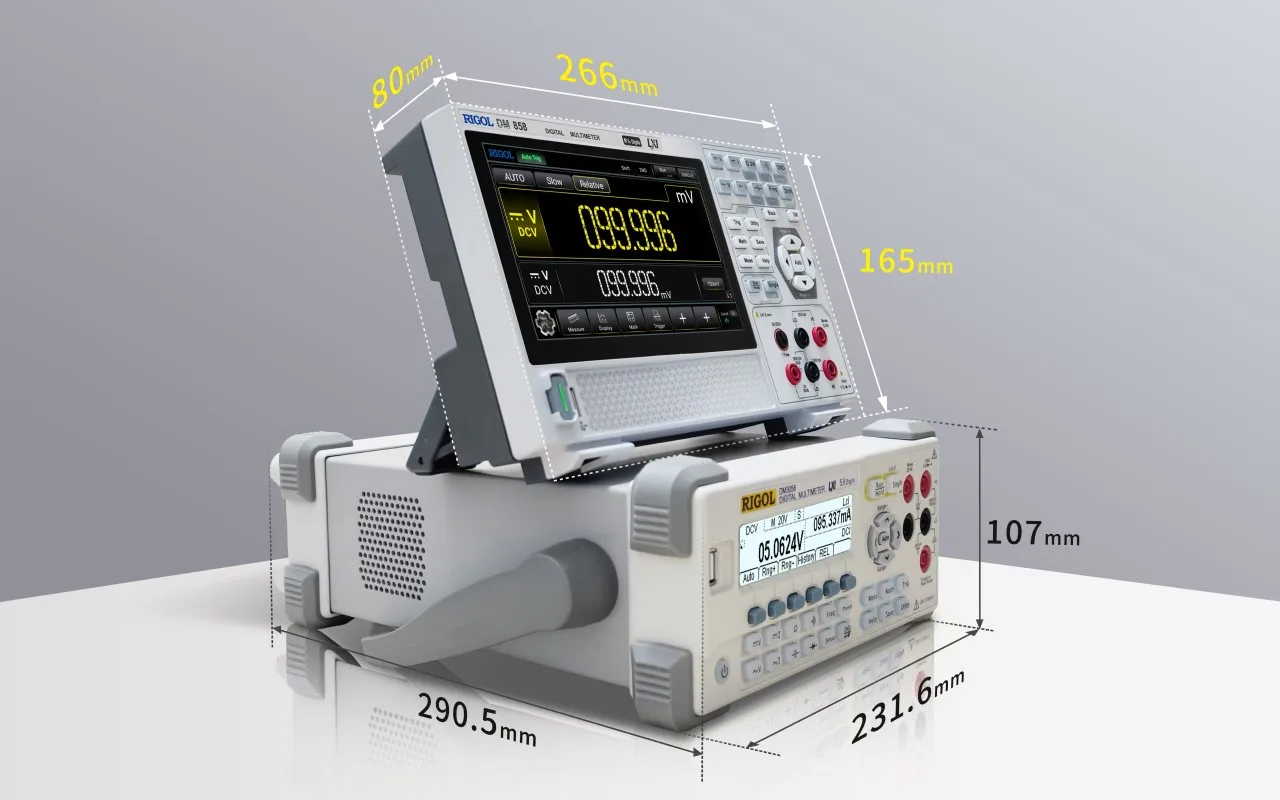

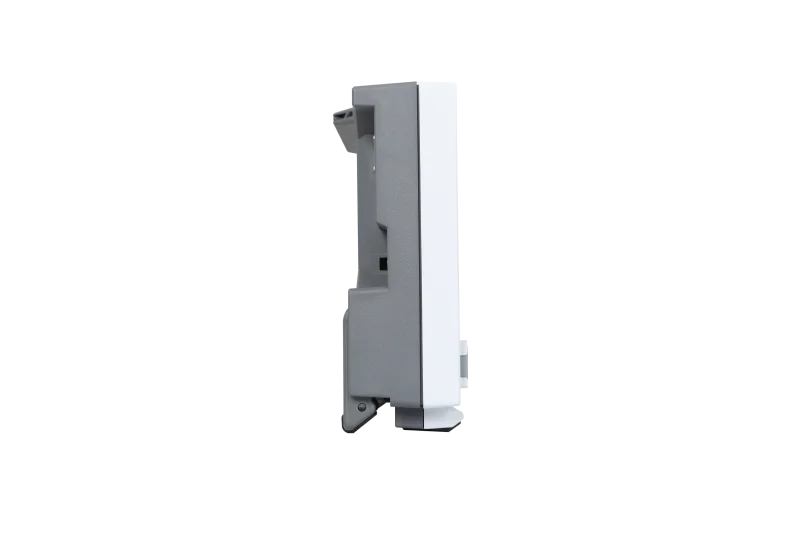

Lighter and thinner body
Compared to the previous generation product DM3058, DM858 has a lighter and thinner body but a wider field of view. The depth of the machine is only 80mm, making it a desktop digital multimeter that saves a lot of desktop space

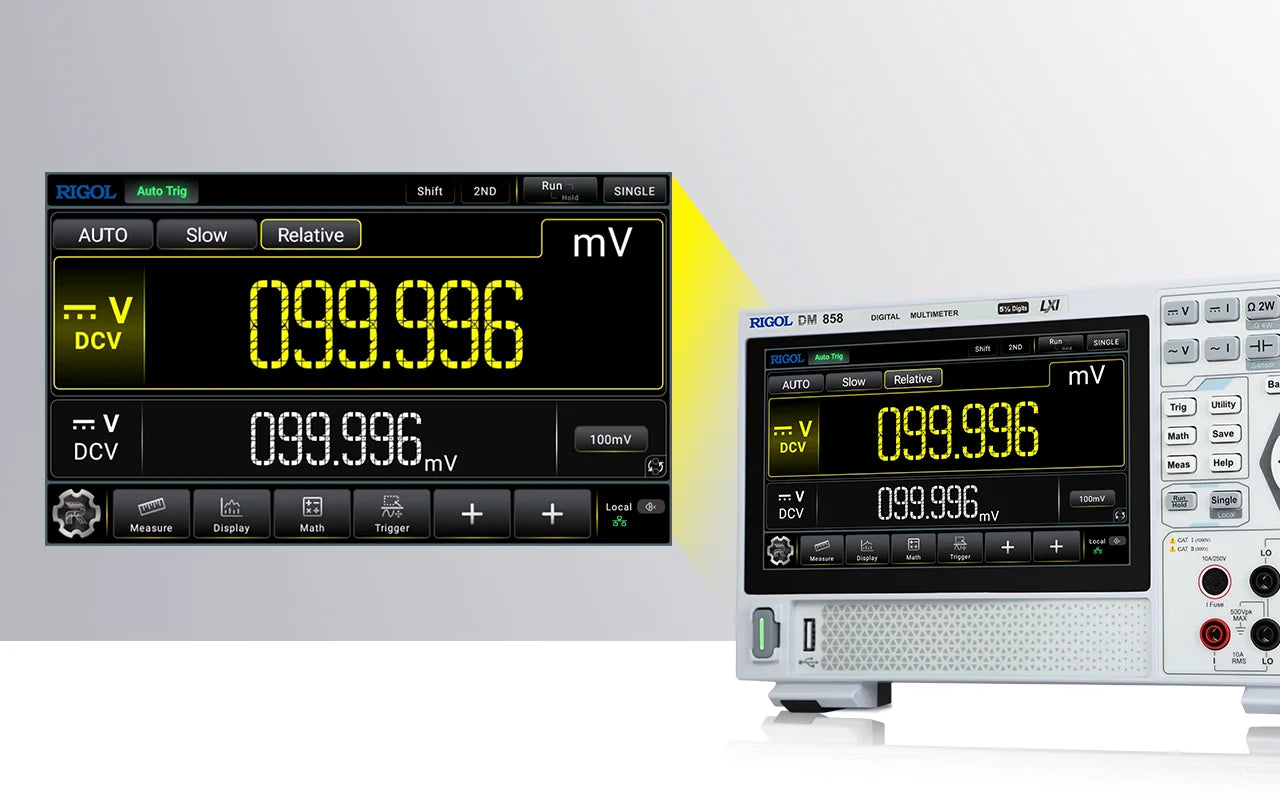

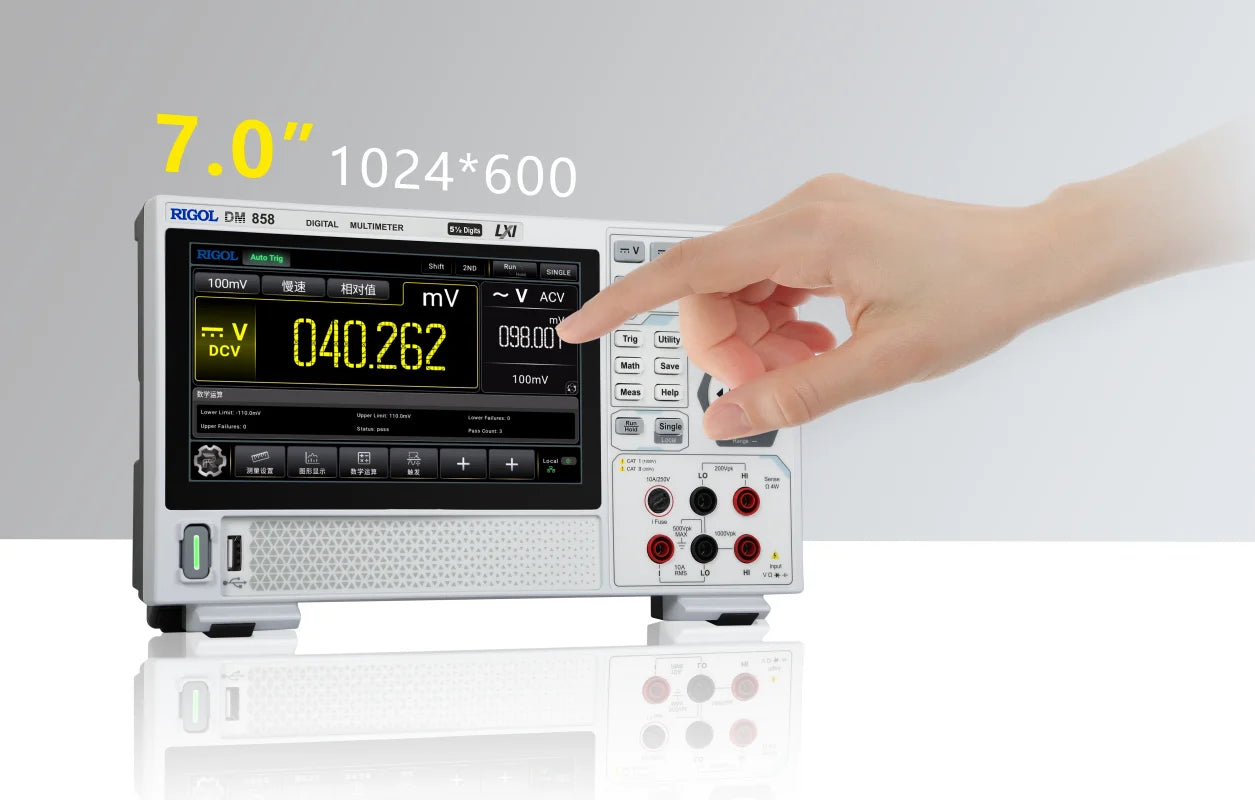

Wider screen, clearer view

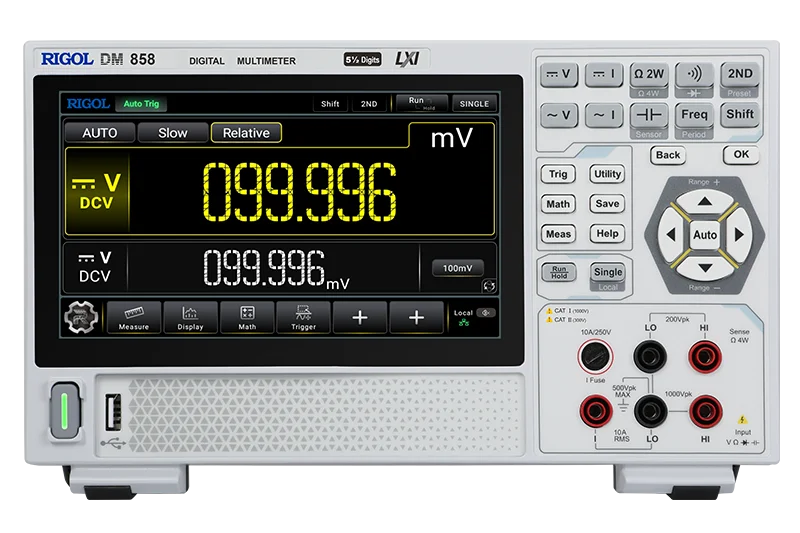

The DM858 series is equipped with a 7-inch color touch screen display with a resolution of 1024 * 600, divided into main and auxiliary display areas, which can simultaneously view readings, instrument status, statistical information, and other content without the need to switch back and forth between interfaces. The spacious screen and touch screen design makes it easy to set measurement settings and view results.

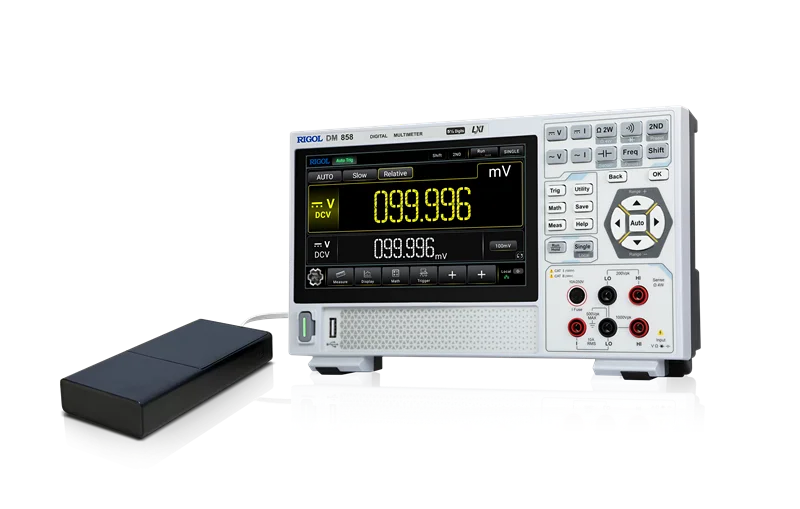

Equipped with Type-C connector
Type-C connector enable DM858 to be powered up by mobile power supply, make on-site testing more convenient. With a 65W, 74Wh mobile power supply, the DM858 can operate up to 8 hours
Compact size and convenient design

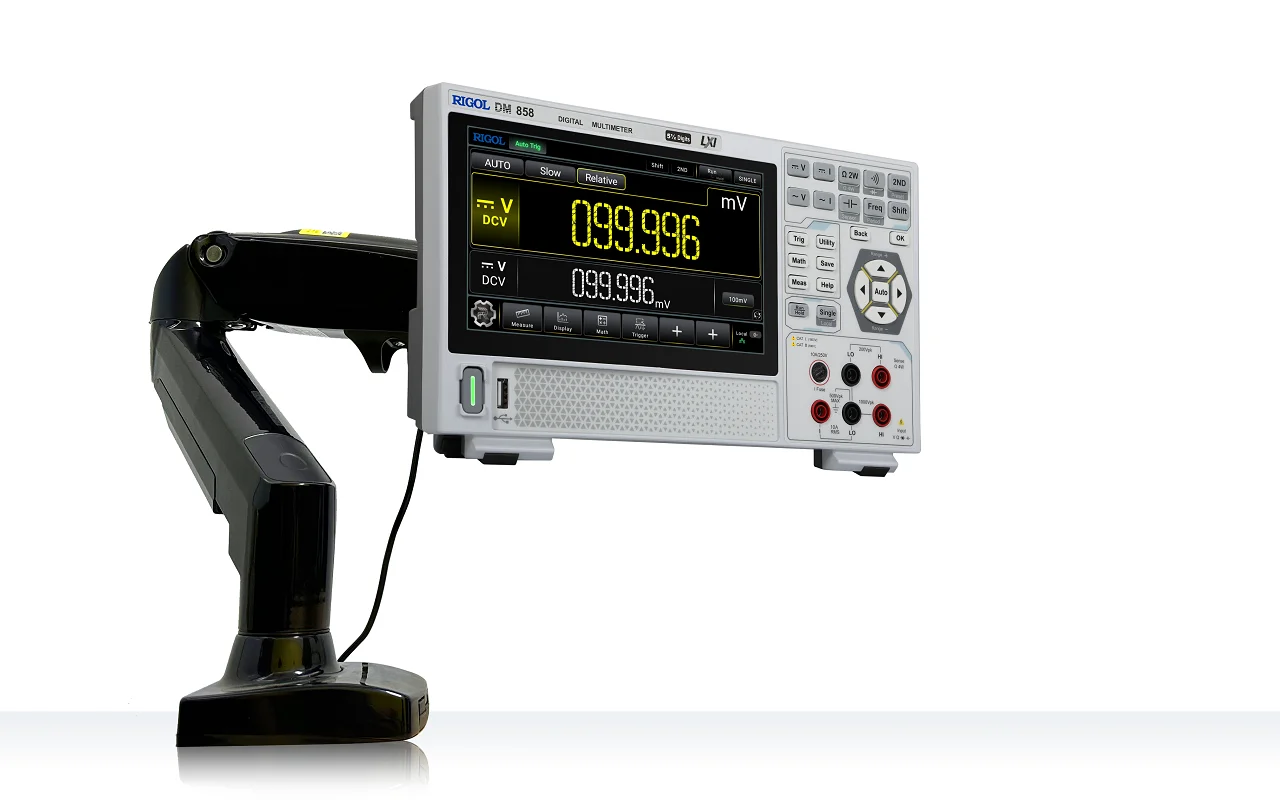

Compact and ultra-thin in size, the bare machine weighs only 1.25kg, with a wall mounted interface on the back panel that meets the VESA 100X100 standard. Pair the DM858 with a desktop stand to free up your workbench
5.5 digit reading
Perform fast measurement suitable with a 5.5-bits resolution and a measurement rate of up to 125 readings per second. 500000 point recording memory allows recording and analyzing more test data

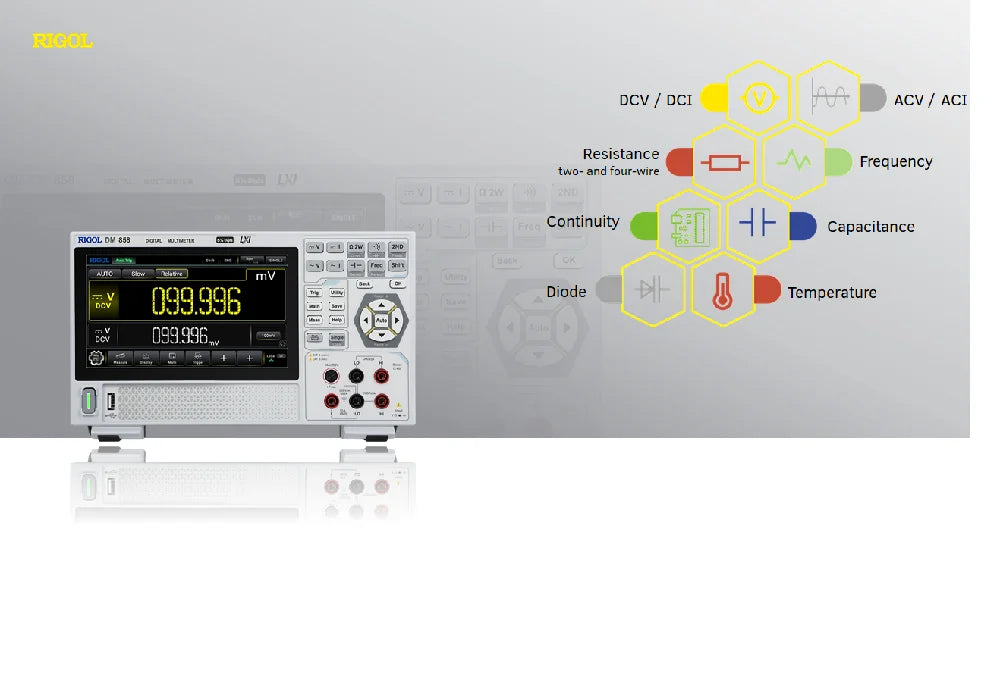

11 input signal measurements
Support measuring DCV, DCI, ACV, ACI, two- and four-wire resistance, frequency and cycle, connectivity, diode, temperature, capacitance output signals, providing more possibilities for testing.

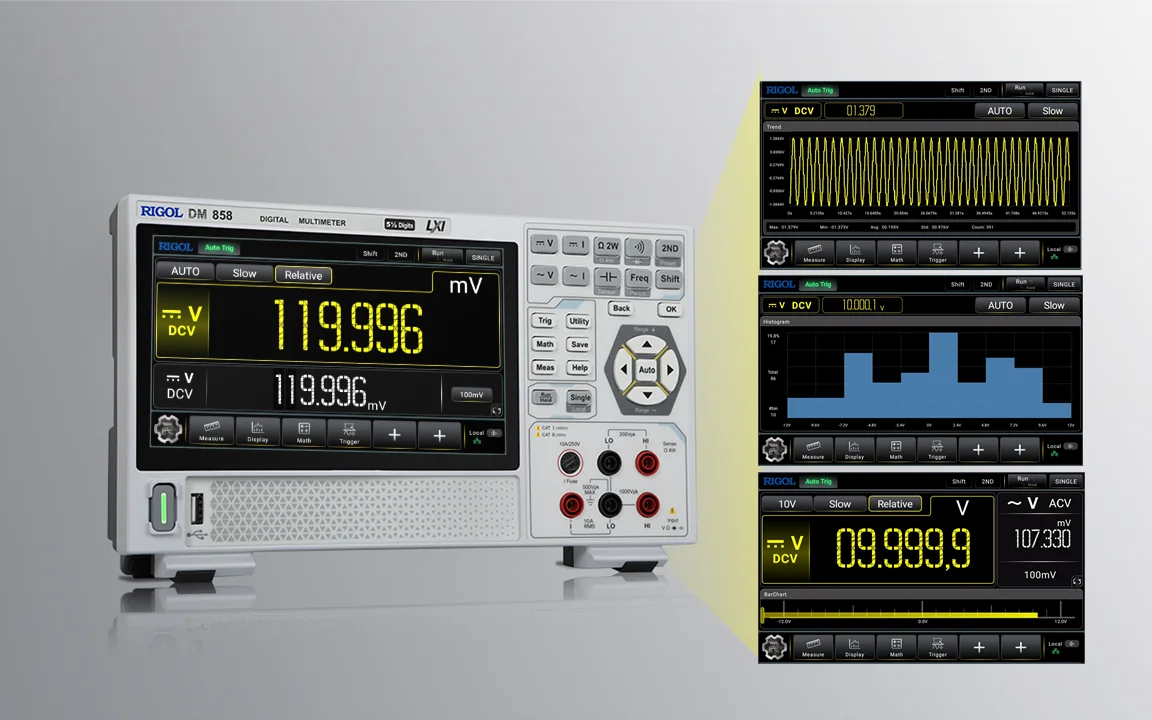

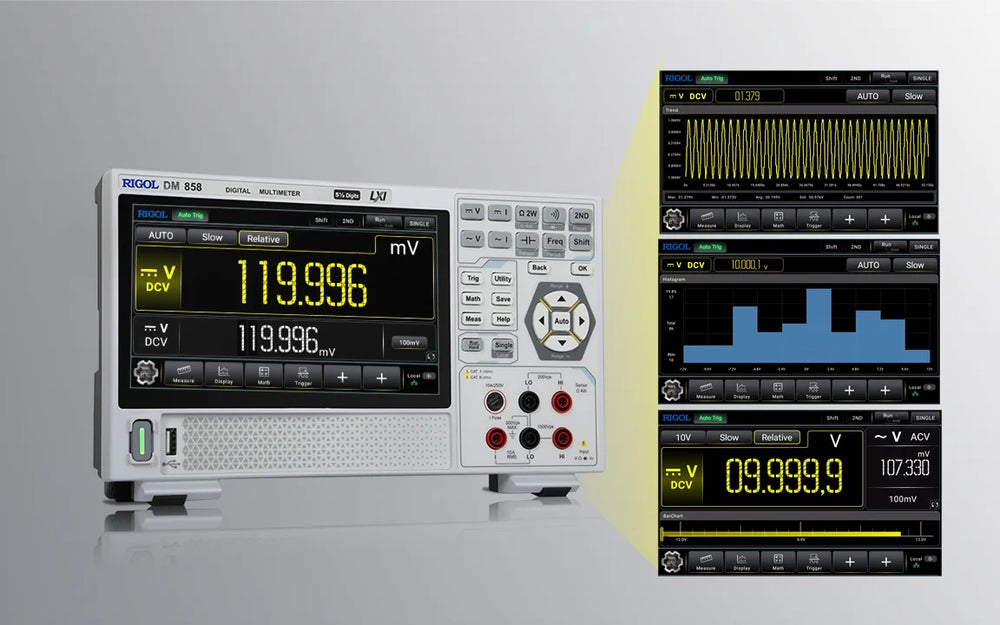

Graphical display and mathematical operation
Supports three graphical displays: trend charts, histograms, and bar charts. It also provides various mathematical functions such as statistical operations, limit operations, dB/dBm, and relative operations, allowing for a more intuitive observation and analysis of changes in test values.

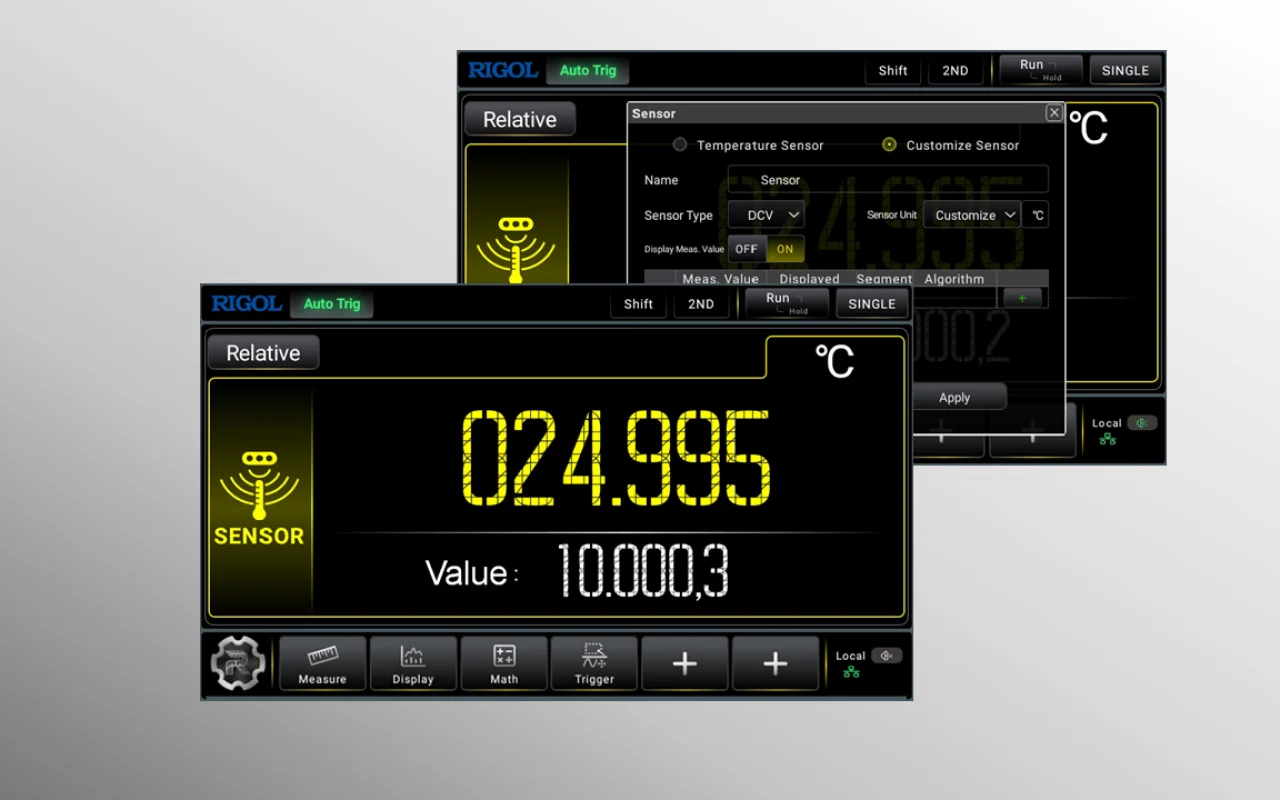

Support any sensor measurement
10 sets of standard sensor configurations are preset, with built-in thermocouple cold end compensation. Users can easily configure various types of sensors such as pressure, flow, temperature, etc

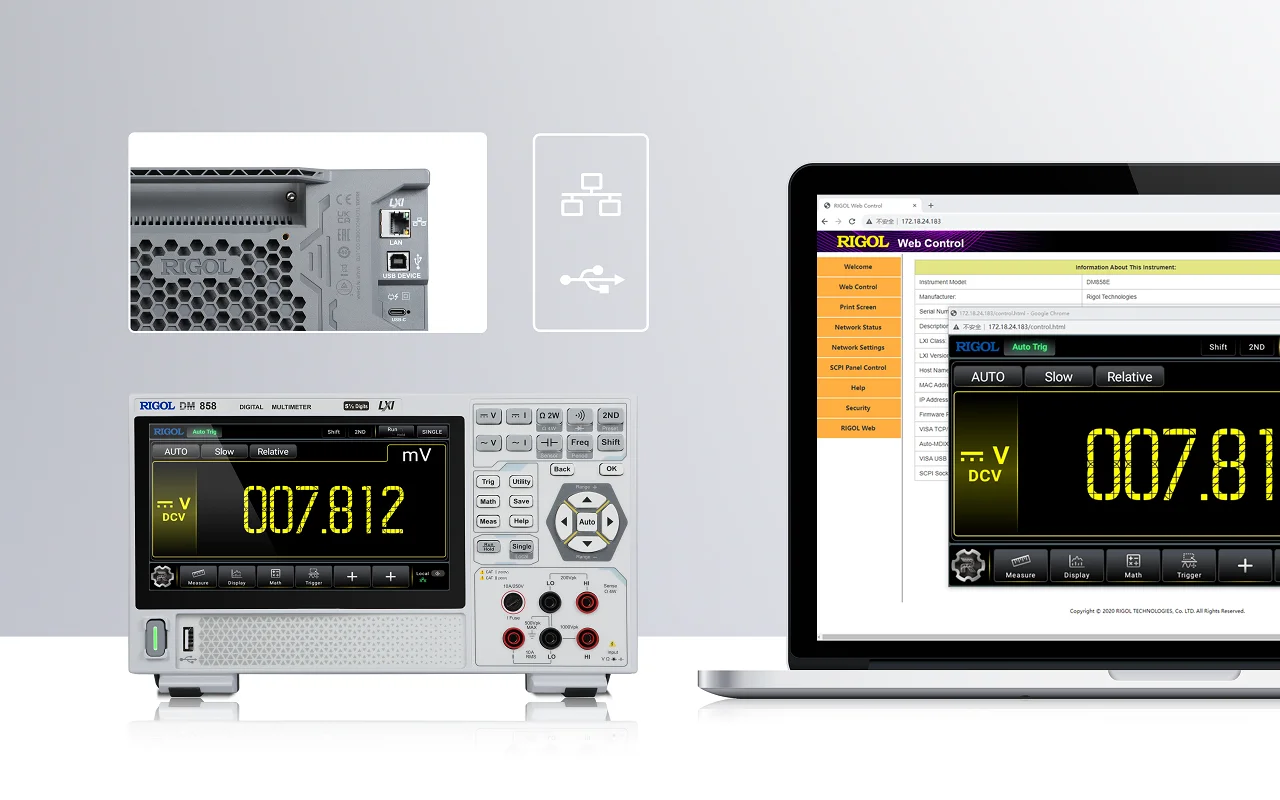

Flexible connection with PC to control instruments

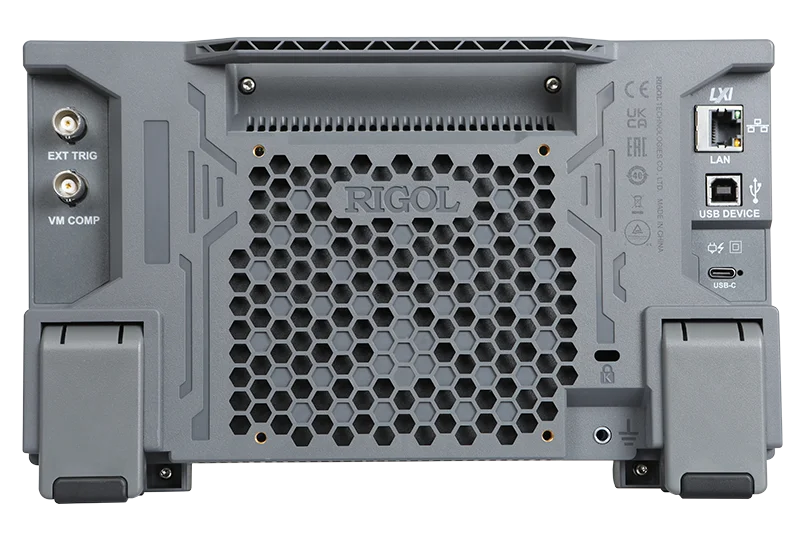

Makes testing more convenient with the standard USB HOST, USB Device, LAN interface for Web remote control, and standard SCPI instructions for automated testing.
