Description
xSPECIFICATIONS
Battery Included: Yes
Brand Name: TESTO,TESTO
Certification: CE
DIY Supplies: Electrical
Gas Type: Methane
High-concerned chemical: None
Model Number: Testo 310
Order No.: 0563 3104 01
Origin: Mainland China
With LCD Screen Or Not: Yes

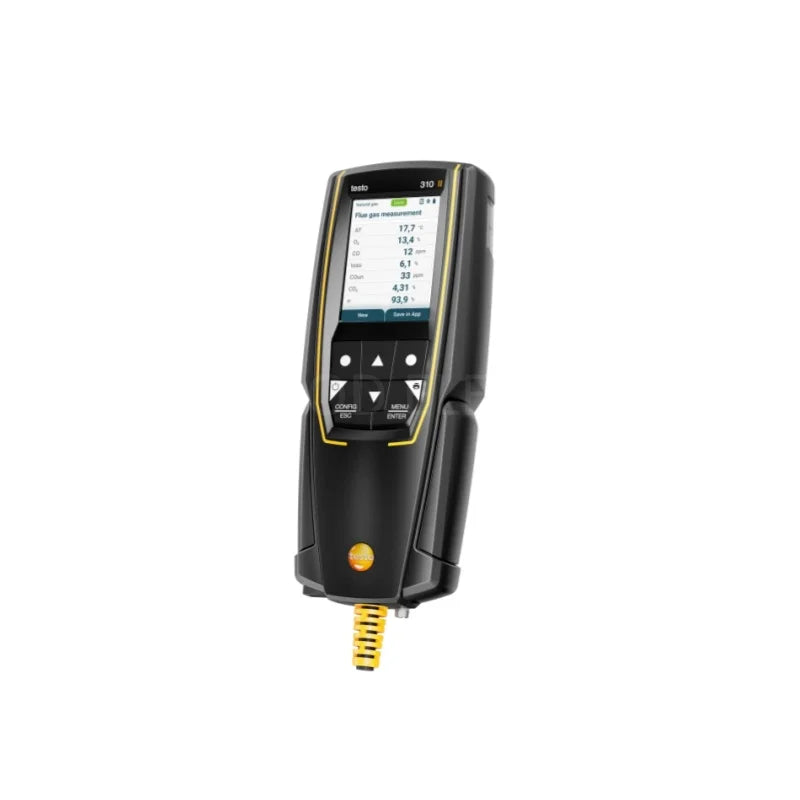

Testo 310 II Flue Gas Combustion Analyzer O2 CO CO2 Measuring Range 0 To 4000 ppm 0563 3104 01 Without Printer
Introduction：
Direct O2, CO, flue gas and ambient temperature measurements
Integrated measurement menu for flue gas, draft, CO ambient air and pressure
Quick sensor zero in only 30 seconds
Large, backlit digital display, rechargeable lithium battery with up to 10 hours life
Being a systems mechanic you know only too well how tough things can get when you’re working out in the field. That’s why your measuring tools need to be rugged and reliable. Like the testo 310 II flue gas analyzer. Designed especially for use in the field..
Details
Product Description
Accurate readings, rugged design, easy-to-use: That’s what you as a professional want from a measurement tool so that you can carry out quick and reliable checks on heating systems. And that’s exactly what you get with the testo 310 II flue gas analyzer.

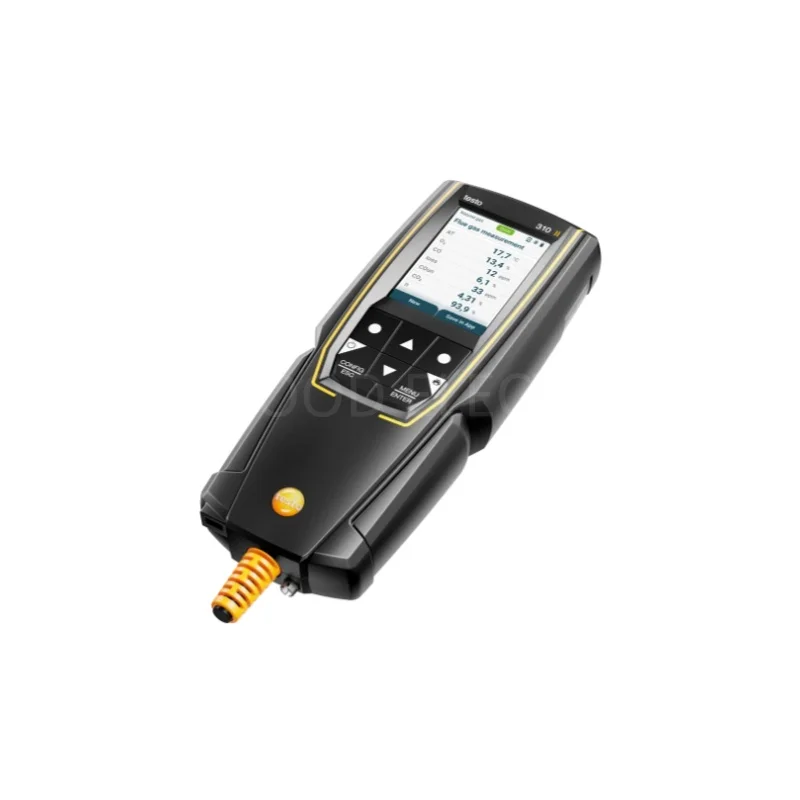

The testo 310 II entry-level flue gas analyzer. For reliable heating system checks
The testo 310 II has an easy-to-use menu guide, four integrated menus for flue gas, draft, CO ambient air and pressure measurements, a large, easy-to-read display and a backlight for use in all lighting conditions.
But that is by no means all. The compact flue gas analyzer has a wide range of useful features that make it the ideal companion for plumbing and heating fitters. Thanks to the built-in magnet, it can stick to almost any metal object, like a burner for example, leaving both hands free for other tasks. The sensor can be zeroed in as little as 30 seconds and the sensor filter is just as easy to replace. In addition to that, the device has a rugged design which protects it against impact and damage and an easy-to-empty condensate collection tank.
To round things off, the readings can also be transferred directly to your testo turbo printer (optional) via the analyzer’s infrared interface, allowing you to print out on site.
What’s included

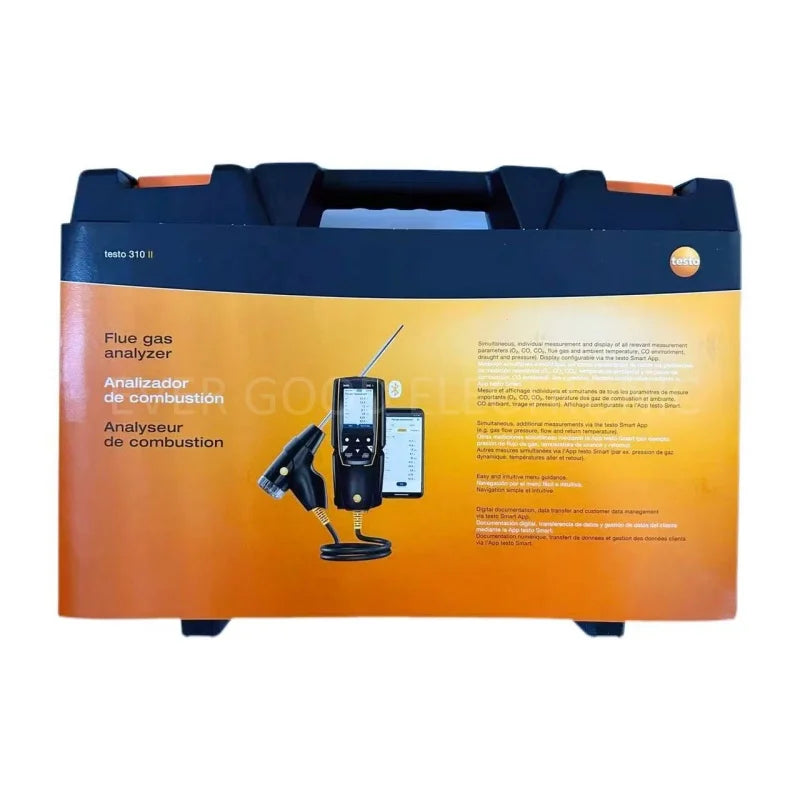

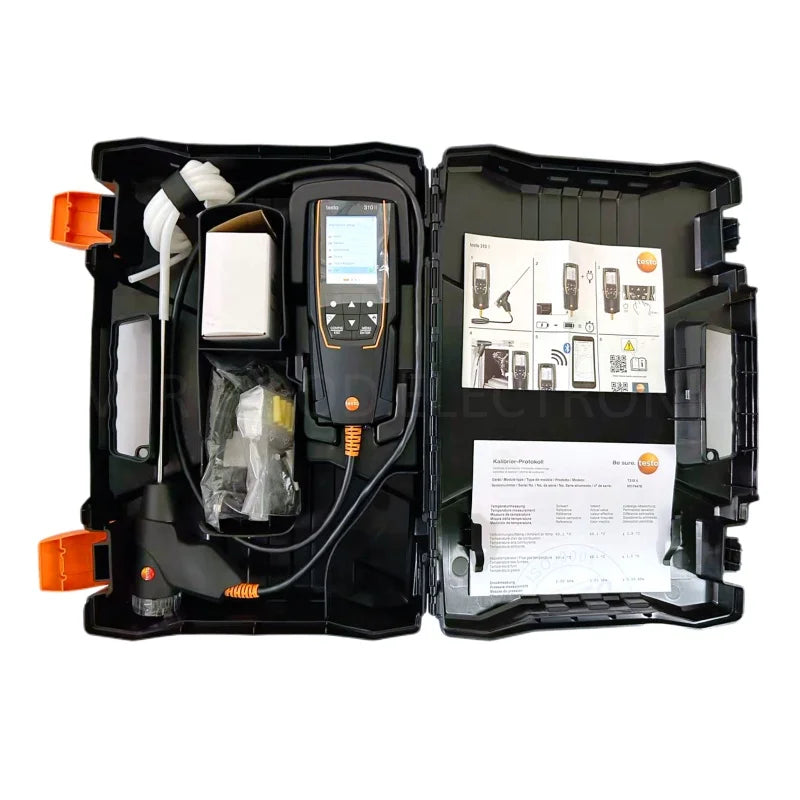

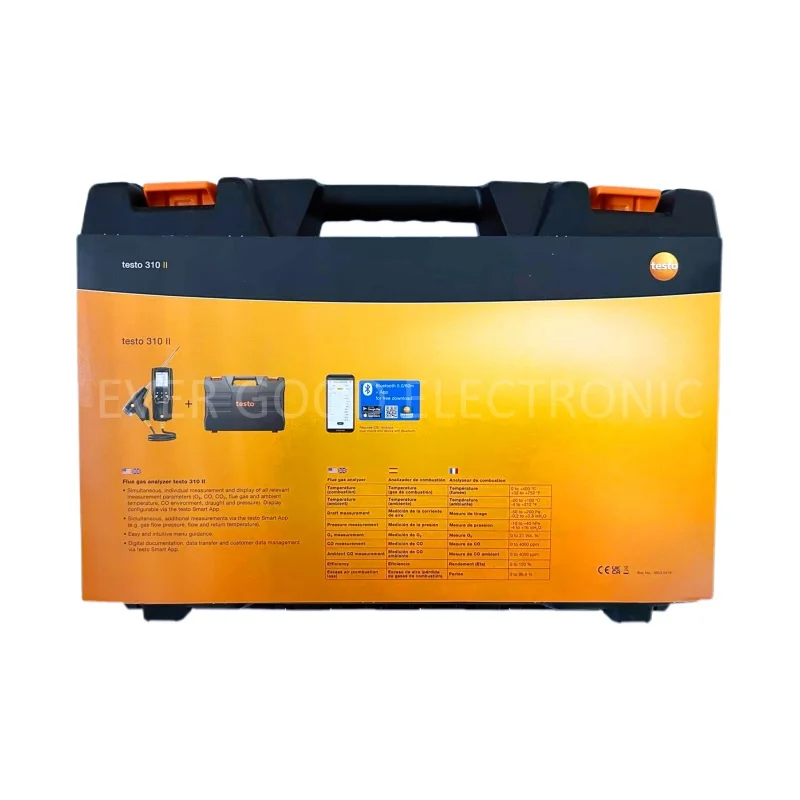

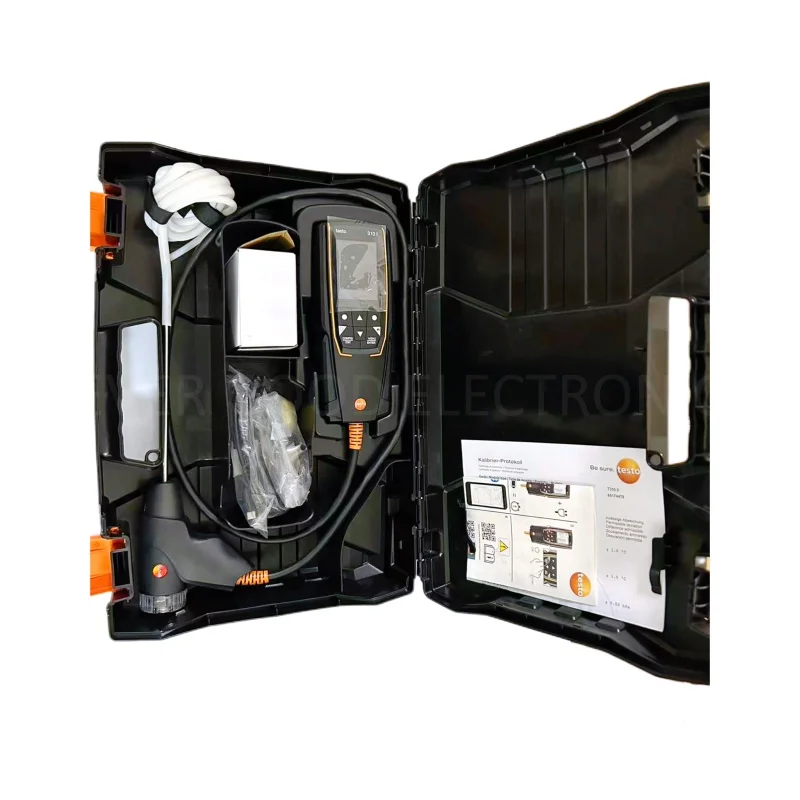

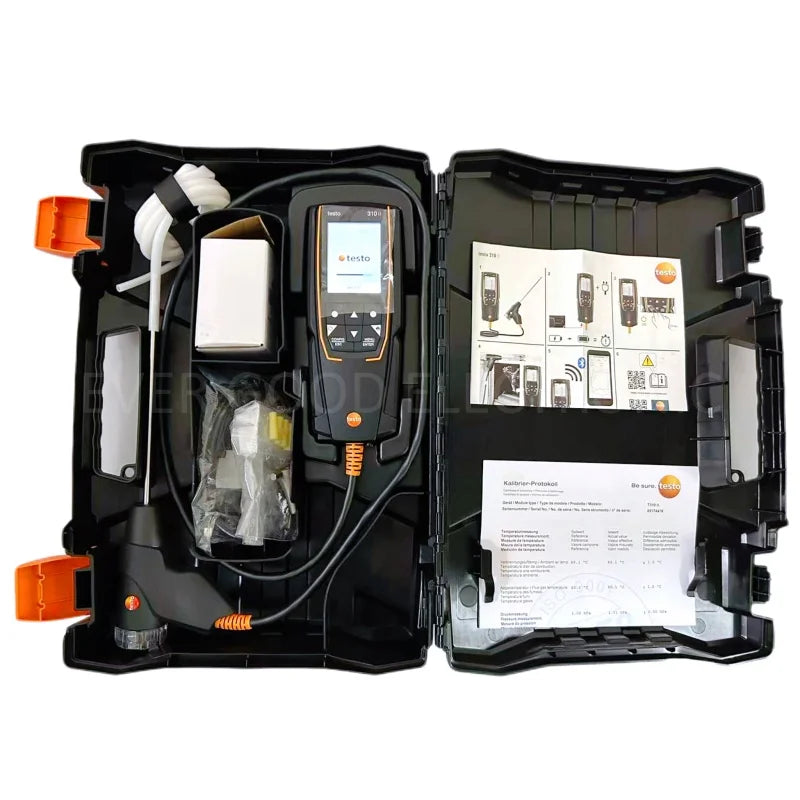

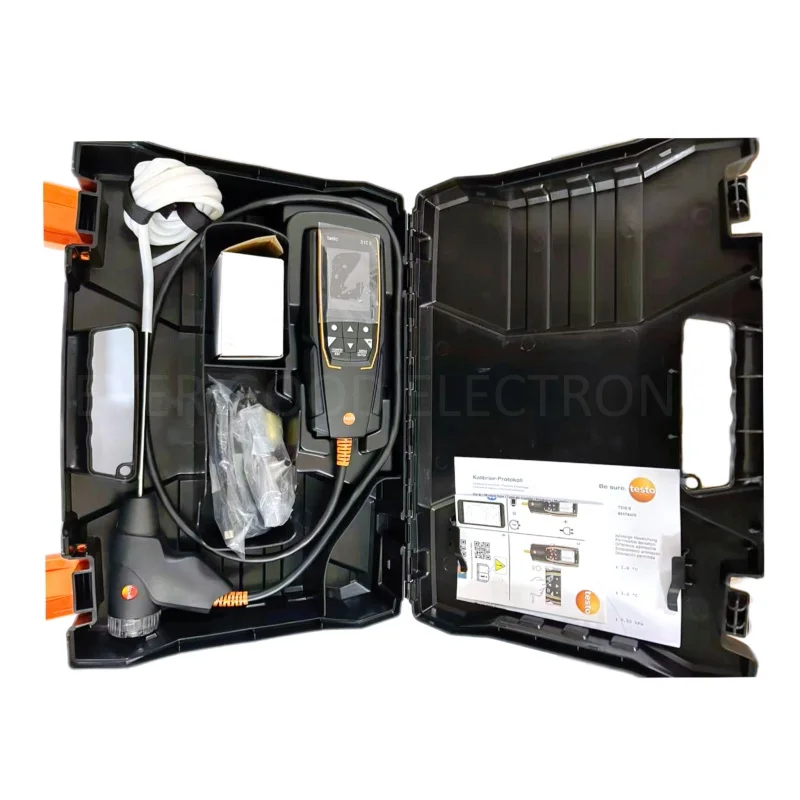

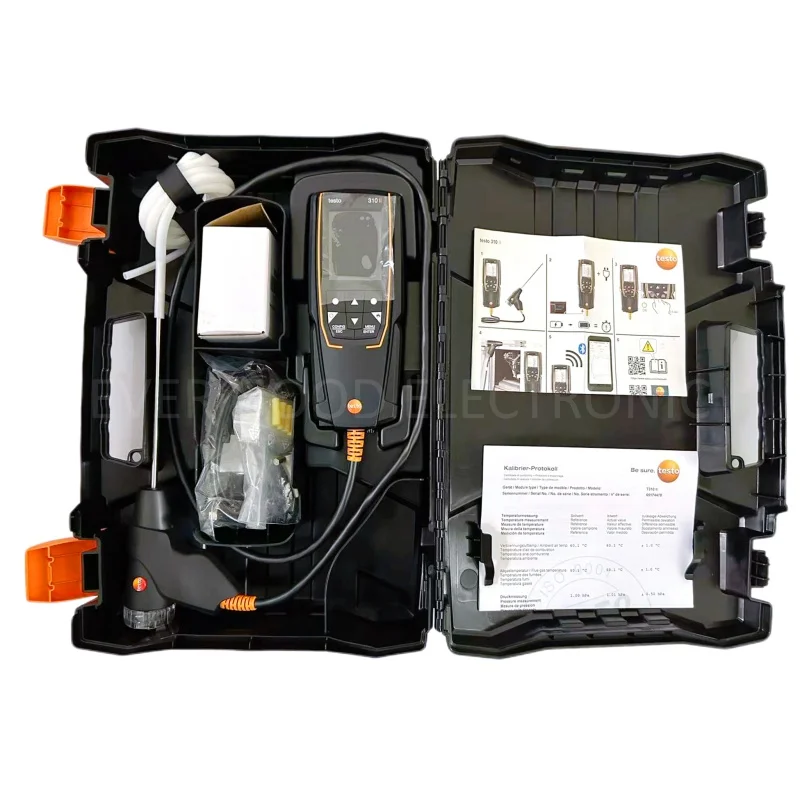

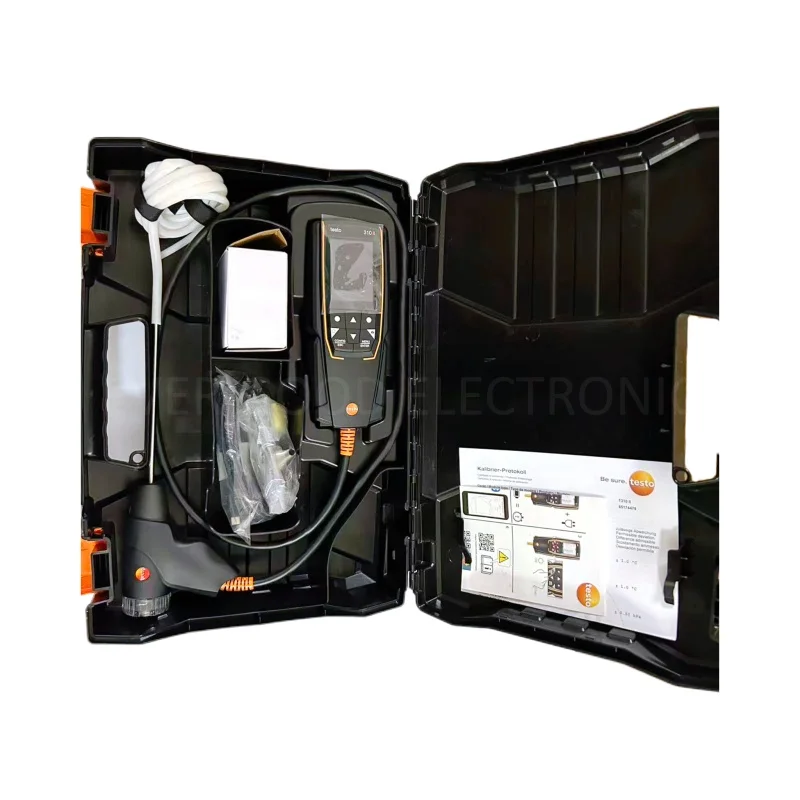

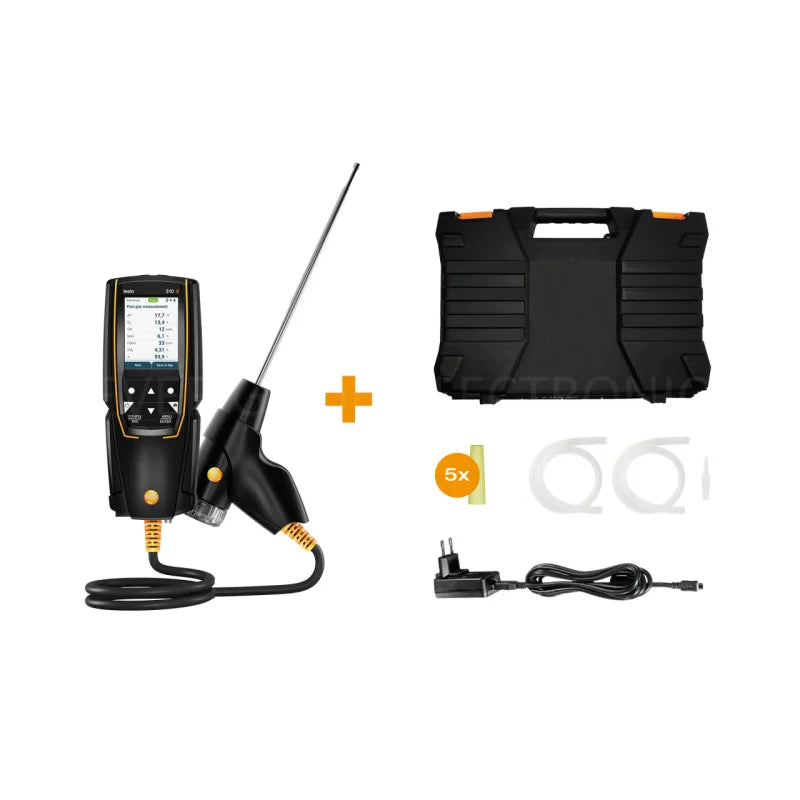

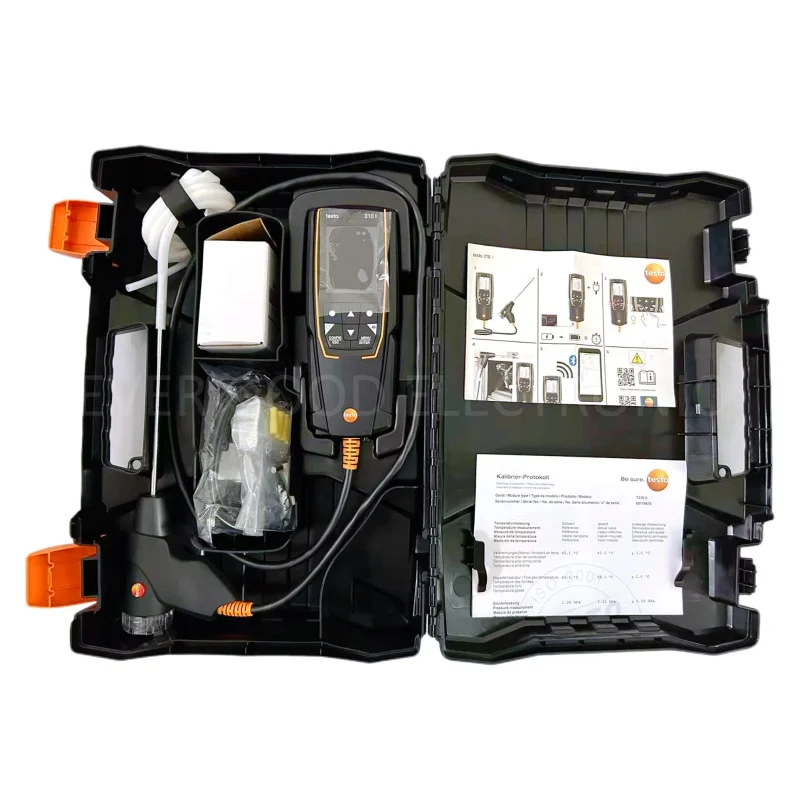

testo 310 II flue gas analyzer, rechargeable battery, calibration certificate for O2, CO, hPa and °C measurements, 7 in. conical sensor, silicone tube for pressure measurements, 10x particle filters, case.
Delivery Scope
testo 310 II flue gas analyzer, rechargeable battery, calibration protocol for O2, CO, hPa and °C measurements, 7 in. conical sensor, silicone tube for pressure measurements, 5x particle filters, case.
Technical Data
|
General |
|
|
Weight |
(with probe) |
|
Dimensions |
201 x 83 x 44 |
|
Operating |
-5 to +45 °C |
|
Display type |
LCD (Liquid |
|
Display |
Backlit 2-line |
|
Power supply |
Battery: 1500 |
|
Storage |
-20 to +50 °C |
|
Temperature - |
|
|
Measuring |
-20 to +100 °C |
|
Accuracy |
±1 °C |
|
Resolution |
0.1 °C |
|
Reaction time |
< 50 s |
Temperature
(ambient temperature)
|
Temperature - |
|
|
Measuring |
0 to +400 °C |
|
Accuracy |
±1 °C (0 to ±1.5 % of mv |
|
Resolution |
0.1 °C |
|
Reaction time |
< 50 s |
Temperature
(flue gas)
|
Flue gas O₂ |
|
|
Measuring |
0 to 21 Vol.% |
|
Accuracy |
±0.2 Vol.% |
|
Resolution |
0.1 Vol.% |
|
Reaction time |
30 s |
|
Differential |
|
|
Measuring |
-20 to +20 hPa |
|
Accuracy |
±0.03 hPa ±1.5 % of mv |
|
Resolution |
0.01 hPa |
|
Flue gas |
|
|
Measuring |
0 to 120 % |
|
Resolution |
0.1 % |
|
Flue gas loss |
|
|
Measuring |
0 to 99.9 % |
|
Resolution |
0.1 % |
|
Flue gas CO₂ calculation (calculated from O₂) |
|
|
Measuring |
0 to CO₂ max (Display range) |
|
Accuracy |
±0.2 Vol.% |
|
Resolution |
0.1 Vol.% |
|
Reaction time |
< 40 s |
|
Pressure |
|
|
Measuring |
-40 to +40 hPa |
|
Accuracy |
±0.5 hPa |
|
Resolution |
0.1 hPa |
|
Flue gas CO |
|
|
Measuring |
0 to 4000 ppm |
|
Accuracy |
±20 ppm (0 to ±5 % of mv ±10 % of mv |
|
Resolution |
1 ppm |
|
Reaction time |
60 s |
|
Ambient CO |
|
|
Measuring |
0 to 4000 ppm |
|
Accuracy |
±20 ppm (0 to ±5 % of mv ±10 % of mv |
|
Resolution |
1 ppm |
|
Reaction time |
60 s |
T
