SPECIFICATIONS

Battery Included: No

Brand Name: TESTO

Certification: CE

Display Size: 2.0 - 3.9 Inches

Electronic: No

High-concerned chemical: None

Is Smart Device: No

Max Measuring Temperature: 120°C & Above

Model Number: Testo 830-S1/-T1/-T2/-T4

Origin: Mainland China

Power Type: Aaa Battery

Style: Handheld

Testo 830-S1: 0560 8309

Testo 830-T1: 0560 8311

Testo 830-T2: 0560 8312

Testo 830-T4: 0560 8314

Theory: Infrared Thermometer

Use: Industrial

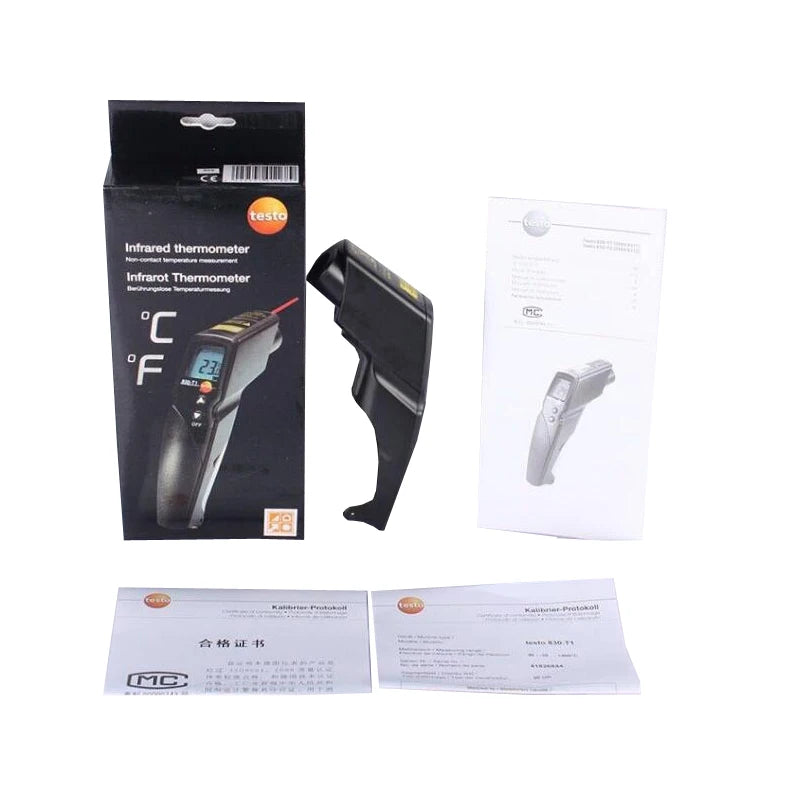

Testo 830-S1/-T1/-T2/-T4 Industrial Temperature Infrared Thermometer Testo 830 S1/T1/T2/T4 Measurement Range -30 ~ +350C/+400 C

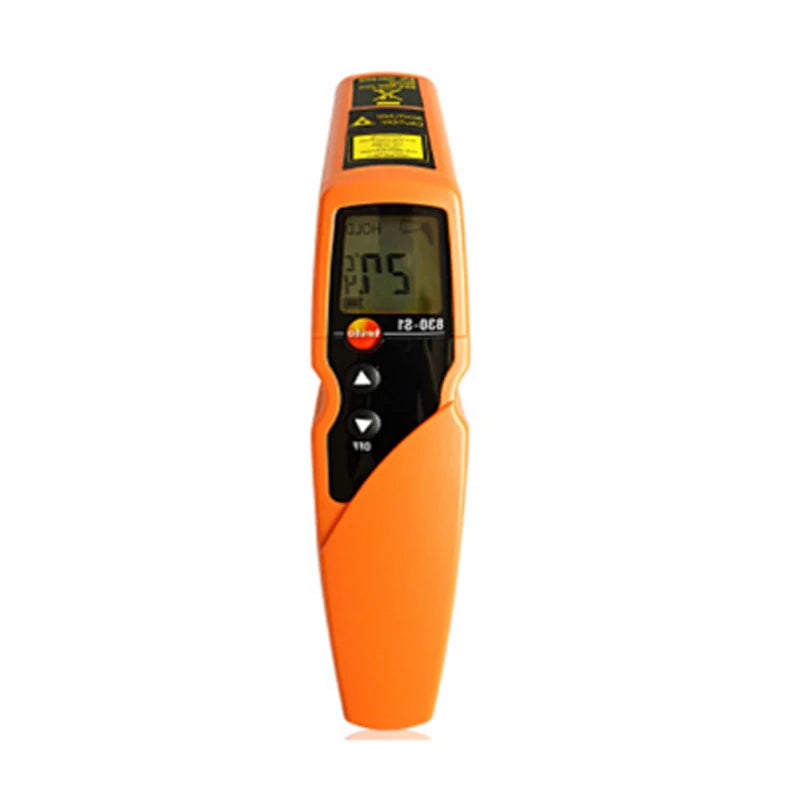

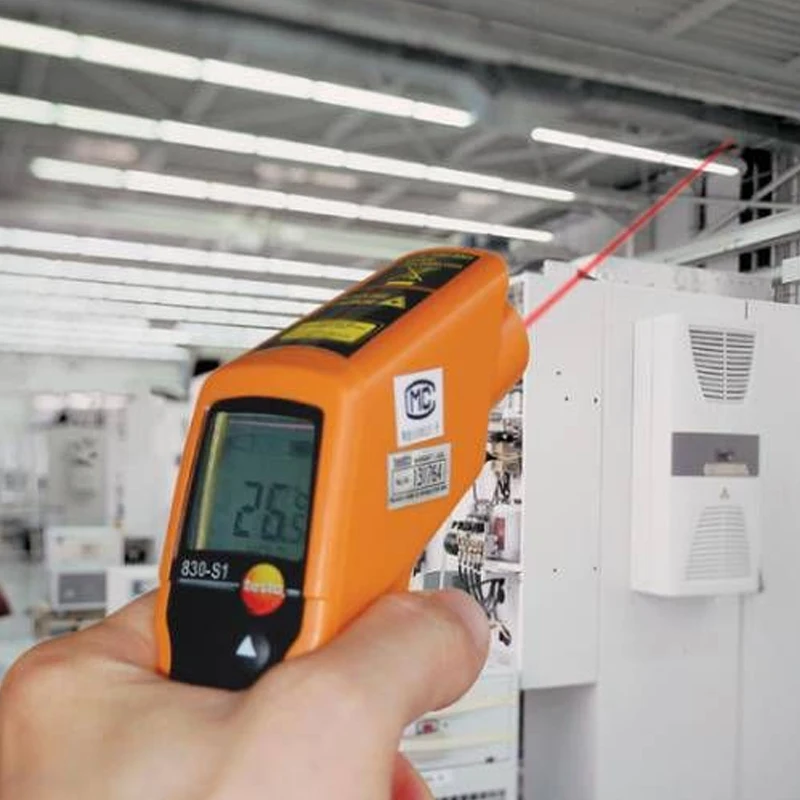

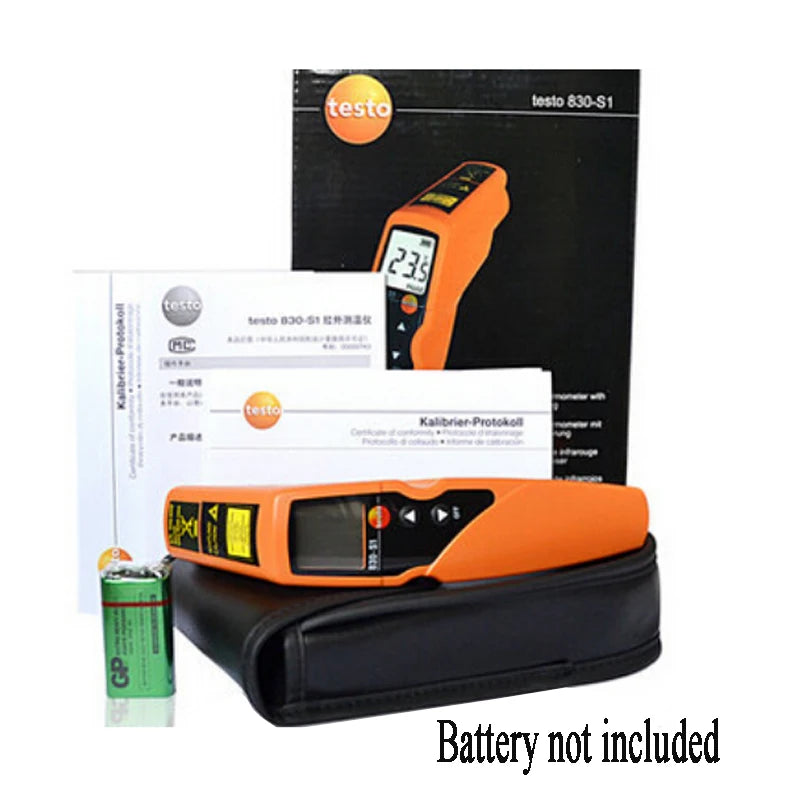

Testo 830-S1 - Infrared thermometer with single point laser collimator, limit setting and alarm function

Product Description：

Testo 830-S1 infrared thermometer, single point laser aiming, with limit setting and alarm function, optical resolution of 10:1, fast measurement, widely used.

Advantages of testo 830-S1 infrared thermometer:

1.Optical resolution 10:1

2.Backlit display

3.Audible and visual alarm function

4.Emissivity 0.1~1.0 adjustable

5.Fast response

6.With laser collimator

7.Alarm limit can be set

8.Portable design, easy to use

9.Display instant data and lock current data

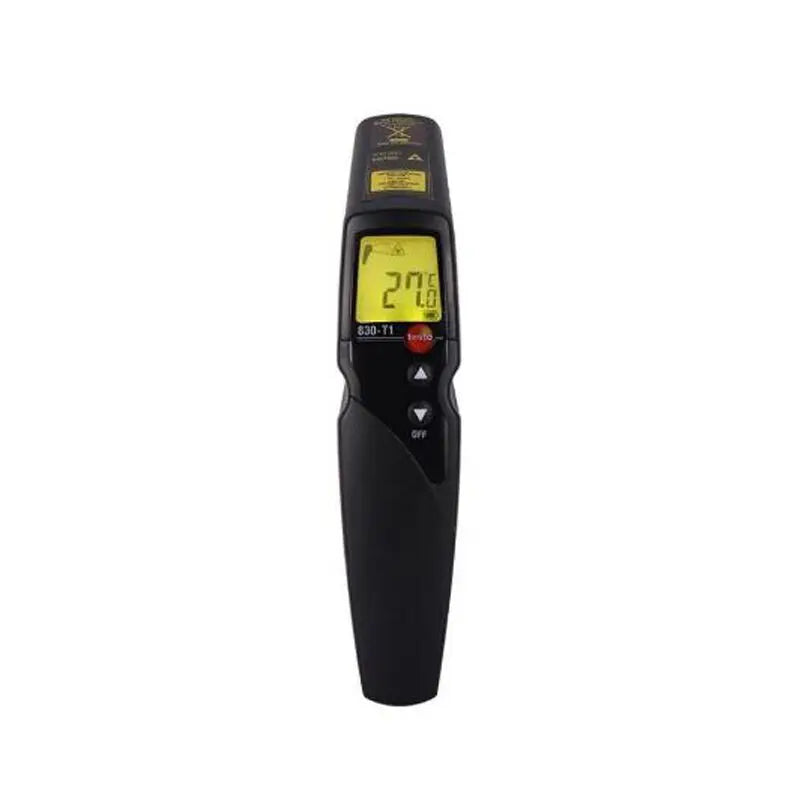

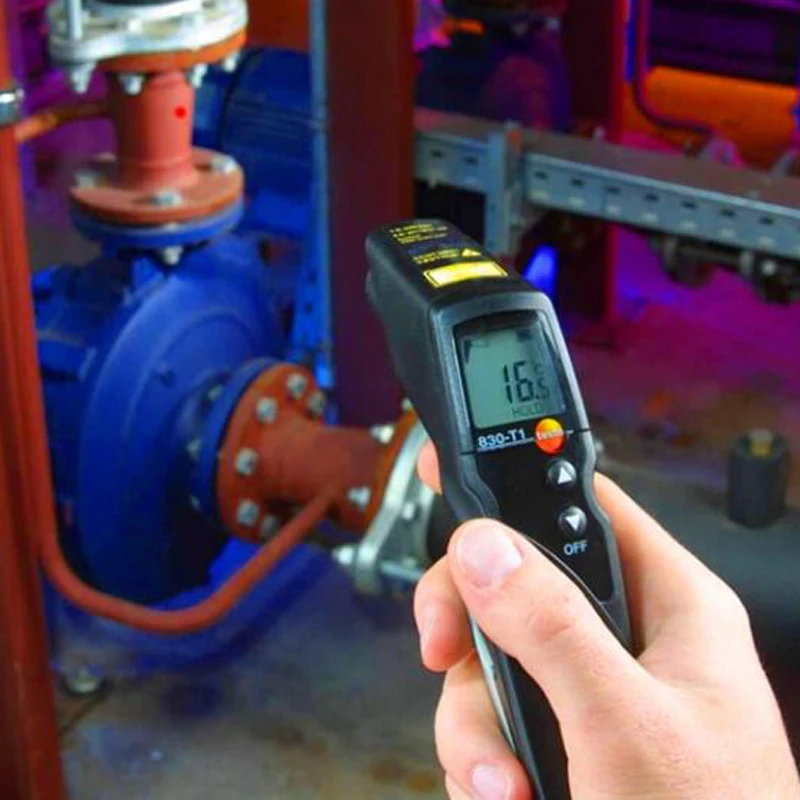

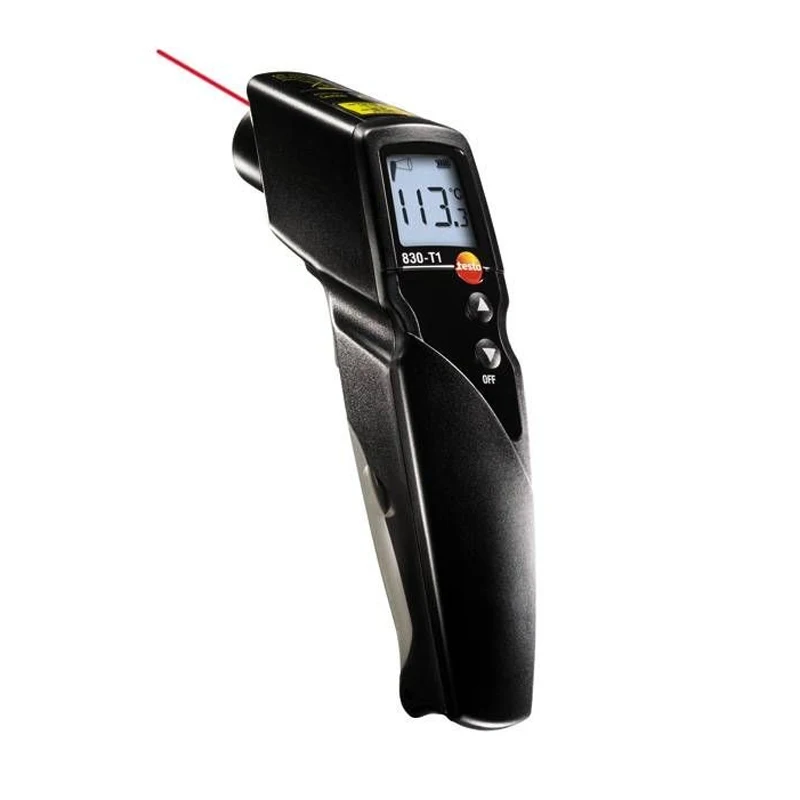

Testo 830-T1 - Infrared thermometer

Product Description：

Testo 830-T1 infrared thermometer, with single point laser aiming and optical resolution of 10:1, is widely used for non-contact surface temperature measurement in all walks of life.

More product advantages are summarized as follows:

*High resolution processor, more accurate measurement (resolution 0.1 ° C)

*10: 1 Optical resolution for accurate measurement of medium distance

*Single point laser aiming

*2 self settable alarm limits

*Audible and visual alarm when exceeding the limit

*Display the maximum/minimum value and the reading holding function (freeze the last measured reading)

*Pistol design, easy to operate (can be operated by one hand)

*Clear display with backlight

The amazing measuring speed of the testo 830-T1 infrared thermometer: it can measure twice a second, greatly improving the measuring efficiency.

The emissivity of the infrared thermometer can be set independently to meet the rapid, accurate and non-contact measurement of different objects. For some untreated surfaces with low emissivity, we recommend using reflective patches (optional) to help achieve infrared measurement.

Notes:Shipping company does not accept liquids and powders and dry batteries

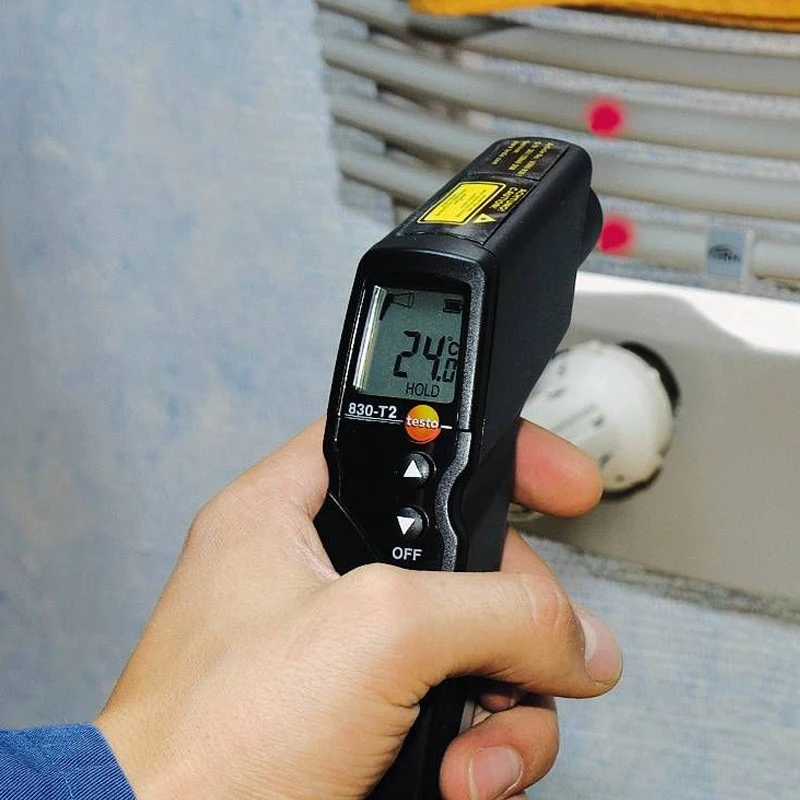

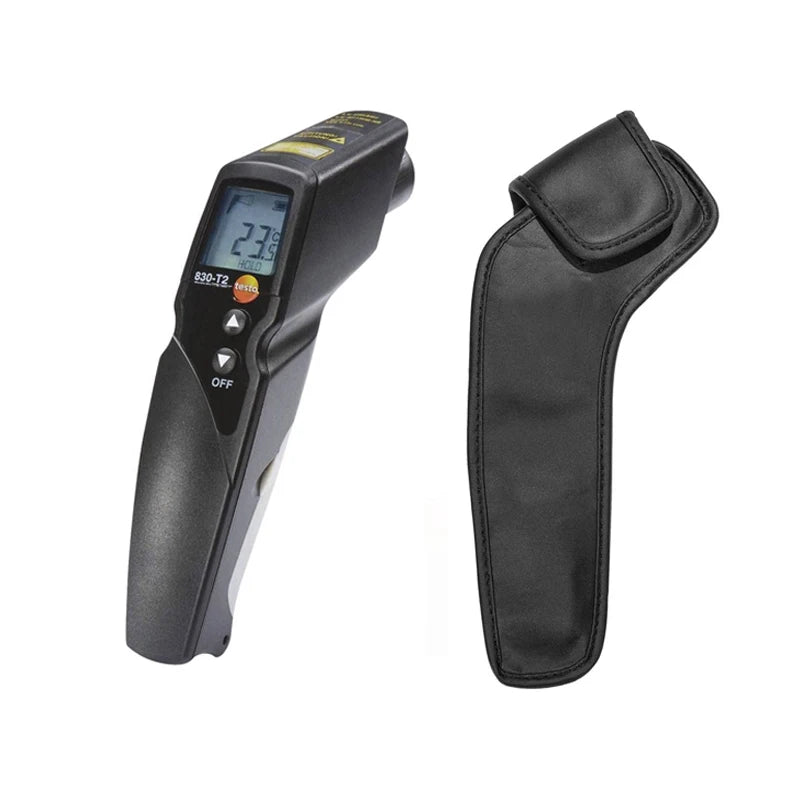

Testo 830-T2 - Infrared thermometer

Product Description：

The testo 830-T2 has laser aiming function and 12:1 optical resolution, which is suitable for industrial or inlet and outlet surface temperature measurement.

The advantages of using infrared thermometer to realize non-contact and rapid measurement of surface temperature (2 measurements per second) are as follows:

*High precision and high resolution processor (resolution 0.1 ° C)

*Even at medium distances, 12:1 optical resolution ensures accurate measurement

*Two point laser aiming is used to confirm the tested area

*You can customize two limits

*Audible and visual alarm when the limit value is exceeded

*Minimum/maximum value display, holding function for data recording

*Handgun design for single hand operation

*Clear backlight display

*K-type thermocouple can be connected externally

The measurement rate of testo 830-T2 is greatly improved, and it can provide two measurement results per second. More measurement tasks can be completed quickly and efficiently.

In addition to infrared measurement, the testo 830-T2 can also choose contact measurement, and only K-type thermocouple probe needs to be connected. Detour provides you with probes that meet different applications, such as cross spring probes for rapid measurement of surface temperature, air probes or immersion/penetration probes (for liquid and semi-solid measurement).

The emissivity of the infrared thermometer can be adjusted independently, and the emissivity can be set according to the surface of different measured materials. For the temperature measurement of untreated low emissivity surface, reflective sticker can be selected to facilitate infrared measurement.

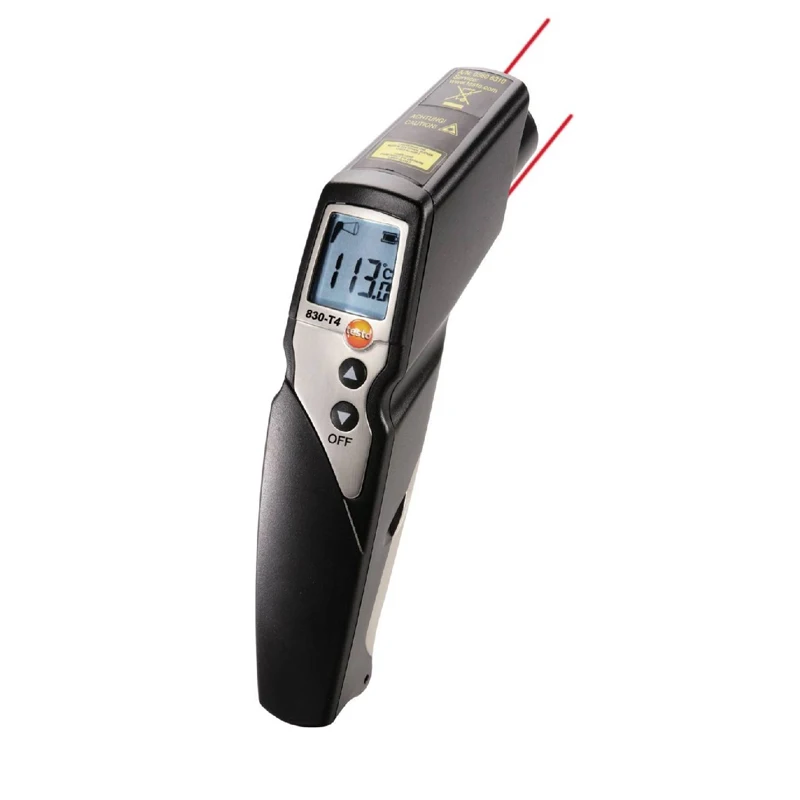

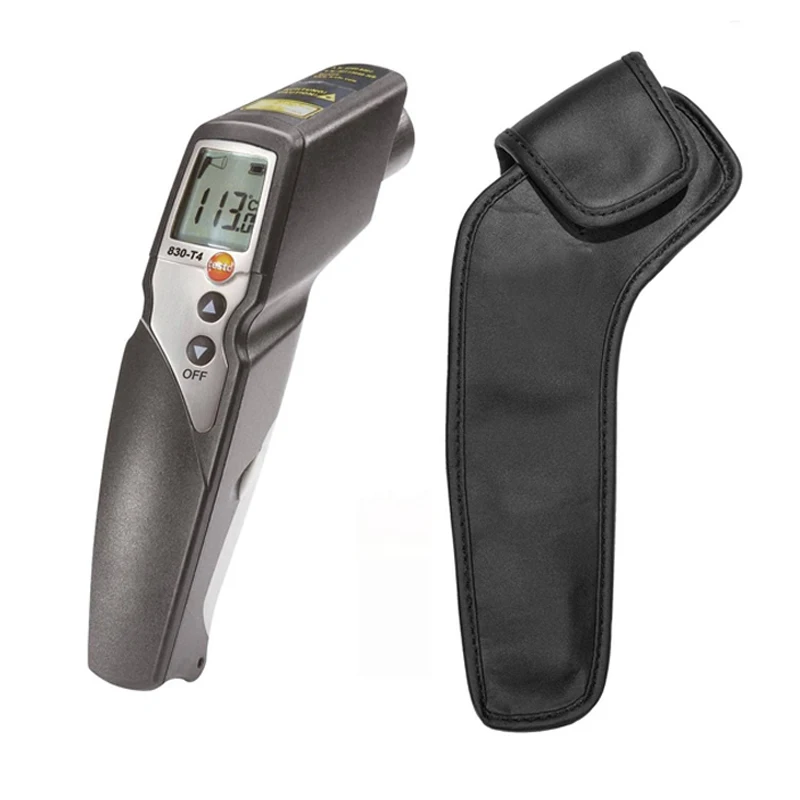

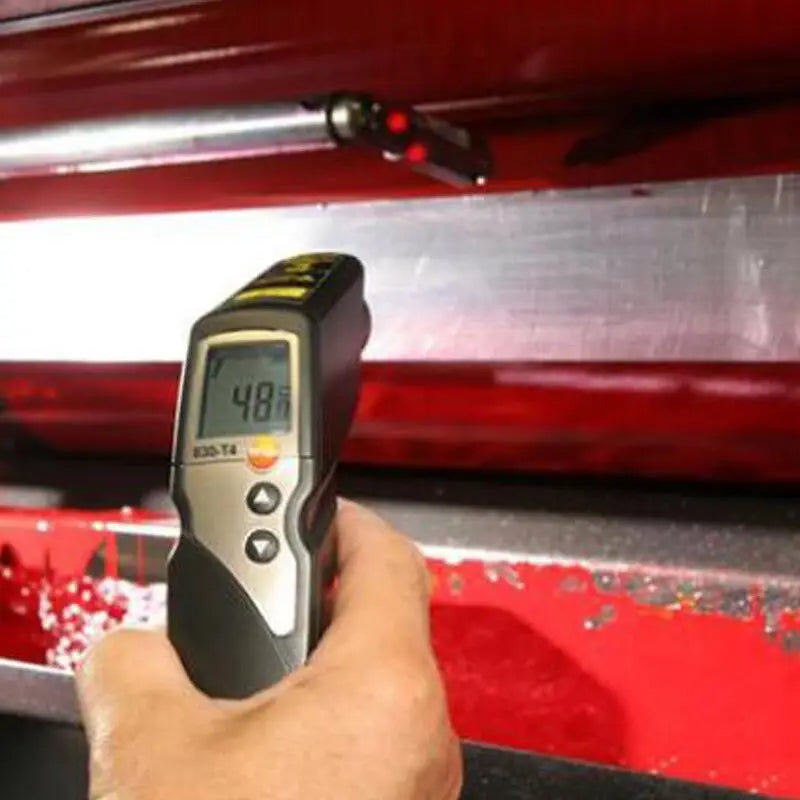

Testo 830-T4 - Infrared thermometer

Product Description：

The testo 830-T4 infrared thermometer is widely used for various non-contact surface temperature measurement applications. Its excellent optical resolution reaches 30:1, enabling accurate measurement of small target objects from a long distance. It is suitable for measuring the surface temperature of various objects in operation or at high risk at a safe distance.

Advantages of infrared thermometer

The infrared thermometer is equipped with 2-point laser aiming to measure the surface temperature accurately and quickly (2 measurements per second). All product advantages are summarized as follows:

*High resolution processor provides more accurate measurement reading (resolution 0.1 ° C)

*30:1 optical resolution enables remote accurate measurement of small target objects

  (1 m measurement distance=36 mm diameter of the measured area)

*Infrared thermometer with 2-point laser aiming: precisely locate the measured area (=surface between two laser aiming points)

*2 self settable alarm limits

*Audible and visual alarm when exceeding the limit

*Display the maximum/minimum temperature and the reading holding function (freeze the last measured reading)

*An external contact temperature probe can be used to determine the emissivity of a surface or

  other surface temperature measurements

*Pistol design, easy to operate (can be operated by one hand)

*Clear display with backlight

In addition, the infrared thermometer can measure up to 2 times per second, so it is also suitable for fast surface temperature scanning applications.

Function expansion of external temperature probe:

The testo 830-T4 infrared thermometer can be optionally equipped with and connected with an external temperature probe to realize another channel of contact temperature measurement (such as for comparison) while conducting infrared non-contact surface temperature measurement. We provide a large number of different types of thermocouple temperature probes for selection, such as air temperature probes, liquid and semi-solid medium temperature probes and surface temperature probes.

The contrast test with the contact surface temperature probe can help to determine the emissivity of the object surface. Input and set the correct emissivity in the infrared thermometer to achieve the most accurate infrared measurement value.

When meeting the surface with extremely low emissivity, we recommend to use reflective sticker (optional) or contact surface probe (optional) for temperature measurement.
