Description
xSPECIFICATIONS
AC Current: 600uA/6000uA/60mA/600mA/6A/10A
AC Voltage: 60mV/600mV/6V/60V/600V/1000V
Analog bar: 31/46
Bandwidth: 40Hz-500Hz
Battery Included: No
Brand Name: UNI-T
Certification: RoHS
Choice: yes
DC Current: 600uA/6000uA/60mA/600mA/6A/10A
DC Voltage: 60mV/600mV/6V/60V/600V/1000V
DIY Supplies: Electrical

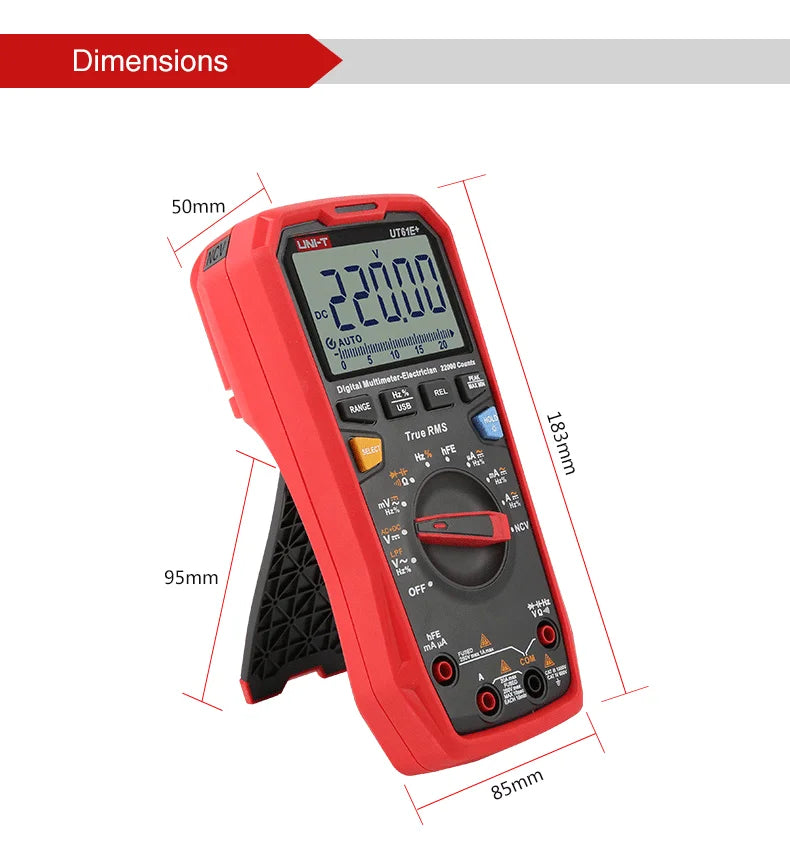

Dimensions: 190mm x 90mm x 50mm
Display Type: Digital Display
Display count: 6000
Duty cycle: 0.1%-99.9%
Electric tester: Multimeter meter
High-concerned chemical: None
Is Smart Device: No
Measuring Capacitance Range: 60nF/600nF/6uF/60uF/600uF/6mF/60mF
Measuring Inductance Range: Tester multimeter
Measuring Resistance Range: 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ
Model Number: UT61B+/UT61D+/UT61E+
Multimeter digital: Uni-t multimeter
Operating Mode: Auto Range
Operating Temperature: 0 - 40 ℃
Origin: Mainland China
Smart multimeter: Tester multimeter
UNI-T Model: UT61EPlus
semi_Choice: yes

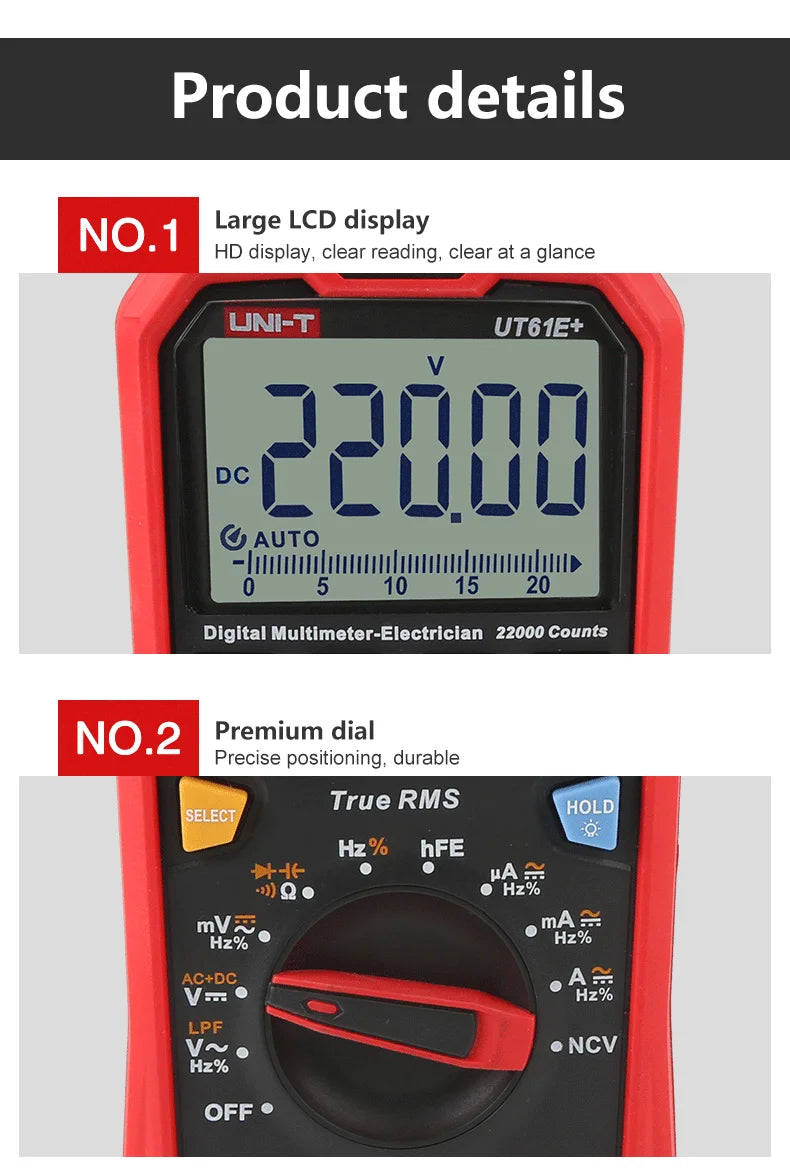

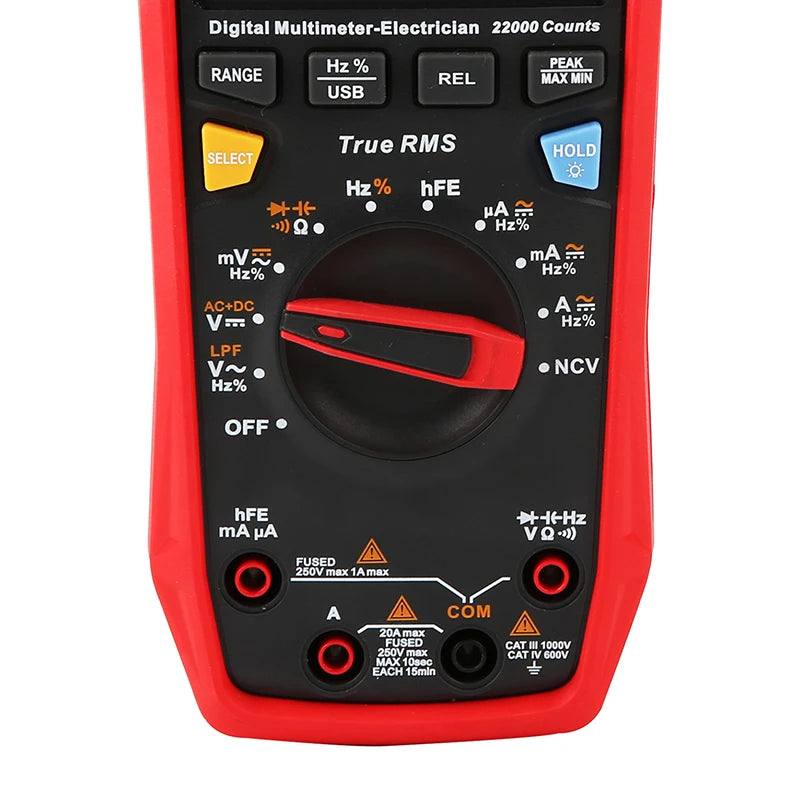

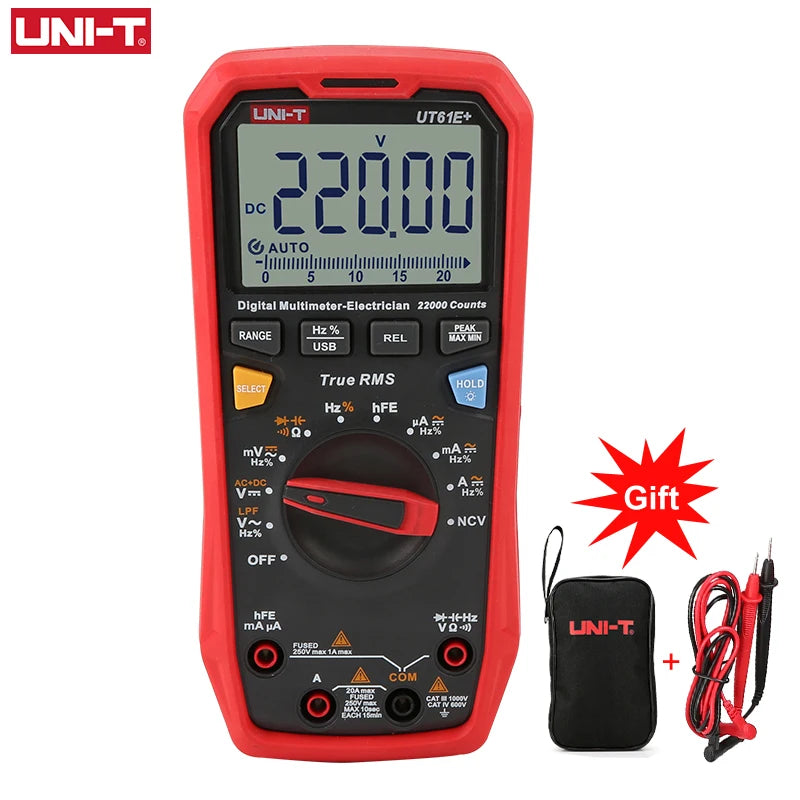

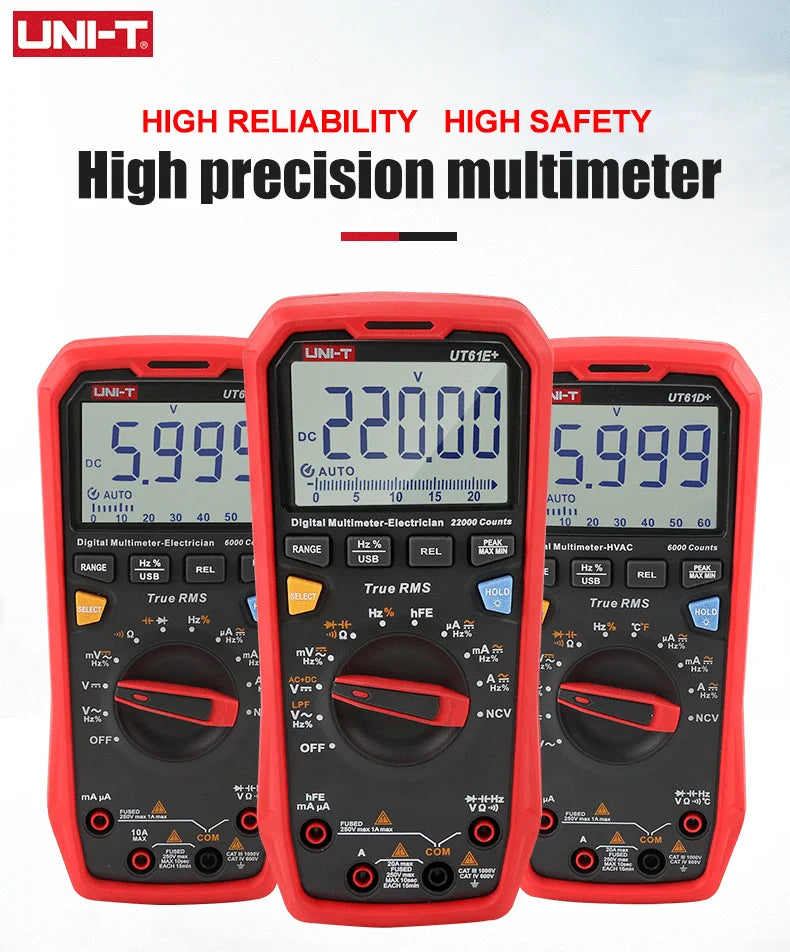

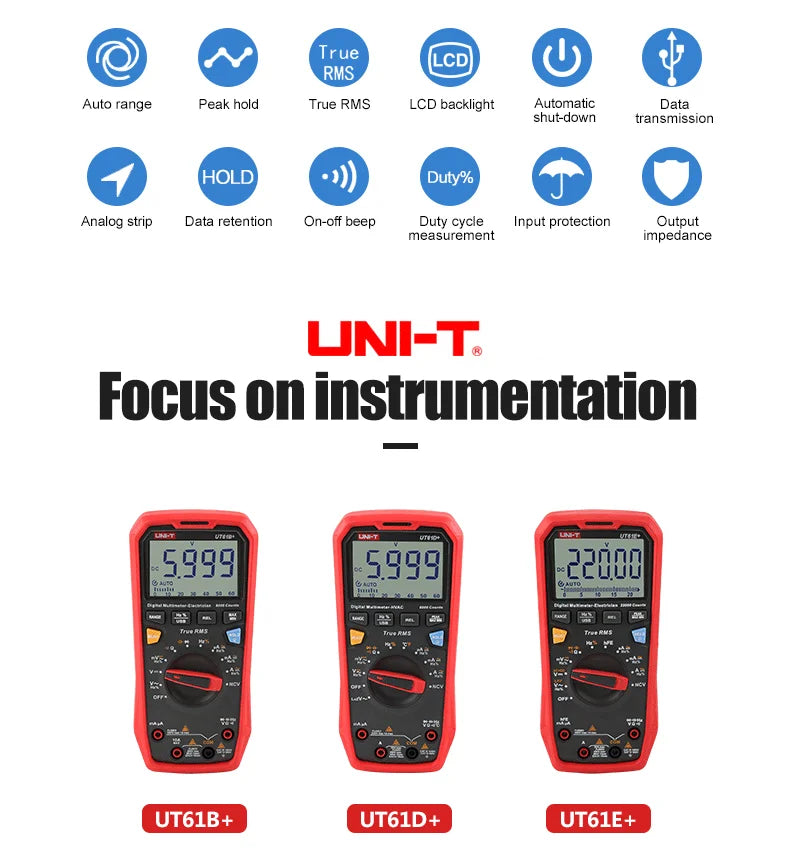

UT61B+ UT61E+ UT61E+ Professional Digital Multimeters
UT61+ series are reliable true RMS digital multimeters with display counts 6000 (UT61B+/D+) and 22,000 (UT61E+). It can measure up to 1000V AC/DC. Equipped with audible and visible alarm, this series can provide warning expecially when measuring high voltage/current and temperature.
Features：
● True RMS
● Data hold/backlight
● Max/Min/Relative mode
● USB communication
● Input protection
● Diode/continuity test

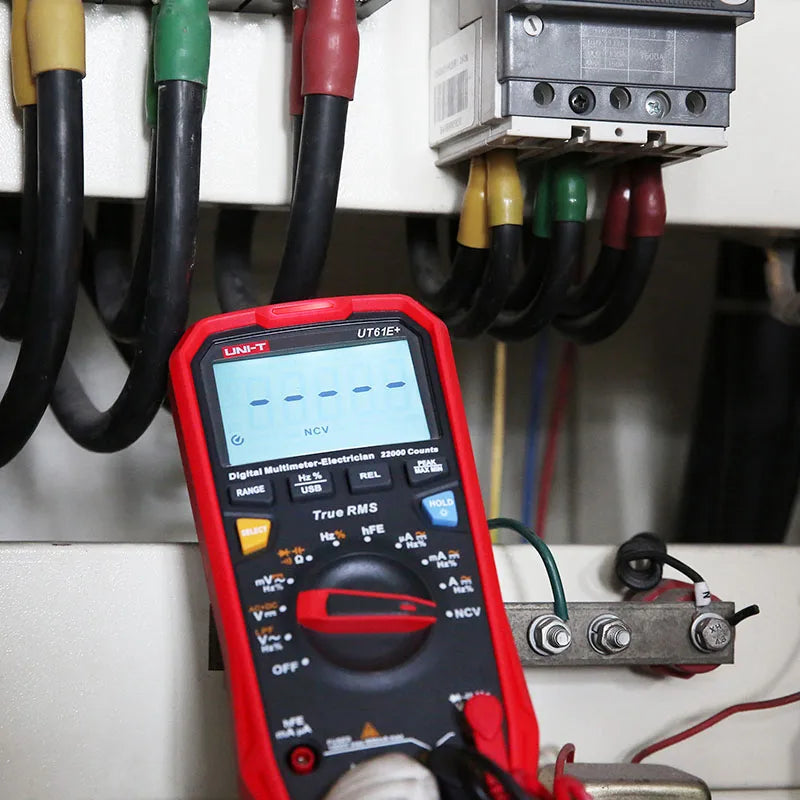

● NCV (audible/visual alarm)
Notice please: battery no include!
|

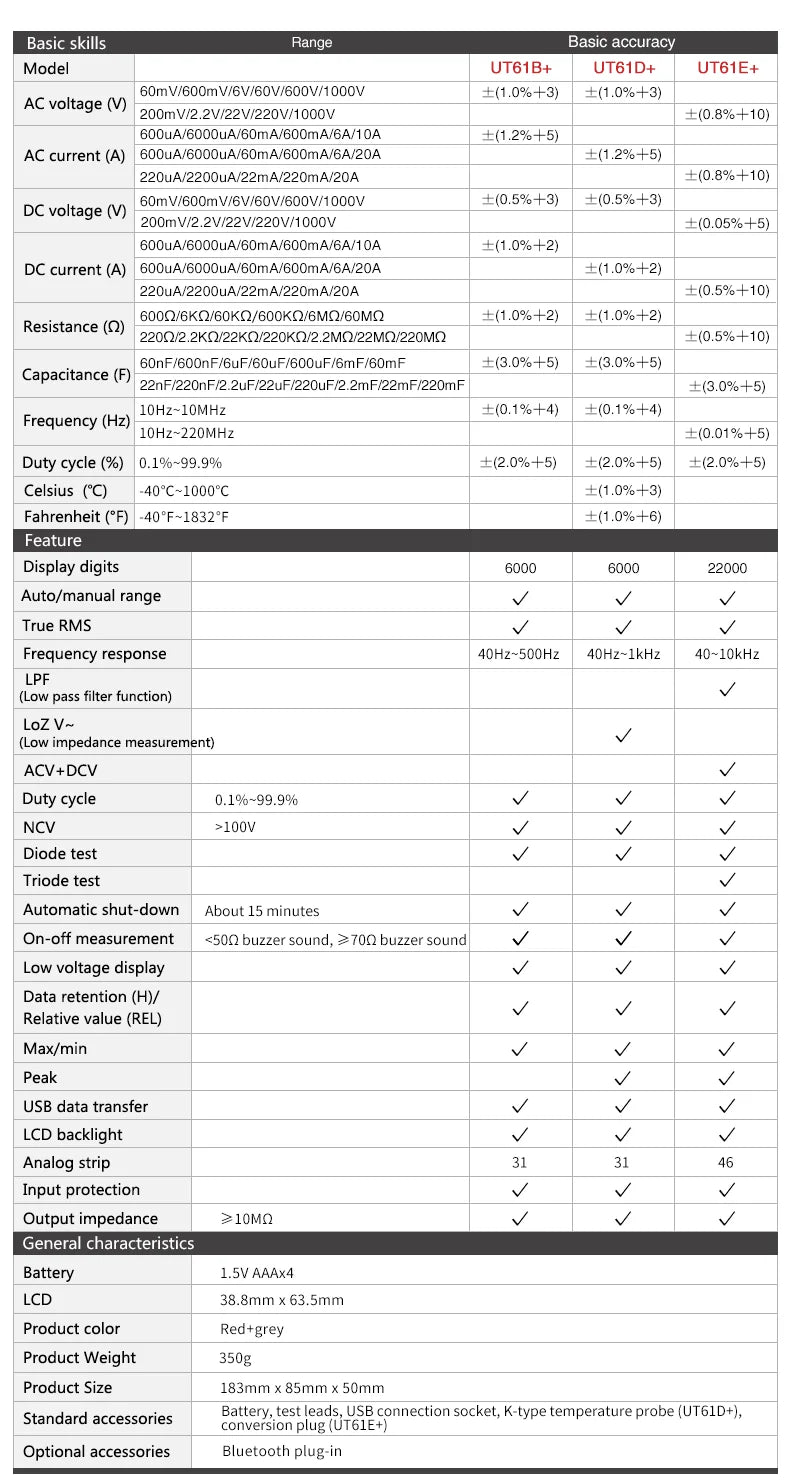

Specifications |
Range |

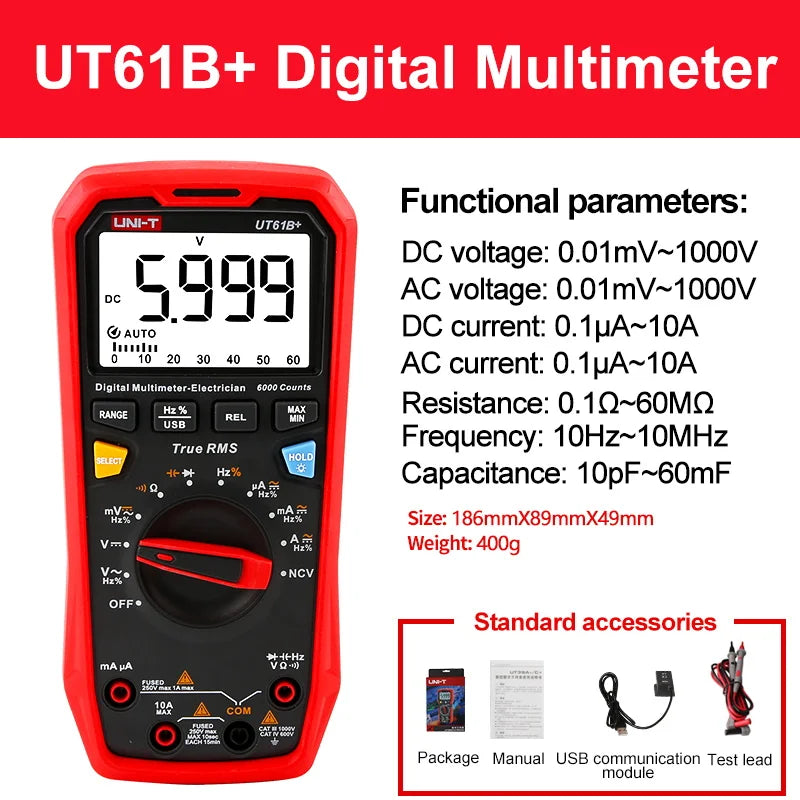

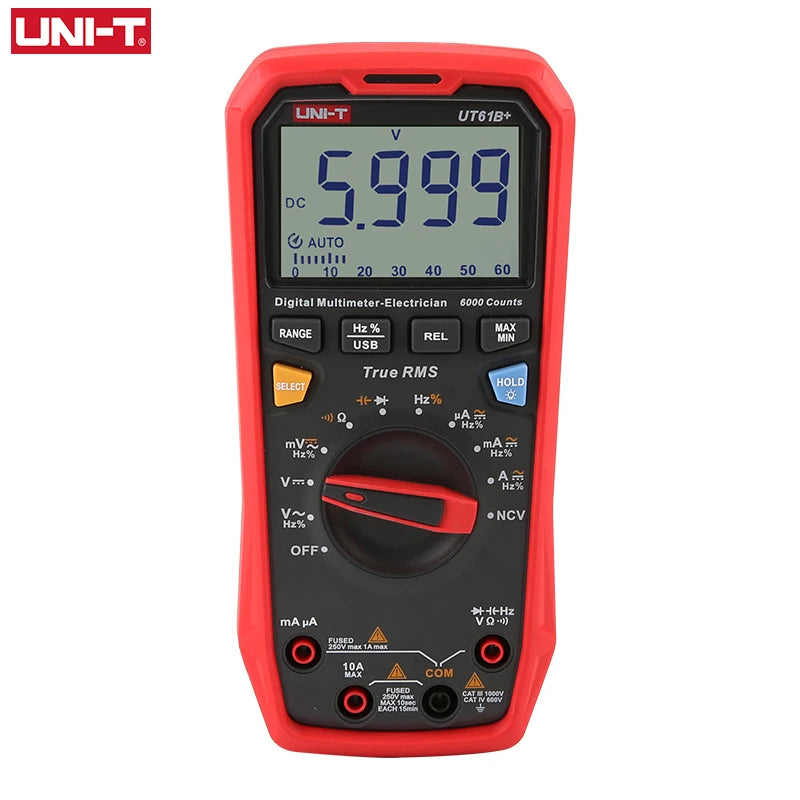

UT61B+ |

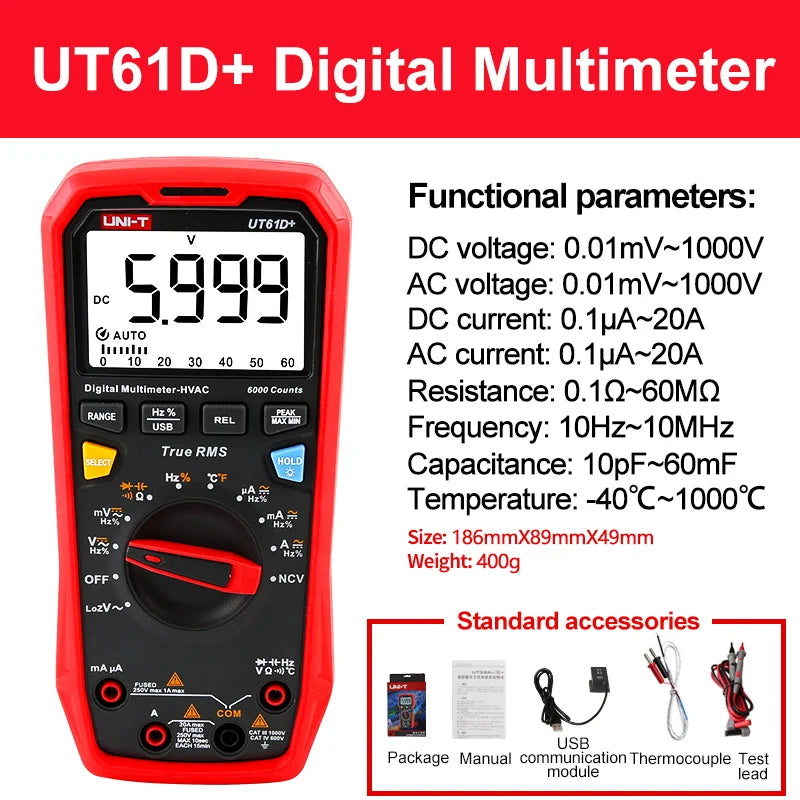

UT61D+ |

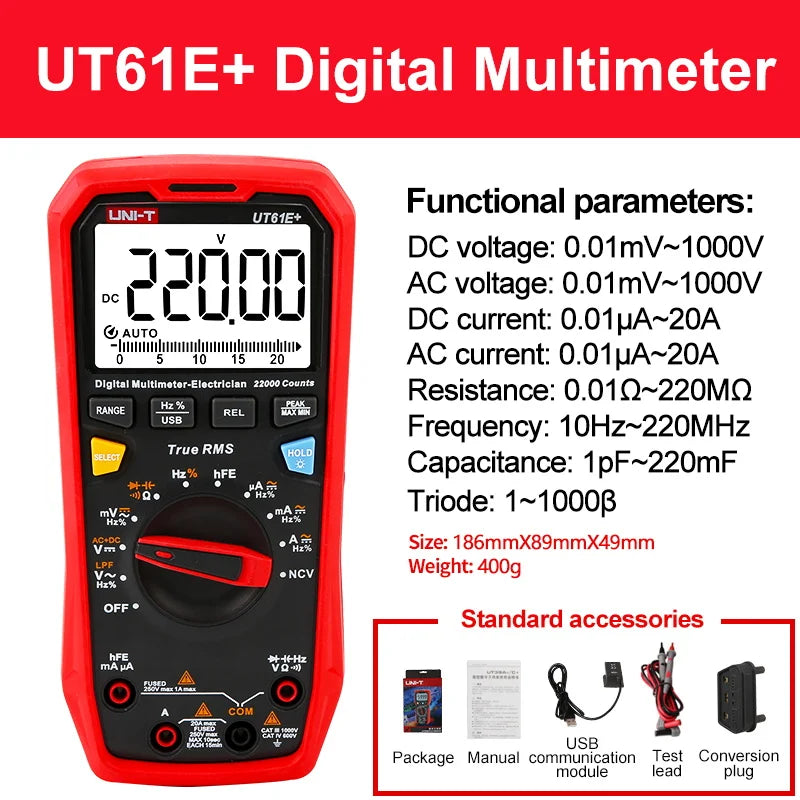

UT61E+ |
|
AC voltage (V) |
1000V |
±(1%＋3) |
±(1%＋3) |
±(0.8%＋10) |
|
DC voltage (V) |
1000V |
±(0.5%＋3) |
±(0.5%＋3) |
±(0.05%＋5) |
|
AC current (A) |
10A |
±(1.2%＋5) |
|
|
|
20A |
|
±(1.2%＋5) |
±(0.8%＋10) |
|
|
DC current (A) |
10A |
±(1%＋2) |
|
|
|
20A |
|
±(1%＋2) |
±(0.5%＋10) |
|
|
Resistance (Ω) |
60MΩ |
±(1%＋2) |
±(1%＋2) |
|
|
220MΩ |
|
|
±(0.5%＋10) |
|
|
Capacitance (F) |
60mF |
±(3%＋5) |
±(3%＋5) |
|
|
220mF |
|
|
±(3%＋5) |
|
|
Frequency (Hz) |
10MHz |
±(0.1%＋4) |
±(0.1%＋4) |
|
|
220MHz |
|
|
±(0.01%＋5) |
|
|
Duty cycle (%) |
0.1%~99.9% |
±(2%＋5) |
±(2%＋5) |
±(2%＋5) |
|
Temperature (℃/℉) |
-40℃~1000℃ |
|
±(1%＋3) |
|
|
-40℉~1832℉ |
|
±(1%＋6) |
|
|
|
Display count |
|
6000 |
6000 |
22000 |
|
Bandwidth (Hz) |
|
40Hz~500Hz |
40Hz~1kHz |
40~10kHz |
|
LPF ACV |
|
|
|
√ |
|
LoZ ACV |
|
|
√ |
|
|
ACV+DCV |
|
|
|
√ |
|
Transistor hFE |
|
|
|
√ |
|
Peak Hold |
|
|
√ |
√ |
|
Analog bar |
|
31 |
31 |
46 |
|
General Characteristics |
||||
|
Power |
1.5V battery (R03) x 4(No include) |
|||
|
Product net weight |
350g |
|||
|
Product size |
190mm x 90mm x 50mm |
|||
|

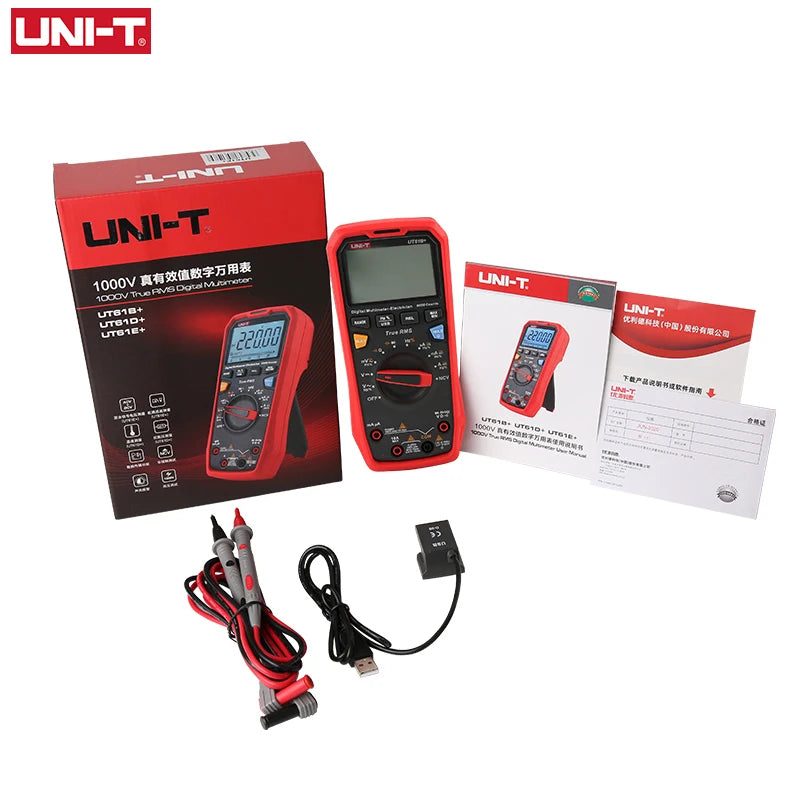

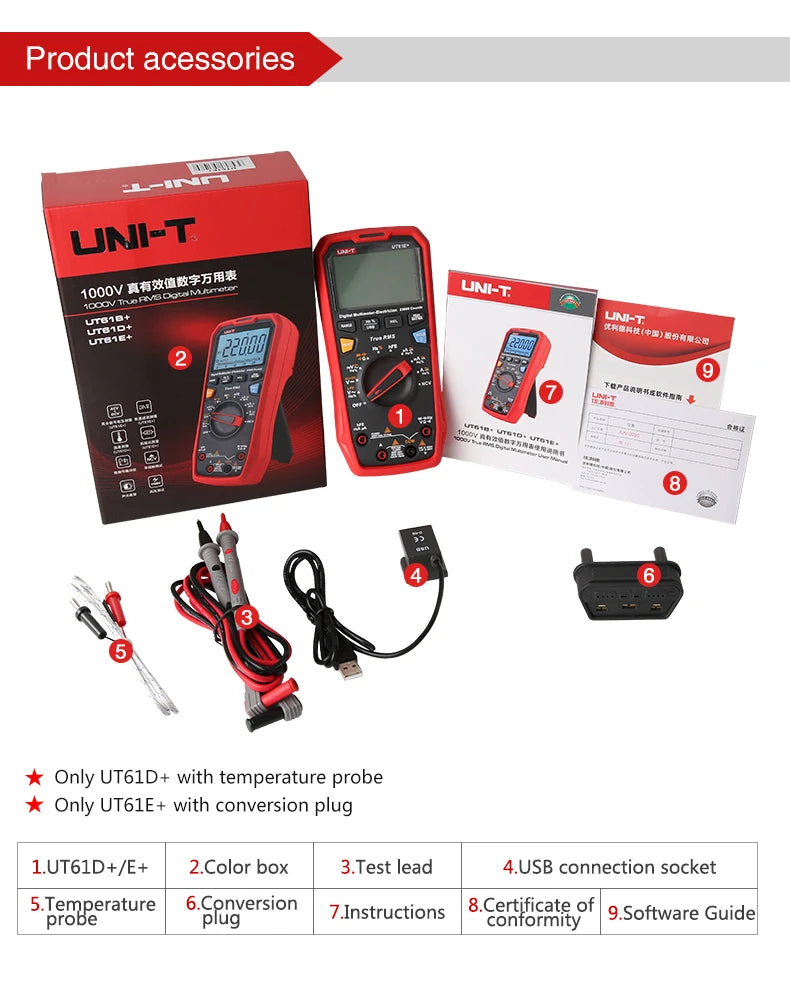

Standard accessories |
Gold plated test leads, USB cable, temperature probe (UT61D+),multi-purpose socket (UT61E+), English manual |
|||
