Description
xSPECIFICATIONS
Battery Included: No
Brand Name: UNI-T
Certification: CE
Choice: yes
DIY Supplies: Electrical
Dimensions: 175x60x33.5mm
Diode test: Auto range
Display Type: Digital Only
Display count: 2000
Frequency(Only UT210D have): 60kHz
High-concerned chemical: None
Jaw opening: 17mm
Measuring Capacitance Range: 20mF
Measuring Current Range: 100A/200A
Measuring Resistance Range: 20MΩ
Measuring Voltage Range: 2V/20V200V/600V
Model Number: uni-t ut210d
Operating Temperature: -40~100
Origin: Mainland China
Pliers electrician: dc current pliers
Temperature(Only UT210D have): -40~1000℃/-40~1832℉

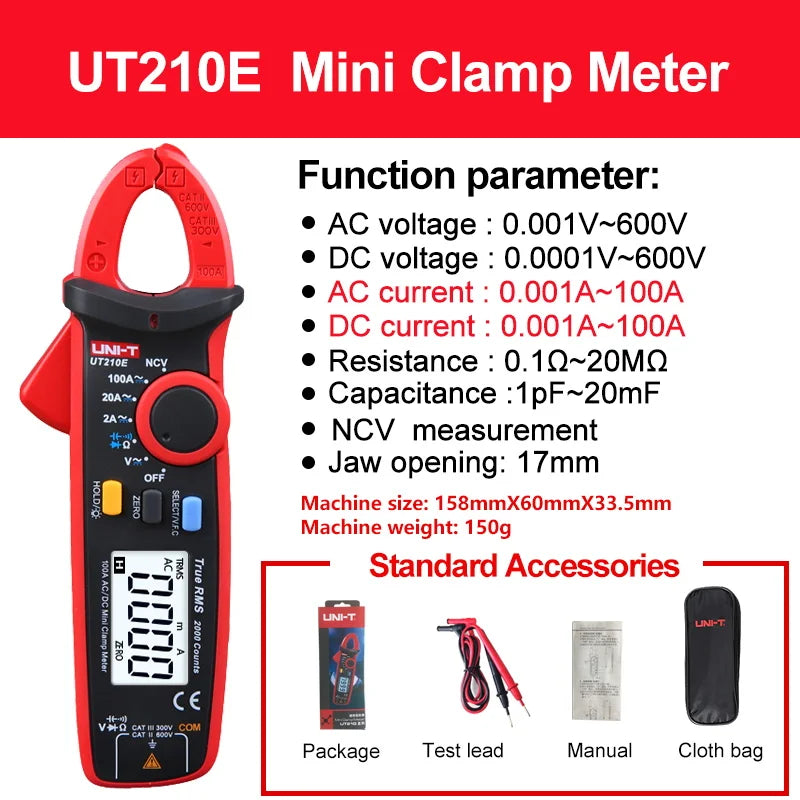

UNI-T Model: UT210E
Weight: 170g
Workshop tools: digital clamp meter
electric current tester: current clamp
semi_Choice: yes

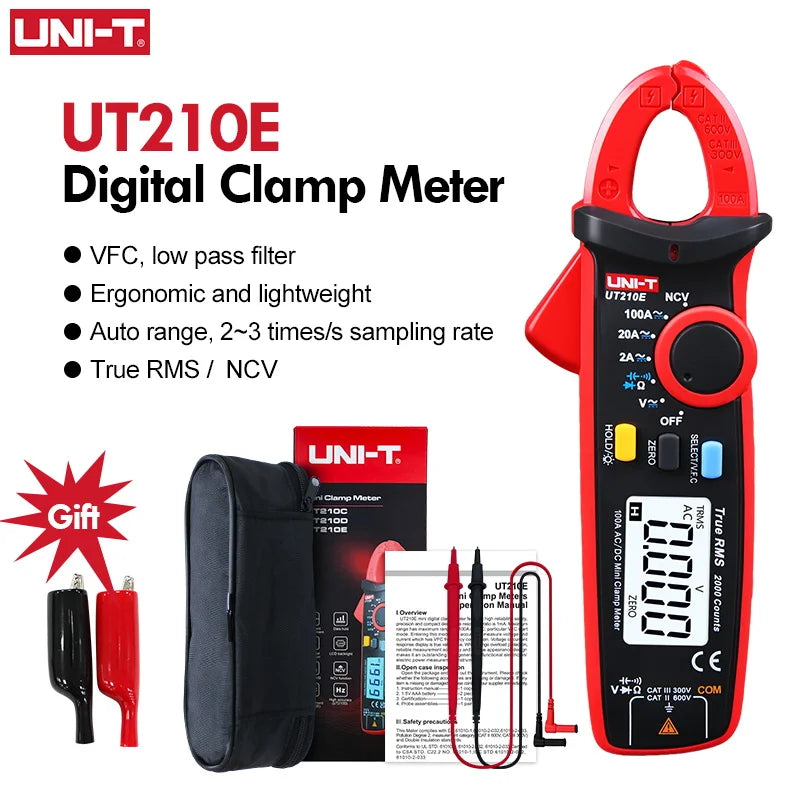

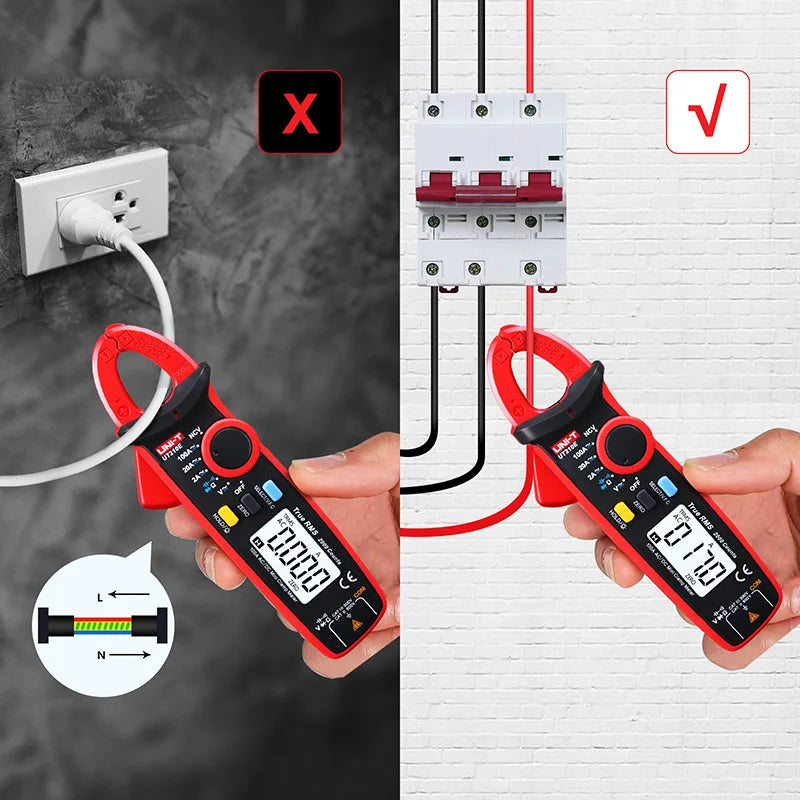

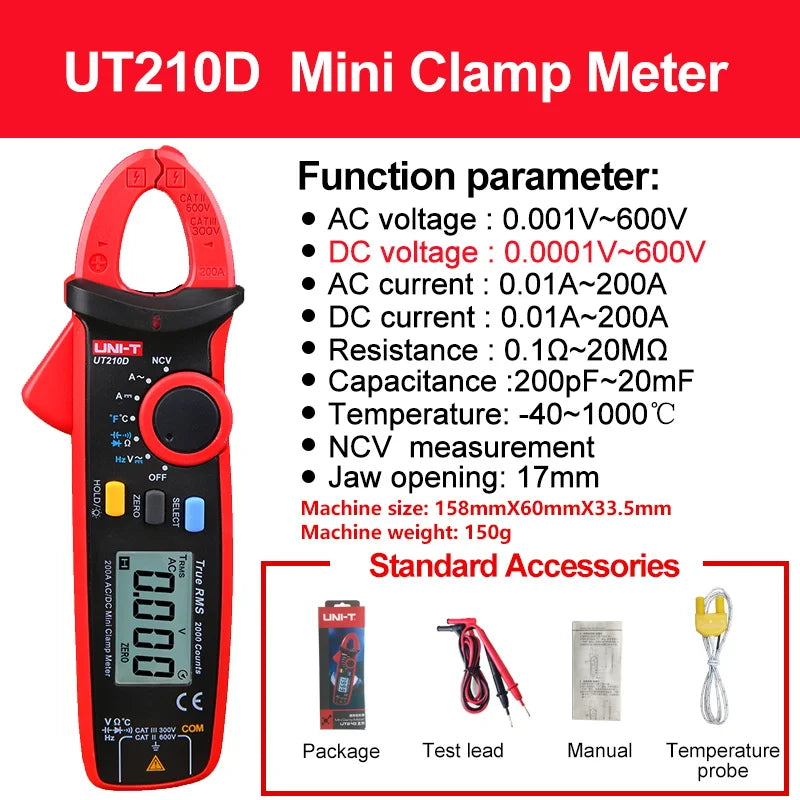

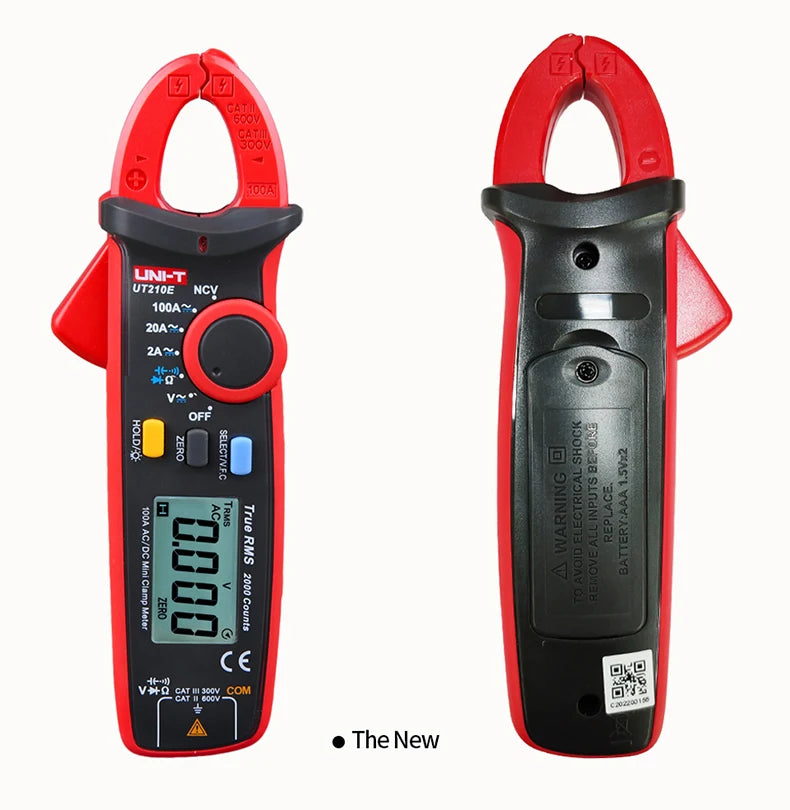

UT210E UT210D Digital Clamp Meter
UT210 series mini digital clamp meter is with high reliability, high security, automatic range, miniaturization. Can accurately measure small current signals; product chip set up VFC start mode, the internal will go through a specific filter circuit, the high-frequency interference signal filtered out to ensure the accuracy of the measurement data! Can be applied to the occasion with VFC frequency conversion voltage, current, full-range overload protection and unique appearance design, making it a new generation of practical electrical measuring instruments with more excellent performance.

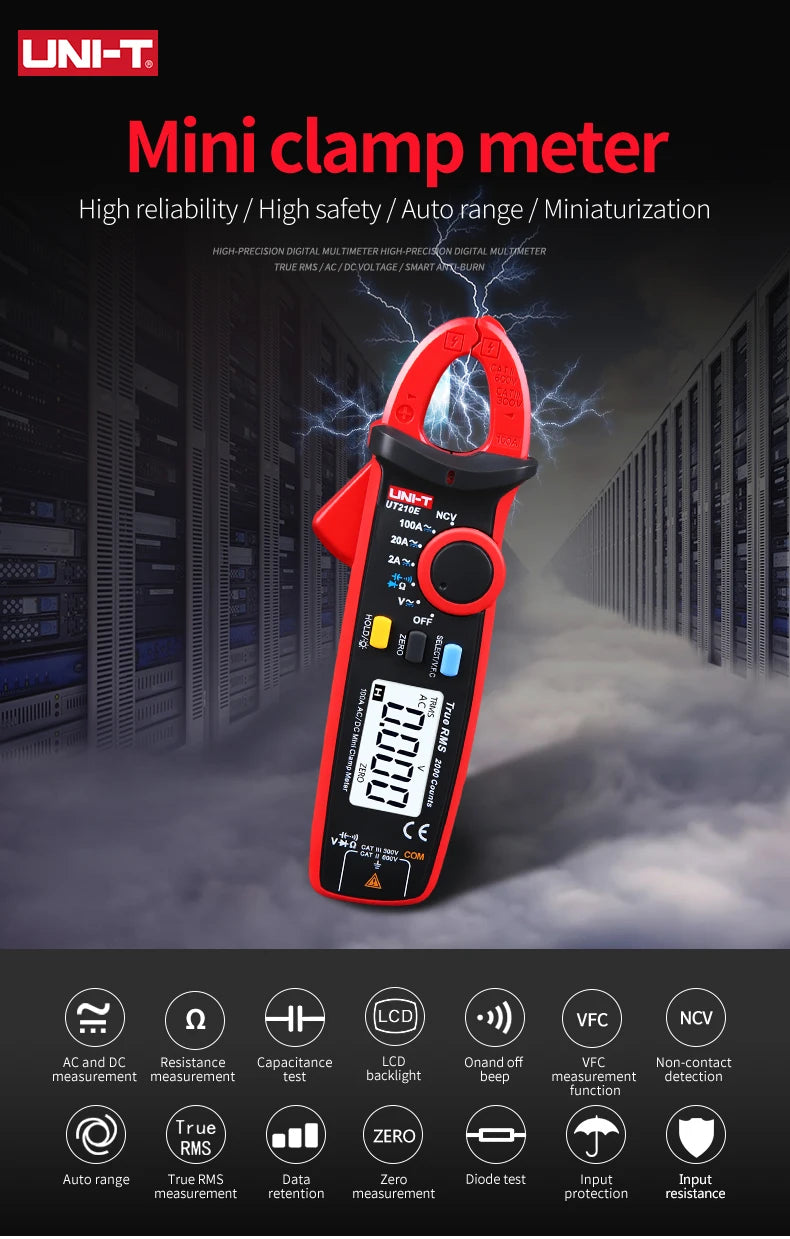

Features

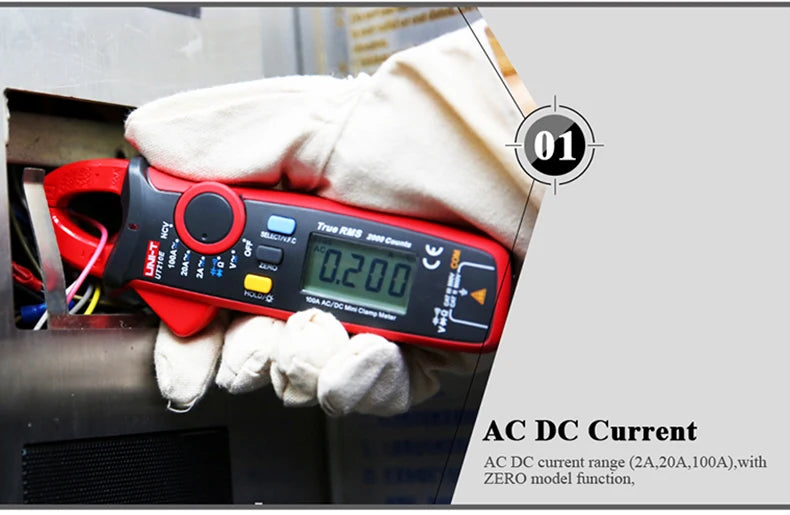

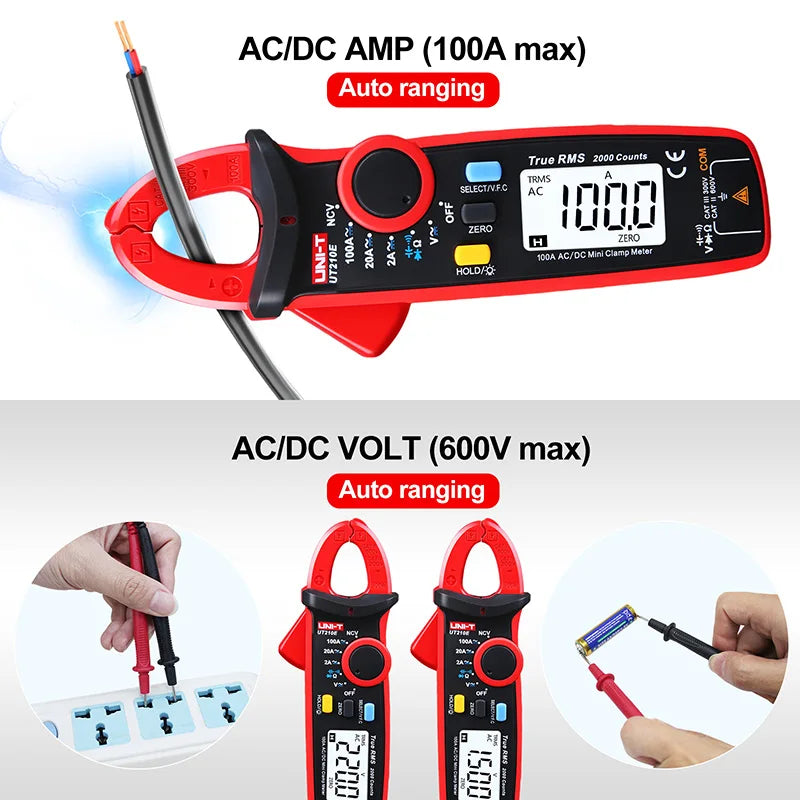

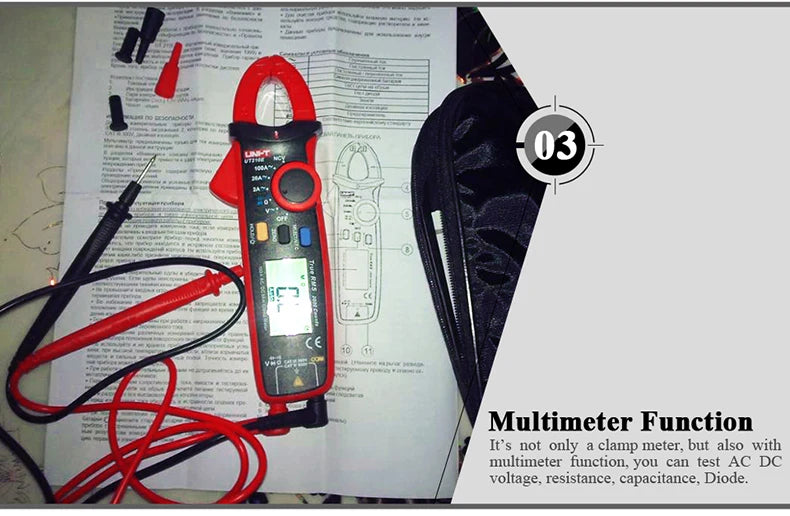

1.AC DC Current measurement
2.Resistance measurement

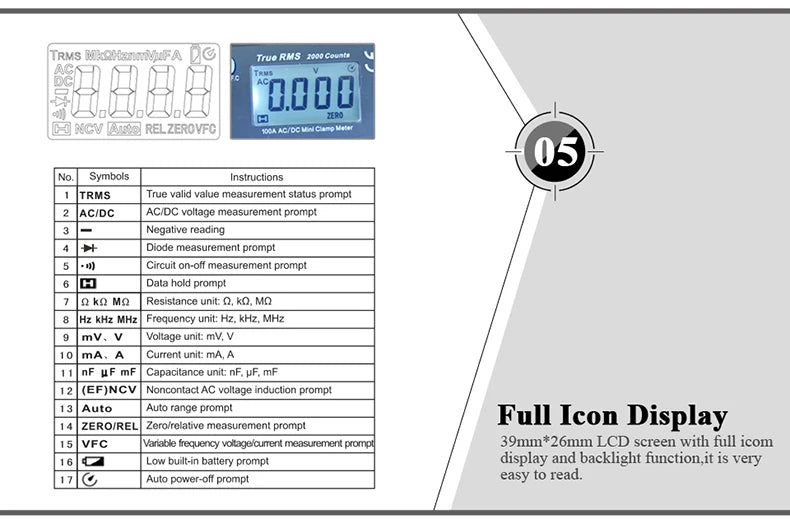

3.LCD backlight
4.Continuity buzzer

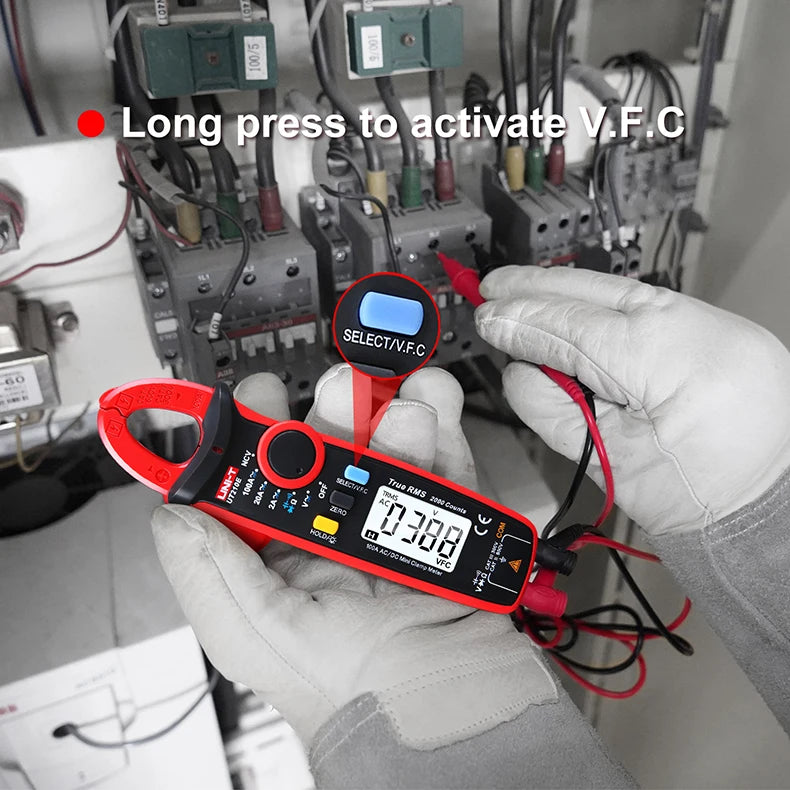

5.VFC measurement

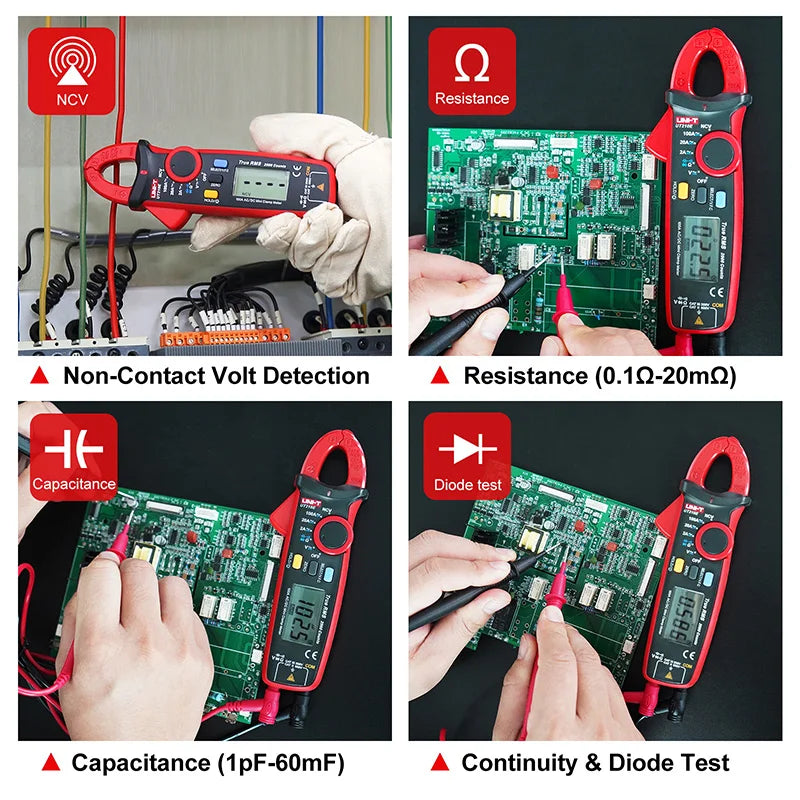

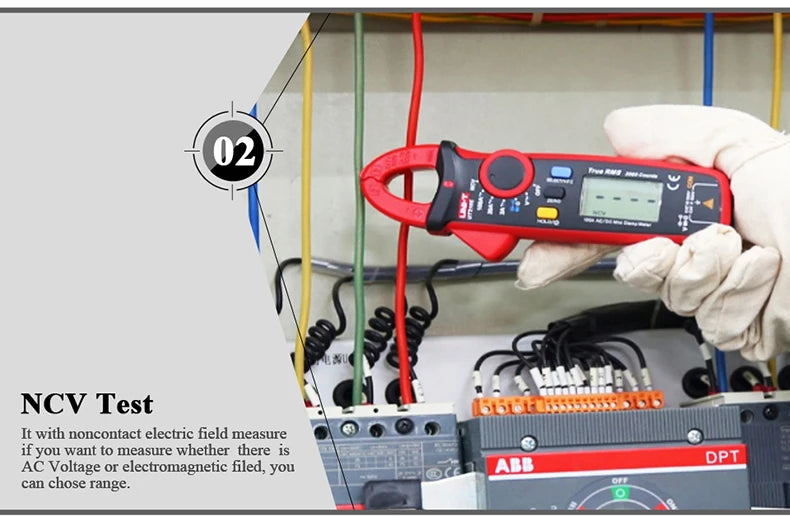

6.NCV ,non contact detection
7.Auto Range
8.True RMS measurement
9.Data Hold
10.Zero measurement
11.Diode/Capacitance Measurement
12.Frequency/Temperature measurement(Only UT210D)

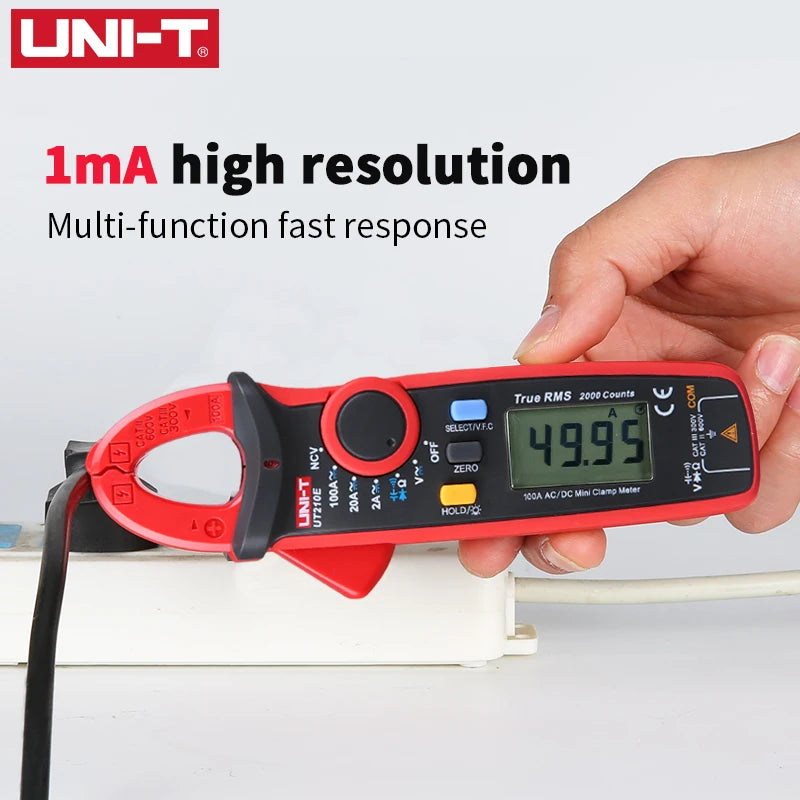

13.1mA Resolution(Only UT210E)
|

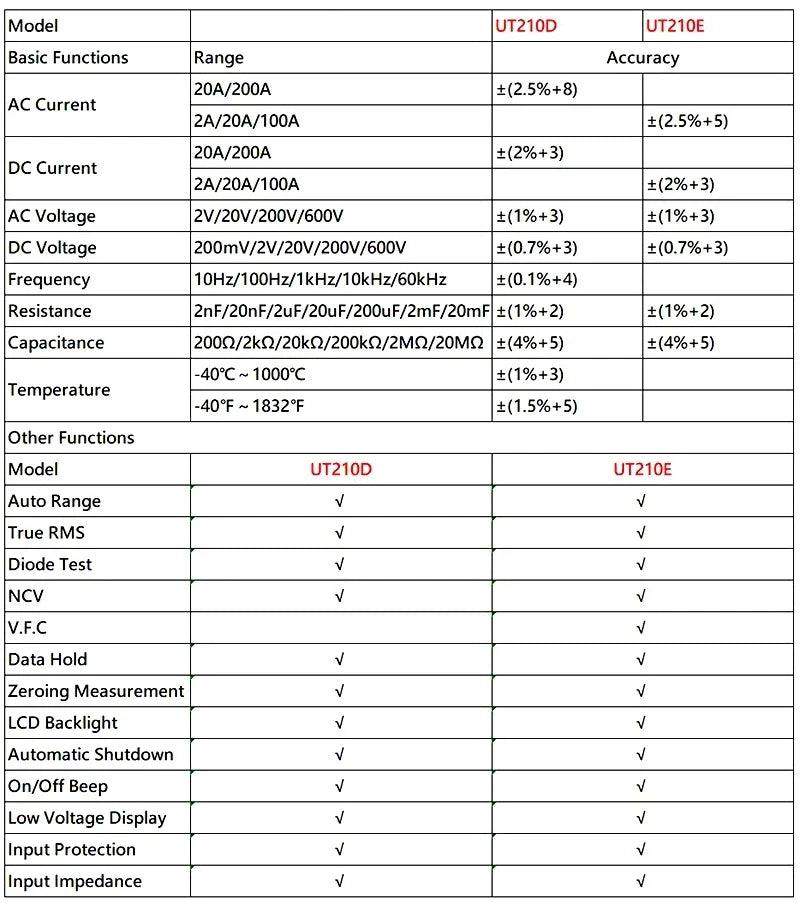

Specifications |
Range |
Resolution |
UT210E |
UT210D |
|
AC current (A) |
2.000A |
1mA |
±(3%+10) |
|
|
20.00A |
10mA |
±(2.5%+8) |
±(2.5%+8) |
|
|
100.0A |
100mA |
±(2.5%+5) |
|
|
|
200.0A |
100mA |
|
±(2.5%+8) |
|
|
DC current (A) |
2A |
1mA |
±(2%+8) |
|
|
20A |
10mA |
±(2%+3) |
±(2%+3) |
|
|
100A |
100mA |
±(2%+3) |
|
|
|
200A |
100mA |
|
±(2%+3) |
|
|
AC voltage (V) |
2.000V |
1mV |
±(1%+3) |
±(1%+3) |
|
20.00V |
10mV |
|||
|
200.0V |
100mV |
|||
|
600V |
1V |
±(1.2%+3) |
±(1.2%+3) |
|
|
DC voltage (V) |
200.0mV |
0.1mV |
±(0.7%+5) |
±(1%+8) |
|
2.000V |
1mV |
±(0.7%+3) |
±(0.7%+3) |
|
|
20.00V |
10mV |
|||
|
200.0V |
100mV |
|||
|
600V |
1V |
|||
|
Resistance (Ω) |
20MΩ |
|
±(1%+2) |
±(1%+2) |
|
Frequency (Hz) |
60kHz |
|
|
±(0.1%+4) |
|
Capacitance (F) |
20mF |
|
±(4%+5) |
±(4%+5) |
|
Temperature |
-40~1000℃ |
|
|
±(1%+3) |
|
-40~1832℉ |
|
|
±(1.5%+5) |
|
|
Features |
||||
|
Display count |
2000 |
2000 |
||
|
Continuity buzzer |
√ |
√ |
||
|
Auto range |
√ |
√ |
||
|
Jaw opening |
17mm |
17mm |
||
|
Diode test |
Around 3.0V |
√ |
√ |
|
|
General Characteristics |
||||
|
Power |
1.5V battery (R03) x 2(No include) |
|||
|
Display |
39.3mm x 26.5mm |
|||
|
Product color |
Red and grey |
|||
|
Product net weight |
170g |
|||
|

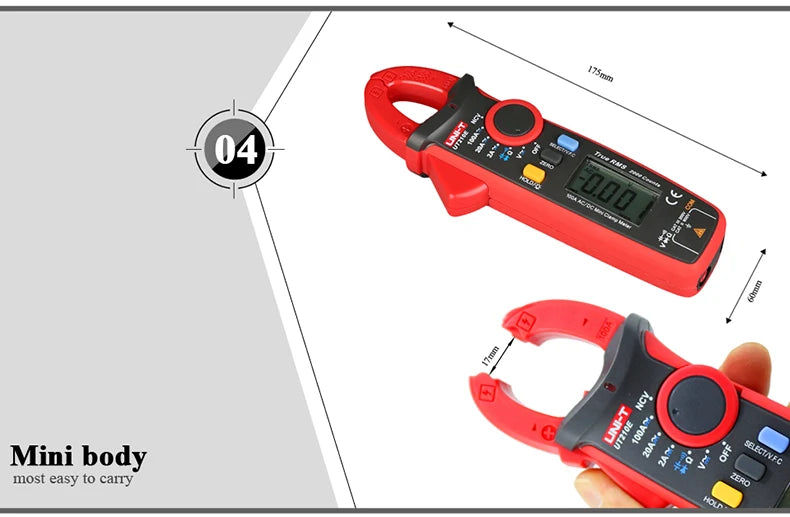

Product size |
175mm x 60mm x 33.5mm |
|||
|

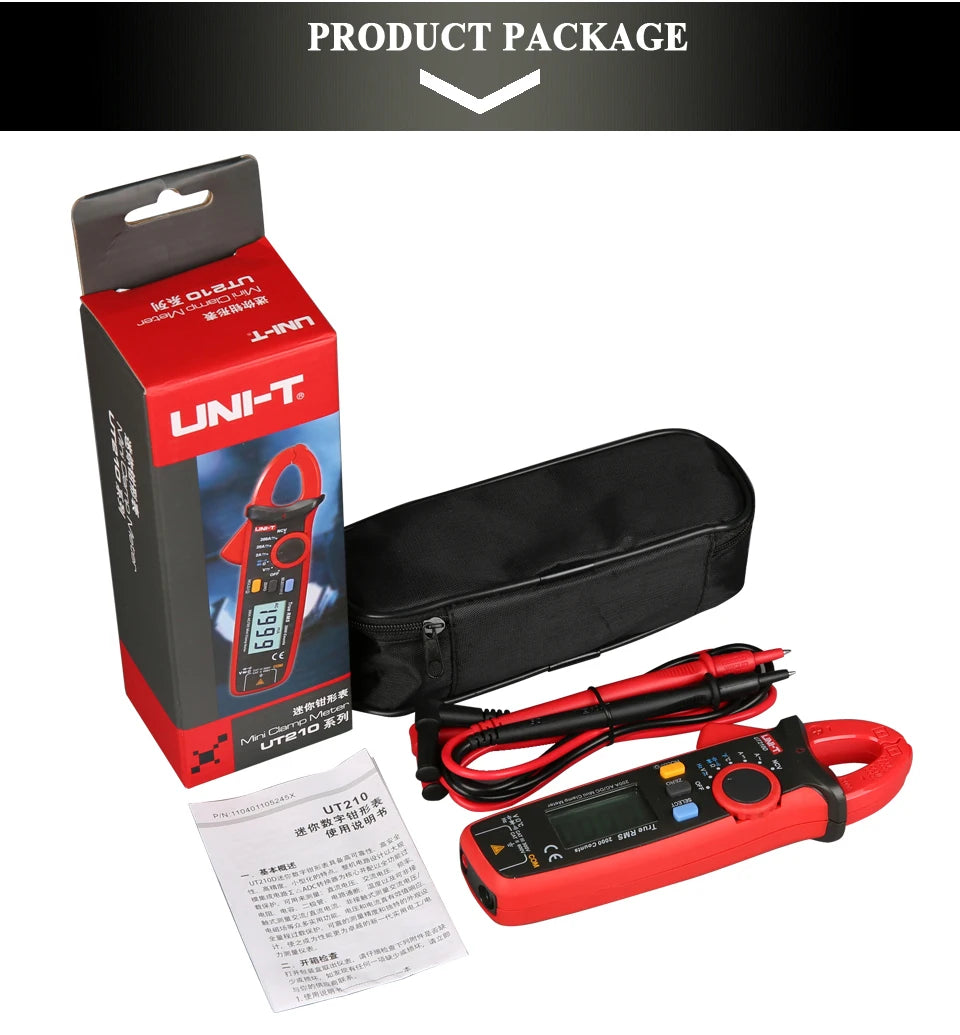

Standard accessories |

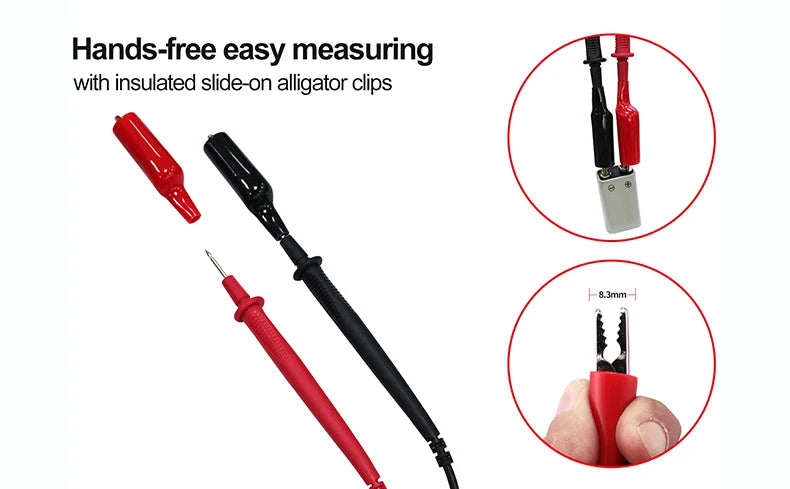

test leads x 1, point contact temperature probe x 1 (UT210D) |
|||
Notice please: battery no include!
