Description
xSPECIFICATIONS
Battery Included: No
Brand Name: UNI-T
Certification: CE
High-concerned chemical: None
Model Number: UT682
Origin: Mainland China

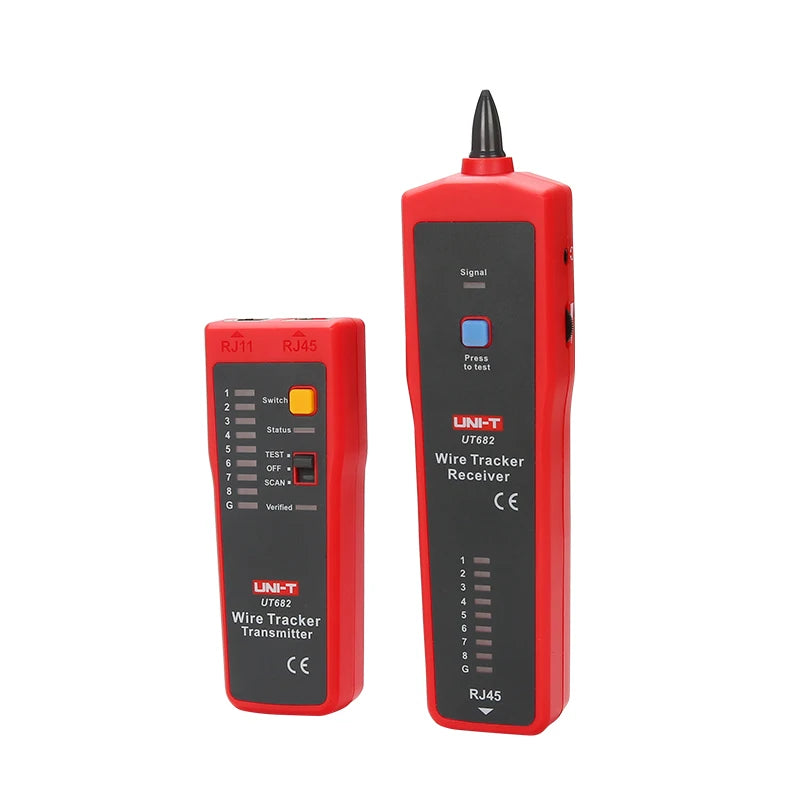

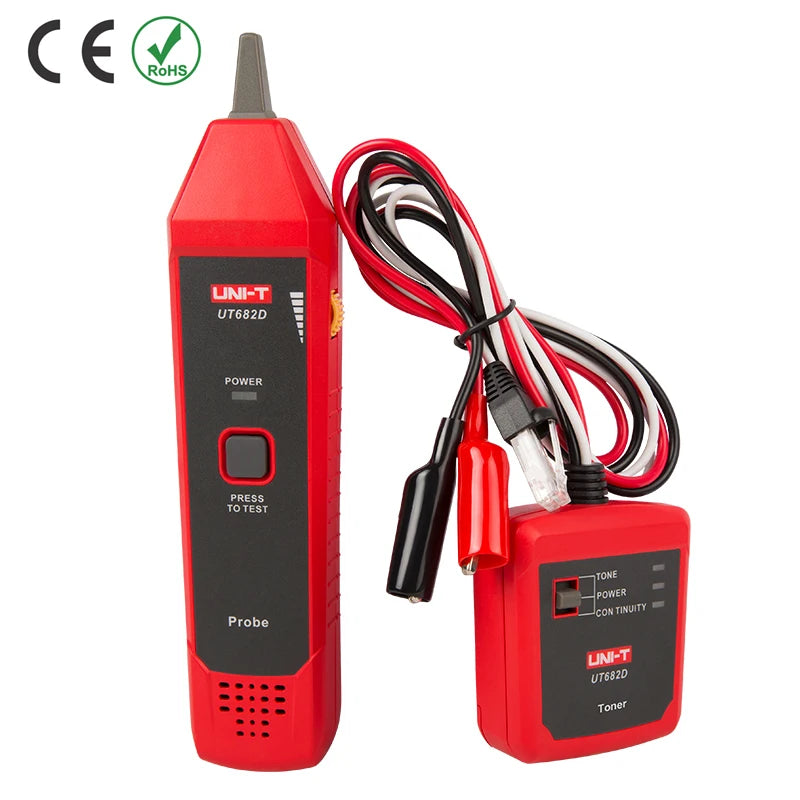

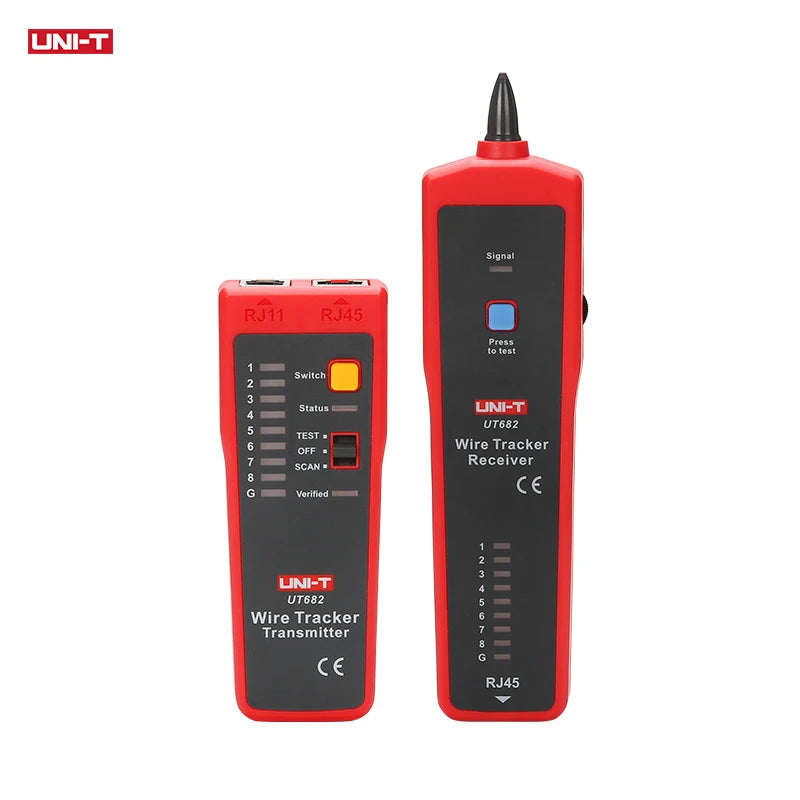

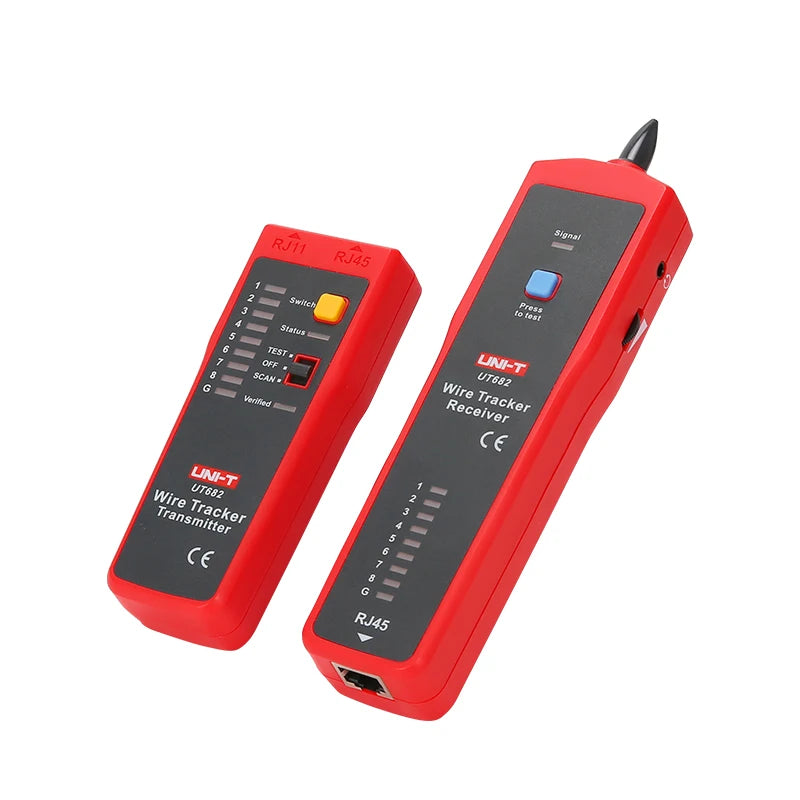

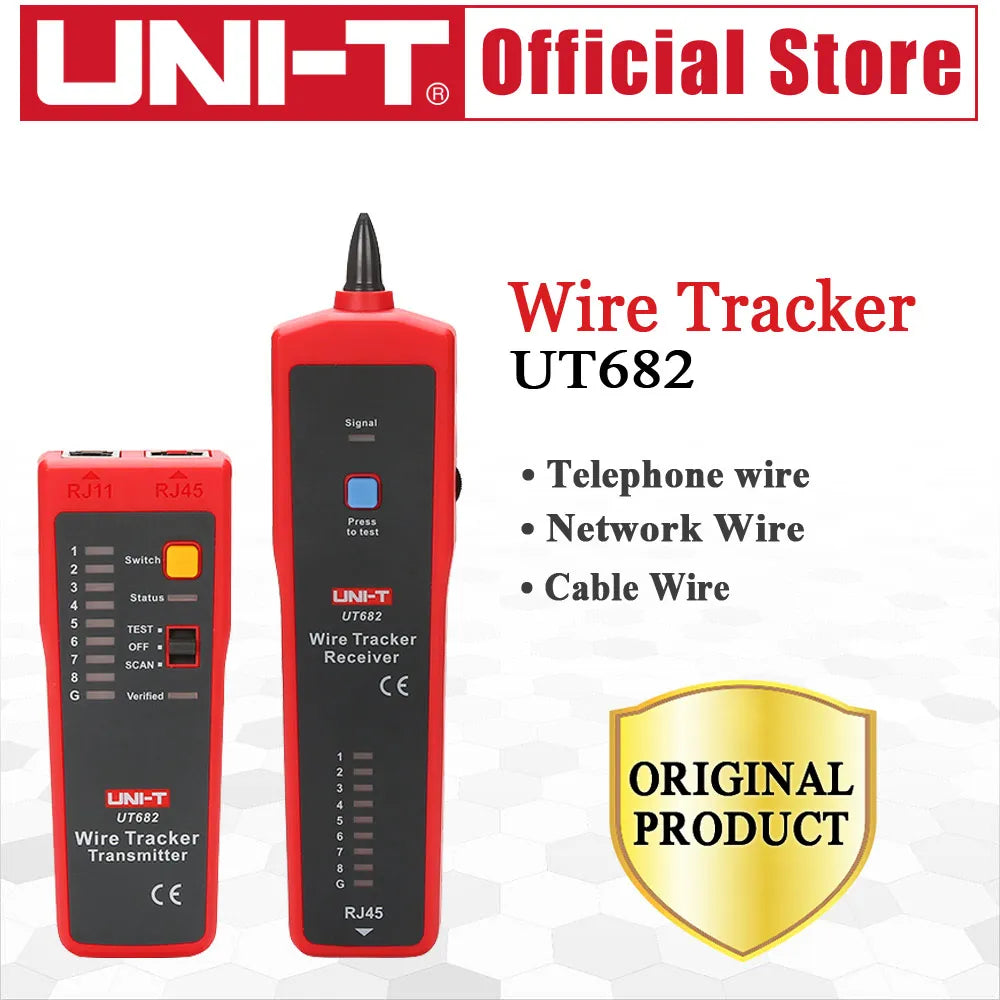

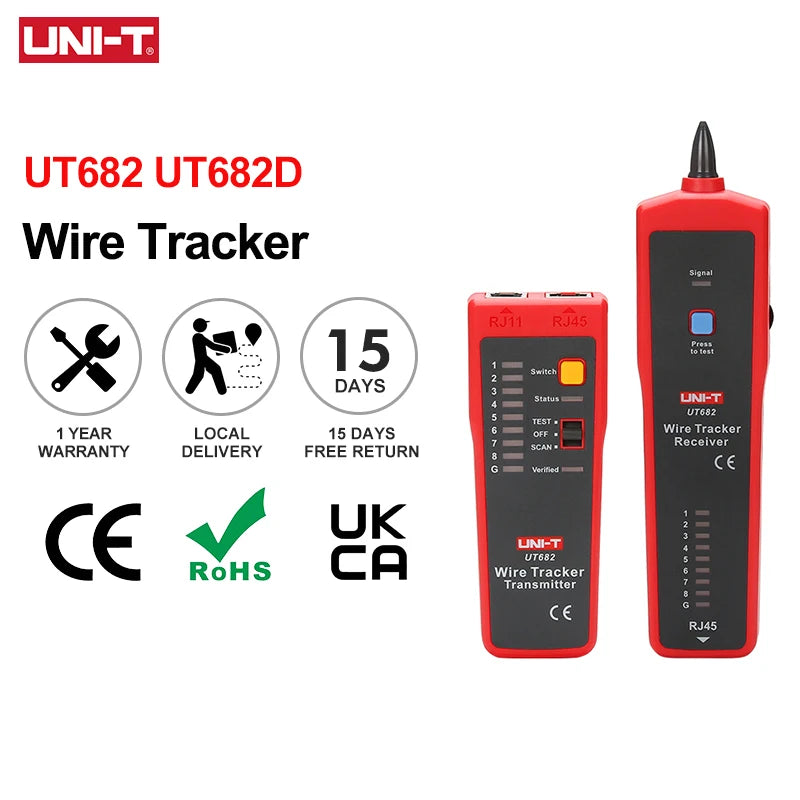

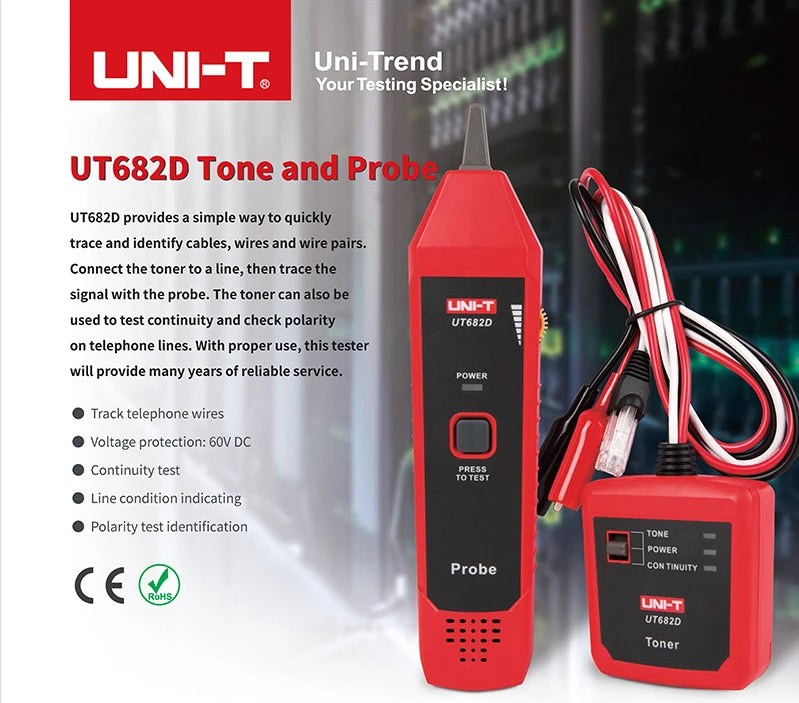

UT682D/UT682 Wire Tracker/Tone and Probe

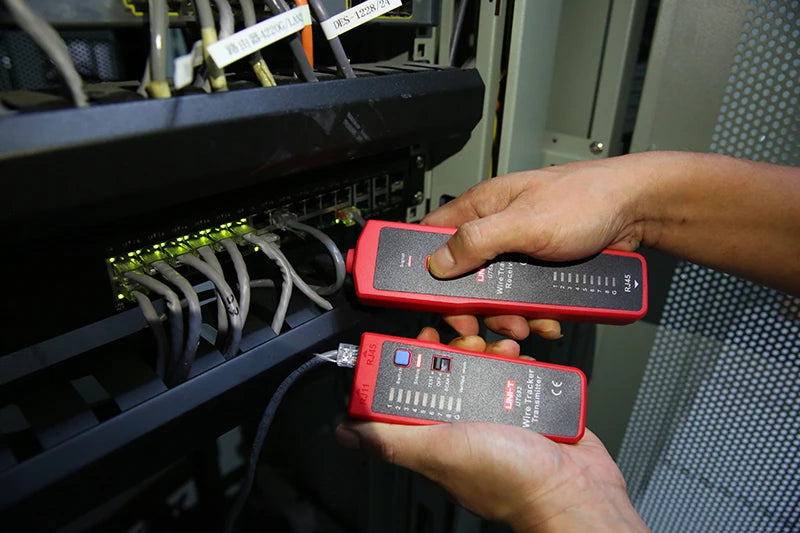

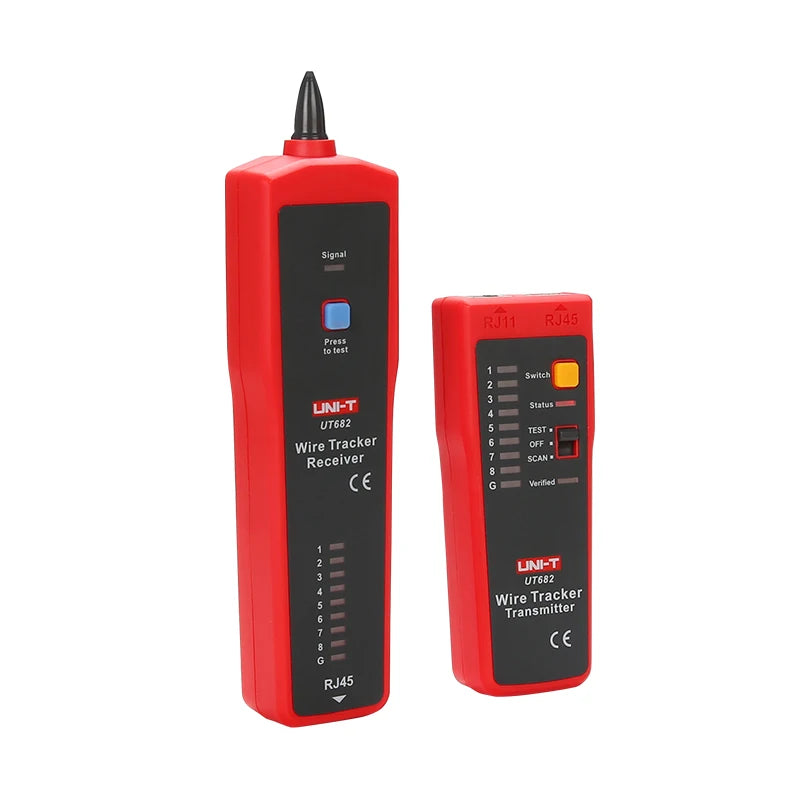

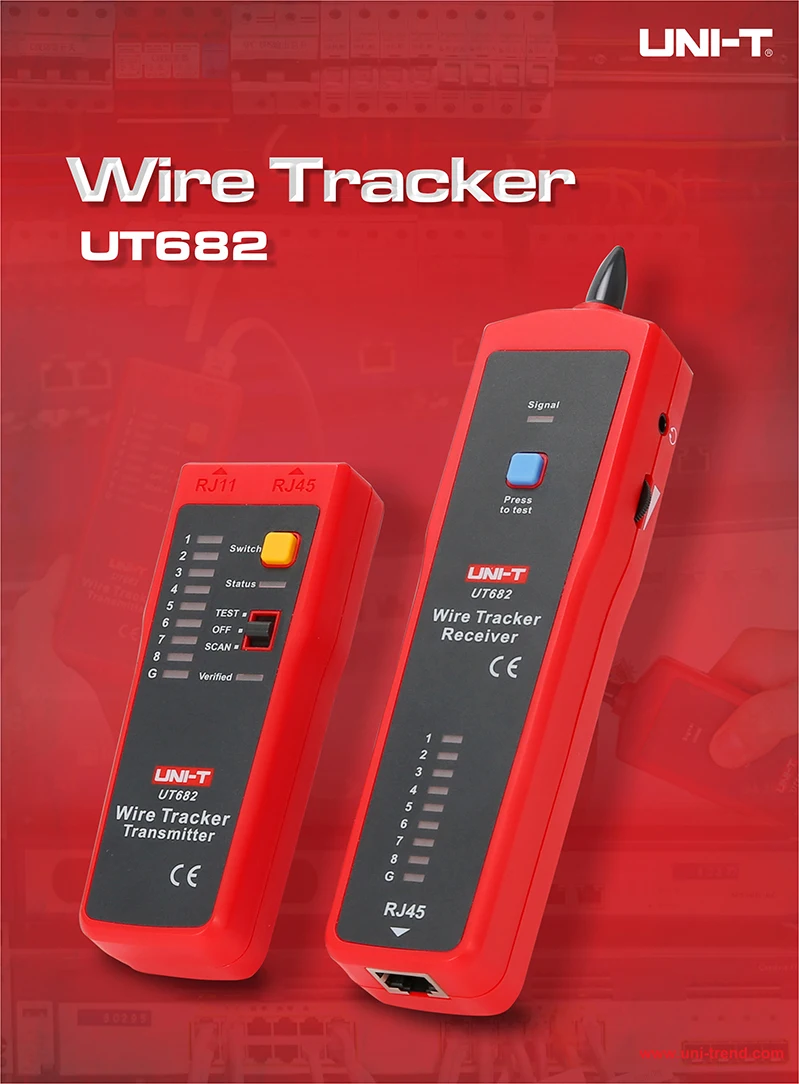

UT682 wire tracker consists of a transmitter and a receiver, it is able to track ethernet/telephone/power cables without opening their insulation. UT682 can troubleshoot ethernet cables and is a recommended tool for debugging communication cables and audio/video cables.

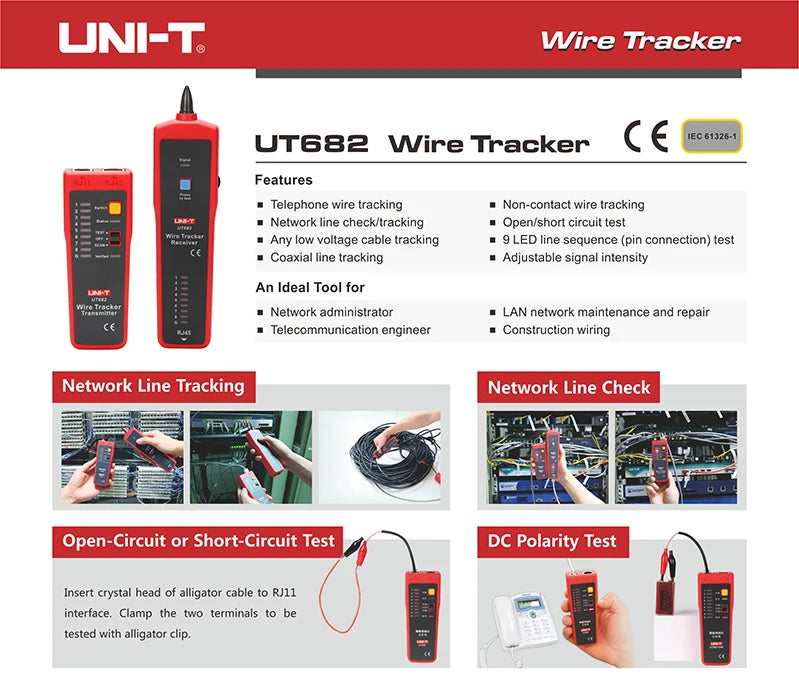

Features
● Telephone/ethernet/power cable tracking
● DC level test, can check voltage level and polarity
● Ethernet cable wiring sequence verification
● Fast open/short circuit test
● Volume adjustment
● Headset connection for noisy environment
● Dual measurement cycle mode
● Low battery indication
Notice please: battery no include!
|

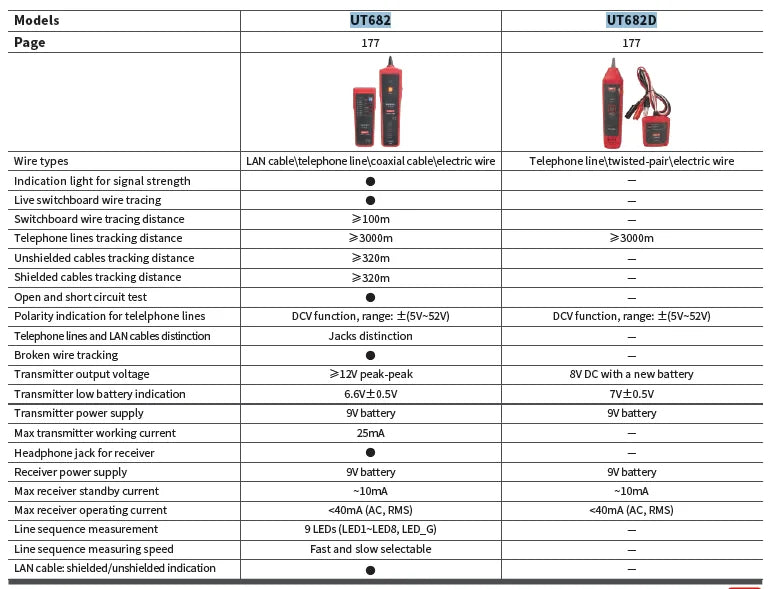

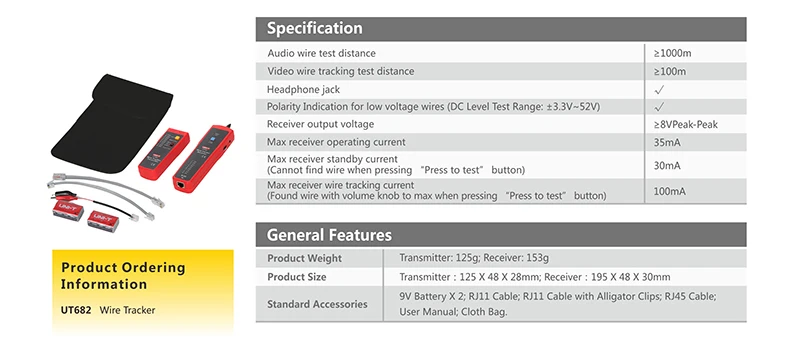

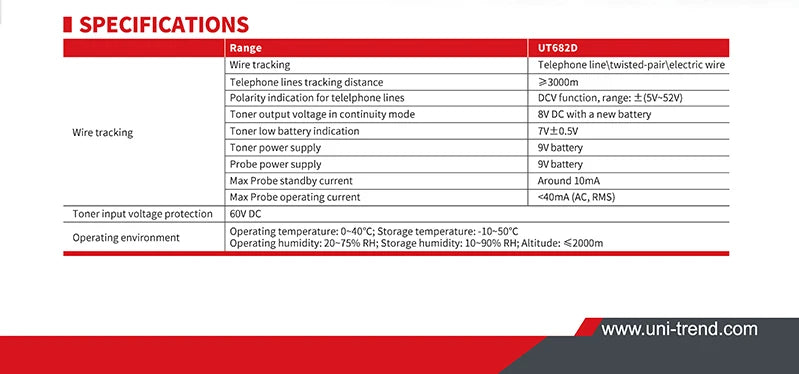

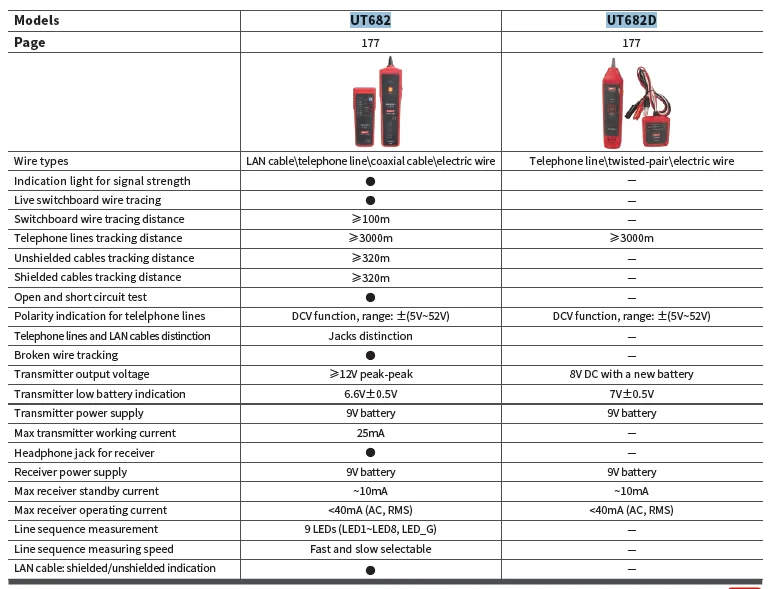

Specifications |
Range |
UT682 |
UT682D |
|
|
Wire tracking features |
Wire types |
LAN cable\telephone line\coaxial cable\electric wire |
Telephone line\twisted- |
|
|
Indication light for signal strength |
√ |
|
||
|
Live switchboard wire tracing |
√ |
|
||
|
Switchboard wire tracing distance |
≥100m |
|
||
|
Telephone lines tracking distance |
≥3000m |
≥3000m |
||
|
Unshielded cables tracking distance |
≥320m |
|
||
|
Shielded cables tracking distance |
≥320m |
|
||
|
Open and short circuit test |
√ |
|
||
|
Polarity indication for |
DCV function, range: |
√ |
√ |
|
|
Telephone lines and LAN cables distinction |
Jacks distinction |
√ |
√ |
|
|
Broken wire tracking |
√ |
|
||
|
Transmitter output voltage |
≥12V peak-peak |
8V DC with a new battery |
||
|
Transmitter low battery indication |
6.6V±0.5V |
|
||
|
Transmitter power supply |
9V battery |
√ |
√ |
|
|
Max transmitter working current |
25mA |
|
||
|
Headphone jack for receiver |
√ |
|
||
|
Receiver power supply |
9V battery |
√ |
√ |
|
|
Max receiver standby current |
~10mA |
√ |
√ |
|
|
Max receiver operating current |
<40mA (AC, RMS) |
√ |
√ |
|
|
Wire alignment |
Line sequence measurement |
9 LEDs (LED1~LED8, LED_G) |
√ |
|
|
Line sequence measuring speed |
Fast and slow selectable |
√ |
|
|
|
LAN cable: shielded/unshielded indication |
√ |
|
||
|
Transmitter input |
|
52V DC |
60V DC |
|
|
Operating environment |
Operating temperature: 0~40℃; Storage temperature: -10~50℃ |
|||
|
General Characterisitics |
||||
|
Product color |
Red and grey |
|||
|
Product net weight |
UT682: Transmitter-125g, receiver-153g; UT682D: Transmitter-150g, Receiver-130g |
|||
|
Product size |
UT682: Transmitter-125mm x 48mm x 28mm, receiver-195mm x 48mm x 30mm |
|||
|
Standard accessories |
9V battery x 2, RJ11 cable (UT682), RJ45 cable (UT682), RJ11 cable with alligator clips (UT682) |
|||
|
Standard individual packing |
Blister (UT682), carrying bag (UT682), gift box (UT682D), English manual |
|||
